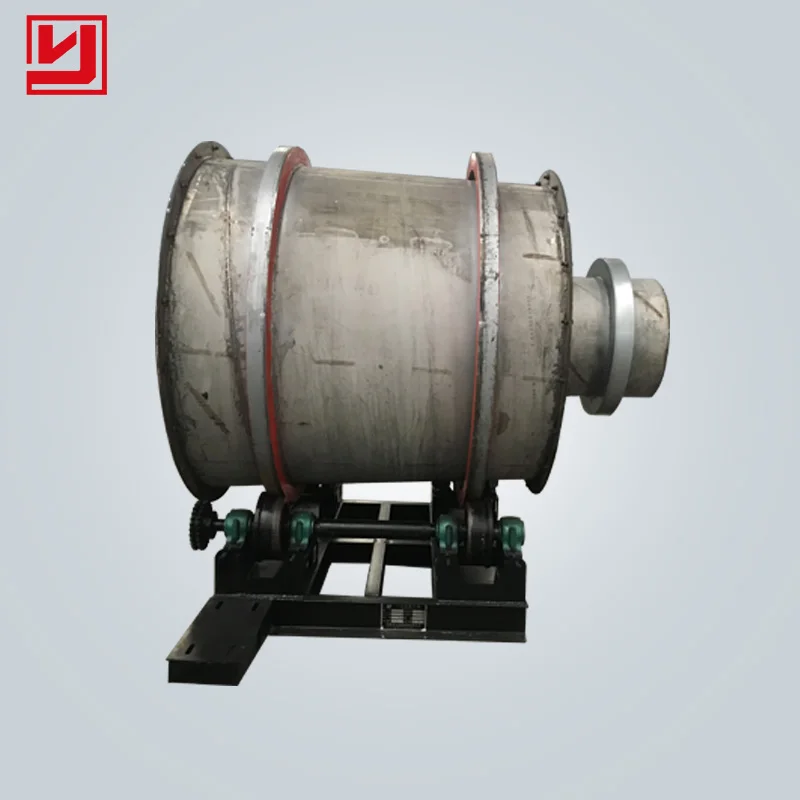

Discount Price Silica Sand Three Cylinder Three-Cylinder Three-Pass Triple Pass Type Rotary Drum Dryer Machine Working
- Категория: Drum Drying Equipment >>>
- Поставщик: Henan,Yuhong,Heavy,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.1 $* | 0.10 $* |
| Aug-17-2025 | 0.44 $* | 0.33 $* |
| Jul-17-2025 | 0.83 $* | 0.48 $* |
| Jun-17-2025 | 0.91 $* | 0.23 $* |
| May-17-2025 | 0.75 $* | 0.0 $* |
| Apr-17-2025 | 0.88 $* | 0.64 $* |
| Mar-17-2025 | 0.21 $* | 0.5 $* |
| Feb-17-2025 | 0.5 $* | 0.89 $* |
| Jan-17-2025 | 0.35 $* | 0.29 $* |
Характеристики

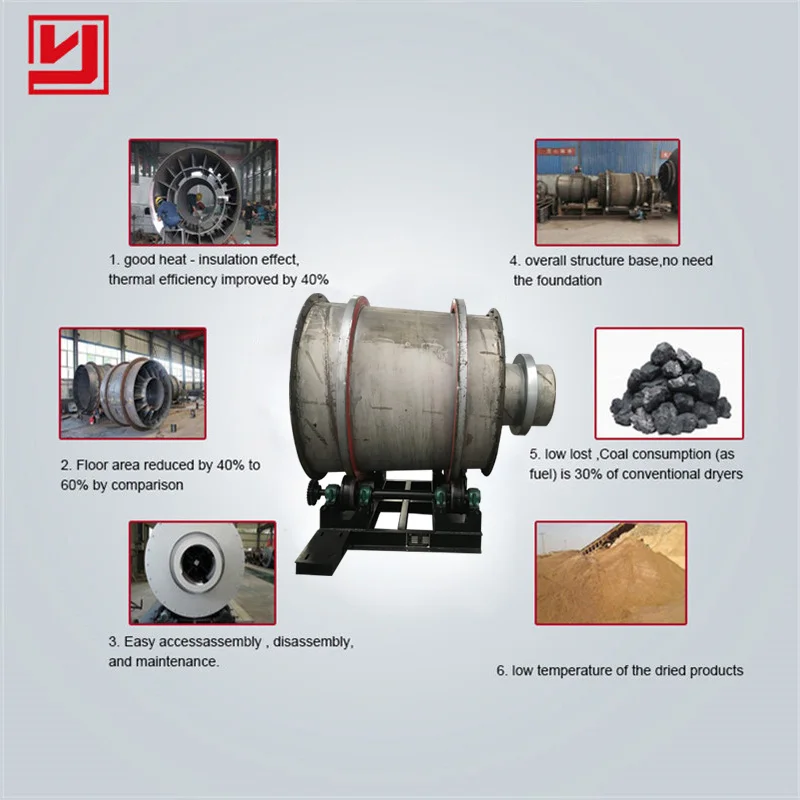

6 ADVANTAGES OF PRODUCT STRUCTURE
1.Good heat - insulation effect,thermal efficiency improved by 40%
2.Floor area reduced by 40% to 60% by comparison
3.Easy accessassembly , disassembly, and maintenance.
4.Overall structure base,no need the foundation
5.low lost ,Coal consumption (as fuel) is 30% of conventional dryers.
6.low temperature of the dried products
APPLICABLE MATERIALS
The Three Drum Dryer is a kind of processing large amounts of material drying machine. Due to the reliable operation, good adaptability, high yield, widely used in metallurgy, building materials, fly ash, chemicals, medicine and other materials. Commonly adapted to the powder and granular materials, can also use the mixing material approach drying viscous paste-like material or high water content materials. Especially dry sand.
PRODUCT PARAMETERS

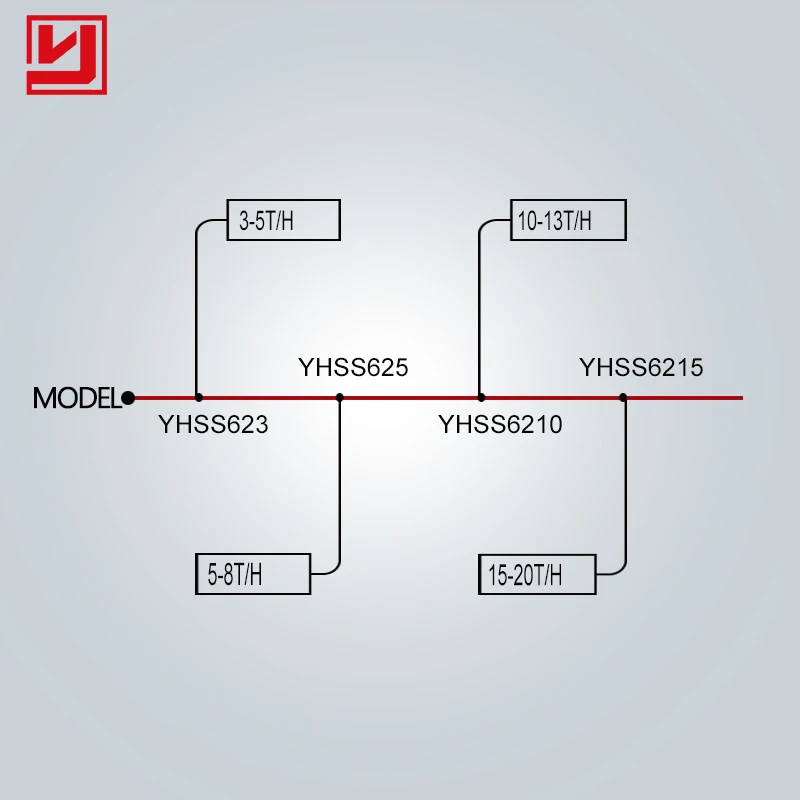

Parameters | YHSS623 | YHSS625 | YHSS6210 | YHSS6215 |
Drying capacity | 3-5t/h | 5-8t/h | 10-13t/h | 15-20t/h |
Diameter of drum | 1650mm | 2140mm | 2000mm | 2200mm |
Length | 1650mm | 2000mm | 4500mm | 5500mm |
Motor power | 3kw | 3kwx2 | 4kwx2 | 7.5kw*2 |
Reducer model | XWD-5 | XWD-5 | XWD-5 | XWD-5 |
Speed of drum rotation | 4-10 r/min | 4-10 r/min | 4-10 r/min | 4-10 r/min |
Max moisture | 15% | 15% | 15% | 15% |
Moisture of end products | 0.1%-0.8% | 0.1%-0.8% | 0.1%-0.8% | 0.1%-0.8% |
Max. temperature inside | 700-750℃ | 700-750℃ | 700-750℃ | 700-750℃ |
Outlet temperature | 30-60℃ | 30-60℃ | 30-60℃ | 30-60℃ |
Hot-blast Stove dimensions | 2074×1526×2100mm | 2326×1726×2400mm | 2576×2026×2650mm | 2760m×2250m×2860m |
Furnace door | 300×450 mm | 350×450mm | 350×450mm | 450*550 mm |
Quicksand tube | ø273×1250m mm | φ273×1500 mm | φ325×1690 mm | φ400×2000 mm |
Coal consumption | 7-10 kg/ per ton sand | 7-10 kg/ per ton sand | 7-10 kg/ per ton sand | 7-10 kg/ per ton sand |
FAQ
Q1: Why choose YuHong machinery?
A1: 1. Up-to-date design, CAD calculation and simulation;
2. ISO,BV,SGS,CE quapty control manufacturing;
3. Over 30 years experience, export to over 50 countries;
4. Highest standard to suit operators' use;
5. World class quality at affordable price.
Remarks: The price will depend on different models. Reply message ,you will get 5% discount price.
CONTACT SUPPLIER
Q2: What are the requirements for three drum dryer material?
A2: Our Yuhong has a high standard on choosing material of three drum dryer.
1.Using very high grade steel plate (i.e. Q235, Q345) on structuring part;
2. Using wear-resistant steel (i.e. ZG35, ZGMn13, 65Mn, 35CrMo, ZG60Si2CrA) on quick-wear parts;
3. The motor, reducer, bearing, belt, bolts are Chinese top 5 brands;
4. Metallurgy performance must be considered during designing, cutting, bending, fitting&welding.
CONTACT SUPPLIER
Q3: What information do we need to provide you the reasonable model and best quotation?
A3: 1. What is the raw material?
2.Raw material maximum feeding size (mm or mesh)?
3. Final products size (mm or mesh) and usage?
4. What is the capacity per hour?
CONTACT SUPPLIER
HENAN YUHONG HEAVY MACHINERY CO., LTD.
Henan Yuhong Heavy Machinery Co.,LTD is a joint-stock mining machinery manufacturing enterprise integrated in scientific research,prodcution and marketing.our main products include five series ,they are the Crushing equipment ,Beneficiation equipment,Grinding Powder equipment ,Drying equipment ,Kilning equipment.YUHONG GROUP set off from "the customer for this " angle ,put self's whole heart to be that the customer provides the valuable service pattern,the effort using up 100% satisfies different customer product need.
