37 5 кВА 30 кВт прочный дизельный генератор высокой

37 5 кВА 30 кВт прочный дизельный генератор высокой

Категория: Дизельные генераторы >>>
Поставщик: Weifang,Best,Power,Equipment,Co.,Ltd.

Цена:111 500,10 ₽*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	132685.87 $*	139319.66 $*
Aug-16-2025	131570.60 $*	138149.14 $*
Jul-16-2025	110385.85 $*	115904.4 $*
Jun-16-2025	129340.86 $*	135807.15 $*
May-16-2025	112615.58 $*	118246.46 $*
Apr-16-2025	127110.95 $*	133466.89 $*
Mar-16-2025	125995.78 $*	132295.31 $*
Feb-16-2025	124880.43 $*	131124.63 $*
Jan-16-2025	123765.73 $*	129953.37 $*

Характеристики

37.5Kv

1.We develops independently with 4100 series, British ricardo R4105 and R6105 series, the 6113 series and steel 6126 series diesel engines.
2.Combined the advantages of domestic and foreign advanced diesel engines , improved the fuel injection system, intake and exhaust system, the cooling system to suit the seeds of various generating sets.
3.High power, low fuel consumption, easy to start, equipped with air filter rear.
4.High quality Silent box, ATS, trailer, battery, brush or without brush as optional parts.
5.The generator can be equipped in factory, school, hospital, farm,etc.

DIESEL GENERATOR SET SPECIFICATIONS
Ricardo Diesel engine	Diesel engine brand	BEST POWER
	Model	ZH4100D
	Standby power	33KW
	Rated power	1500r/min
	Type	Inline ,four strokes
	Intake method	Turbocharged, air-cooled
	Stroke number	4
	Cylinder number	4
	Bore*stoke	100*115mm
	Total displacement of piston	3.6L
	Speed mode	Electronic speed regulation
	Fuel type	Diesel type
	Starting way	DC24V electric starting
	Cooling way	Closed circulation forced water cooling (fan is directly driven by the engine)
	Minimum fuel consumption rate	248g/kw.h
	Lub Oil consumption rate	0.3g/kw.h
	Crankshaft rotation direction	Counterclockwise (facing the flywheel end)
	Lub oil capacity	13L
Alternator	Rated power	30KW
	Rated current	54A
	Rated voltage	400V/230V
	Rated frequency	50HZ
	Rated speed	1500r/min
	Rated power factor	0.8(Lag)
	Generator efficiency	91.62%
	Waveform	Positive wave
	Phase and connection	Three-phase four-wire, star hair extension
	Excitation method	Brush
	Pressure regulation method	Automatic
	Protection class	IP21
Main technical specifications of diesel generator set	Genset type	Closed silent type
	Generator set model	30GF
	Rated power factor: COSΦ = 0.8 (lag)	Steady-state voltage adjustment rate (%): ≤ ± 1
	Rated output voltage:400V/230V	Voltage fluctuation rate (%): ≤ ± 0.5
	Rated current:54A	Transient voltage adjustment rate (%): + 20 ~ -15
	Rated frequency:50Hz	Voltage stabilization time (s): ≤1
	Rated speed :1500rpm	Steady-state frequency adjustment rate (%): ≤ ± 1
	Start control mode: manual	Frequency fluctuation rate (%): ≤ ± 0.5
	Overload protection: water temperature, oil pressure, overcurrent, overload	Transient frequency adjustment rate (%): + 10 ~ -7
	Battery:100AH*2	Frequency stabilization time (S): ≤3
	Silent type Generator set size:	L:2200mm,W:1000mm,H:1600mm
	Whole Weight:	800KG

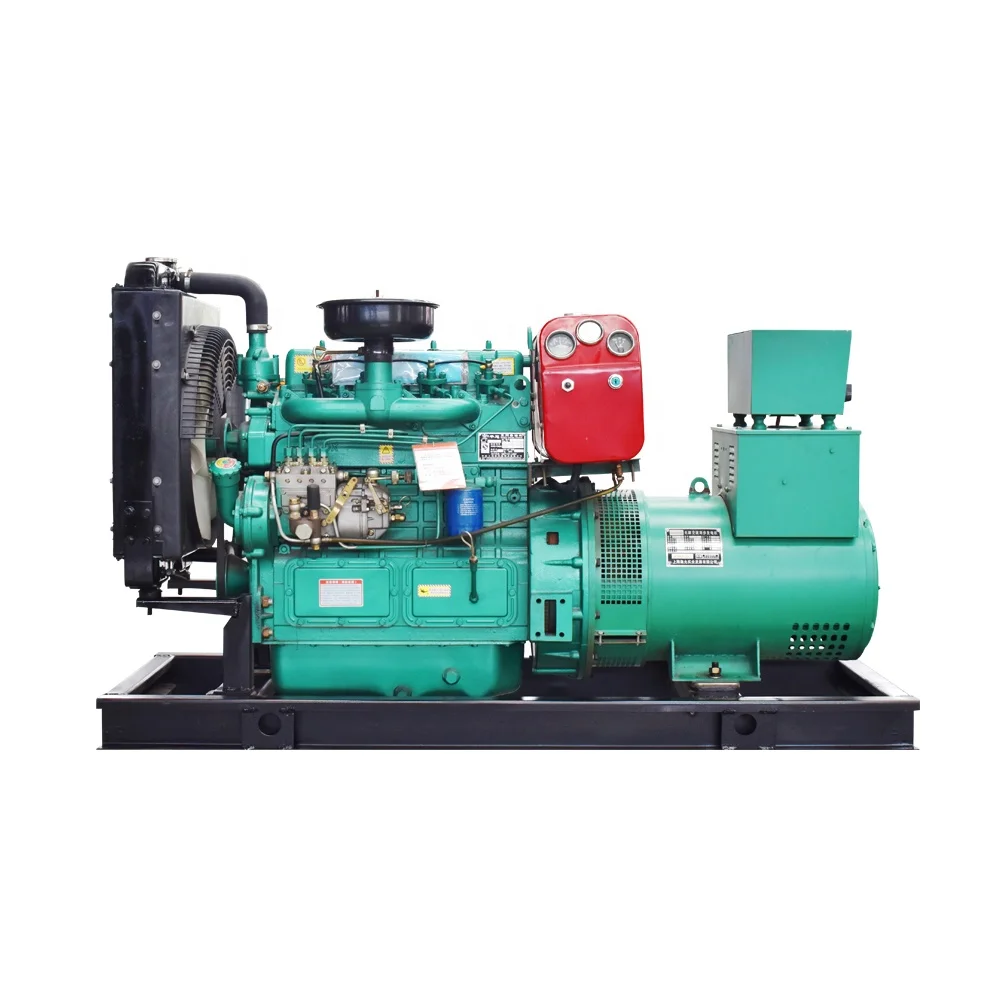

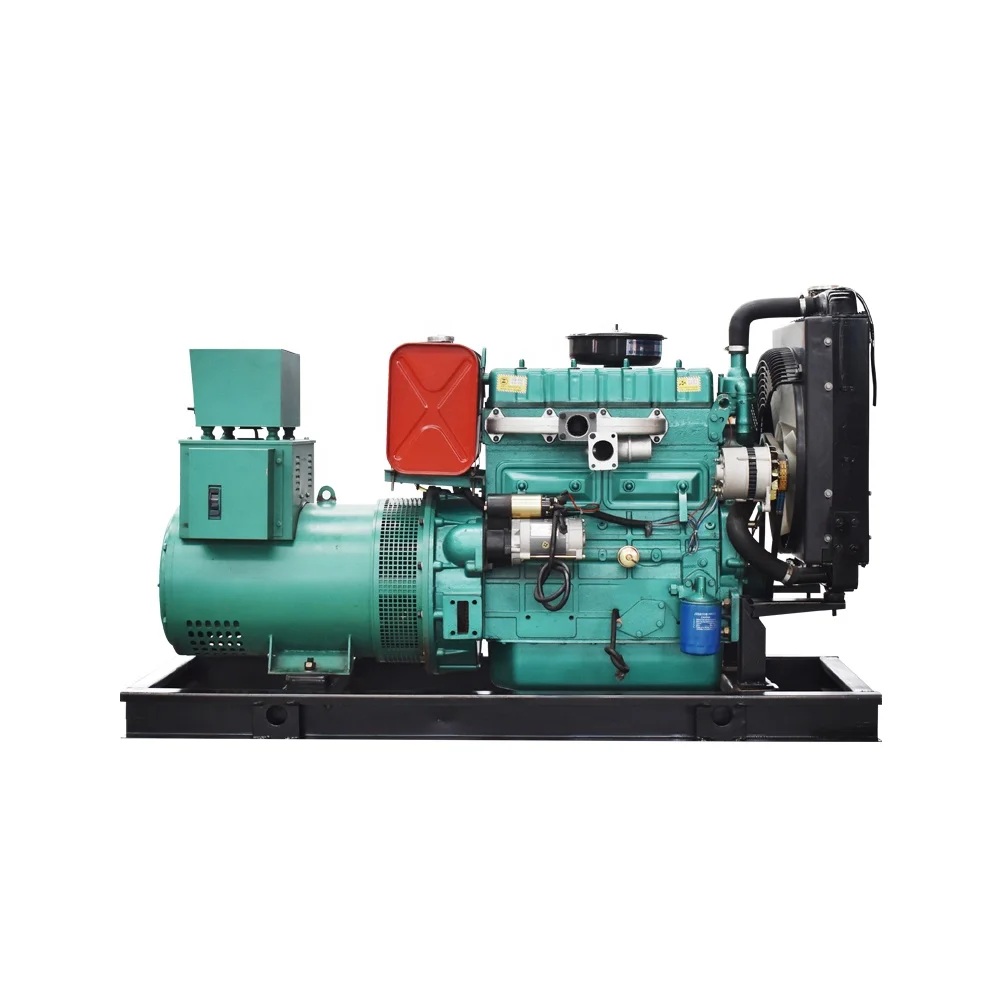

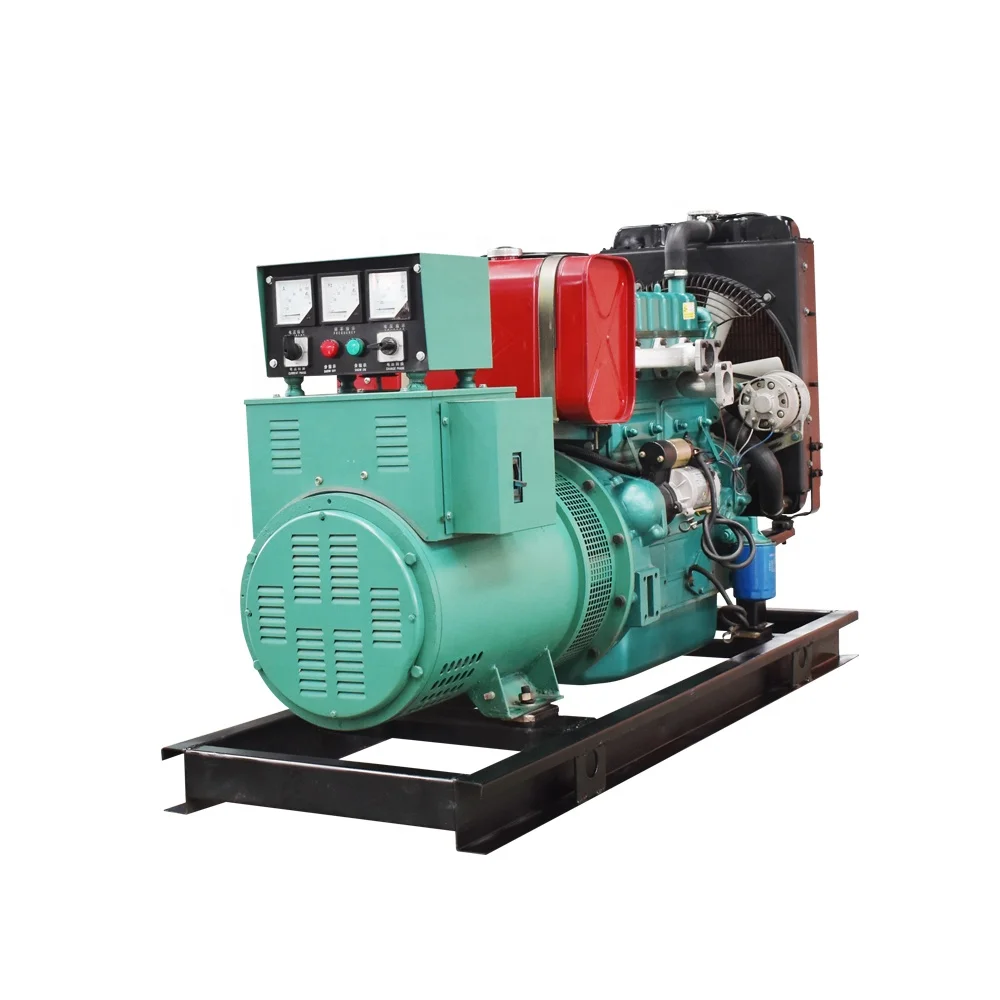

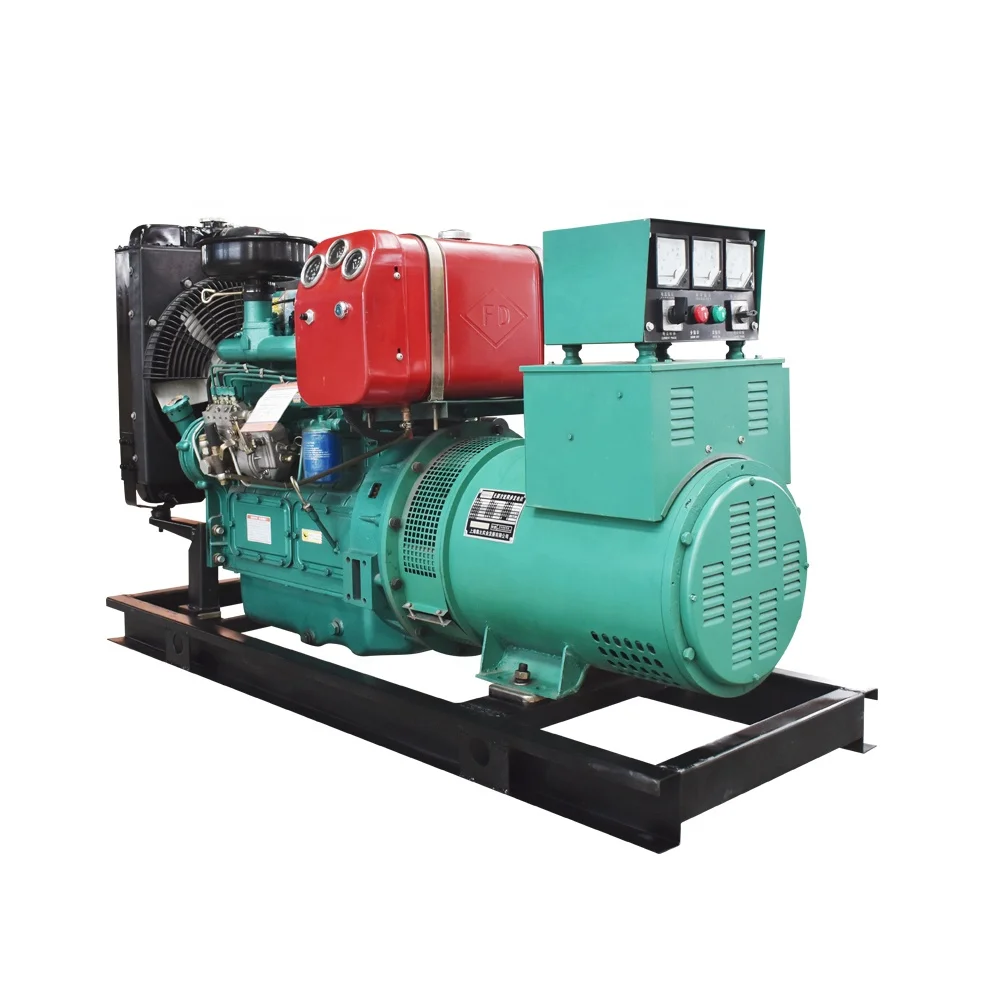

30Kw durable three phase high power open type manufacture small portable diesel electric generator for sale

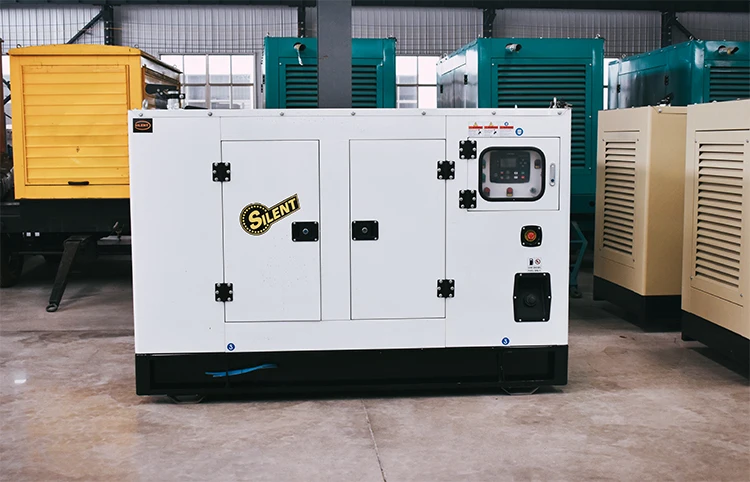

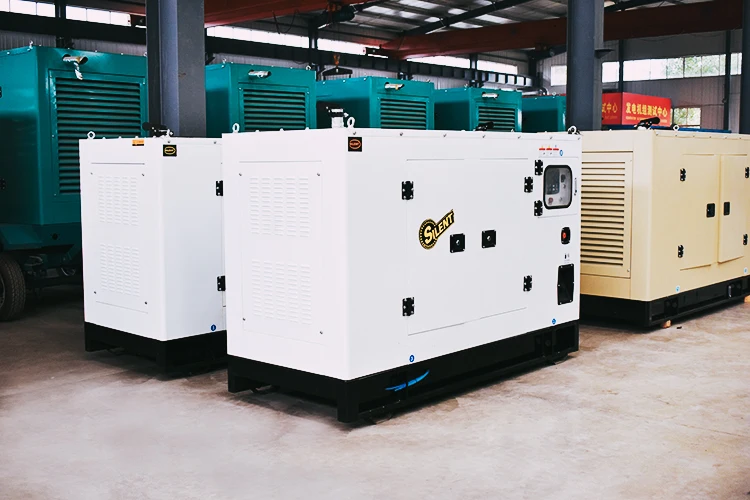

Silent type: (Upgrade to silent version requires additional expenses) DSC_0786- DSC_0856-

Optional

1.ATS: AUTOMATIC TRANSFER SWITCH

2.TRAILER: PROTABLE TWO/THREE/FOUR WHEELS RAINPROOF

3.FUEL TANK: ACCORDING TO REQUEST 8h/10h/24h ....

4.Battery: GOOD QUALITY BATTERY

5.PROTECTION CONTROLLER: F,O PRESSURE , L.O PRESSURE , WATER TEMPETURE , RPM ,OVERLOAD ,OVERSPEED...

6.SOUNDPROOF: SILENCE BOX/CANOPY

What’s the difference between air-cooled generator and water-cooled generator?
This is another factor that you need to know before buying your first generator. Air-cooled or water-cooled engines, what’s the difference?
Air-cooled generator uses fans to force air across the engine for cooling. Air-cooling system is typically used in portable generator sets and standby generators up to 9kVA.
Water-cooled generator uses oil or coolant to keep the temperature of the internal parts low. It uses a radiator and water pump to distribute the cooling liquid to the engine using the hose. This engine cooling system is used ideally for big size generators. Water cooled generator is expensive to produce but more powerful and durable than the air-cooled generator.

DSC_0900-

Our customers include Africa, Southeast Asia, West Asia, South America and other emerging developing countries. We are committed to providing our customers with better quality, better price and good products, and creating more value for our customers.

.jpg

We have professional personal to provide pre-sale and after-sale services,they all have many experience in generators and high level of English. So it can guarantee to provide best service for customers.
