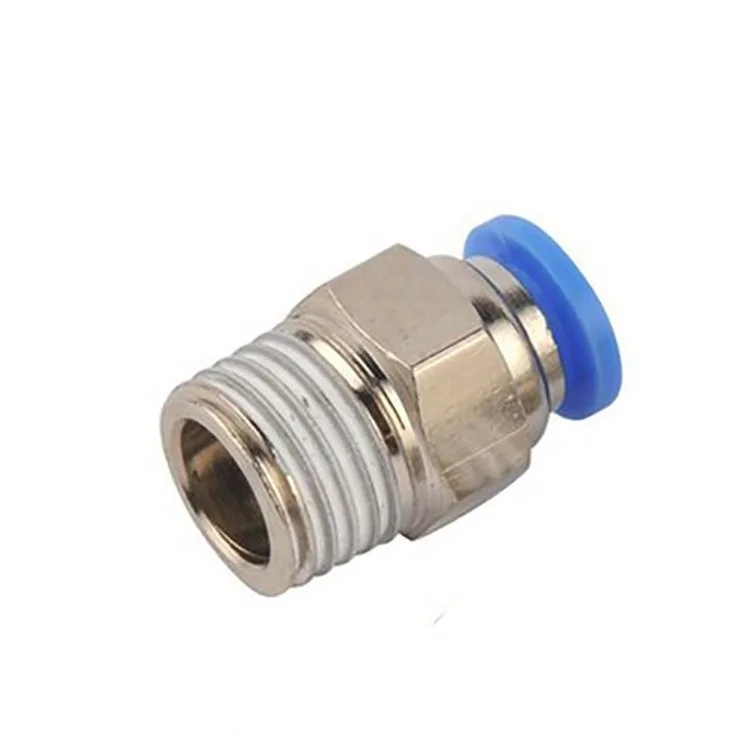

PC Union прямой никелированный латунный нажимной фитинг

PC4-M5

PC10-01

For example: PC 8-- 02 (G) (1) (2) (3) (4)

PC4-01

PC10-02

(1) Model: PC Push Fitting

PC4-02

PC10-03

(2) Tube OD

PC4-03

PC10-04

Metric: 8MM(Default)

PC6-M5

PC12-01

English: 5/16'' (MOQ:1000)

PC6-01

PC12-02

(3)Thread Size

PC6-02

PC12-03

Metric: M5

PC6-03

PC12-04

English: 02-1/4''

PC6-04

PC14-03

(4)Inch thread form:

PC8-01

PC14-04

Default: G(PF,BSPP)

PC8-02

PC16-02

(PT):BSPT(R)

PC8-03

PC16-03

(N):NPT(Z) (MOQ:3000)

PC8-04

PC16-04

Type

PC Union straight nickle plated brass push fit fitting pneumatic fitting

Operating Pressure

0-1.0MPa | 0-150psi

Operating Temperature

0 - 60 °C

BSP Thread Data

1/8" BSP thread---------Thread Outside Diameter: 9.728mm
1/4" BSP thread---------Thread Outside Diameter: 13.157mm
3/8" BSP thread---------Thread Outside Diameter: 16.662mm
1/2" BSP thread---------Thread Outside Diameter: 20.955mm
3/4" BSP thread---------Thread Outside Diameter: 26.441mm

Apply For

4/6/8/10/12/14/16mm tube/hose

Applicable Tube

PU / PA / PE / PVC

Features

1. Designed for Polyurethane or Nylon tubing.
2. Simple installation pneumatic push in connector.
3. After installation, the direction of the tube can be changed freely.
4. Elliptical release ring help to connect tube easily by manual, no special tools required.
5. Outside (and Inside where applicable) hexagonal wrench tightening.
6. This Quick fittings are only used for industrial automatic apparatus and can not be applied on any medicinal equipment.
