Полностью автоматическая машина для выдувания пластиковых резервуаров hdpe

Полностью автоматическая машина для выдувания пластиковых резервуаров hdpe

Категория: Экструзионно-выдувные формовочные машины >>>
Поставщик: Weifang,Xinhengda,Machine,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.50 $*	0.63 $*
Aug-19-2025	0.50 $*	0.33 $*
Jul-19-2025	0.51 $*	0.25 $*
Jun-19-2025	0.74 $*	0.80 $*
May-19-2025	0.17 $*	0.16 $*
Apr-19-2025	0.87 $*	0.66 $*
Mar-19-2025	0.67 $*	0.59 $*
Feb-19-2025	0.12 $*	0.13 $*
Jan-19-2025	0.83 $*	0.35 $*

Характеристики

Other Suitable Model

\t Modles	\t XHD2000-3	\t XHD2000-4	\t XHD2000-5	\t XHD3000-3	\t XHD3000-4	\t XHD3000-5
\t Capacity Range	\t 500-2000L	\t 500-2000L	\t 500-2000L	\t 1000-3000L	\t 1000-3000L	\t 1000-3000L
\t Numbers of Layers	\t 1-3	\t 1-4	\t 1-5	\t 1-3	\t 1-4	\t 1-5

Product Description

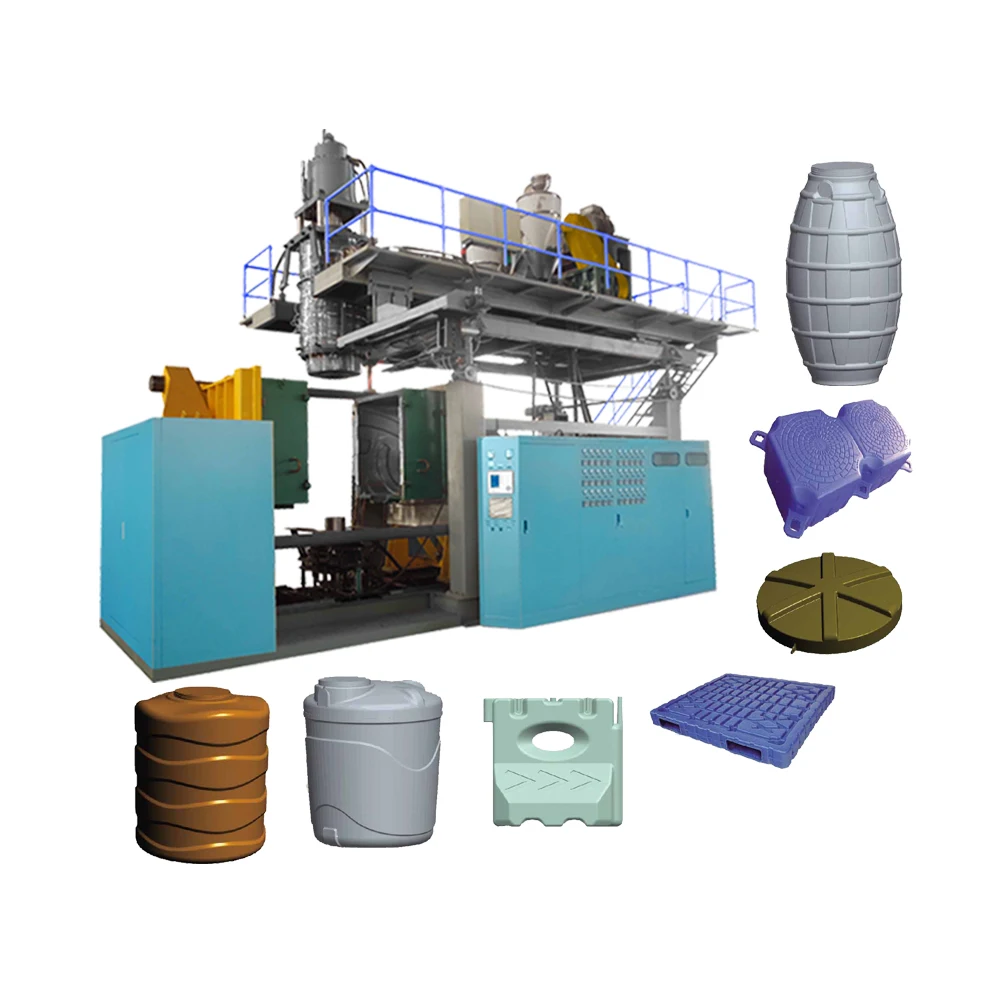

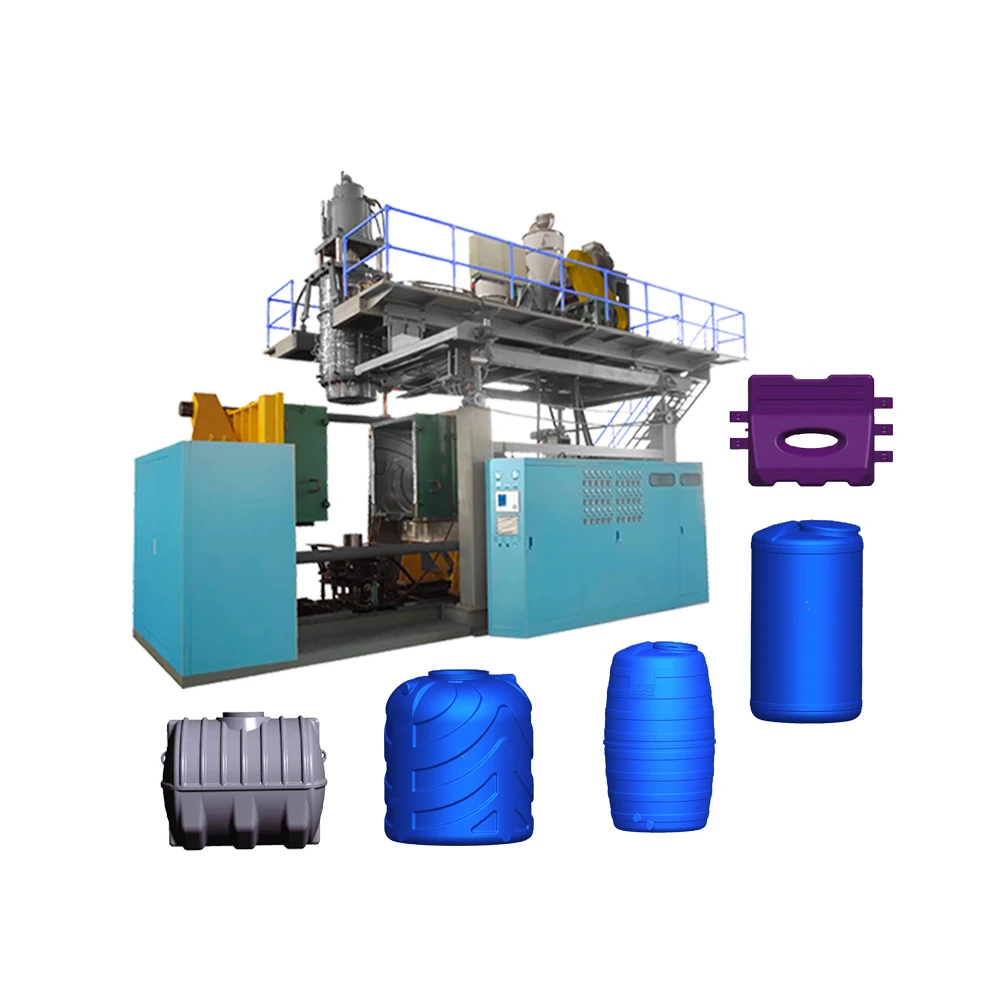

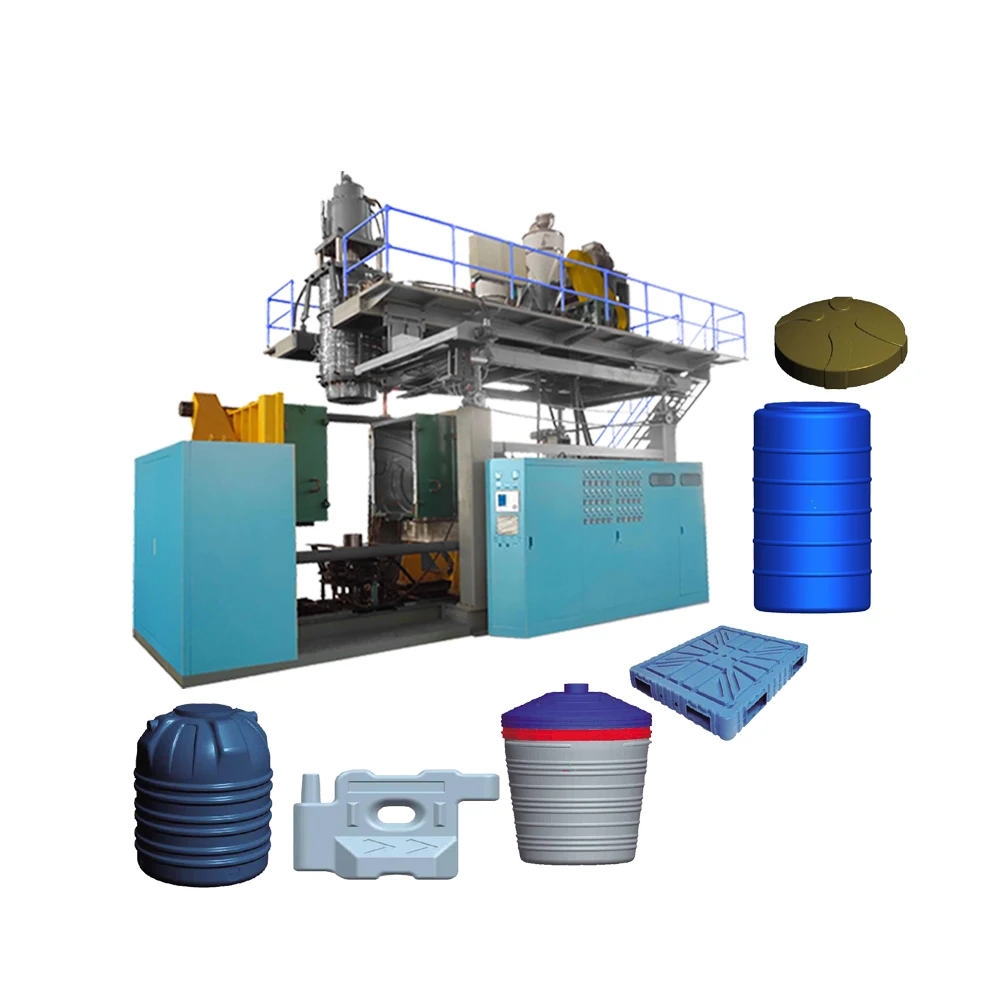

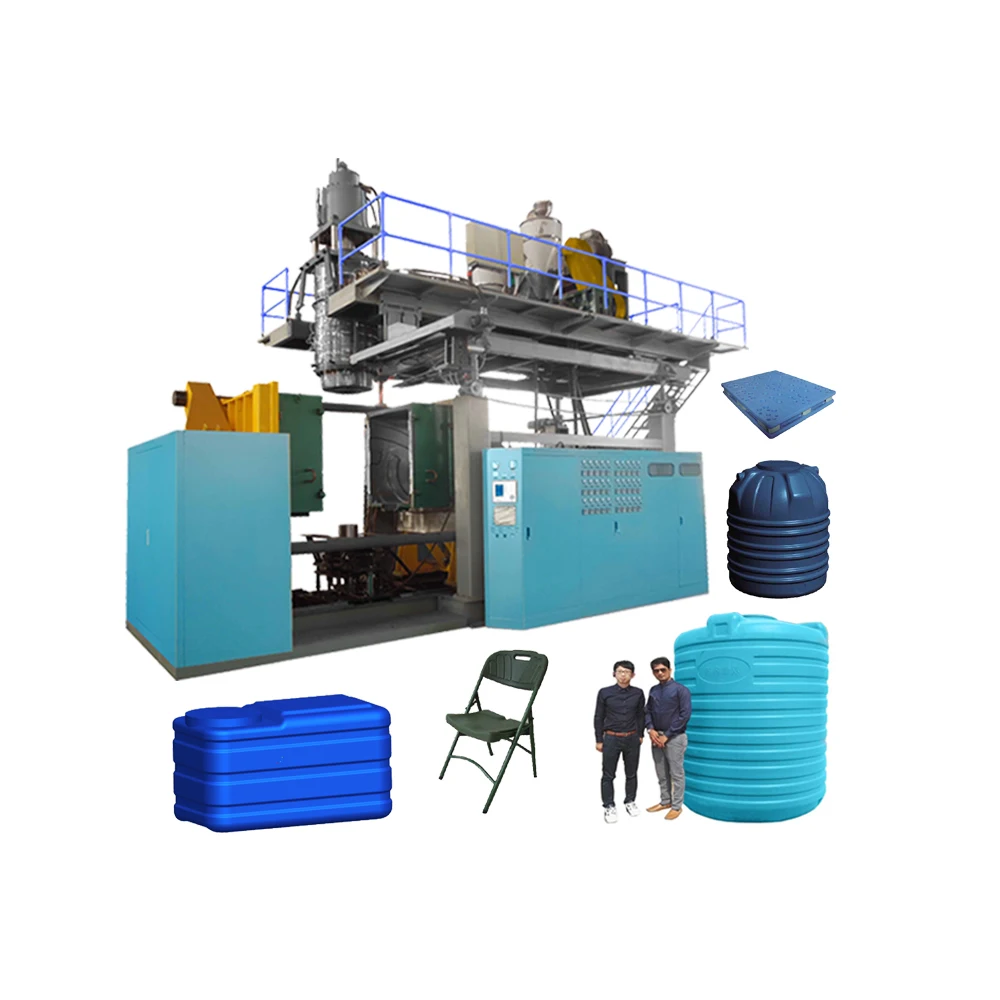

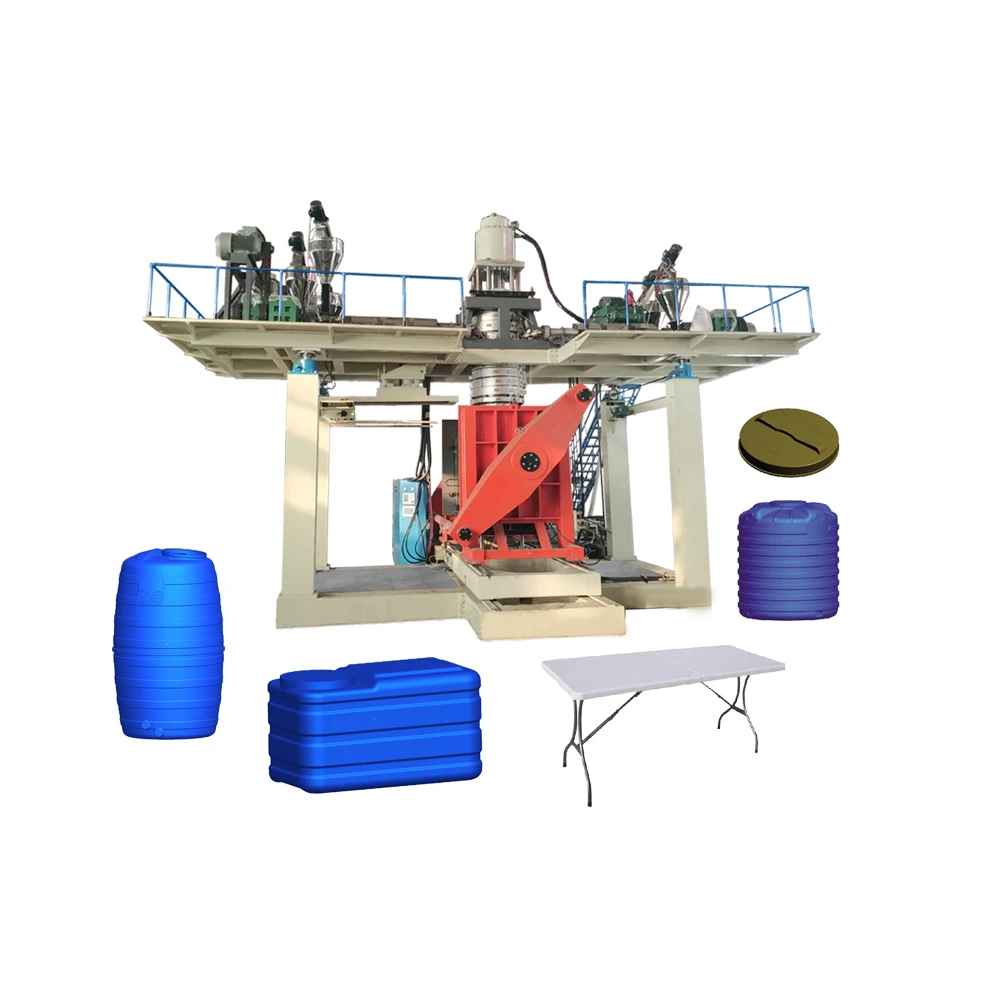

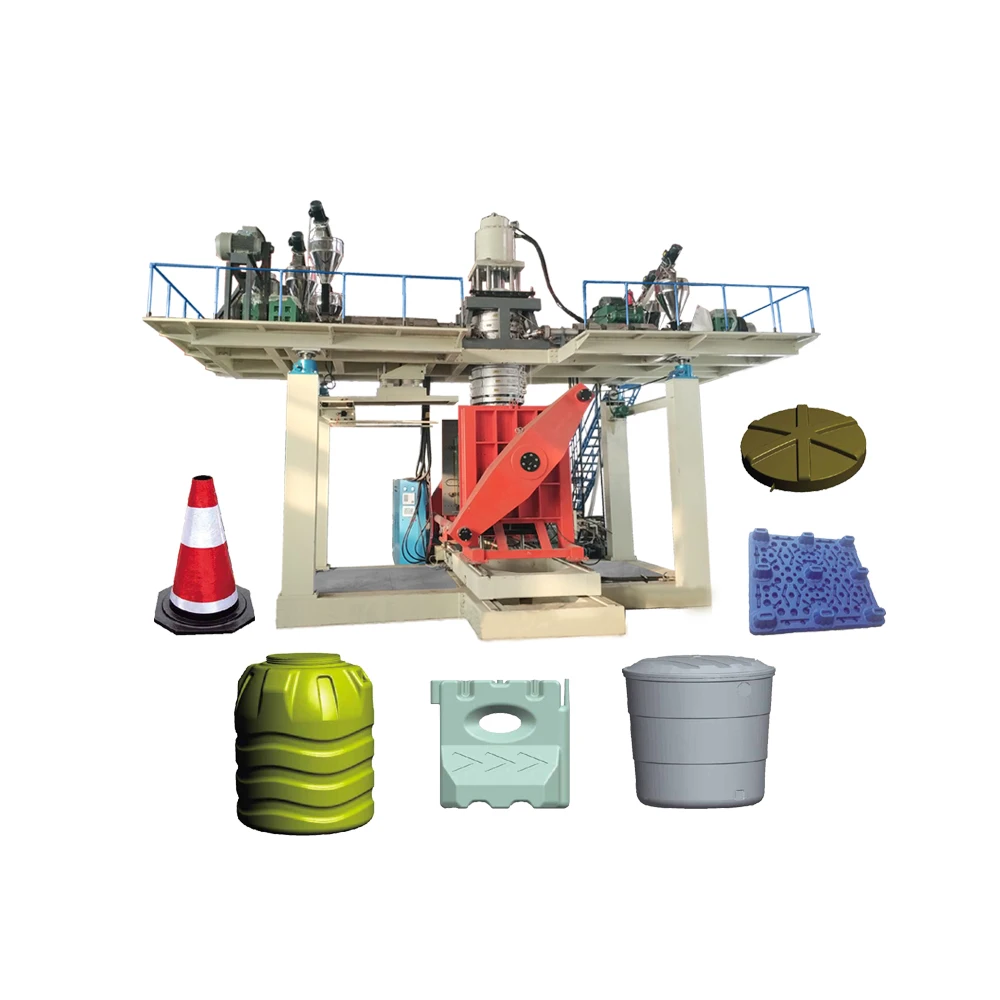

\t Product Name	\t Full automatic hdpe plastic tanks 1000l blowing machine
\t Product Application	\t Water tank, septic tank, plastic pallet, chemical tank, road barrier, frp vessel, IBC, L-ring drum, floating dock, fish tank and other customer-made products.
\t Product Advantages	\t 1.Output can be 4 times than rotational molding. 2.Recycle material can be used which can save the material cost up to 35%. 3.There is almost no failure during producing. 4.Products are more strength and resilience. 5.Easy operating and less workers required.

\t Machine Model	\t Unit	\t XHD1000-3	\t XHD1000-4	\t XHD1000-5
\t Review	\t	\t
\t Capacity Range	\t L	\t 200-1200	\t 200-1200	\t 200-1200
\t Number of Layers	\t	\t 1-3	\t 1-4	\t 1-5
\t Machine Size	\t M	\t 846.3	\t 786.3	\t 786.3
\t Machine Weight	\t TON	\t 40	\t 44	\t 48
\t Total Power	\t KW	\t 325.5	\t 354.5	\t 374.5
\t Average Energy Consumption	\t KW	\t 180	\t 210	\t 220
\t Extruder	\t	\t
\t Screw Size	\t MM	\t 90/100/90	\t 80/80/80/80	\t 80/65/65/65/80
\t Screw L/D	\t	\t 30/1	\t 30/1	\t 30/1
\t Screw Output	\t KG/H	\t 350	\t 360	\t 360
\t Screw Motor	\t KW	\t 45/55/45	\t 37/37/37/37	\t 37/30/30/30/37
\t Heating Power	\t KW	\t 48	\t 64	\t 68
\t Die Head	\t	\t
\t Accumulator Capacity	\t L	\t 50	\t 50	\t 50
\t Max Shot Weight	\t KW	\t 38	\t 38	\t 38
\t Max Die Core	\t MM	\t 500	\t 500	\t 500
\t Heating Power	\t KW	\t 90	\t 100	\t 100
\t Clamping System	\t	\t
\t Daylight Between Platens	\t MM	\t 800-2400
\t Mold Plate Size	\t MM	\t 1500*1700
\t Clamping Forces	\t KN	\t 1000
\t Hydraulic system	\t	\t
\t Main Pump Motor Power	\t KW	\t 37
\t Servo Pump Motor Power	\t KW	\t 5.5

Configuration

Product Function

This Blow Molding Machine can produce plastic blow molding products such as wter tanlk,pallets, fuel tank of vehicle, chemical container etc. The maximum container volume is 10000L.

Certifications

Packing & Delivery

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Machine test show.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

FAQ

Q1:Are you a trading company or a manufactory?
A1:We are a manufactory,we supply the factory price with good quality,welcome to visit us!

Q2:What's your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with one year guarantee and supply life-long technical support.

Q3:When can I get my machine after I paid?
A3:The delivery time is based on the exact machine you confirmed.

Q4:How can I install my machine when it arrives?
A4:We will send our engineers to your factory to install the machines and train your staff how to operate the machines.

Q5:How about the spare parts?
A5:After we deal down all the things,we will offer you a spare parts list for your reference.
