Характеристики
TOB New Energy

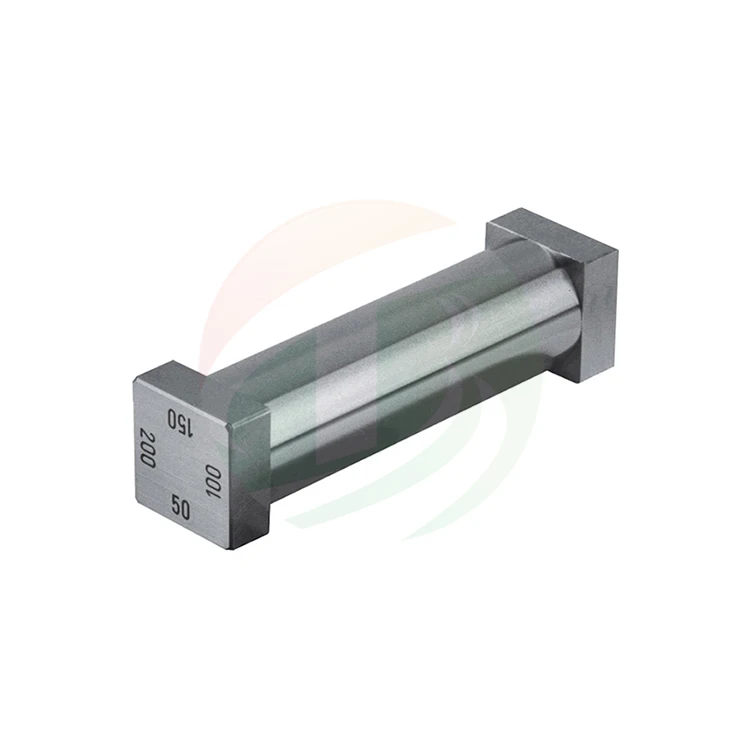

4 sided Manual Coin Cell Electrode Coating Machine Wet Film Applicator Coater
Multi-groove coating device is designed for coin cell electrode marking. The grooves of four surfaces are designed with four different thickness.
Coating width:
TOB-ZBQ206 Universal type: 80mm (coating device total length 100mm)
TOB-ZBQ205 Lengthened type: 160mm (coating device total length 190mm)
Material: High grade stainless steel wear-resistant material
Usage: Manual push coating device to make slurry evenly spread on foil.
TOB-ZBQ206 Universal Type | Coating Thickness |
TOB-ZBQ206/1 | 5µm, 10µm, 15µm, 20µm |
TOB-ZBQ206/2 | 25µm, 50µm, 75µm, 100µm |
TOB-ZBQ206/3 | 50µm, 100µm, 150µm, 200µm |
TOB-ZBQ206/4 | 30µm, 60µm, 90µm, 120µm |
TOB-ZBQ206/5 | 100µm, 200µm, 300µm, 400µm |
TOB-ZBQ206/6 | 50µm, 75µm, 100µm, 150µm |
TOB-ZBQ206/7 | 100µm, 150µm, 200µm, 250µm |
TOB-ZBQ206/8 | 250µm, 500µm, 750µm, 1000µm |
TOB-ZBQ205 Lengthened Type | Coating Thickness |
TOB-ZBQ205/1 | 5µm, 10µm, 15µm, 20µm |
TOB-ZBQ205/2 | 25µm, 50µm, 75µm, 100µm |
TOB-ZBQ205/3 | 50µm, 100µm, 150µm, 200µm |
TOB-ZBQ205/4 | 30µm, 60µm, 90µm, 120µm |
TOB-ZBQ205/5 | 100µm, 200µm, 300µm, 400µm |
TOB-ZBQ205/6 | 50µm, 75µm, 100µm, 150µm |
TOB-ZBQ205/7 | 100µm, 150µm, 200µm, 250µm |
TOB-ZBQ205/8 | 250µm, 500µm, 750µm, 1000µm |
1 It's flexible and easy to use, 4 grooves make 4 different thickness in one unit.
2 Suitable for aqueous, acidic and alkaline products.
You can put this coating device on coating machine TOB-VFC-150.
