Полностью автоматическая 8 рабочих станций статор двигателя Проволочная обмоточная машина катушечное обмоточное оборудование для
- Категория: Transformer Making Equipment >>>
- Поставщик: Ningbo,Nide,Mechanical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 1820943.21 $* | 1911990.2 $* |
| Aug-15-2025 | 1805641.41 $* | 1895923.16 $* |
| Jul-15-2025 | 1514902.28 $* | 1590647.51 $* |
| Jun-15-2025 | 1775037.23 $* | 1863789.1 $* |
| May-15-2025 | 1545506.63 $* | 1622781.59 $* |
| Apr-15-2025 | 1744433.59 $* | 1831655.18 $* |
| Mar-15-2025 | 1729131.11 $* | 1815588.75 $* |
| Feb-15-2025 | 1713828.45 $* | 1799519.17 $* |
| Jan-15-2025 | 1698526.11 $* | 1783452.37 $* |
Характеристики
Product Description

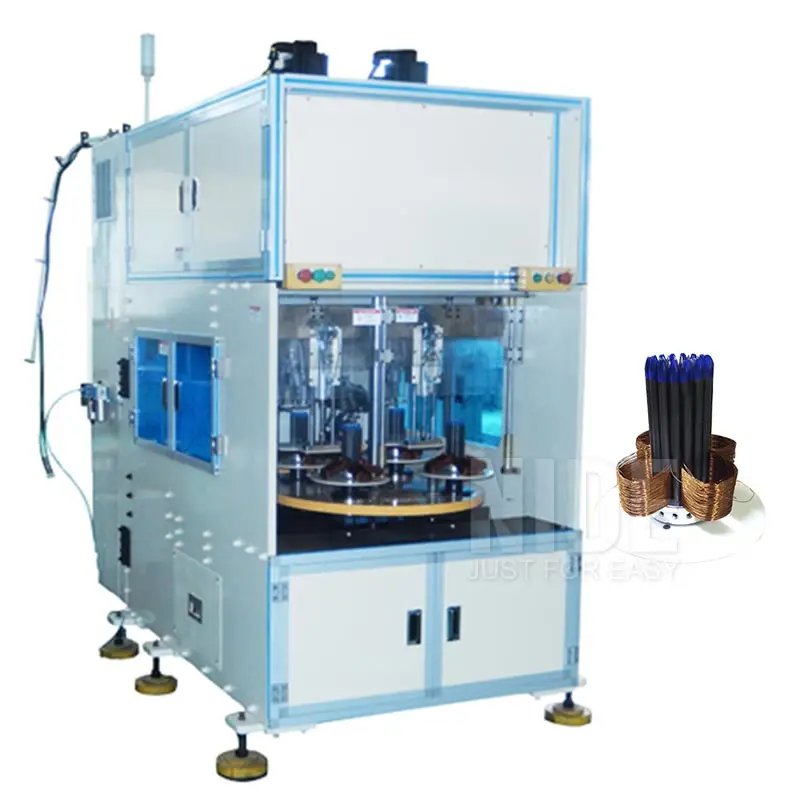

Full auto motor stator wire winding machine coil winding equipment
1. Technical parameter
Wire diameter: 0.19~1.2mm
Swing diameter: 220mm
Operation station: 8
Winding head: 4
Max stack height: 65mm
Max stator OD: 120mm
Max RPM: 2500RPM
Air source: ≥0.5MPa
Power supply: 380V 50/60HZ 15KW
Weight:about 5000KG
Dimension:(L)2100*(W)1350*(H)2200mm
2. Application
This wire winding machine is suitable for 2 poles. 4 poles, 6 poles coils winding.
3. Machine main function and characteristic
This coil winding machine has four winding heads and eight operation stations. High efficiency is its feature. The machine automatically put the coil into transfer former orderly, especially suitable for high production capacity requirement, high slot filling rate, small slot opening stator coil winding. Winding mode, such as auto skip, auto cutting and auto indexing could be completed at a time successively; parameter could be set in human-machine interface. Continuous/discontinues winding way and meets the 2 poles. 4 poles, 6 poles coils winding.
Youtube Channel
Youtube Link: https://www.youtube.com/user/nida0606
Stator production
Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.
More Information
With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries.Among the customers, many of them are the world-renown companies.
| Customerized service | 1. Customized product design and manufacturing |
| 2. Customized tranning | |
| 3.Technical suggestions | |
| After-sales service | 1. Warranty Period: 12 month usually |
| 2. Overseas service center available | |
| 3. Engineers available to service overseas |
Established in 2007, Nide is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.
Nide has three main business divisions.
The first division is to provide different kinds of motor manufacturing machinery, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor, series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
coil winding machine india,Custom made coil winding machine india,paper winding machine,coil winding companies
