Цифровой мультиметр AC DC 100A UT210E миниатюрный Измеритель

Описание и отзывы

Трекер стоимости

Характеристики

Mini Digital multimeter AC DC 100A Resistance/Capacitance/Frequency/Temperature Clamp Meter UT210E

Features

UNI-T's UT210E is a mini 100A True RMS auto range digital clamp meter with 2000 display count and VFC function. It is convenient to use in narrow space.

1. VFC, low pass filter

2. NCV

3. Ergonomic and lightweight

4. Auto range, 2~3/s sampling rate

5. True RMS

6. ZERO mode

7. LCD backlight, data hold

8. Auto power off, low battery indication



Technical Specifications

Specifications	Range	Best Accuracy
Model		UT210E
AC Current (A)	2A/20A/100A	±(2.5%+5)
DC Current (A)	2A/20A/100A	±(2%+3)
AC Voltage (V)	2V/20V/200V/600V	±(1%+3)
DC Voltage (V)	200mV/2V/20V/200V/600V	±(0.7%+3)
Resistance (Ω)	200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ	±(1%+2)
Capacitance    (F)	2nF/20nF/200nF/2μF /20μF/200μF/2mF/20mF	±(4%+5)
Features
Display Count		2000
Auto Range		√
Jaw Capacity		17mm
True RMS		√
Diode	Around 3.0V	√
V.F.C.		√
NCV		√
Auto Power Off	Around 15 minutes	√
Continuity    Buzzer		√
Low Battery Indication	≤2.5V	√
Data Hold		√
Zero Mode		√
MAX/MIN		√
LCD Backlight		√
Input    Protection		√
Input Impedance for DCV	≥10MΩ	√
General Characteristics
Power	AAA 1.5V x 2
LCD Size	39.3mm x 26.5mm
Product Color	Red and grey
Product Net Weight	170g
Product Size	175mm x 60mm x 33.5mm
Standard Accessories	Batteries, Test Lead
Standard Individual Packing	Gift  Box, Carrying bag, English Manual
Standard Quantity Per Carton	40pcs
Standard Carton Measurement	385mm x 345mm x 305mm (0.041 CBM Per Standard Carton)
Standard Carton Gross Weight	11kg

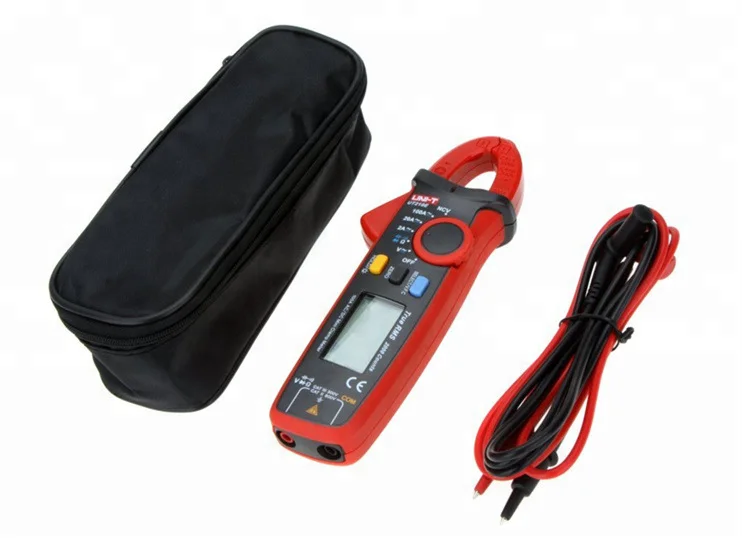

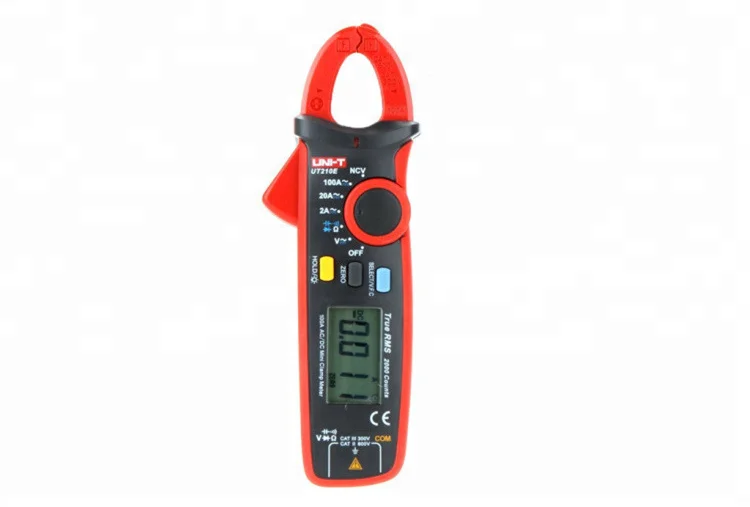

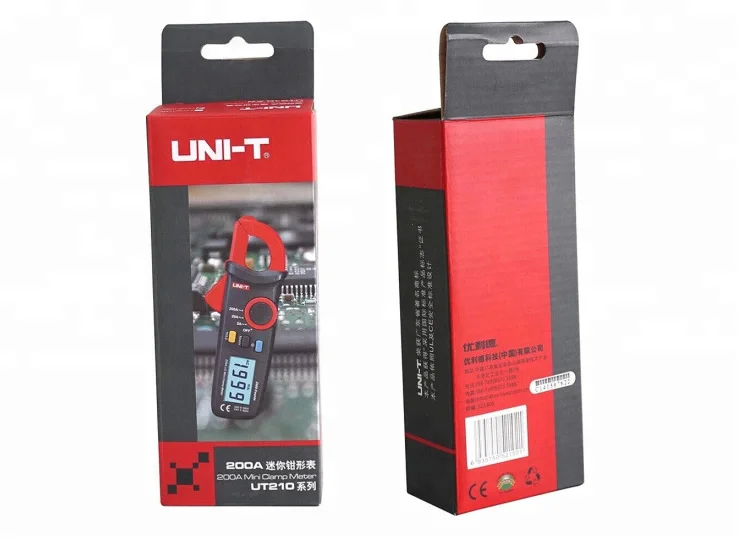

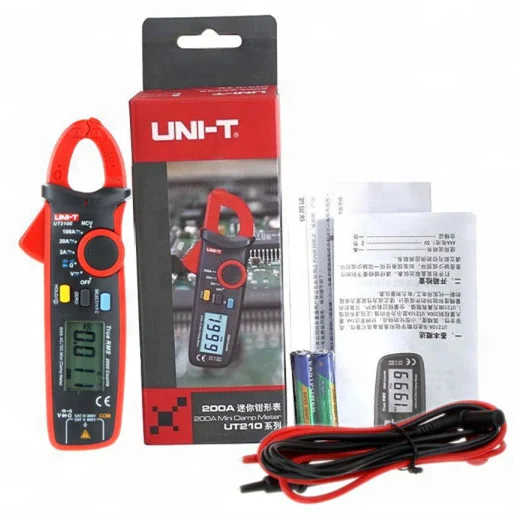

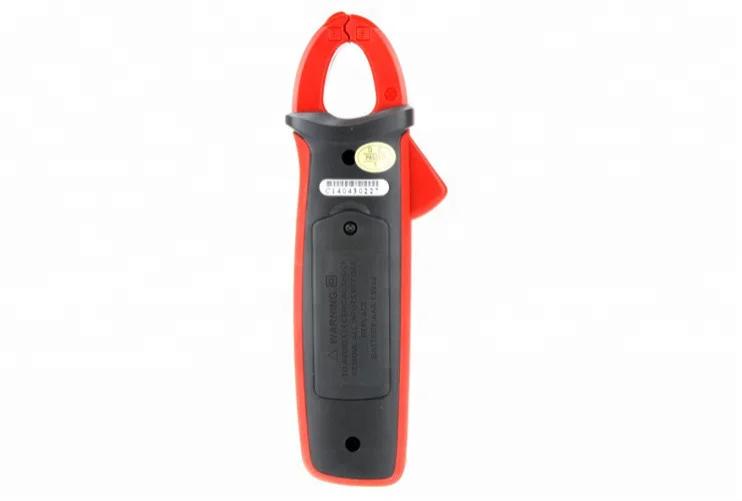

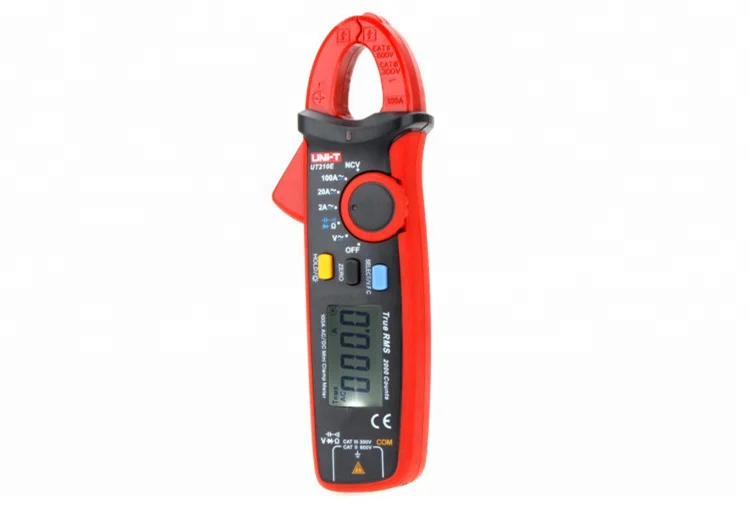

Photo Detailed:
