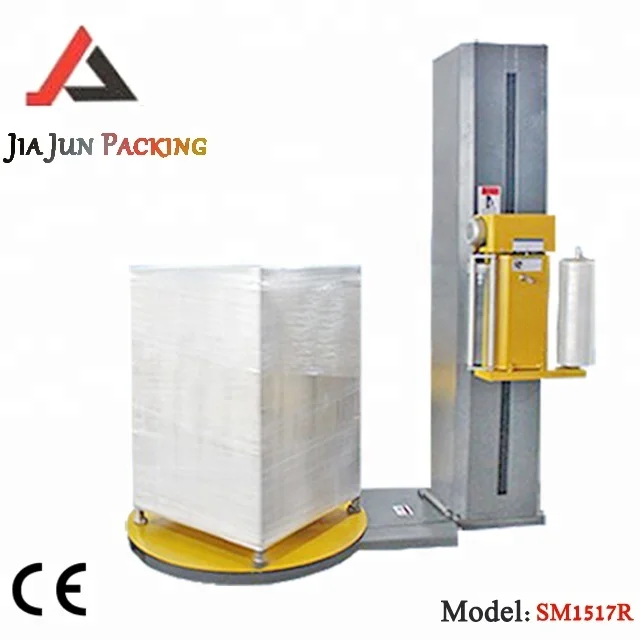

Классическая Высококачественная предварительно растягивающаяся автоматическая машина для упаковки поддонов с сертификатом

1. High efficiency, low electricity-consumption, and convenient operation.
2. The wrapping modes and times can be designed on customers' request.
3. Photoelectric sensor mesuring pallet height automatically.
4. Auto reset of turntable.
5. Pre-stretch ratio: 250%.
6. Programmable control and frequency converter is available.
7. PLC control, manual optional. Wrap cycle (top, bottom, reinforcement) adjustment.
     Variable lift speed/ film tension control. Film up/down controls.
8. Pallet stretch wrapping machine soft start and soft stop.
9. Suitable for heavy pallet.

Certifications

Detailed Images

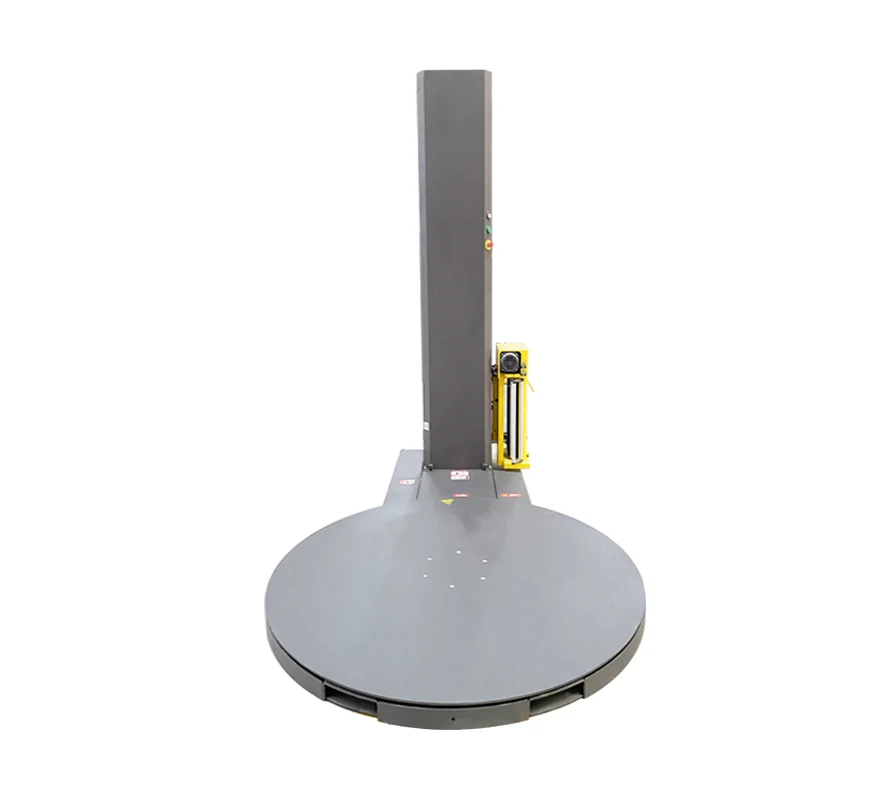

Turntable

This machine turntable is made of 10mm thickness steel, double Nylon rollers, concentric welded turntable base, making machine work more quite, and durable. Turntable account we use Omron travel switch, 200000 times long life, you can use 2-3 years.

Electrical parts

Siemens Inverter, Wecon PLC and Touch screen, Schneider Relay and emergency stop button, Wedmuller terminal row. All electrical components are top brands, ensuring machine a long working life.
With start botton, machine operates easily.

Control panel

Professional design for the touch screen. Intelligence and convenient operation.

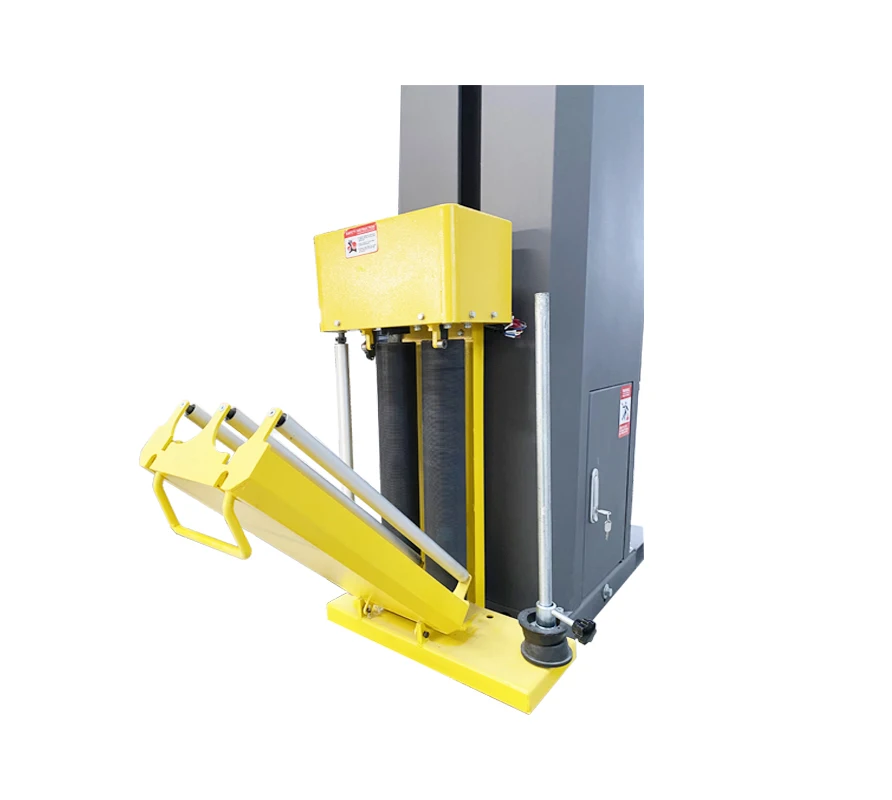

Film carriage

Its photo electrical sensor is of Autonics, measuring pallets height automatically.
New design film carriage door, more easier to openning and clossing, it's better for the worker to change film.
With pre-stretch rollers, 300% pre-stretch rate, this machine can wrap your pallets more beautiful and save more film cost for you.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Related Products

High quality pallet wrapping machine with auto cutting film function

91.8% Response Rate

Fully Auto Smart Wasp pallet wrapping machine with cut and clamp film remote control system weighing optional and CE certificate

91.8% Response Rate

Top pressure plate automatic pallet stretch wrapping machine with automatic cutting

91.8% Response Rate

Our Company

FAQ

1.What's max height of machine?

SM-1517R pallet wrapping machine max height could be customized with your requirements,standard height is 2400mm ,and the max packing height also is 2100mm.

2.What's turntable size?

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

3.What temperature can the machine operates at?

Usually machine should be operated at above 0 degree.
If it is below 0 degree, informing us in advance, we will equip the machine with a special motor.

4.What's the thickness of turntable steel and what do we use to cut the steel?

The thickness of turntable steel is 10mm, and we adopt water cutting teachnology rather than laser cutting.

5.What's max machine bearing capacity?

The max load weight of standard pallet stretch wrapper is 2000KG.
As standard machine is equipped with plastic roller. If the weight of goods to be wrapped is over 2000KG, we need to change plastic rollers in turntable to steel rollerd.

6.How to put pallets on turntable?

By folklift or by using pallet jack with a ramp (ramp is optional).
