CE approved DM542 24V dc Motor Driver with factory price (for 42 and 57 60 2phase stepper motors)











Description

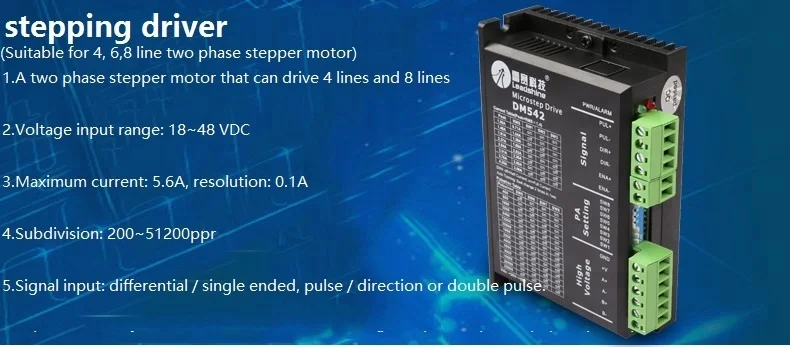

1.A two phase stepper motor that can drive 4 lines and 8 lines

2.Voltage input range: 18~48 VDC

3.Maximum current: 5.6A, resolution: 0.1A

4.Subdivision: 200~51200ppr

5.Signal input: differential / single ended, pulse / direction or double pulse.

6.Pulse response frequency: 200KHz Parameter configuration can be carried out by serial port

7.Built-in micro fineness Automatic parameter setting function Precision current control reduces the heat of the motor 8.greatly Automatic halving current at rest Light isolation signal input, strong anti-interference ability

9.Protection functions such as overvoltage, over current and so on



Control signal interface



Name	Function
PUL+	Pulse input signal: The effective pulse is adjustable and the rising edge of the default pulse is effective. In order to reliably respond to the pulse signal, the pulse width should be greater than 1.2 s. If  12V or  24V is used, the series resistance is required. Double pulse mode: CW
PUL-
DIR+	Directional input signal: High / low level signal, in order to ensure reliable commutation of the motor, the directional signal should be established at least 5 s before the pulse signal. The initial operation direction of the motor is related to the wiring of the motor windings. The switching of any phase windings (such as A , A-switching) can change the initial operation direction of the motor. If  12V or  24V is used, the series resistance is required. Double pulse mode: CCW
DIR-
ENA+	Enable the control signal, which is used to enable or prohibit driver output. When ENA is connected to a low level (or an internal optocoupler is turned on), the driver cuts off the current of each phase of the motor so that the motor is in a free state and does not respond to stepping pulses. When the function is not needed, the signal end can be suspended. If  12V or  24V is used, the series resistance is required.
ENA-





Running current setting







Installation Size





Driver Wiring Diagram





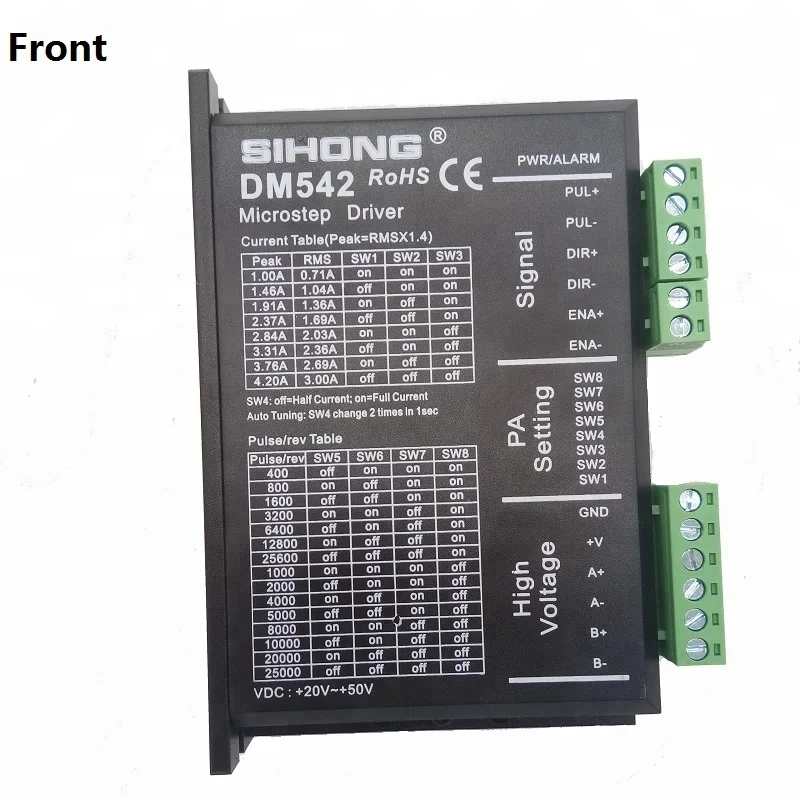

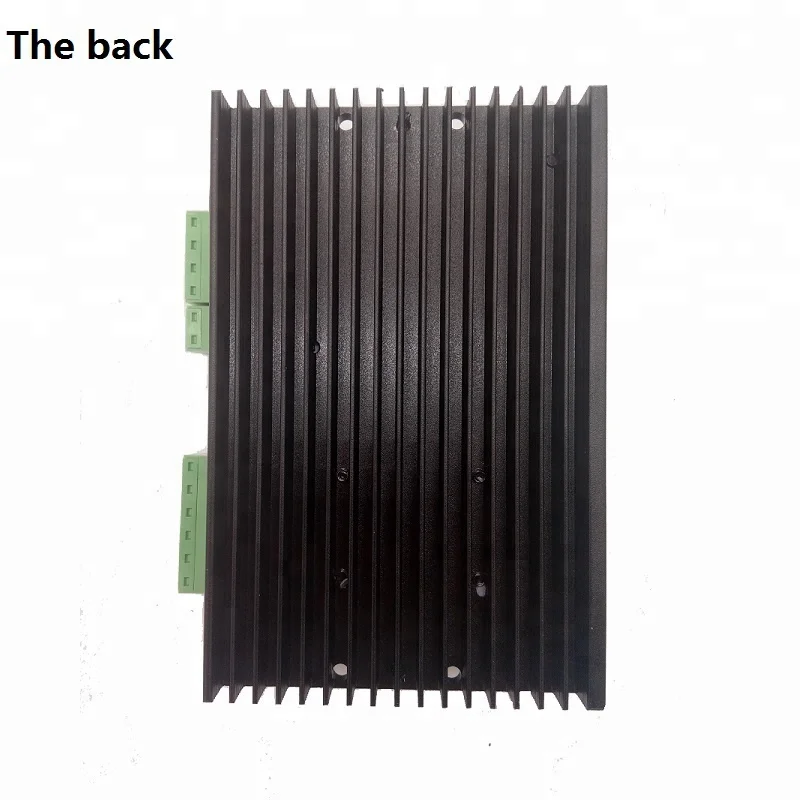

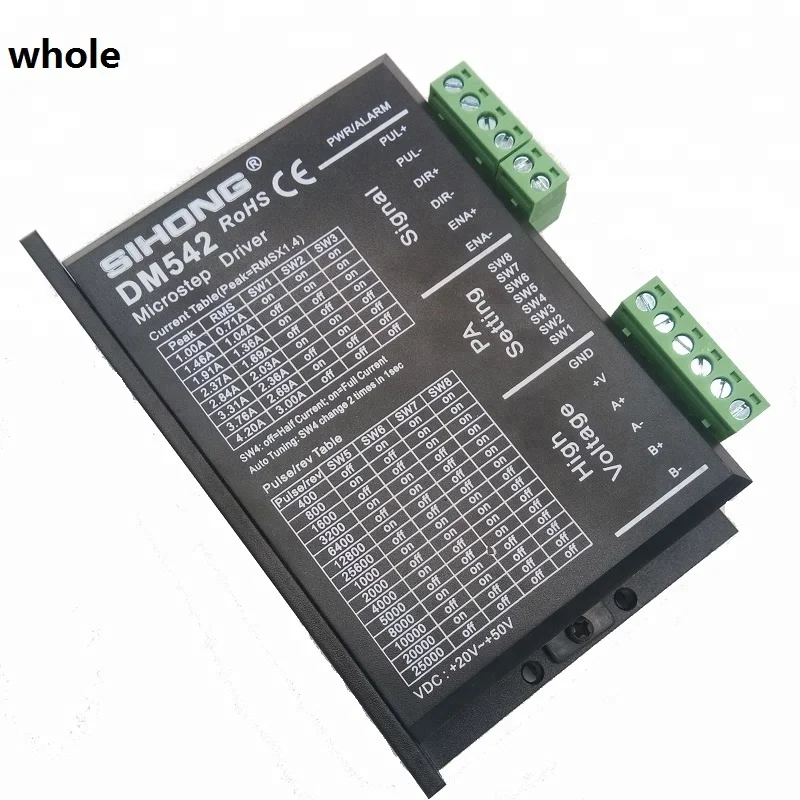

 product display







Factory Photos
