Автомат по производству пластиковых лотков для яиц формовочная машина 3-станция Термоформовочная
- Категория: Оборудование для производства пластиковых изделий >>>
- Поставщик: Ruian,City,Litai,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 130305.30 $* | 136820.10 $* |
| Aug-20-2025 | 129210.40 $* | 135671.49 $* |
| Jul-20-2025 | 108405.13 $* | 113825.76 $* |
| Jun-20-2025 | 127020.83 $* | 133371.38 $* |
| May-20-2025 | 110595.98 $* | 116125.56 $* |
| Apr-20-2025 | 124830.88 $* | 131072.2 $* |
| Mar-20-2025 | 123735.46 $* | 129922.35 $* |
| Feb-20-2025 | 122640.52 $* | 128772.92 $* |
| Jan-20-2025 | 121545.76 $* | 127622.89 $* |
Характеристики
Product Paramenters
Model | TTF-520A |
Forming Area | 520mm x 400 mm |
Forming Depth (Max.) | 100mm |
Sheet thickness | 0.2-2.0mm |
Forming Speed (Max.) | 30times/min |
Air pressure | 0.6-0.8mpa |
Air consumption | 3.0 m³/min |
Water consumption | 0.7 m³/h |
Sheet width (Max.) | 550mm |
Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
Power supply | AC 380V, 50Hz, Three-phase, Four-wire |
Used power | 50Kw |
Rated power | 100Kw |
Heating power | 75Kw |
Procedure | Forming-cutting-stacking |
Dimension | L9700*W4600*H2700mm |
Weight | About 9.0T |
MAIN ELECTRICAL COMPONENTS | ||
PARTS | BRAND | |
Filter | CKD (Japan) | |
Forming valve | MAC (USA) | |
Temperature control module | WEST (UK) | |
Proximity switch | ROCKWELL (USA) | |
AC contactor\\Circuit breaker\\Button | SCHNEIDER (France) | |
Intermediate relay | IDEC (Japan) | |
Intermediate Relay Base | OMRON (Japan) | |
PLC\\Touch screen\\Servo motor\\Air switch | Detla (Taiwan) | |

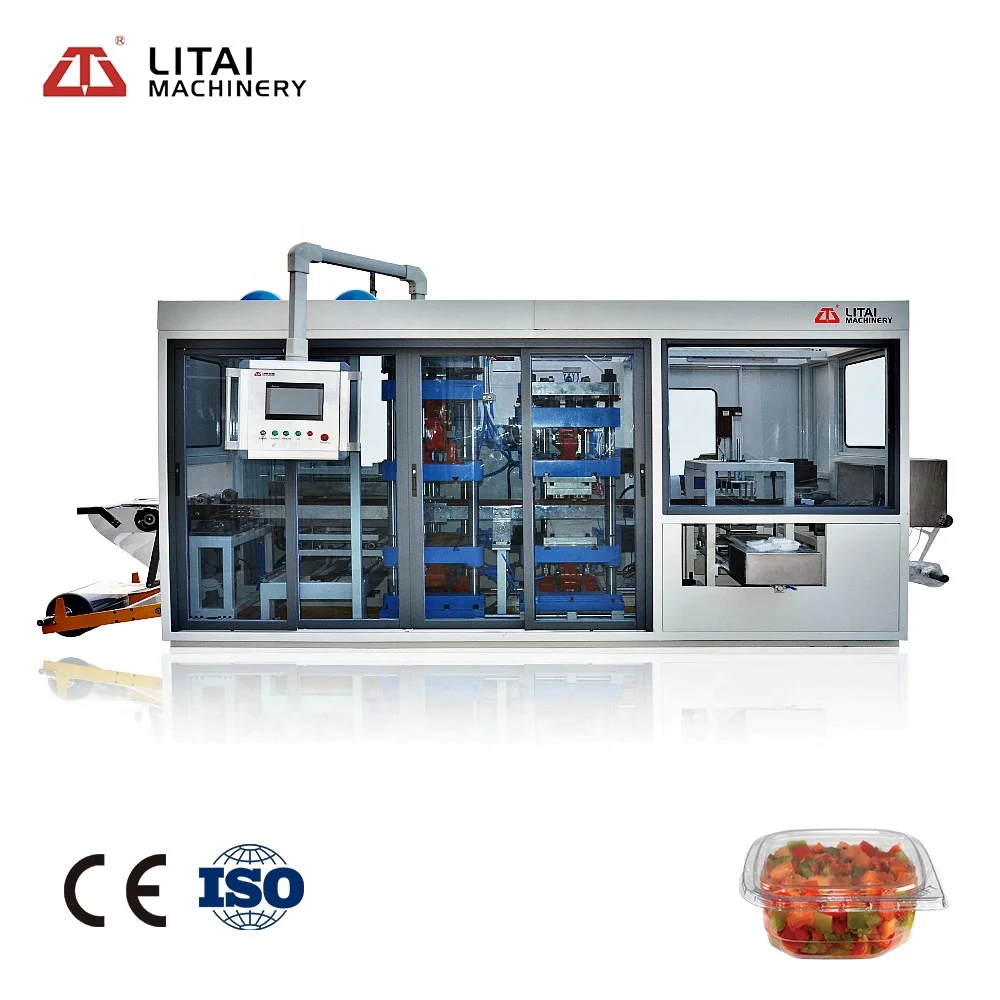

Product display

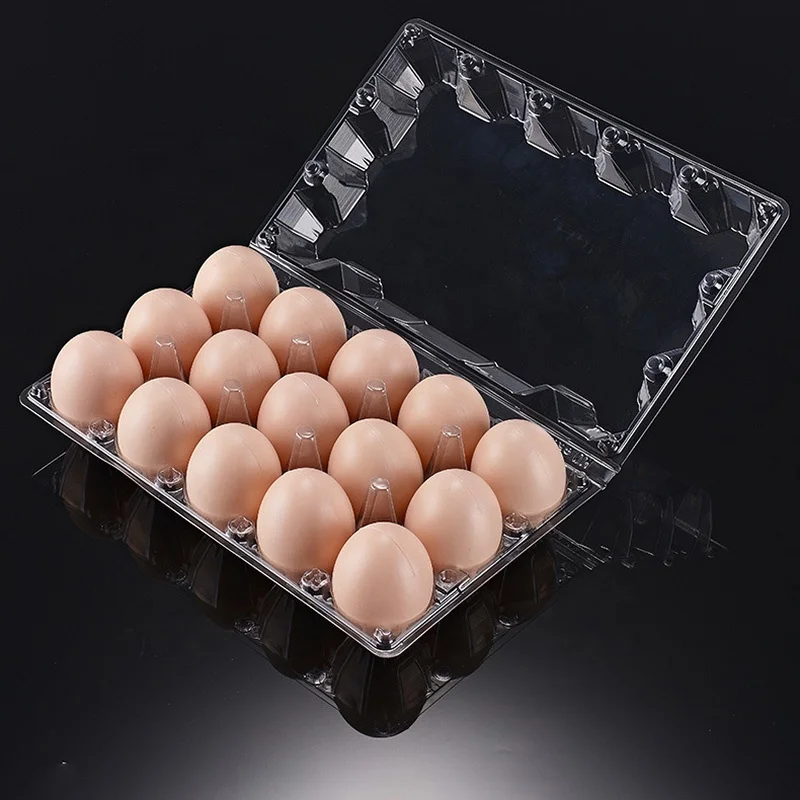

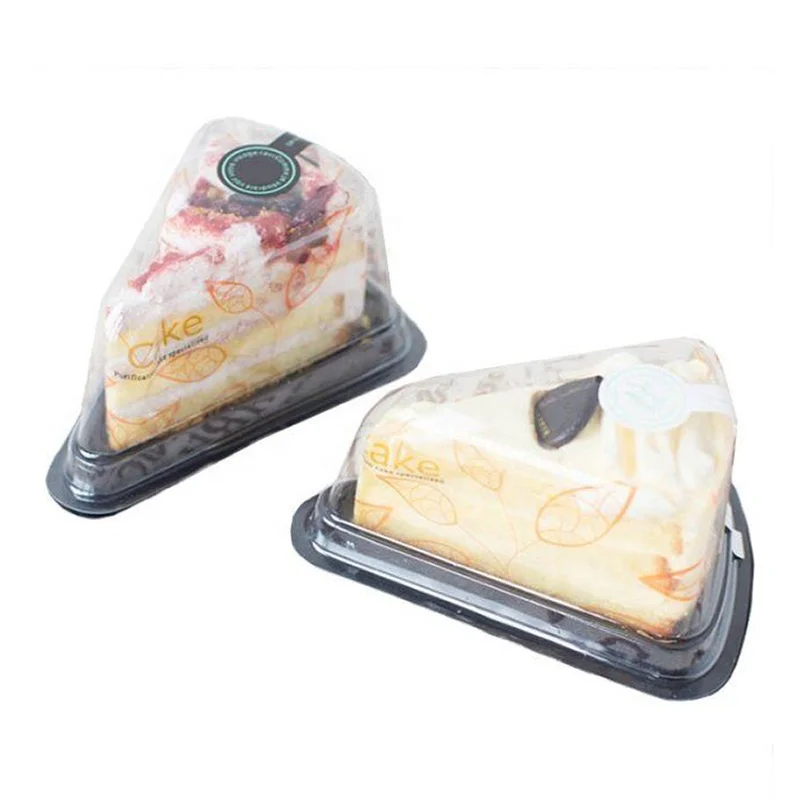

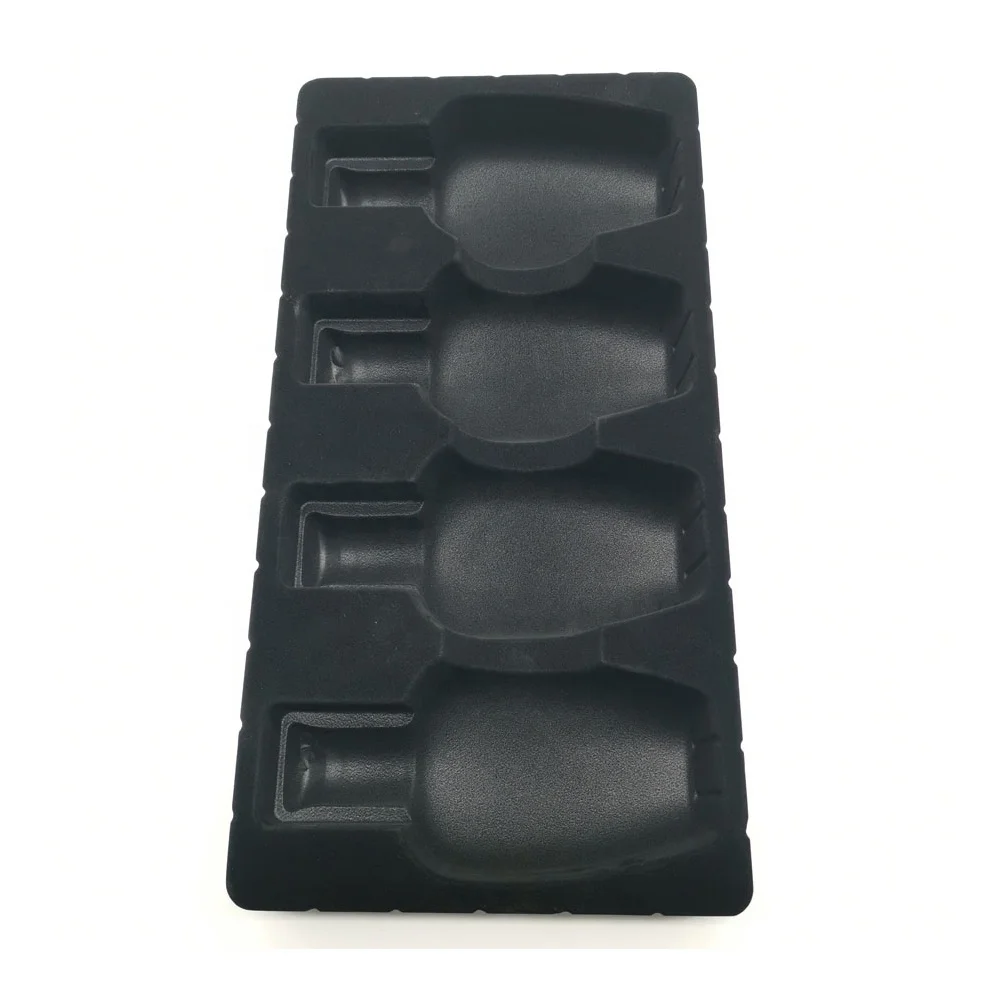

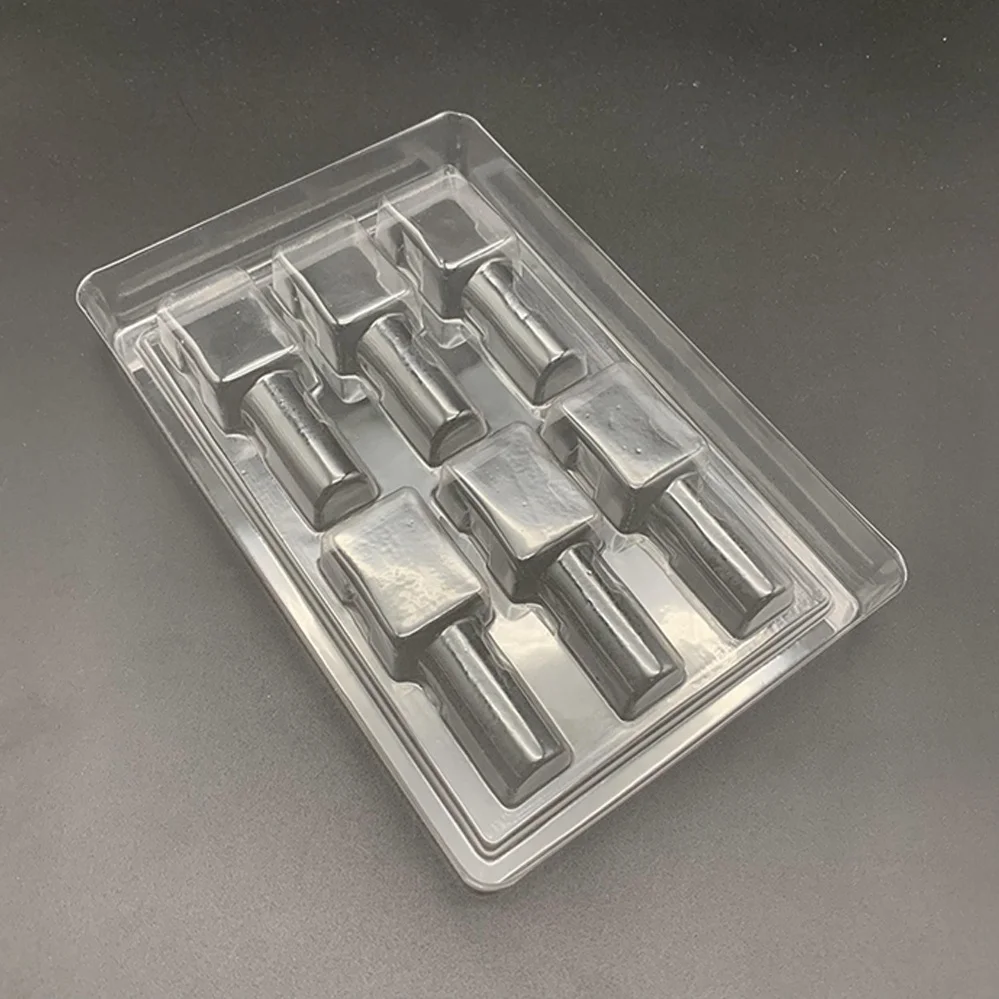

APPLICATION
Products Description
SUMMARY OF MACHINE
2. Feeding and heating part have optoelectronic switch in order to prevent error operating from production process.
3. The toothed chain made of 65#Mn, helping convey sheet. Aluminum rails with water cooling, save water.
4. The machine adopts PID temperature system, it shows high precision, and temperature control tolerance ＜1℃.
5. Each servo motor has overload protection for machine’s overworking.
6. Low barycenter and height of finished products as well as steady running ensures easy operation and friendly viewing. There is an alarm function of the sliding doors.
Company Profile
Guest Department
Exhibition
Packaging shipping
FAQ
Q1: Are you a factory or trading company?
A1: We are a factory, and we export our machines to more than 80 countries since 2001.
Q2: How long is the warranty period?
A2: We have a professional QC department in charge of products' quality.
Q3: How long is the warranty period?
A3: 13months calculated from the date of shipment from our factory.During warranty period, except the artificial factor, the spares are free to maintenance, beyond the warranty time, the buyer needs to pay the spare charge and shipping cost.
Q4: How to install the machine?
A4: We will send technician to your factory to install the machine, and teach your workers to use it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and technician salary.
A1: We are a factory, and we export our machines to more than 80 countries since 2001.
Q2: How long is the warranty period?
A2: We have a professional QC department in charge of products' quality.
Q3: How long is the warranty period?
A3: 13months calculated from the date of shipment from our factory.During warranty period, except the artificial factor, the spares are free to maintenance, beyond the warranty time, the buyer needs to pay the spare charge and shipping cost.
Q4: How to install the machine?
A4: We will send technician to your factory to install the machine, and teach your workers to use it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and technician salary.
