Характеристики

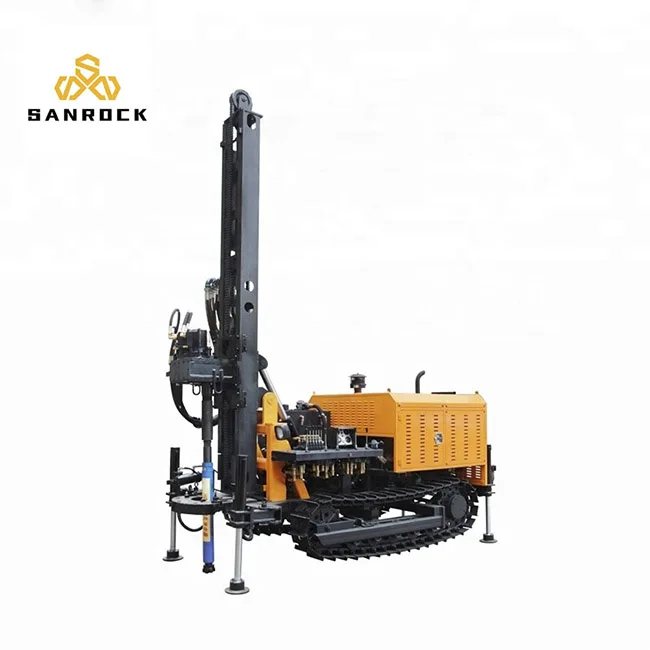

SRKW-180 WATER WELL DRILLING RIG
Products Details
SRKW180 Geothermal Water Well Crawler Drilling Rig is a light, highly-efficient and multifunction drilling device, characterized by advanced structure, convenient use, high operating efficiency, reliability and durability, extensively applicable to drilling water wells, agricultural irrigation wells, geothermal air-conditioning wells and well holes of other purposes, especially applicable to water intake projects in mountain regions and at rock stratums.
This drill adopts state-of-the-art hydraulic technology, and is equipped with large-torque hydraulic motor rotation and large-bore hydraulic cylinder propulsion, dramatically reducing labor intensity, shortening the assistant time, and improving construction efficiency and engineering quality.
Product Pictures

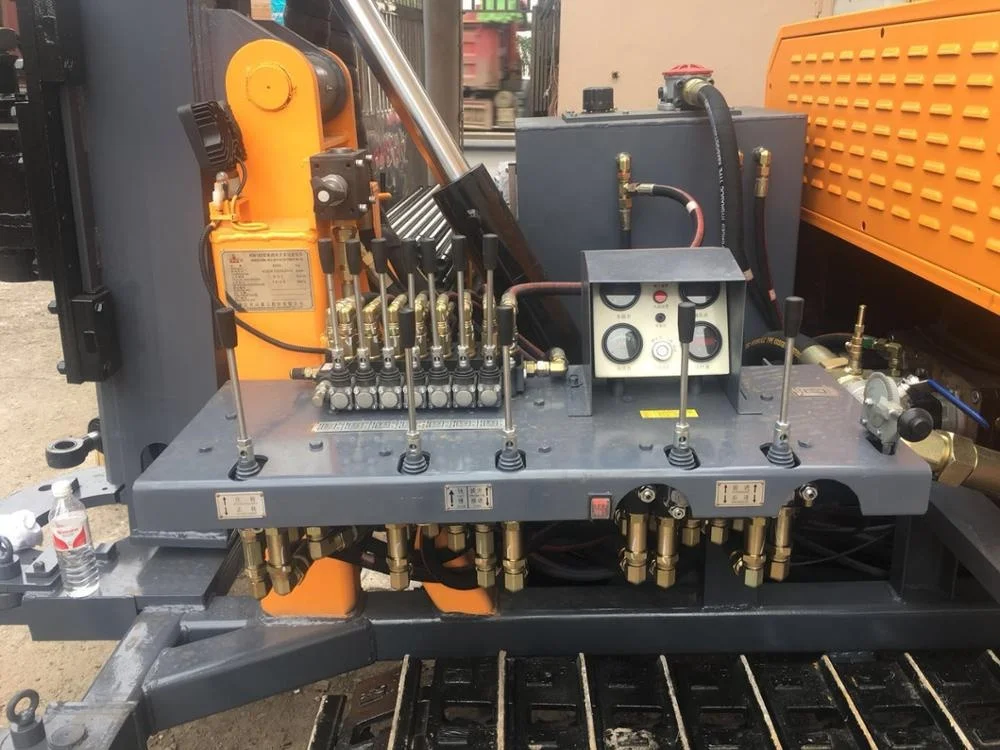

CONTROL TABLE

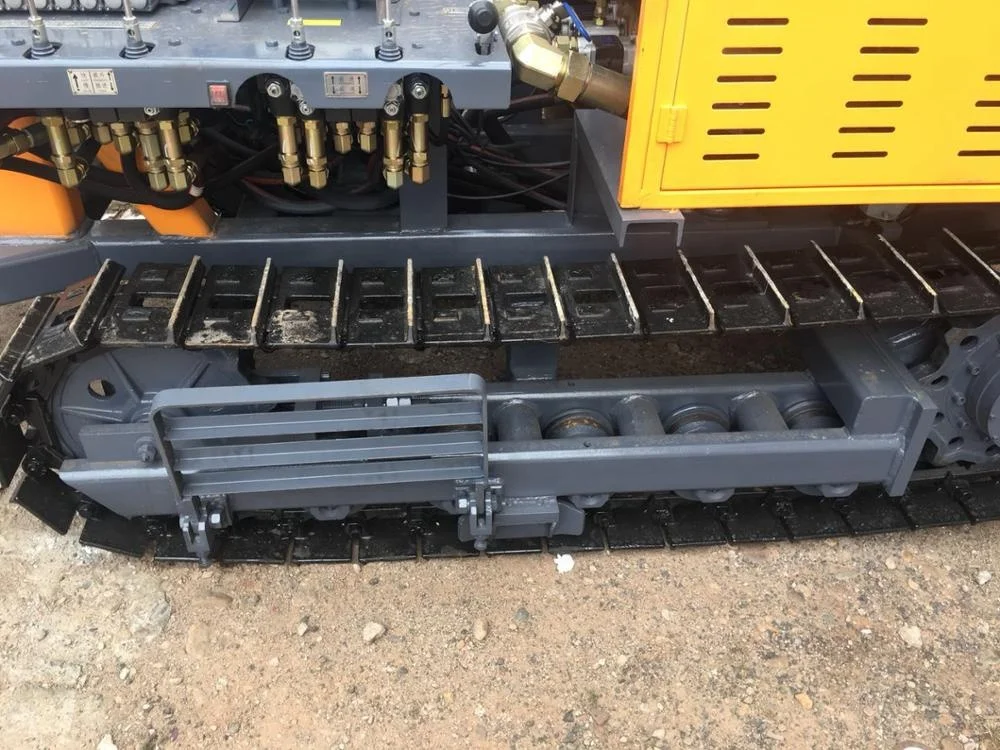

WALKING TRACKS

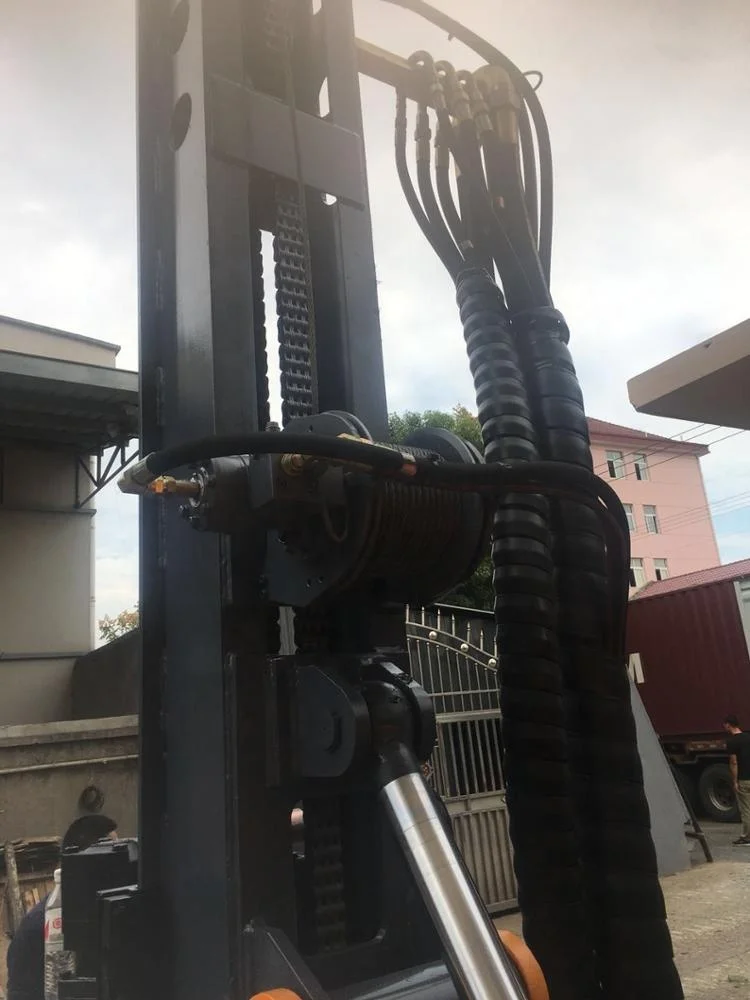

WINCH
Product Specification
Drilling depth maximum | m | 180 |
Drilling diameter | mm | φ110-202 |
Working wind pressure | mp | 1.05-2.46 |
Air consumption | m3/min | 16-30 |
Drill rod length | m | 2 |
Dia. of drill rod | mm | φ89/φ76 |
Propeller shaft pressure | t | 0~2.5 |
Lifting force | t | 5 |
Cylinder tensile force | t | 32(4pcs) |
Propeller shaft pressure | m | 0.4 |
Slide stroke | mm | 2380 |
Slow lifting speed | m/min | 8 |
Slow forward speed | m/min | 0~15 |
Fast lifting speed | m/min | 26 |
Fast forward speed | m/min | 51 |
Rotary output torque | N·m | 4200 |
Rotary output speed | Rev / min | 33~67 |
Hoist lifting force | t | --- |
Diesel engine | ---- | YC4D80 |
Parameter of engine | ---- | 58Kw/2400rpm |
Travel speed | km/h | 0~2.5 |
Climbing capacity | ℃ | 20 |
Weight | t | 4.5 |
Overall dimesion | m | 2.7×1.55×2.35 |
Applicable condition | Loose layers and bedrock | |
Drilling mode | Rotation hydraulic pressure | |
Supporting impactor | Medium-high pressure series | |
