Формовочная машина для выдувания пластиковых бутылок
US $20000-$50000
2000BPH бутылка для воды удар
- Категория: Выдувная машина >>>
- Поставщик: Shenzhen,Kisen,Drinking,Water,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 11424.81 $* | 11995.28 $* |
| Aug-19-2025 | 11328.10 $* | 11894.82 $* |
| Jul-19-2025 | 9504.69 $* | 9979.91 $* |
| Jun-19-2025 | 11136.56 $* | 11693.18 $* |
| May-19-2025 | 9696.28 $* | 10181.85 $* |
| Apr-19-2025 | 10944.88 $* | 11491.7 $* |
| Mar-19-2025 | 10848.40 $* | 11390.24 $* |
| Feb-19-2025 | 10752.28 $* | 11290.40 $* |
| Jan-19-2025 | 10656.35 $* | 11189.65 $* |
Характеристики

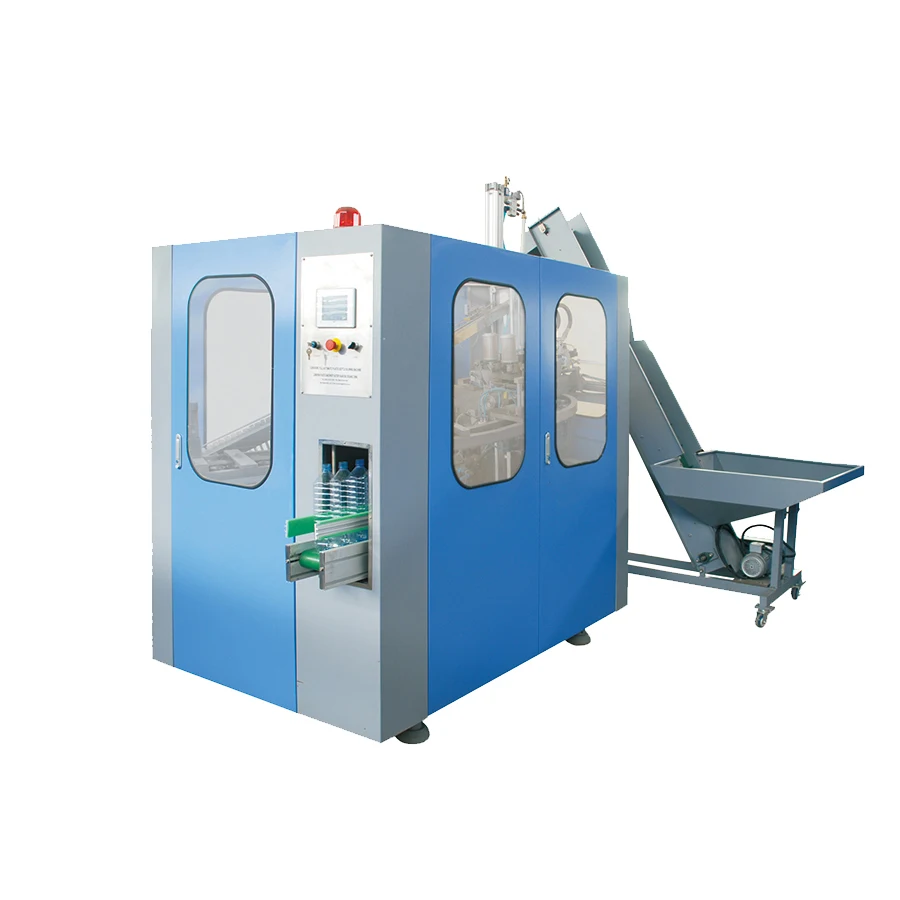

2000BPH water bottle blow machine
Features of 2000BPH water bottle blow machine:
1). Stable performance with advanced PLC.

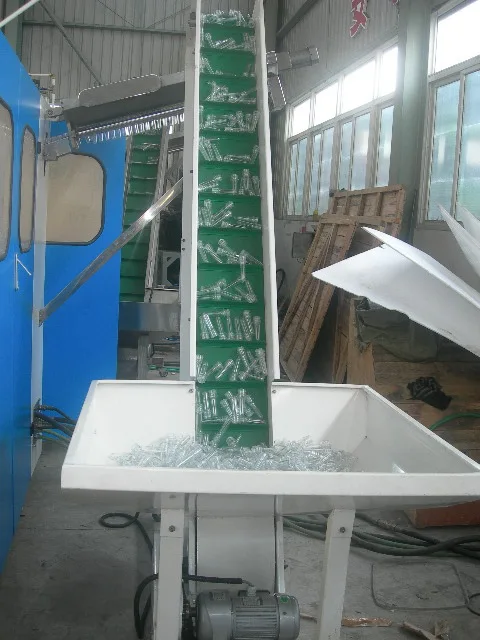

2). Automatic preform conveyer to save human cost.

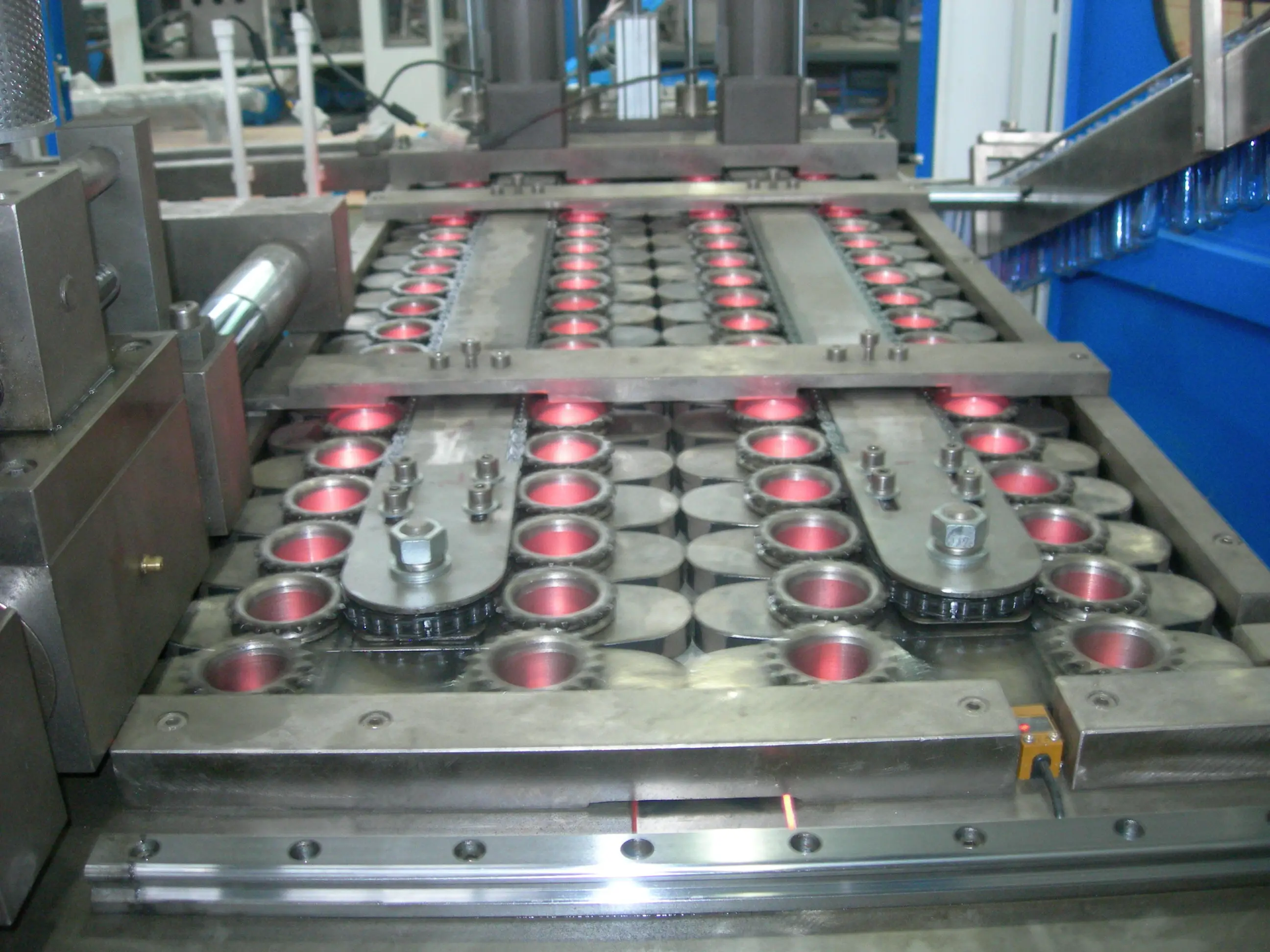

3). Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.
4). High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.
5). High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.
6). Introduce the FESTO air cylinder to avoid contamination and noise.
7). Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.

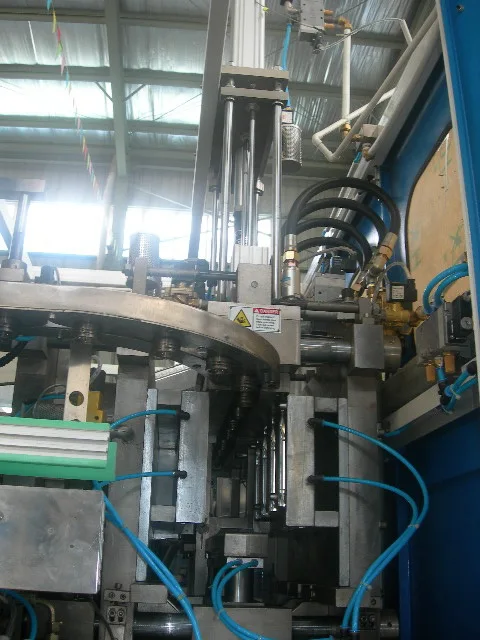

8). Strong clamping force with high pressure and double crank links to lock the mould.
9). Two ways of operating: automatic and manual.
10). Safe,reliable and unique design of the position of valve to make the pneumatic diagram in the water bottle blow molding machine easier to understand.
Model | ITEM | CM-A2 | CM-A4 |
Productivity | Depend on bottle design | 1800-2000PCS/H | 3200-4000PCS/H |
Product type | Volume | ≤2L | ≤2L |
| Body diameter | ≤100mm | ≤100mm |
| Height | ≤310mm | ≤310mm |
| Neck diameter | ≤38mm | ≤38mm |
Mould | Cavity | 2 | 4 |
| Mold thickness | 240mm | 240mm |
| Mold size | 260*240*370mm | 510*240*360mm |
Main machine power | Electrical source power | 380V/220V 50/60HZ 3Phase | 380V/220V 50/60HZ 3Phase |
| Power | 25kw | 49kw |
| Really use power | 6.5kw | 13kw |
Air system | HP air compressor | 1.4 m3/min 3.0Mpa | 2.0 m3/min 3.0Mpa |
| LP air compressor | 1.0 m3/min 1.0Mpa | 1.6 m3/min 1.0Mpa |
| Air Tank | 0.6m3 3.0Mpa | 0.6m3 3.0Mpa |
| Air dryer | 1.0m3/min 3.0Mpa | 2.0m3/min 3.0Mpa |
Cooling water | Water Chiller | 3HP | 3HP |
Machine | Size(L*W*H) | 1900*1280*1930mm | 1900*1860*1930mm |
| Weight | 2000kg | 3000kg |
Preform unscrambler | Size(L*W*H) | 2000*950*2480mm | 2000*950*2480mm |
| Weight | 250kg | 250kg |
Associated Brands
Main part: | ||
Pneumatic part | Valve | SMC/Airtech/FESTO |
| Cylinder | SMC/Airtech/FESTO |
Electric part | PLC | LG/SIEMENS |
| Operating system | LG/SIEMENS |
| Relay | SCHNEIDER |
Note | All of the electrical components adopts CE,UL,CCC approved international advanced high-tech product. | |
