14000 15500 люмен IP65 водонепроницаемый 100W мачтовое освещение подвесной светильник типа High Bay
- Категория: Commercial & Industrial Lighting >>>
- Поставщик: Hangzhou,Jiang,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.21 $* | 0.22 $* |
| Aug-15-2025 | 0.49 $* | 0.9 $* |
| Jul-15-2025 | 0.9 $* | 0.23 $* |
| Jun-15-2025 | 0.65 $* | 0.56 $* |
| May-15-2025 | 0.89 $* | 0.77 $* |
| Apr-15-2025 | 0.22 $* | 0.68 $* |
| Mar-15-2025 | 0.66 $* | 0.6 $* |
| Feb-15-2025 | 0.9 $* | 0.7 $* |
| Jan-15-2025 | 0.4 $* | 0.37 $* |
Характеристики
Product Description

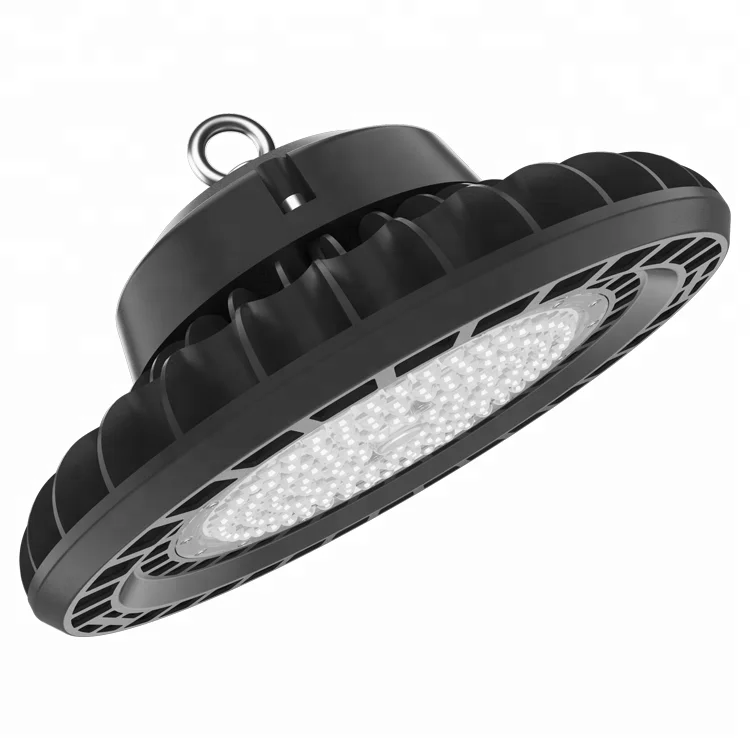

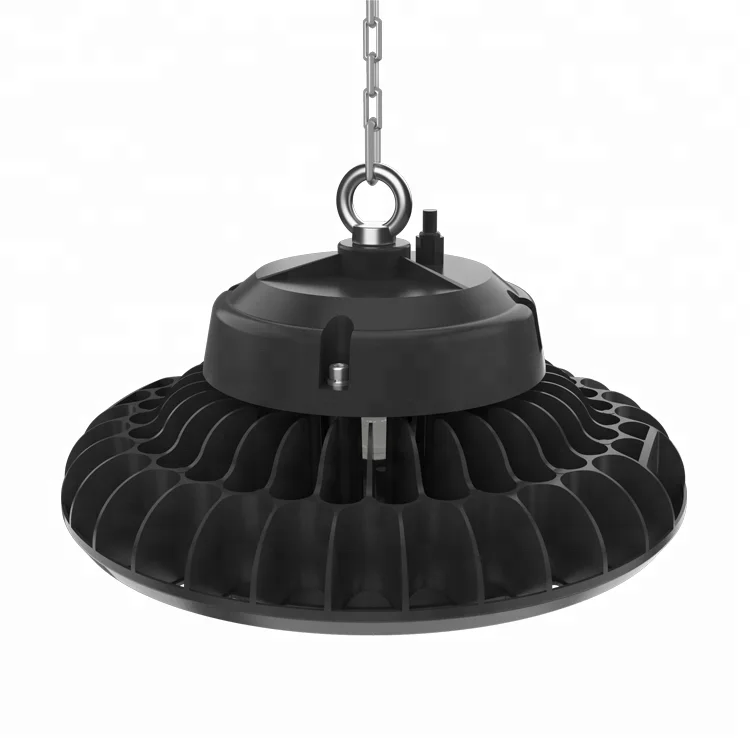

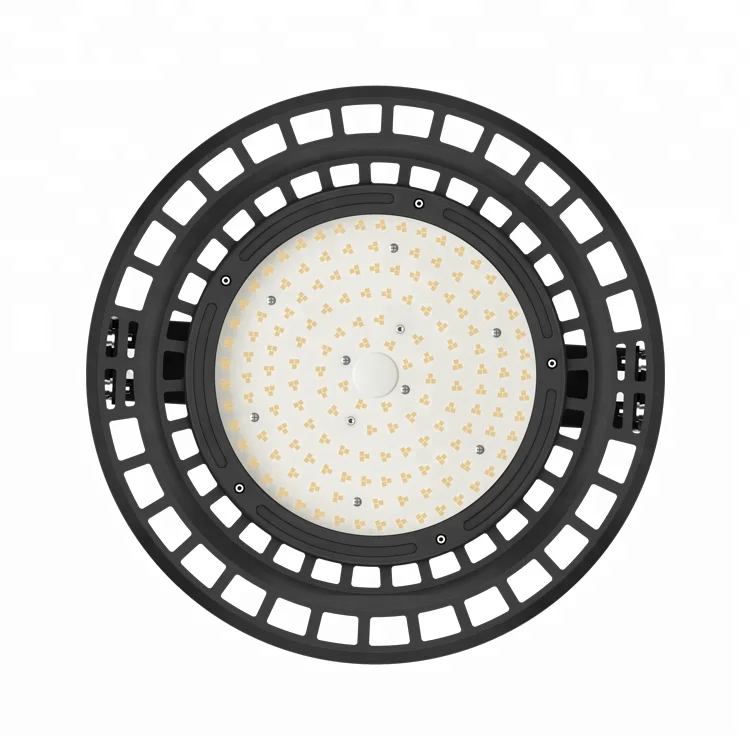

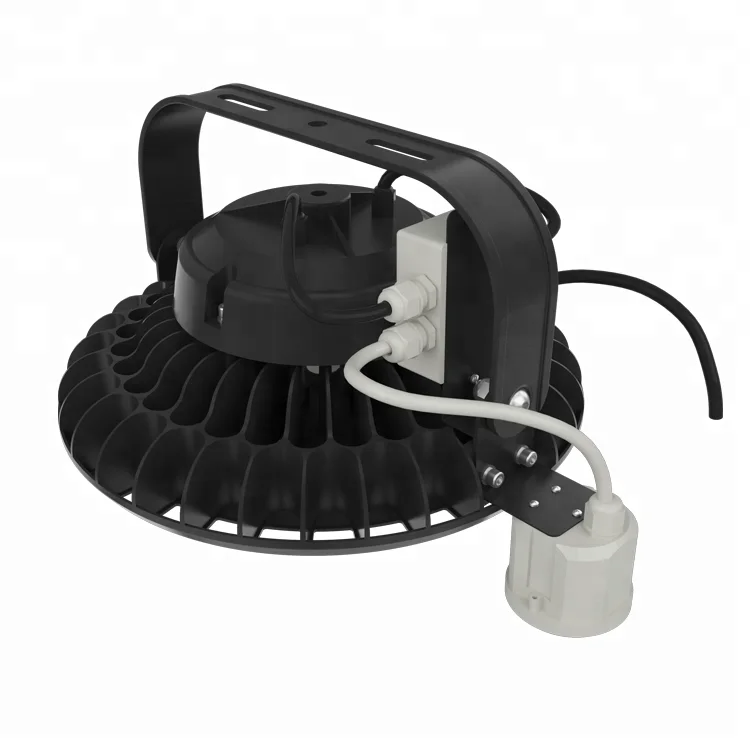

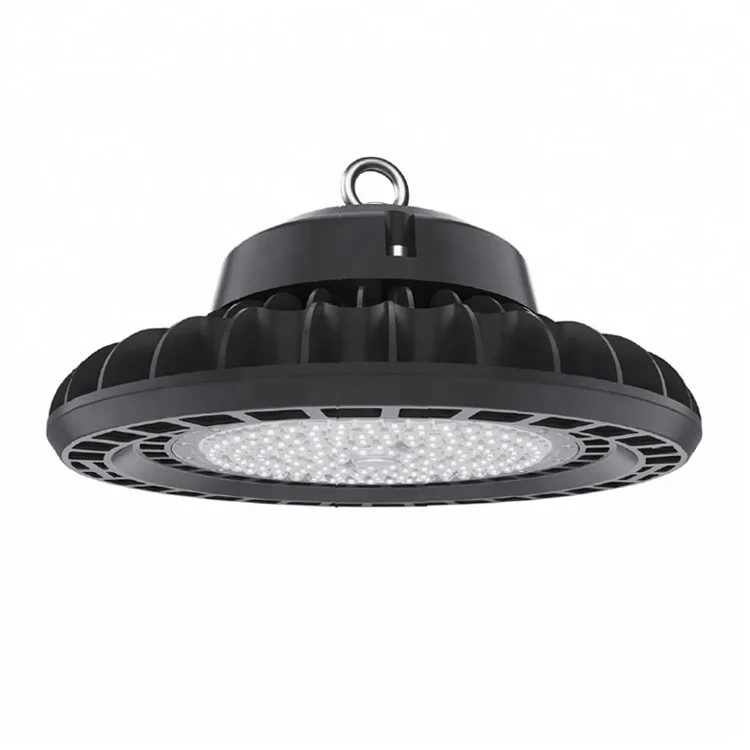

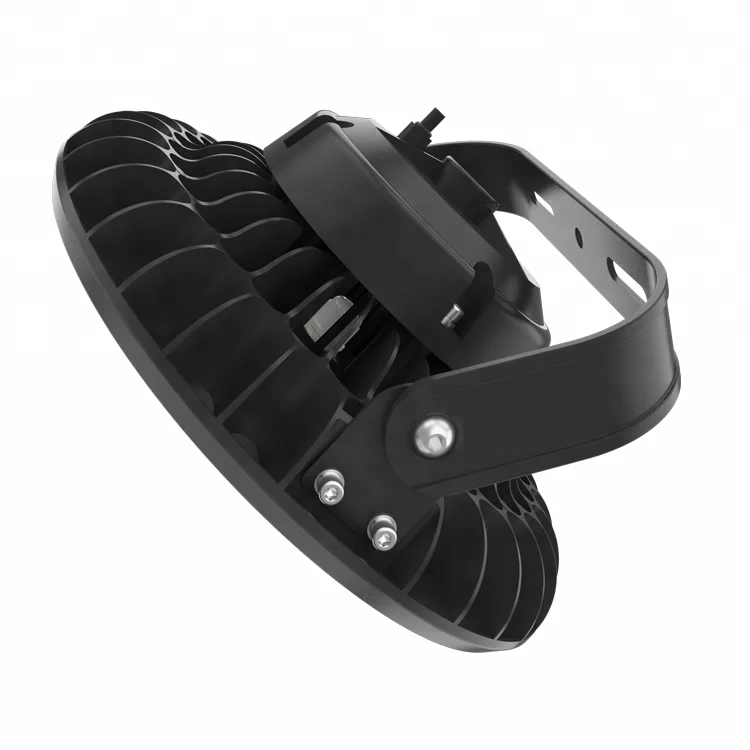

14000 15500 lumen IP65 Waterproof 100W Highbay LED High Bay Light UFO
| LED Light Source | 3030 Version | 5050 Version |
| LED Qty/ Current | 152units/ 105mA | 78units/ 51mA |
| Power | 100W | 100W |
| Luminaire Efficacy (+/- 5%) | 140 lm /w | 155 lm /w |
| Lumen Output (+/- 5%) | 14000 lm | 15500 lm |
| Input Voltage | 100-240V /277VAC , 50 /60Hz | |
| Driver Brand | Meanwell HBG Series | |
| Beam Angle | 60° (PC Lens) ; 110° (Tempered Glass) | |
| CCT (K) | 3000K / 4000K / 5000K / 5700K | |
| Lifetime (h) | >100,000 (L70) | |
| Working Environment | -40ºC ~ +50ºC 10%~90%RH | |
| Storage Temperature | -40ºC ~ +50ºC | |
| Rating | Class I / IP66 / IK10 | |
| CRI | >70 | |
| Power Factor | >0.95 | |
| Power Efficiency | >90% | |
| Material | Housing: Die-cast aluminum; Lens: Tempered glass /PC | |
| Pole Diameter | 60mm | |
| Product Dimensions | 350*350*193mm | |
| Carton Size | 365*365*210mm | |
| N.W | 4.4Kg (Ring mounted) ; 5.2Kg (Bracket mounted) | |
| G.W | 5.2Kg (Ring mounted) ; 6.0Kg (Bracket mounted) | |
Dimming Optional
1) 1-10V Dimming [ All the models are available ]
2) PWM Dimming [ All the models are available ]
3) Potentiometer Dimming [ All the models are available ]
Meanwell dimmable driver will be used if dimming function is requested.
Multiple dimming functions are integrated (1-10V DC, PWM Signal or potentiometer ).
Installation Process
Applications
