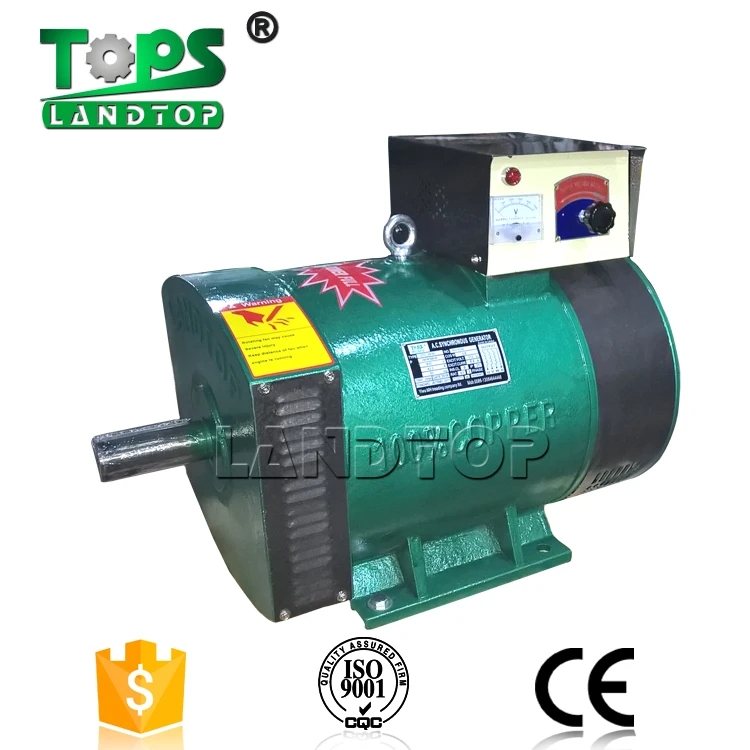

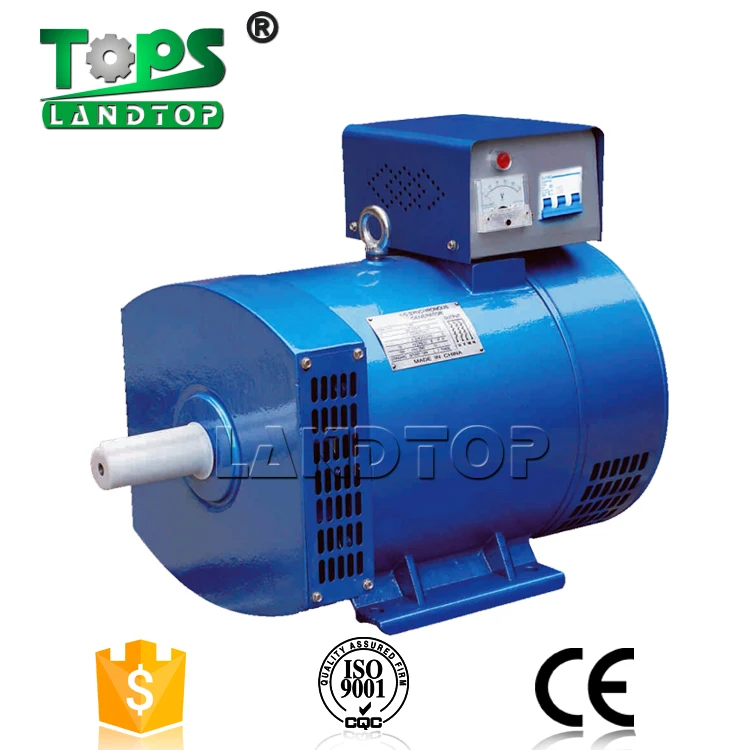

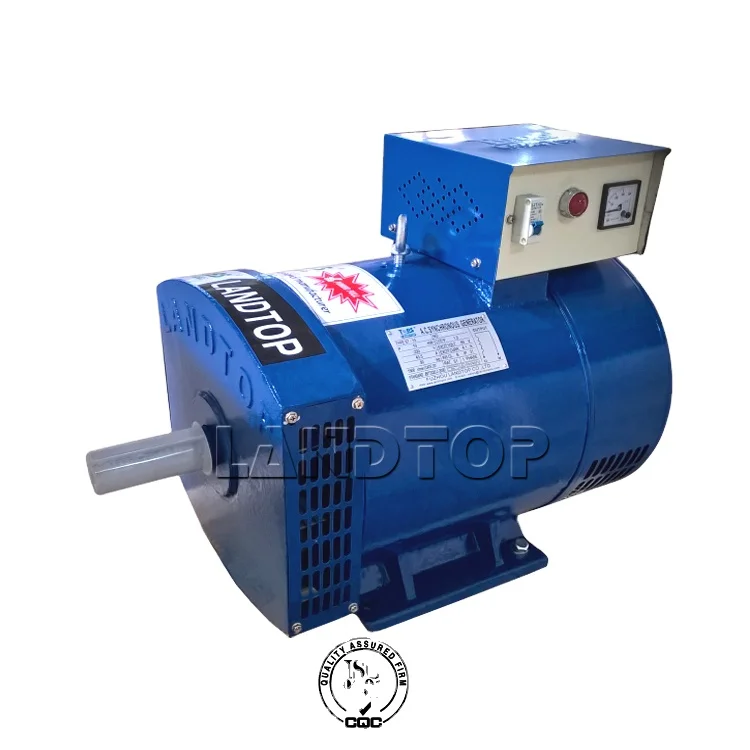

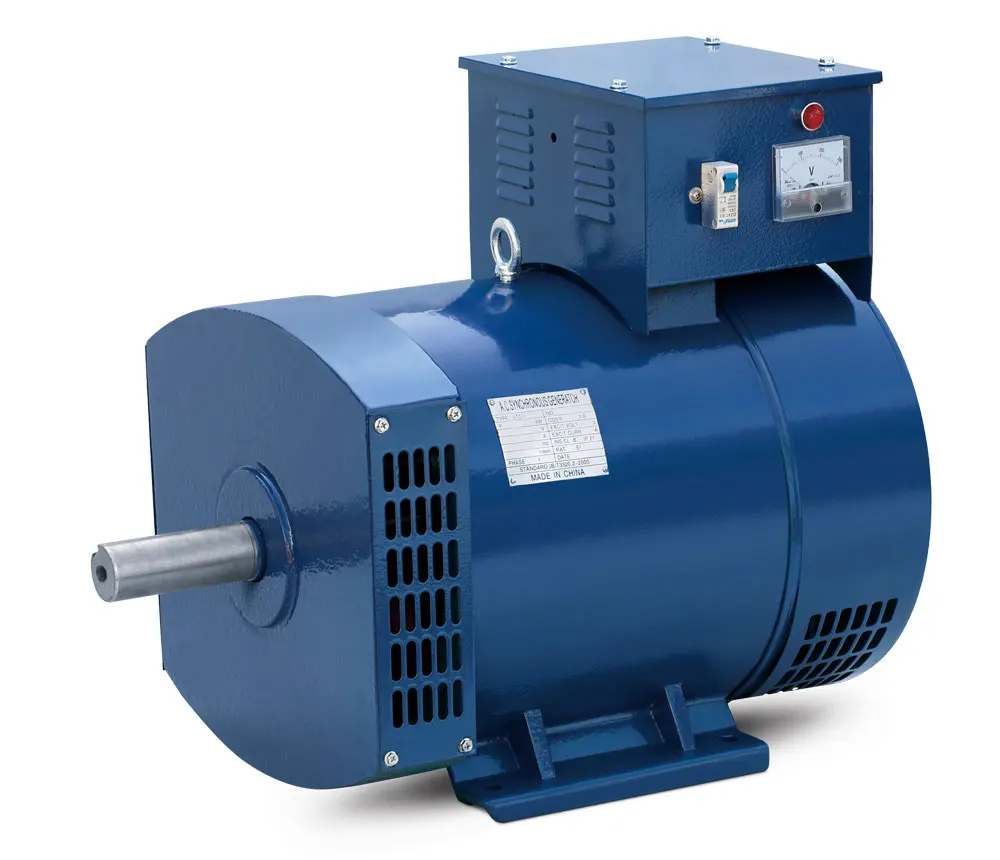

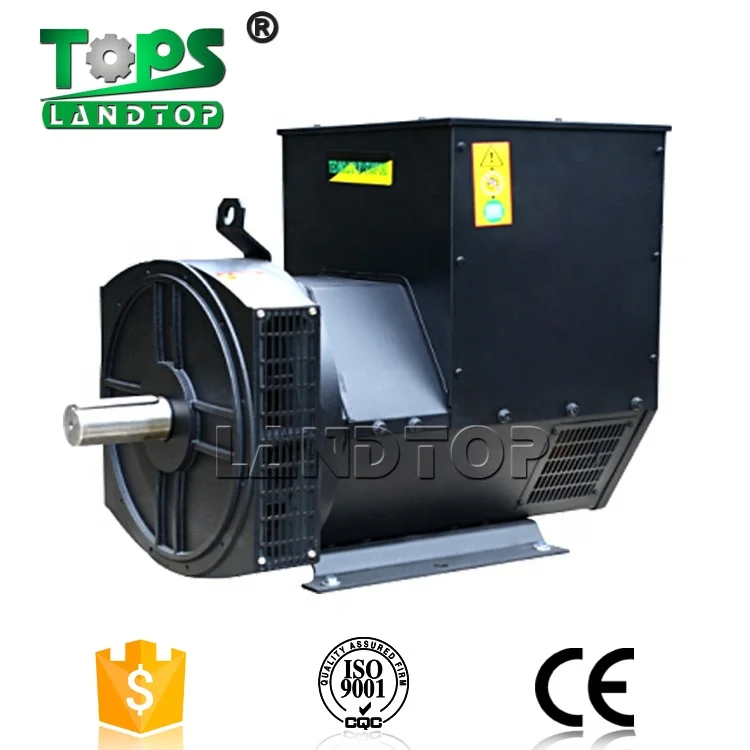

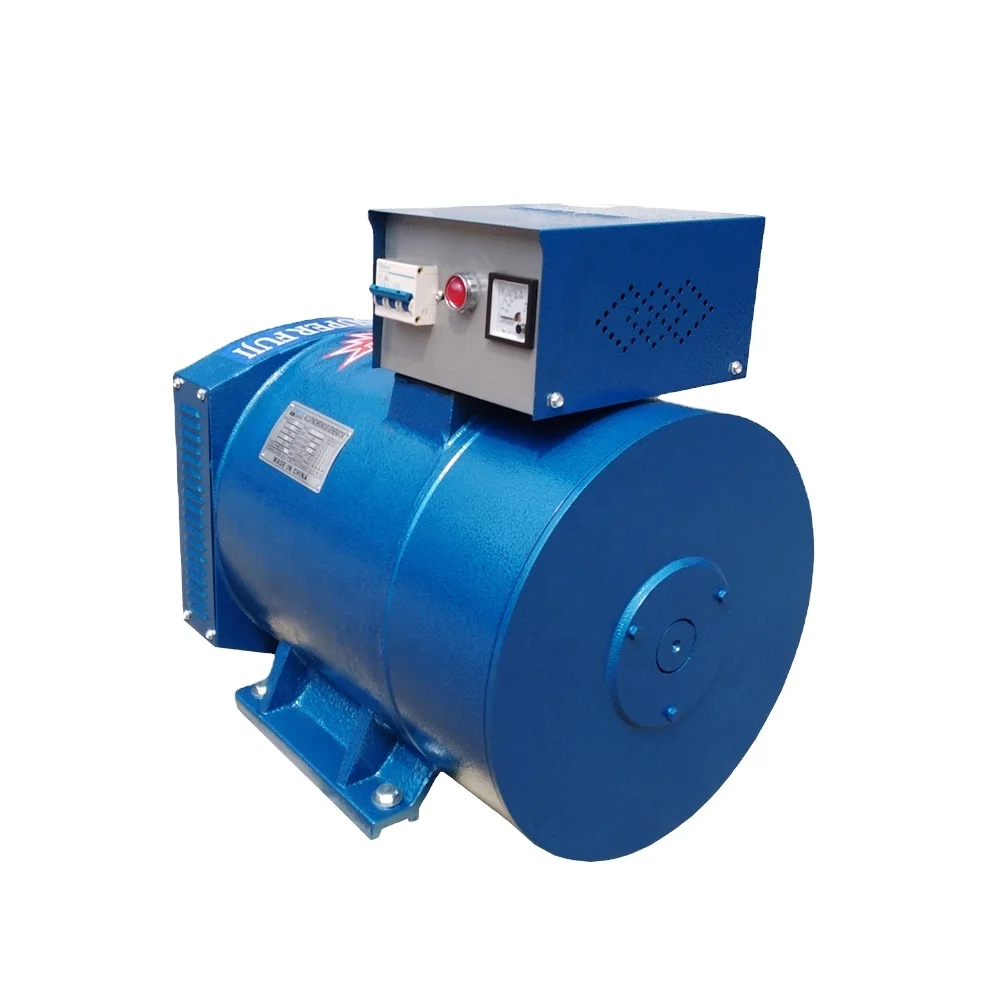

Генератор переменного тока Landtop 25 кВА для щетки генератора 100% медь
- Категория: Diesel Generators >>>
- Поставщик: Fuzhou,Landtop,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 307.51 $* | 322.17 $* |
| Aug-19-2025 | 304.99 $* | 319.66 $* |
| Jul-19-2025 | 255.2 $* | 268.92 $* |
| Jun-19-2025 | 299.44 $* | 314.90 $* |
| May-19-2025 | 261.79 $* | 274.60 $* |
| Apr-19-2025 | 294.99 $* | 309.50 $* |
| Mar-19-2025 | 292.61 $* | 307.28 $* |
| Feb-19-2025 | 289.23 $* | 303.77 $* |
| Jan-19-2025 | 286.44 $* | 300.51 $* |
Характеристики
Products Data
This series generators are to be used in town, countryside, worksites, mountain and pasture as electric power source for lighting purpose, it can also he used as reserved power source for emergent case using.The generators are of dripproof with rotary field type and adopt harmonic excitation system, easy operation and maintenance.The generators are three-phase, four-wire type, adopting star connection with neutral point. The rated line voltage is 400V, phase voltage 230V, frequency 50Hz. power factor 0.8(lag). We can provide 60Hz and the other voltage's generator according to the
customer's request.They can be coupled with a prime mover directly or through v-belt making right or reverse continuous rotation at the rated speed.When the rotation speed of prime mover changs 3% or so and load varies in the range of 0~100% cos j 0.8~1.0, the generators offer constant voltage, when sudden change (increase or decrease) of load, the generator will soon return to their normal working state, at the same time, without any starting device the generator can directly start an unloaded squirrel cage induction motor.
customer's request.They can be coupled with a prime mover directly or through v-belt making right or reverse continuous rotation at the rated speed.When the rotation speed of prime mover changs 3% or so and load varies in the range of 0~100% cos j 0.8~1.0, the generators offer constant voltage, when sudden change (increase or decrease) of load, the generator will soon return to their normal working state, at the same time, without any starting device the generator can directly start an unloaded squirrel cage induction motor.
Alternator model | ST/STC |
Power | 2-75kw |
Exciter type | Brush, Harmonic excitation system |
Power factor | ST= 1, STC= 0.8 |
Voltage adjust range | ≥3% |
Voltage regulation NL-FL | ≤±0.3% |
Insulation Grade | B or C |
Protection Grade | IP21 |
Type | Rated Output | Rated Capacity | Rated Current | Rated Voltage | Pole Number | Rated Speed |
(KW) | (KVA) | (A) | (V) | (r/min) | ||
STC-3 | 3 | 3.8 | 5.4 | 400/230 | 4 | 1500 |
STC-5 | 5 | 6.3 | 9 | |||
STC-7.5 | 7.5 | 9.4 | 13.5 | |||
STC-10 | 10 | 12.5 | 18.1 | |||
STC-12 | 12 | 15 | 21.7 | |||
STC-15 | 15 | 18.8 | 27.1 | |||
STC-20 | 20 | 25 | 36.1 | |||
STC-24 | 24 | 30 | 43.3 | |||
STC-30 | 30 | 37.5 | 54.1 | |||
STC-40 | 40 | 50 | 72.2 | |||
STC-50 | 50 | 62.5 | 90.2 |
Technical data and product detail images
Company Profile
Exhibition
Factory and Certifications
Product packaging
FAQ
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy Or 100% irrevocable L/C at sight.
Q: What is your lead time?
A: About 20-30 days after receiving advance deposit or original L/C.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, COI for
Iran, SASO for Saudi Arabia, etc.
Q: What warranty do you provide?
A: One year, during the guarantee period, we will supply freely of the easy damaged parts for the possible problems except for the incorrect operation. After expiration, we supply cost spare parts for alternator maintenance.
