BTCP-297A A4 копировальная бумага полосная упаковочная машина
US $19000-$43000
Автоматическая термоусадочная упаковочная машина для ноутбуков по заводской
- Категория: Оберточные машины >>>
- Поставщик: Shanghai,Kuko,Packing,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.53 $* | 0.14 $* |
| Aug-20-2025 | 0.8 $* | 0.0 $* |
| Jul-20-2025 | 0.80 $* | 0.55 $* |
| Jun-20-2025 | 0.95 $* | 0.45 $* |
| May-20-2025 | 0.42 $* | 0.53 $* |
| Apr-20-2025 | 0.20 $* | 0.40 $* |
| Mar-20-2025 | 0.53 $* | 0.22 $* |
| Feb-20-2025 | 0.84 $* | 0.0 $* |
| Jan-20-2025 | 0.64 $* | 0.1 $* |
Характеристики
Model | GH-3015ML | SF-5030LG |
Power | 1.8kw | 21kw |
Power Supply | AC 380/220V 3PH 50/60HZ | AC 380/220V 3PH 50/60H |
Tunnel Size L×W×H | / | 2000×500×300mm |
Max Packing Size
| L(unlimited) W+H≤430mm; H≤150mm | W400×H200 mm |
Horizontal Blade length | 490mm | / |
Packing Speed | 20-40m/min. | 0-30m/min. |
External Air Source | 6-8 kg/cm2 | / |
Shrink Film | POF | POF |
Machine size L×W×H | 2115×1467×1275mm | 2400×985×1265mm |
Packing size L×W×H | 2060×1500×1420mm | 2360×1010×1410mm |
G.N. Weight | 670/640kgs | 560/540kgs |

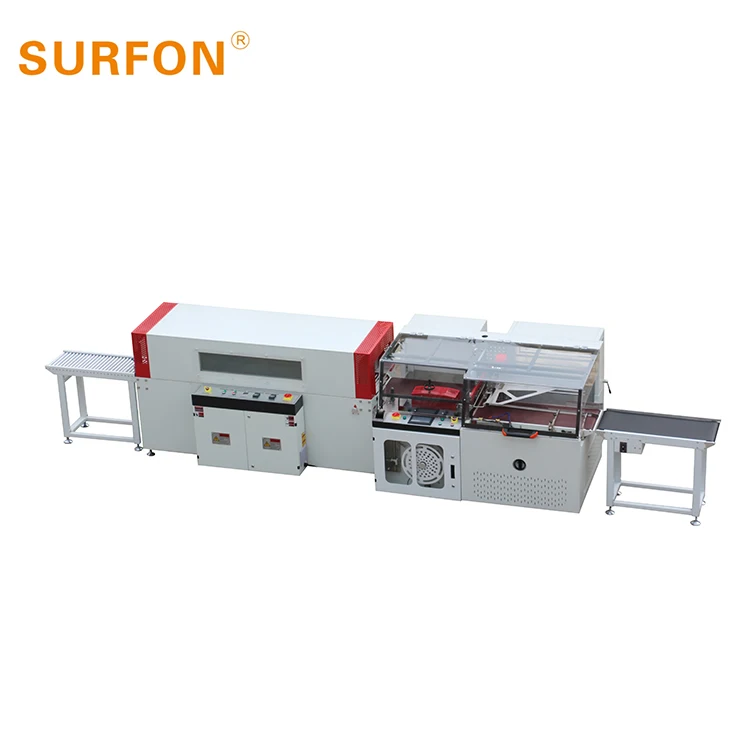

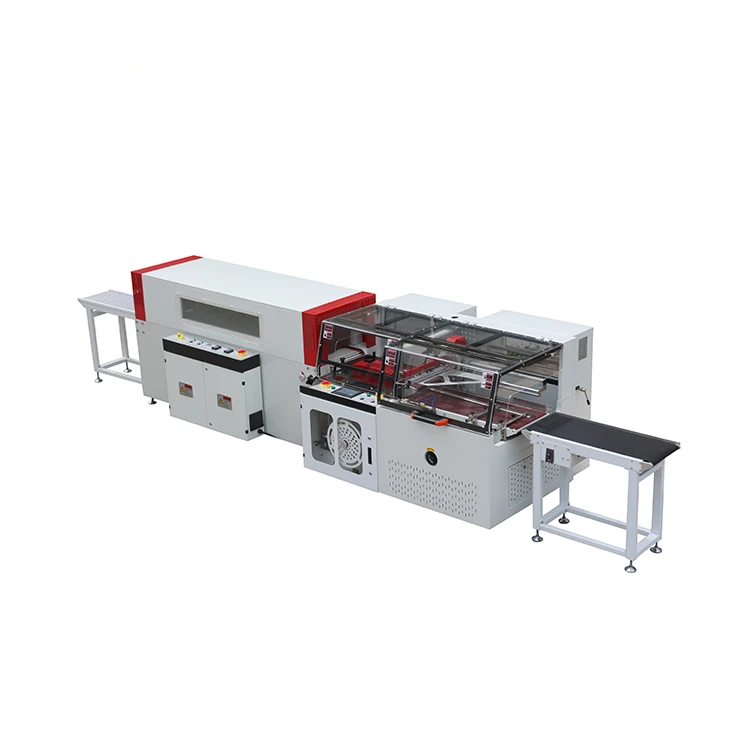

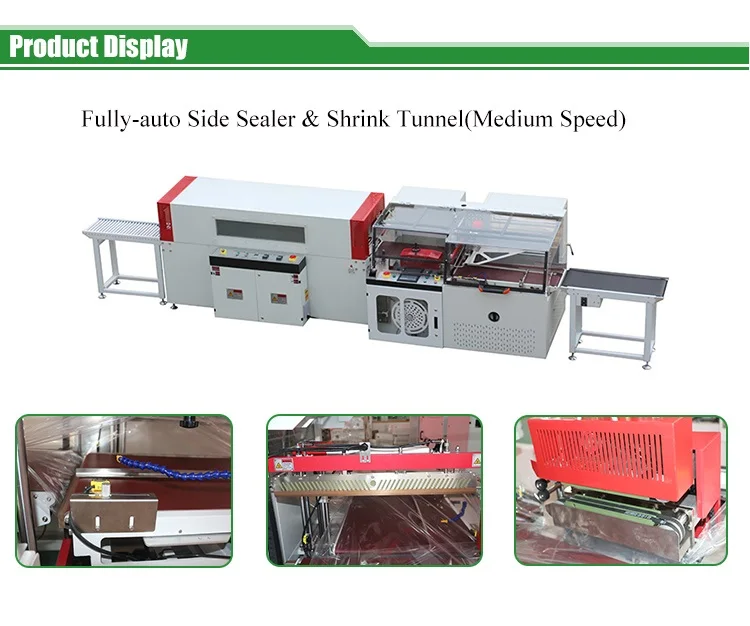

- GH-3015ML is our company independently developed unmanned fully-auto sidesealer which is widely used in mass packing production. Automatic feeding, conveying, putting into the bag, sealing and shrinking can complete in one time. It can be used for products of different height and width with high working efficiency;
- Horizontal Blade of sealing part uses vertical drive; side blade adopts the international advanced thermostatic side sealing knife. Sealing line is straight and strong which can guarantee the sealing in the middle of the product. It can keep continuously sealing and cutting to achieve perfect sealing effect;
- Temperature heating systems can be used for sealing various standard industrial films, such as POF shrink film. Only adjust the hand wheel to pack different sizes of the products that increase reliabilityand operate easier;
- Side blade sealing continuously makes the unlimited length of the product;
- The machine adopts advanced PLC programmable controller, meanwhile it also has safety protection and alarm device. The sealing system can continue to make a smooth sealing action without replacement. The maintenance is very simple;
- The feeding length controlled by photo sensor and time relay which regulates film length precisely and makes the shrinking under control;
- In addition the installation of twogroups of horizontal and vertical electric eyes are easy to switch choice for thin or small package that can easily complete sealing packaging operations;
- Auto waste film collection which is controlled by single motor will not make the film too loose or too tight. It is easy to remove the waste film;According to customer’s needs, vacuum feeding and gas charging can be added to make more beautiful shrinking;
- We also can equip the machine with in feed belt conveyor or finger conveyor and outlet non-power storage table;
- SF-5030LG adopts advance blowing from the bottom of the chamber, fully use of heat to arise energy efficiency. Frequency inverters control blowing and conveyor speed separately. The blowing direction is adjustable;
- Visible window has anti-fogging function and can show the shrinking process in the chamber
- The speed of finger conveyor is adjustable which controls equal distance among products to make sure consistent sealing;
- Wrapping up to 60 products per minute, this shrink bundler wraps of frame, aluminum, wooden products with single package or a combination of packaging. The machine is suitable for mass production of long materials.
Spare Parts | Brand | Country |
Sensor | Banner | USA |
Side Sealing Cylinder | Festo | Germany |
Solenoid Valve | SMC | Japan |
PLC | Siemens | Germany |
HMI | Siemens | Germany |
Servo Drive | Schneider | France |
Servo Motor | Schneider | France |
Film Release Motor | Haitec | Italy |
Waste Film Motor | Li Ming | Taiwan |
In Feed Conveyor Motor | Haitec | Italy |
Out Feed Conveyor Motor | Haitec | Italy |
Lifting Motor | GPG | Taiwan |
Intermediate Relay | Siemens | Germany |
Power Supply | Mean Well | Taiwan |
AC Contactor | Schneider | France |
Solid Relay | Fotek | Taiwan |
Frequency Inverter | Schneider | France |
All Switches | Siemens | Germany |
Shrink Tunnel | Brand | Country |
Power Supply | Mean Well | Taiwan |
Solid Relay | FOTEK | Taiwan |
Gear Motor | GPG | Taiwan |
Circulation Motor | SURFON | Taiwan |
Intermediate Relay | Siemens | Germany |
Temperature Controller | Autonics | Korea |
Electric Breaker | Schneider | France |
Thermal overload Relay | Schneider | France |
AC Contractor | Schneider | France |
Frequency Inverter | Schneider | France |
All Switches | Siemens | Germ |
Video Link | Product |
https://youtu.be/5AdDMp0jj9Y | Mask box |
https://youtu.be/spMsFuAPfSk | Aerosol cans |
https://youtu.be/HAV6mACzND8 | Maca boxes |
https://youtu.be/kXWdq6FSvds | Baby products |
https://youtu.be/7vxmTa1cejE | Small photo frame |
https://youtu.be/3i-vpfhbQQc | Big photo frame |
https://youtu.be/4rPT04hQlIw | Small boxes |
https://youtu.be/Q5jK3Phppo4 | Lunch boxes |
https://youtu.be/Ugkh27cpEHA | Egg tray |
https://youtu.be/7j_XfateYVw | Hand sanitizers |
https://youtu.be/XshGu_dHnYc | PVC trunking |
https://youtu.be/HHrOYltXqh4 | PVC trunking |
https://youtu.be/Z6BWTe-uVd4 | Gronp books |
https://youtu.be/VIVZx51VwuI | English exercise books |
https://youtu.be/F4Yn2jmlqZg | Colorful paper card |
https://youtu.be/z7Ip-1m4FDk | Fast food lunch box |
https://youtu.be/bin3DTUG4J0 | English exercise book |
