1.5 кВт/2 кВт/3 кВт/4 кВт/6 кВт/8 кВт литиевое зарядное устройство для всех электрических
- Категория: On Board Chargers >>>
- Поставщик: Shijiazhuang,Dilong,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.66 $* | 0.4 $* |
| Aug-19-2025 | 0.89 $* | 0.23 $* |
| Jul-19-2025 | 0.73 $* | 0.26 $* |
| Jun-19-2025 | 0.60 $* | 0.34 $* |
| May-19-2025 | 0.41 $* | 0.22 $* |
| Apr-19-2025 | 0.80 $* | 0.37 $* |
| Mar-19-2025 | 0.43 $* | 0.11 $* |
| Feb-19-2025 | 0.84 $* | 0.73 $* |
| Jan-19-2025 | 0.6 $* | 0.32 $* |
Характеристики

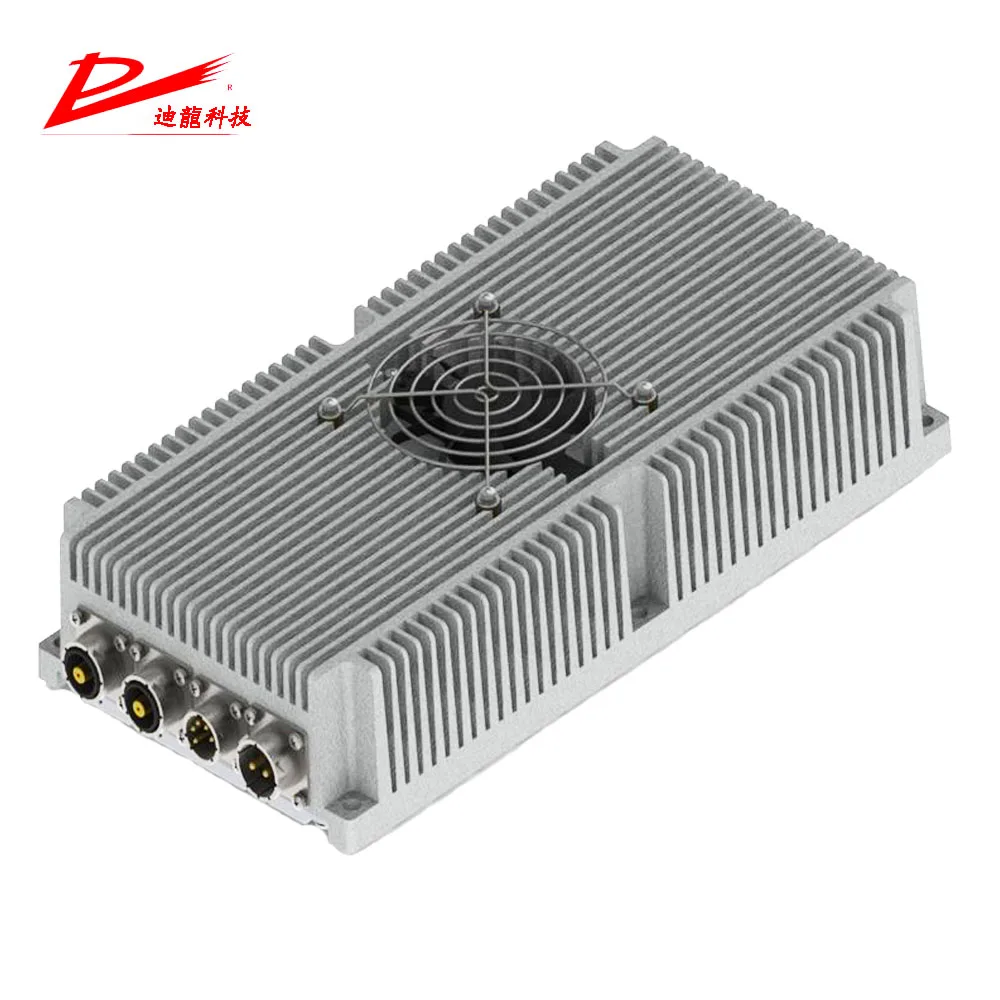

1.5kw/2kw/3kw/4kw/6kw/8kw lithium CAN battery charger for all electric car
Place of Origin: Hebei, China (Mainland)
Brand: Dilong
Features:
1. Constant power and constant voltage automatic conversion, effectively save charging time
2. CAN communication intelligent fault alarm, protection
3. Input and output over-voltage protection
4. Output over current and short circuit protection
5. Output anti-reverse protection
6. Over-temperature protection
Specification
| Technical Specifications | |||
Mains Input | Rated Voltage | Vac | 220 |
Voltage Range | Vac | 176~264 (The output from 85-176 is automatically reduced to 1.2 KW) | |
FREQ RANGE | HZ | 47~63 | |
Efficiency(max) | % | ≥93 | |
Power Factor |
| ≥0.99@220Vac,rated power | |
Current(MAX) | A | ||
Mains output | Rated Output Voltage | Vdc | 72 |
Constant voltage output range | Vdc | 50~90 (According to the customer battery final decision) | |
| A | 25 | |
Constant power output | W | 2000 | |
Output voltage accuracy | V | ≤±1%Vo input 176Vac-264Vac,output 10%-100% load | |
Line regulation | % | ≤±0.2%Vo input 176Vac-264Vac,output 100% load | |
Load regulation | % | ≤±0.5%Vo input 220Vac,output 10%-100% load | |
Ripple and noise | mV | ≤±3%Vo 20M oscilloscope,Twisted-pair cable test. | |
Property
| Input over-voltage protection | Vac | 275±10 CAN directive warning protection |
Input under-voltage protection | Vac | 165±10 CAN directive warning protection | |
Output Over-current protection | A | Io≥120% CAN directive warning protection | |
Output under-voltage protection | Vdc | 44±5V CAN directive warning protection | |
Output over-voltage protection | Vdc | 96±5V CAN directive warning protection | |
Over-temperature protection | ℃ | 85±5 CAN directive warning protection | |
Output short circuit protection |
| yes (CPU intelligent control) | |
Reverse polarity protection |
| yes (CPU intelligent detection) | |
Dynamic response | us | ≤200 | |
CAN communication | Communication interrupt, timeout of 5 seconds intelligent shutdown, communication normal recovery. | ||
Work environment | Operating temperature |
| -20℃~+70℃(Intelligent derating shell temperature above 70 ℃) |
Operating humidity | %RH | 20-90(No condensation) | |
Storage humidity | %RH | 10-95(No condensation) | |
Vibration |
| QC/T413-2002(Other parts required) | |
Cooling mode |
| Natural cooling | |
Safeguard | Isolation Voltage | shell←input→output:2.8KVdc; Output→shell:2.8KVdc; Auxiliary Output→shell:700Vdc | |
Insulation resistance | MΩ | input—output—shell>10 (25℃,70%RH) | |
IP Grade |
| IP67 | |
Structure
| mode of connection |
| Waterproof aviation connector |
weight | Kg | 5.9 | |
Size | mm | 300*140*130 | |
Advanced testing
Certifications
Company Information
Shijiazhuang Dilong Technology Co., Ltd. is a manufacturer with the development, production and sales of military power supply , industrial power supply ,new energy vehicle power supply.
Our company was founded in 2000,the headquarter is in Shijiazhuang ,Hebei. We also has branch offices in Beijing, Shanghai,Shenzhen,Chengdu and Wuhan.
Our company pays high attention to the Quality Management System , passed ISO9001, the ISO/TS16949:2009 system authentication successively, the CE European Union product authentication, the ROHS.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
