 Xiagong Chusheng (Hubei) Special Purpose Vehicle Manufacturing Co., Ltd, was established in 1998  and is located in Suizhou city, Hubei province, in the central part of China. Its distance to Shenzhen  3 hours by high  speed train  and to SanXia (The Three Gorges) is 330 kilometers,and the traffic is very convenient. Our company is the foreign trade department in wuhan city .   Its total assets exceeds $320 million. In addition, our site has an area of 690,000   square     meters and it has a staff of more than 3000.



1.Traffic : 3 hours to shenzhen by high speed train ,6 hours to shanghai by high speed train

2.Certificate: CCC , ISO9001 , ISO14001

3.Annual prodcution capacity : 20000-25000 sets

4.Engineer employee: 210

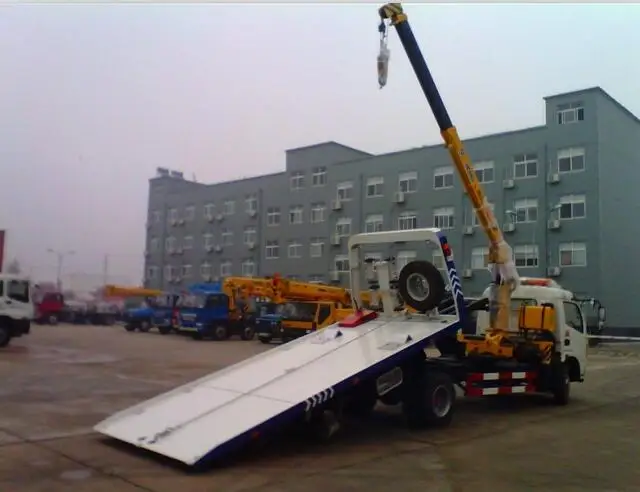

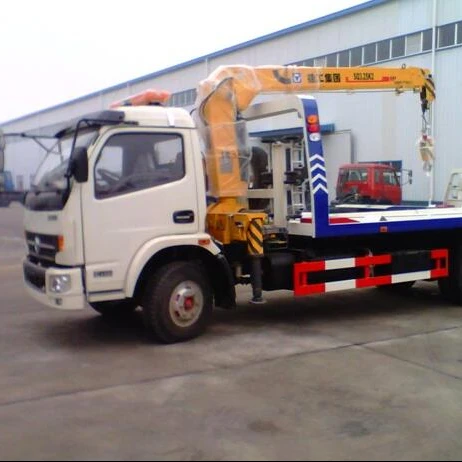

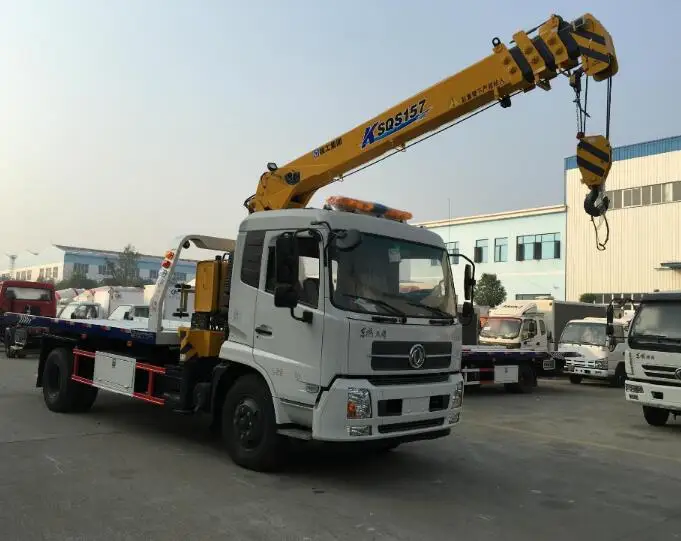

WRECKER TOW TRUCK is a truck used to move disabled, improperly parked, impounded, or otherwise indisposed motor vehicles.





1. Wrecker tow truck is used to transport motor vehicles to another location (generally a repair garage), or to recover vehicles which are no longer on a drivable surface. It is equipped with lifting winch device and wheel bracket which can lift, towing,back load and transport.It is widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure and other vehicles.



2. The crane, which functions with single vat, can be landed to support the truck and guarantee the truck’s stability. It can be equipped with either semi-automatic or fully automatic tugboat wrecker tow truck.





3.The capstan can be driven either by hydraulic pressure or power supply of the truck itself. Accessories for clearing the barriers are soundequipped to secure the efficient work. The traction supporting crane operated by the hydraulic pressure system is highly flexible wrecker tow truck



4. The assistant wheel can hold the locked wheels to tract wrecker tow truck





5. It is also equipped with highaltitude signal lamp. Searching lamps can also be equipped to guarantee night barrier-cleaning work wrecker tow truck.





6. Tools operated by high pressure for dismantling barriers can be equipped to do saving activities on spot wrecker tow truck







Wrecker Truck Technical Parameters
Basic Description
Drive form	8*4
Wheelbase(mm)	1800+4600+1350
Overall dimension(mm)	11500*2500*3800
G.V.W(kg)	38000
Curb weight(kg)	32170
Front overhang(mm)	1500
Rear overhang(mm)	2250
Chassis Description
Chassis model	ZZ1317N4667C
Spring plate	4/4/12,11/11/12
Front tread(mm)	2022/2022
Rear tread(mm)	1830/1830
Tyre size	11.00-20,11.00R20,12.00-20 16PR,
	12.00R20 16PR
Number of tyre	12+1
Gear box	10 forward & 2 reverse
Engine Description
Engine model	WD615.96E
Displacement(ml)	9726
Horsepower(hp)	336
Max power(kw)	276
Type of fuel	Diesel
Emission standard	Euro 4
Lifting quality(kg)	5700





APPLICATION:



WRECKER  TOW TRUCK  can be used for recovering  a vehicle damaged in an accident, returning one to a drivable surface in a mishap or inclement weather, or towing or transporting one via flatbed to a repair shop or other location











      7 units Sewage Suction Truck exported to Rwanda





                                                                                                                                                                                                                                        24 units Compressed Garbage Truck exported to  Myanmar













Q1. : Are your manufacturer ?
A  : Yes! We can totally manufacture the trucks as you required.

Q2. Do you have a good orgonization of shipping vessle ?
A : Yes, we have a good and long term cooperation with the world first class famous shipping company line,like MSK,PIL,SUNSHINE SHIPPING,ETC.The order over 500 units of vehicle,  we will lease a vessel.

Q 3 : How about your warranty items?
A  : We supply original spare parts of our vehicles, if you need, we will show you spare parts list for your  choosing to make sure daily maintain of your vehicles.

Q 4 : Can I be your agent in my country?
A  : It is Ok if the order is appropriate, we looks forward to long-term cooperation with you.

Q 5 : What is the delivery time and payment term?
A  : Our common products delivery time is 10-35 working days except some definitely special            vehicles.

      We accept 30% T/T deposit and 70% balance T/T or 100% L/C. More details, please contact         with our  salesman.









CHINA FAMOUS  BRAND







Product range:



1.Water Truck

 2.Insulated Truck and Milk Truck

3.Sewage Suction Truck
4.Garbage Truck

5. High-altitude Operation Truck/Truck with Crane
6.Fuel Truck 7.Chemical Liquid Truck 8.Bulk Cement Truck
9. Concrete Mixer Truck 10.Tractor 11.Semi-Trailer
12. Fire Fighting Truck 13.Dump Truck 14.Van Truck/Refrigerated Truck/Refrigeration Truck
15.Wrecker/Tow Truck 16.Flatbed Truck/Low Bed Truck 17.Sweeper Truck
18. High Pressure Cleaning Truck 19.Liquefied Gas Transport Truck
