Горизонтальная Машина Для Сушки Осадка Сточных Вод
US $15000-$350000
Китай древесные опилки машина для сушки древесных стружки на
- Категория: Rotary Drying Equipment >>>
- Поставщик: Henan,Hongke,Heavy,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.9 $* | 0.50 $* |
| Aug-16-2025 | 0.99 $* | 0.7 $* |
| Jul-16-2025 | 0.12 $* | 0.86 $* |
| Jun-16-2025 | 0.89 $* | 0.67 $* |
| May-16-2025 | 0.66 $* | 0.7 $* |
| Apr-16-2025 | 0.86 $* | 0.56 $* |
| Mar-16-2025 | 0.67 $* | 0.32 $* |
| Feb-16-2025 | 0.91 $* | 0.76 $* |
| Jan-16-2025 | 0.33 $* | 0.24 $* |
Характеристики
China Wood Sawdust, Wood Chip Dryer machine for Sale
Product Description
1. Introduction of Wood chip dryer
Wood chip (sawdust) is a kind of biological fiber organic matter with water content of about 50%.
The general moisture content after drying is 10-15%. The main moisture content is free water and biological water, free water is easy to remove, but biological water is difficult to remove.
The wood chip dryer is specially designed and manufactured for drying various wood scraps, sawdust, small wood chips, wood skins and other wood materials. Of course, the dryer can be used in a wide range of powder materials such as wood chips, wood chaff, wood flour, bamboo powder, etc. Bagasse, rice husk, sawdust, shavings and other materials drying.
It can also be widely used in: fuel plants, fertilizer plants, chemical plants, pharmaceutical plants and other industries.
Wide drying range greatly enhance the charm of wood chaff dryer, choose a kind of equipment for the benefit of a variety of materials. The equipment has the characteristics of large drying output, remarkable energy-saving effect and low maintenance.

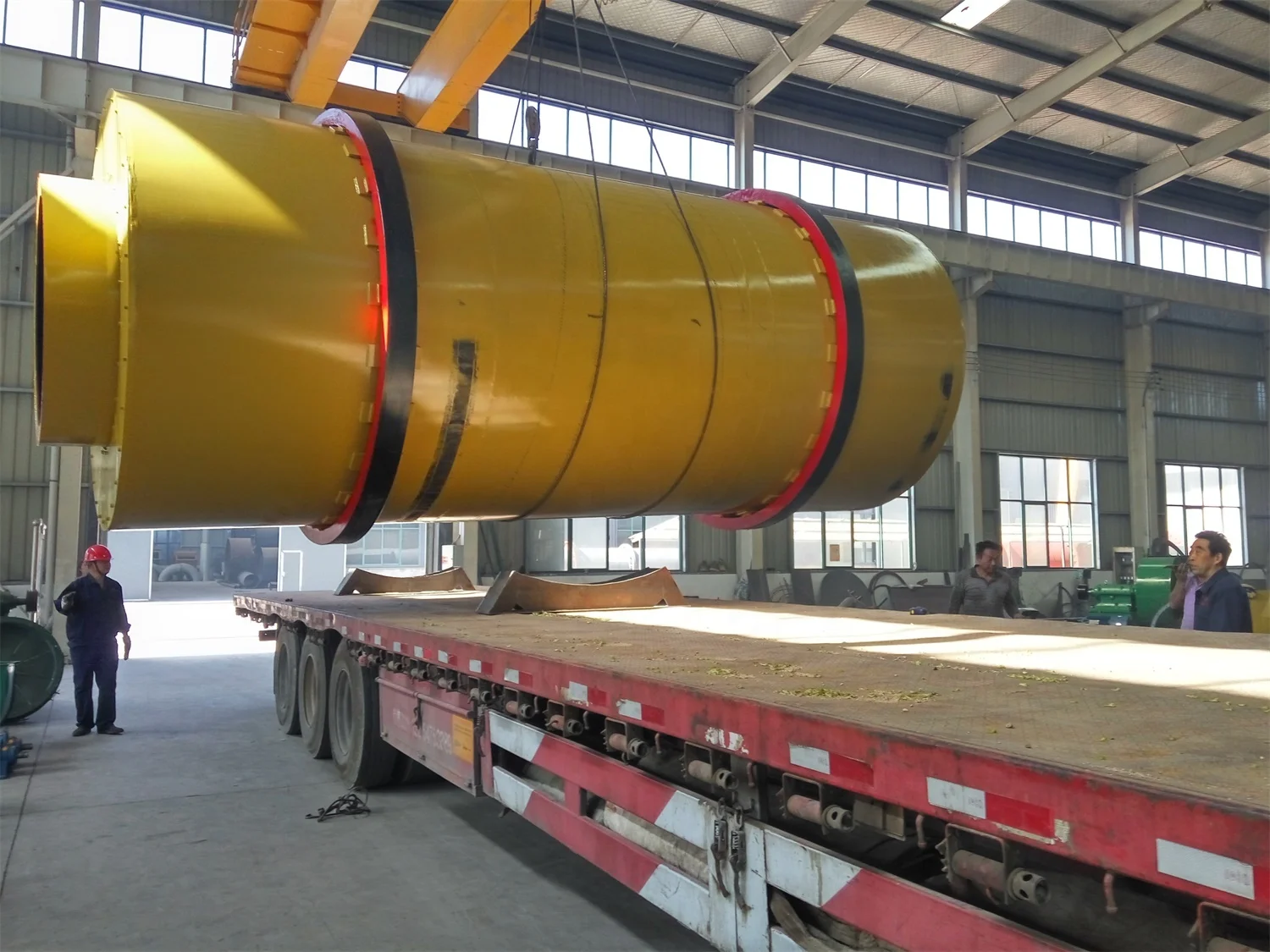

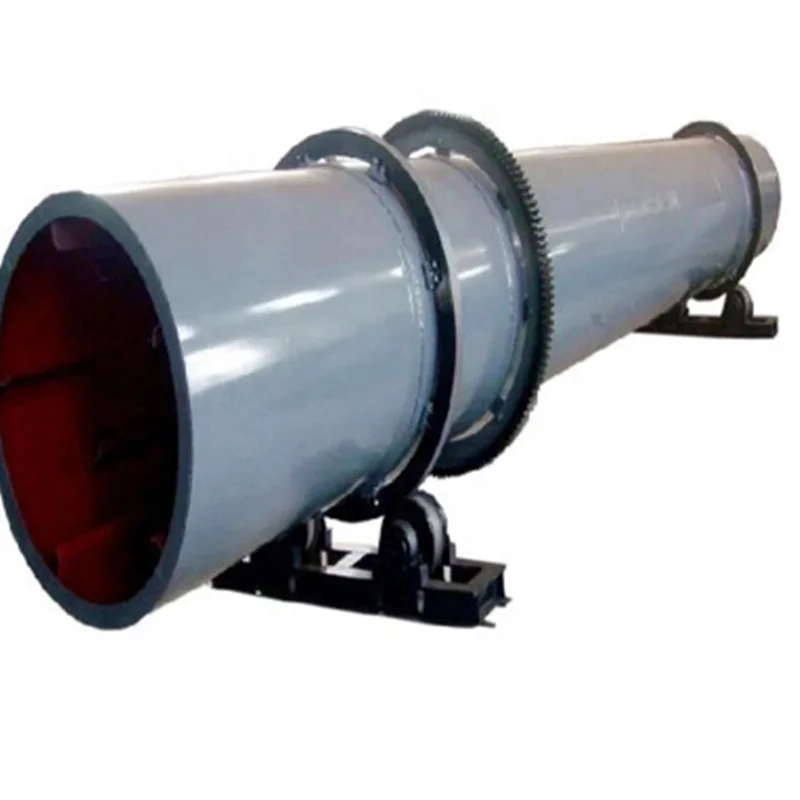

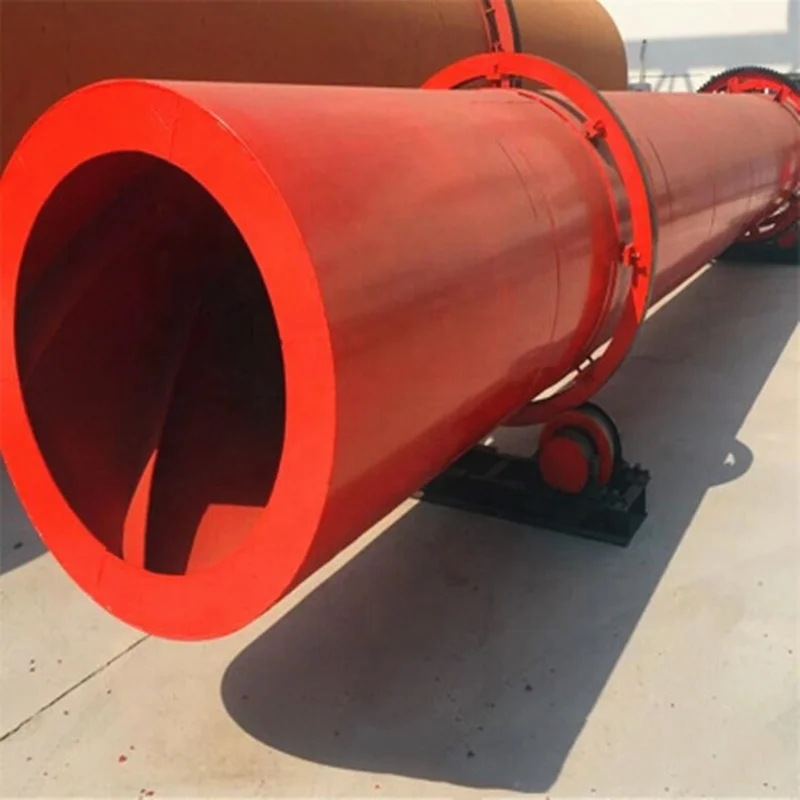

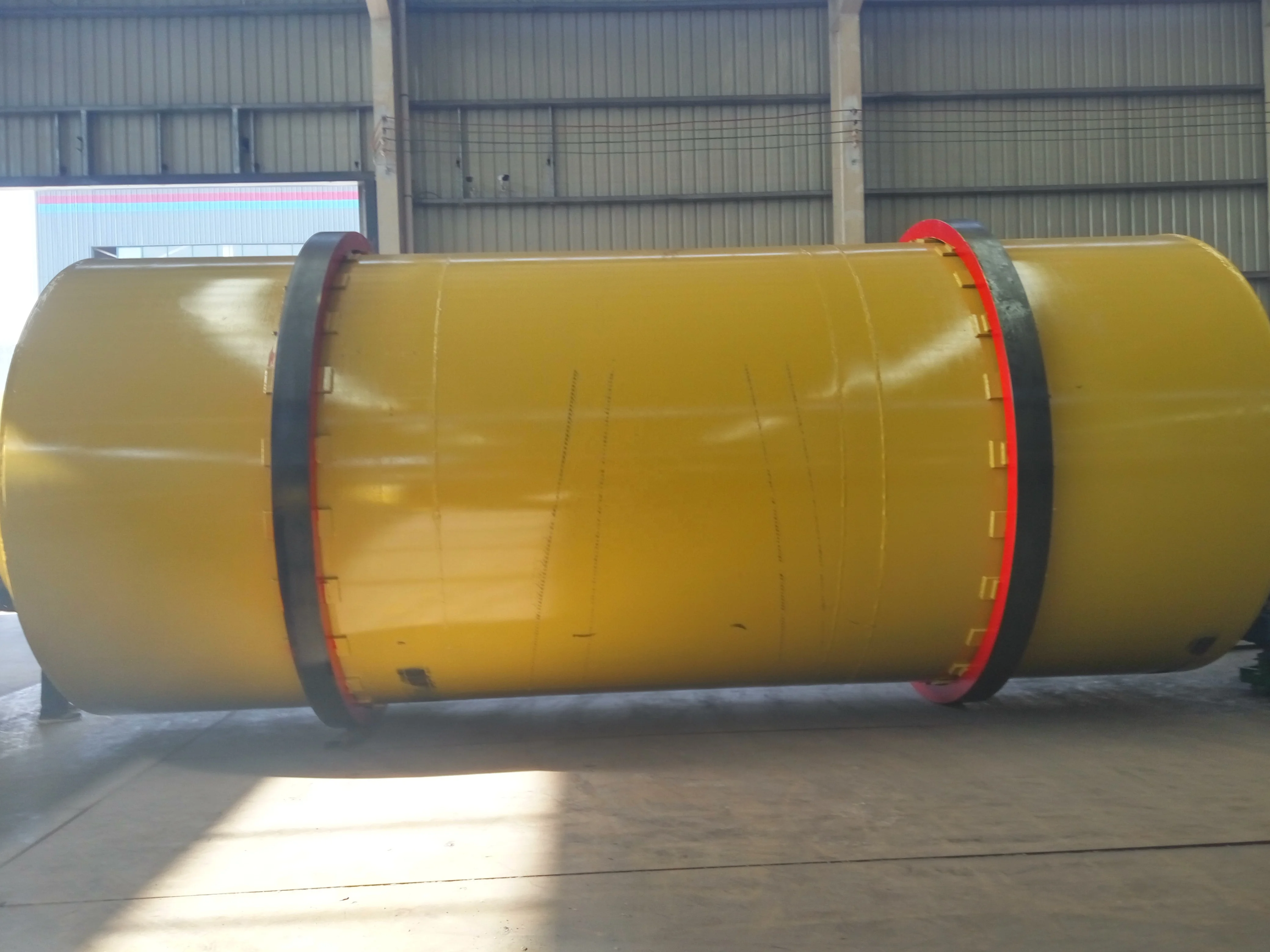

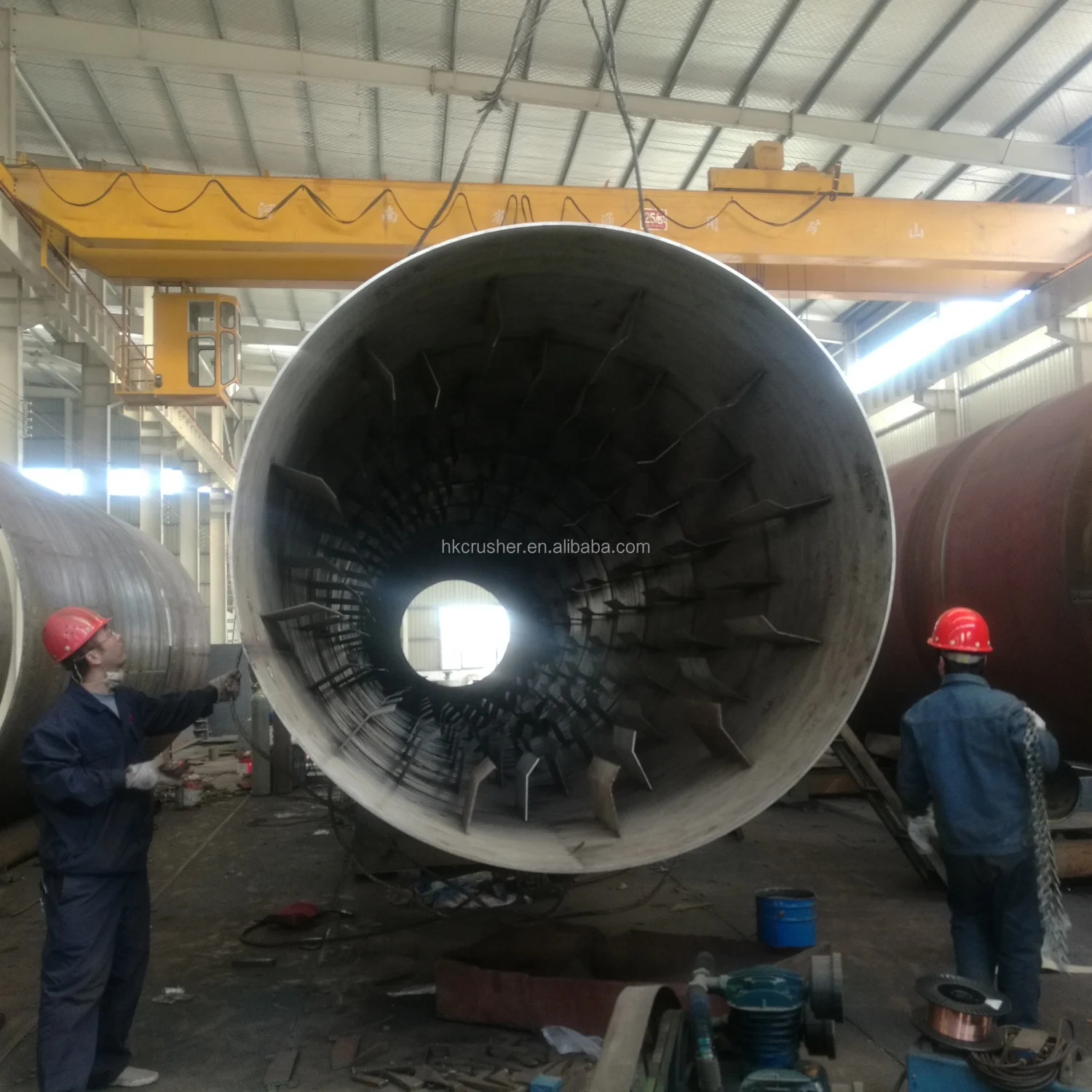

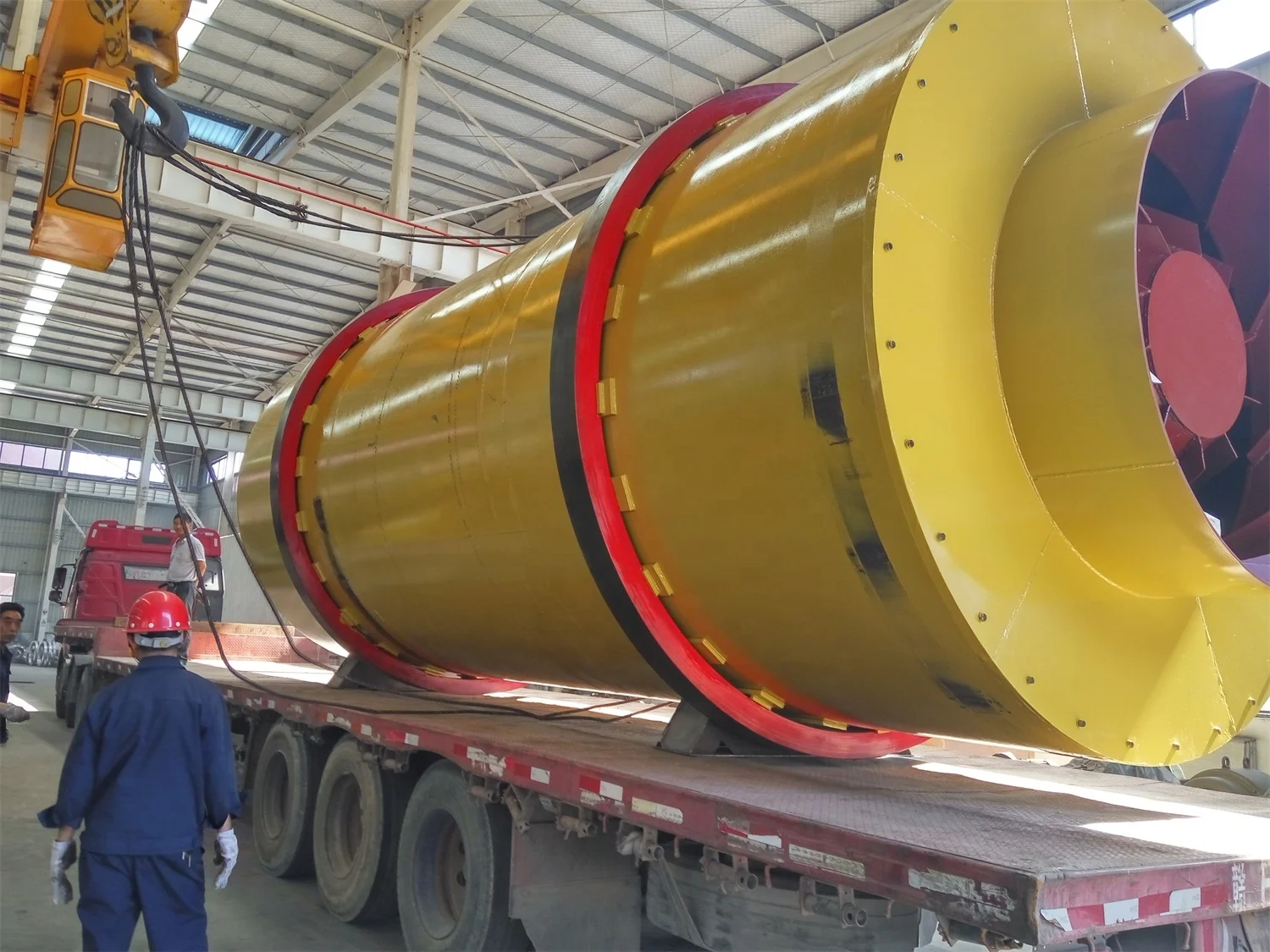

2. Pictures of Wood chip dryer
3. Working Principle of Wood chip dryer
Wood chipper, sawdust materials are transported by belt conveyors to closed air feeders and burned in hot air stoves.
The generated high temperature gas enters the dryer through a fire isolator, the raw materials enter the drum dryer through a screw feeder, and rotate at a low speed.
The bending plate disperses the material, so that the high temperature airflow passes through the material, and then the suction of the fan pushes the material forward, and the material is discharged from the fan by the other end through Shackron.
4. Technical Parameters of Wood chip dryer
Model (mm) | Obliquity(%) | Rotation speed (r/min) | Feeding temperature (degree) | Power (kw) | Capacity(t/h) | Weight (t) |
Ø600x6000 | 3-5 | 3-8 | <=700 | 3 | 0.5-1.5 | 2.9 |
Ø800x8000 | 3-5 | 3-8 | <=700 | 4 | 0.8-2.0 | 3.5 |
Ø800x10000 | 3-5 | 3-8 | <=700 | 4 | 0.8-2.5 | 4.5 |
Ø1000x10000 | 3-5 | 3-8 | <=700 | 5.5 | 1.0-3.5 | 5.6 |
Ø1200x10000 | 3-5 | 3-8 | <=700 | 7.5 | 1.8-5 | 14.5 |
Ø1200x12000 | 3-5 | 3-8 | <=700 | 11 | 2-6 | 14.8 |
Ø1500x12000 | 3-5 | 2-6 | <=800 | 15 | 3.5-9 | 17.8 |
Ø1800x12000 | 3-5 | 2-6 | <=800 | 18 | 5-12 | 25 |
Ø2200x12000 | 3-5 | 1.5-6 | <=800 | 18.5 | 6-15 | 33 |
Ø2200x18000 | 3-5 | 1.5-6 | <=800 | 22 | 10-18 | 53.8 |
Ø2200x20000 | 3-5 | 1.5-6 | <=800 | 30 | 12-20 | 56 |
Ø2400x20000 | 3-5 | 1.5-5 | <=800 | 37 | 18-30 | 60 |
Ø3000x20000 | 3-5 | 1.5-5 | <=800 | 55 | 25-35 | 78 |
Ø3000x25000 | 3-5 | 1.5-5 | <=800 | 75 | 32-40 | 104.9 |
5. Characteristics of Wood chip dryer
(1) The thermal efficiency of self-insulation of cylinder is more than 70% (only 35% of traditional single-barrel dryer).
(2) Compared with the single barrel dryer, the area is reduced by about 50%, the construction investment is reduced by about 50%, and the power consumption is reduced by 60%.
(3) A variety of circumferential materials combination distribution, effective control of drying time, drying effect is good.
(4) It can easily adjust and control the final moisture content index according to the user's request.
(5) It can easily adjust and control the final moisture index according to the needs of the user by using frequency conversion speed regulation to control the material flow.
Our Services
From the design, production, installation and debugging, we can provide training and guidance for the buyer's workers, such as send engineers to direct the constrution site. We also provide one-year maintenance for the machine.
Company Information
Henan Hongke Heavy Machinery Co., Ltd. is located in Henan Province which is the cultural base of the central area of China. We are a mining machinery manufacturing enterprise that integrates scientific research, production and marketing.
We are a high-tech enterprise that specializes in the research and production of rotary kilns, dryers, crushers and so on,
such as new type of lime rotary kiln, ceramsite kiln, zinc oxide rotary kiln, sludge rotary kiln, chemical rotary kiln, metallurgical rotary kiln, Raymond mill, ultra-fine mill, large and medium dryer, ball mill, sand mill, stone production line, mineral processing equipment and so on.
From the design, production, installation and debugging, we provide you the entire tracking service.
We adhere to the aim of high quality to survive, good credibility to make development, and sincerely look forward to cooperating with you!
