Характеристики
IP65 Digital LED Billboard Truck Mobile Stage Truck Advertising Truck
Product Description

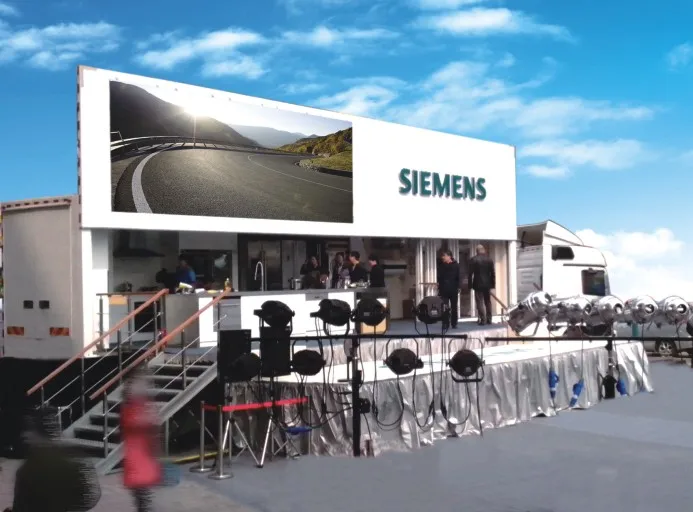

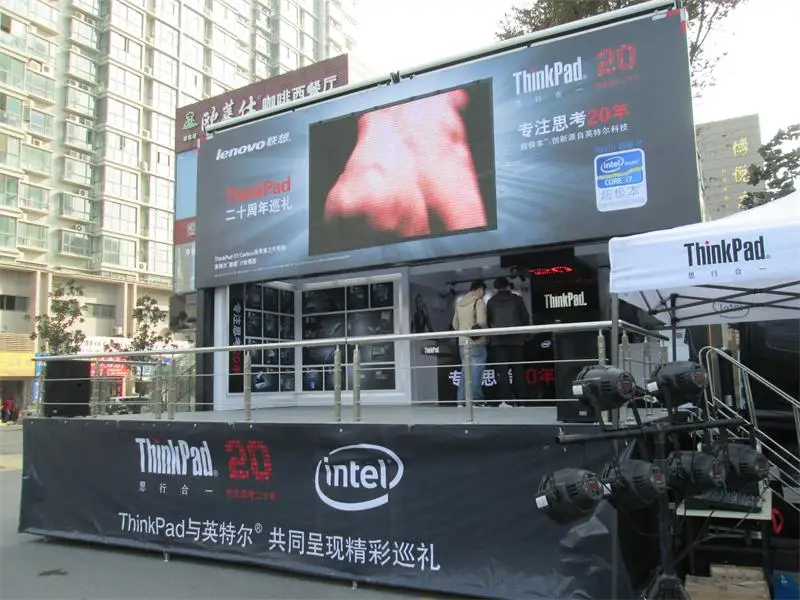

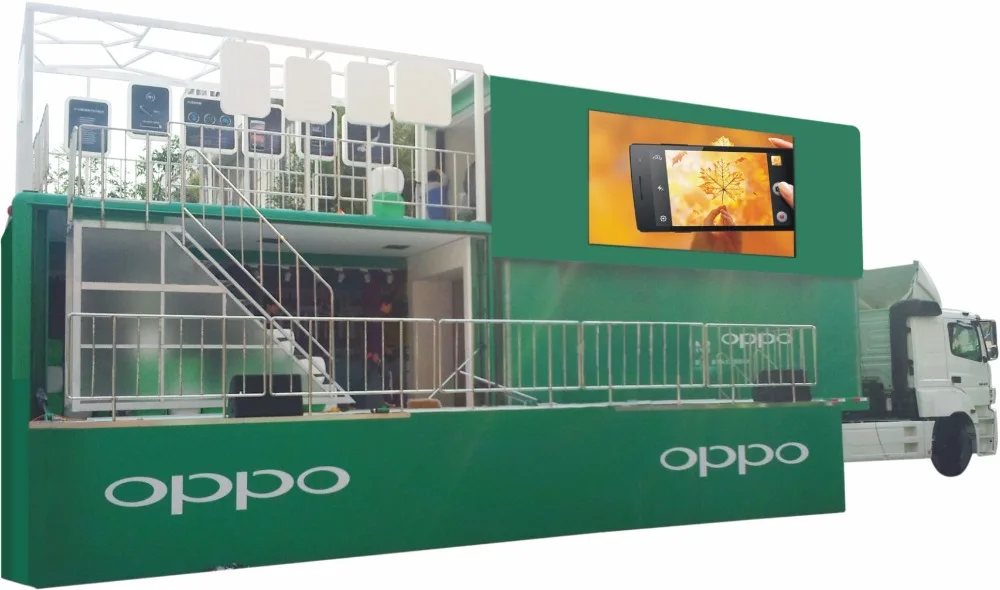

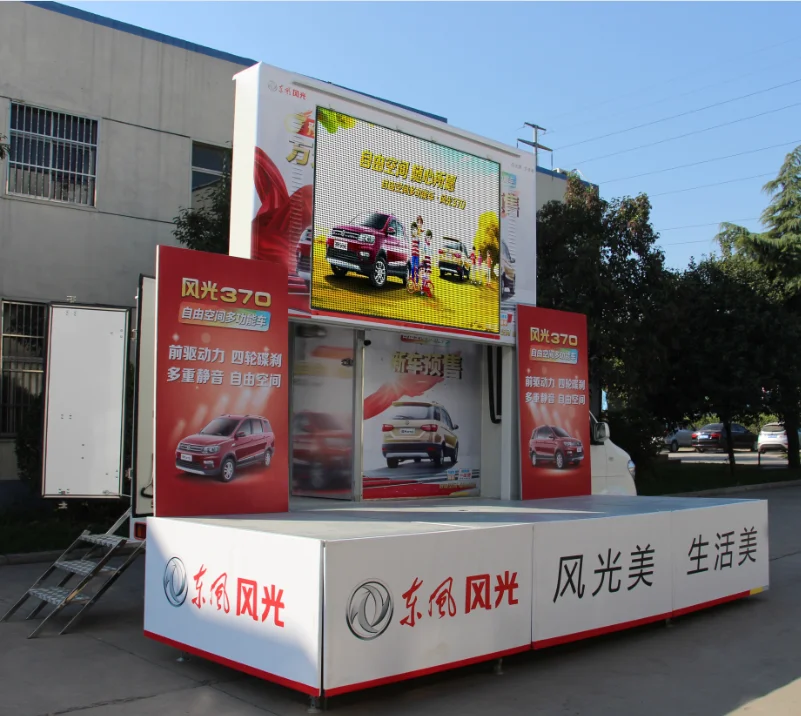

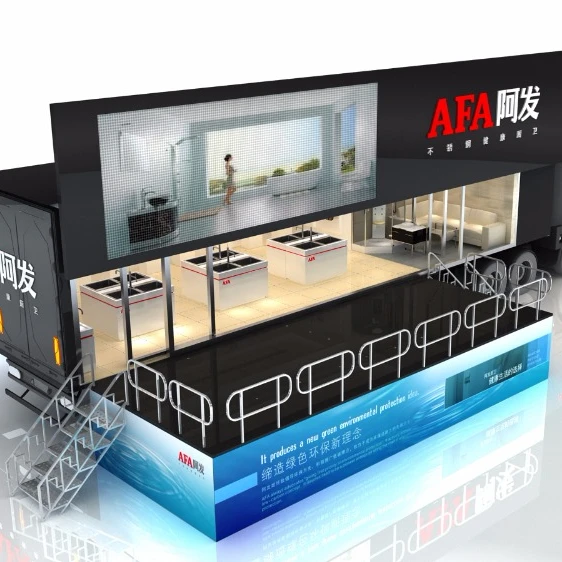

1,Mobile stage truck is a multi-functional special truck, always used for mobile performance, advertising, road show and propaganda.
2,The truck could be unfold to form stage. Truck Body can unfold for three forms, one side unfolding, two side unfolding, three side unfolding. The stage space can be 18cbm or 24cbm or 36cbm for your choice.
Technical Paremeters
Item | Parameters | |
Model | HXC5252XZS5 type demonstration truck | |
Chassis | Model | DFH1250AXV |
ID no. | 2700917 | |
Brand | DONGFENG | |
Name | Truck chassis | |
Manufacturer | Dongfeng Commercial Vehicle Co., Ltd. | |
VIN | LGAX4C356G3000036 | |
Tyre | 11.00R20 | |
Tyre Pressure(KPa) | Front:930 Rear:930 | |
Number of springs | 3/3/9+3 | |
Min.turning diameter(m) | 24 | |
Min. ground clearance | 250mm | |
Engine | Model | ISD270 50 |
ID no. | 78261798 | |
Type | Liquid cooled, in-line, six cylinder, turbocharged intercooled diss and diesel engine | |
Power rating | 198kw | |
Max net power | 192kw | |
Displacement | 6700
| |
Manufacturer | DCEC | |
Min fuel consumption (g/(kW.h)) | ---- | |
Power rating/RPM (kW/(r/min)) | 198/2500 | |
Max torque/RPM (N.m/(r/min)) | 970/(1300-1500) | |
Gearbox | Manufacturer | Shanxi Datong gear Refco Group Ltd |
Transmission | Manual | |
Model | DC7J120TA | |
Forward gears | 7 | |
Speed ratio of each gear | 9.204/6.082/3.984/2.506/1.586/1.000/0.829/R9.059 (R) | |
Rear Axle | Final drive ratio | 5.571 |
Overall dimension | Outer size | 12000×2550,2500× 3950mm |
Inter size | ---- | |
Front suspension/rear suspension | 1500/3200 | |
Wheelbase | 1850+5450,1950+5350 | |
Front / rear wheelbase | 1980/1980/1860,2040/2040/1860 | |
Weight | Total weight | 25000kg |
Curb weight | 17805kg | |
Payload | 7065kg,7000kg | |
Passenger | 2,3 | |
Axle weight | 25000/Front:7000/7000kg,Rear:11000kg | |
Mass load | 17805/Front:4250/4250kg,Rear:9305kg | |
Angle | Approach/Depart | 30/9 |
Max speed | 85km/h | |
![_O(U]B[0C]GN[5BHC~YB%(0.png](http://sc01.alicdn.com/kf/HTB18NLupStYBeNjSspk762U8VXan/232928998/HTB18NLupStYBeNjSspk762U8VXan.png)
Parameters Of LED Screen
Packaging & Shipping
1,Shipping term:whole vehicle or in parts,by container or by bulk,standard seaworthy wooden boxes are available.
2,Delivery time:10-15 days after deposit.
3,Delivery term:EXW,FOB,CFR,CIF etc.
Our Services
1,24 hours phone services.
2,Engineers are available to buyer's country to install or repair the vehicle if necessary.
3,Cost price or free for vulnerable parts.
4,Buyers can visit the factory at convenient time,we can pick up buyers at airport or railway station.
Company Information
Henan Huanghe Whirlwind International Co., Ltd. was a sole subsidiary of Henan Huanghe Whirlwind Co., Ltd., a listed company on Shanghai Stock Exchange in 1998. Huanghe Whirlwind specializes in Industrial Diamond, Diamond Tools, Special Vehicle, Lithium Battery and Industrial Robot . The Specialized Vehicle and Industrial Robot system have received lots of attention from the MCPRC and MIIT and also the products with“China Top Brand” have been sharing high reputation in global market.
In order to expand global market and build the International brand, Henan Huanghe Whirlwind Co., Ltd. set up Henan Huanghe Whirlwind International Co.,Ltd. in CBD Zhengzhou City. The general manager is Ms. Angel Bao, an experienced and professional foreign trade expert. The new company mainly takes charge of international business including foreign trade, international cooperation, merger, acquisition and integration of overseas assets, etc. It will be a milestone for the internationalized strategy of the listed company.
FAQ
Q1:What's the MOQ?
A:1 set for quality checking is workable.
Q2:What's the process of an order?
A:Firstly,buyer and seller confirm all the requirements and quotation.
Secondly,buyer pay 30% deposit by T/T,seller start production,
Thirdly,seller send photos of the finished vehicle to buyer,buyer pay the 70% balance.
Fourthly,seller arrange land transportation and shipment to buyer's destination port.
Q3:Is it ok to print buyer's logo on the vehicle?
A:Yes.
Q4:Can buyer do inspection after production?
A:Yes,buyer is welcome at any time.
