XS-40608 новый дизайн пластиковые чашки бюстгальтера вакуумная формовочная

Описание и отзывы

Трекер стоимости

Характеристики







Functions:

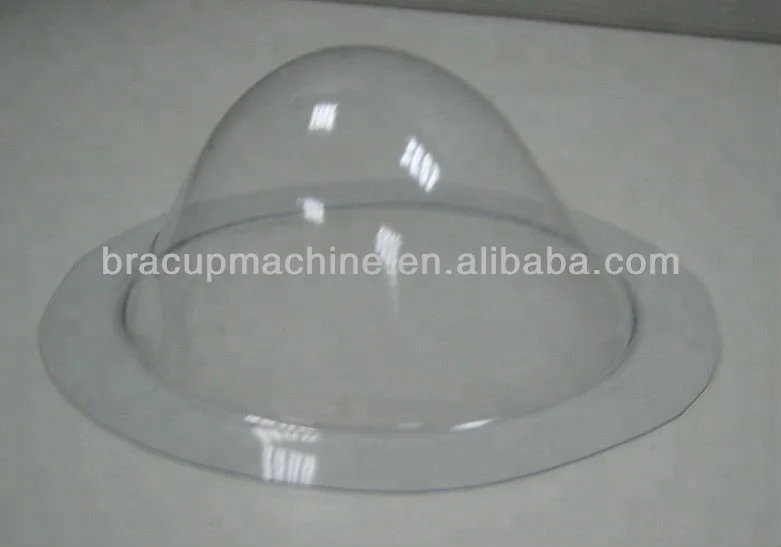

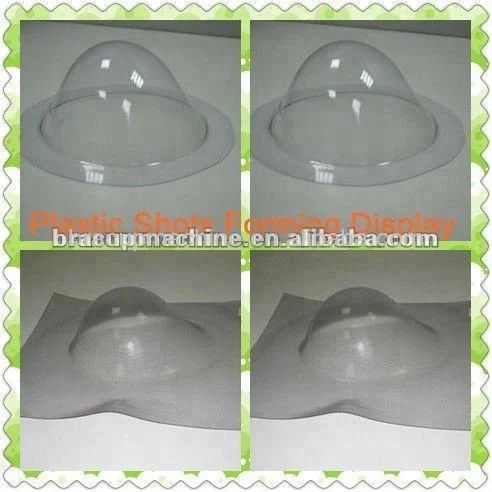

To mold plastic cup of different sizes

To be used as bra cup holder

To stabilize the shapes of bra cup

For easy measurement of bra size



Features:

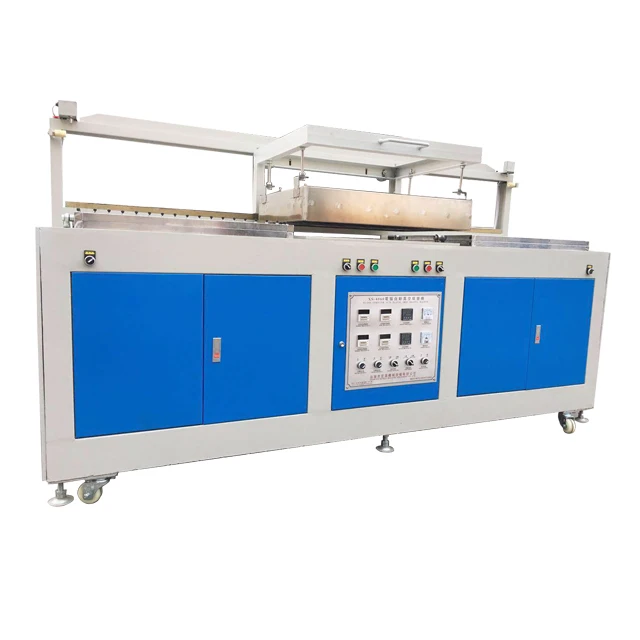

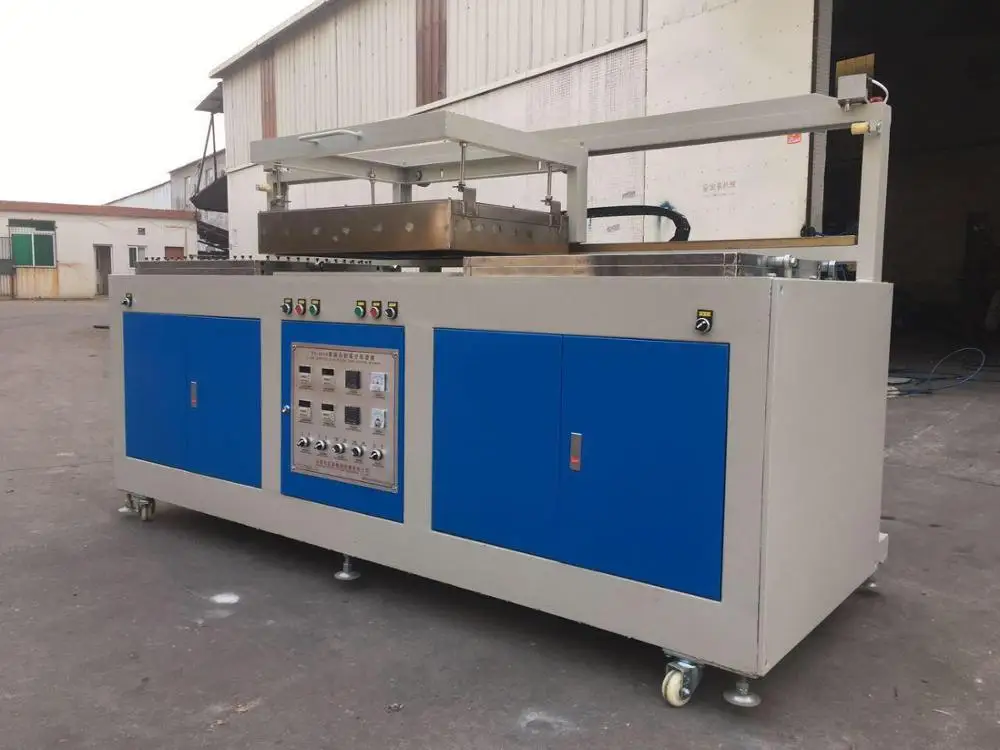

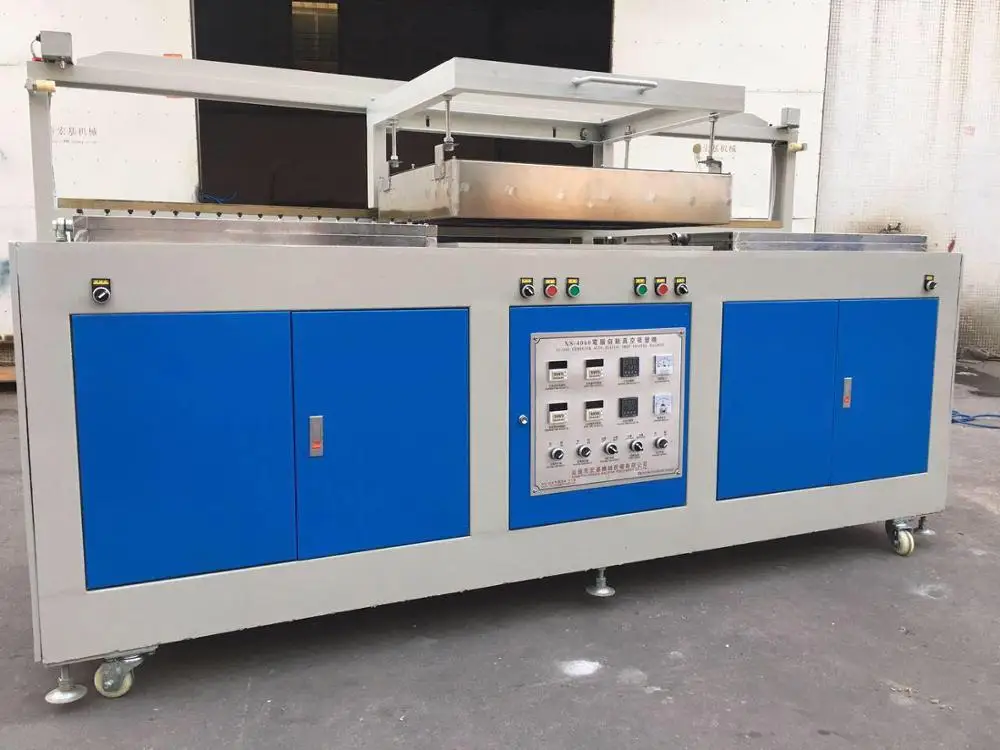

1. This machine is the latest vacuum forming machine which is developed according to the thickness and molding depth of PVC cups with the diameter range between 224mm to 530mm.



2. The production of this machine has been paid great attention to its technology improvement and it has been equipped with advanced program control operating system.



3. Both clamping devices and heating furnace has been adopted auto and manual bi-directional regulating system and the embedded ceramic infrared parts to enhance the thermoforming effect.



4. Between its clamping devices, this machine has been equipped with multi temp-controllers.



Technical parameter:

Power supply / power	220V/11KW

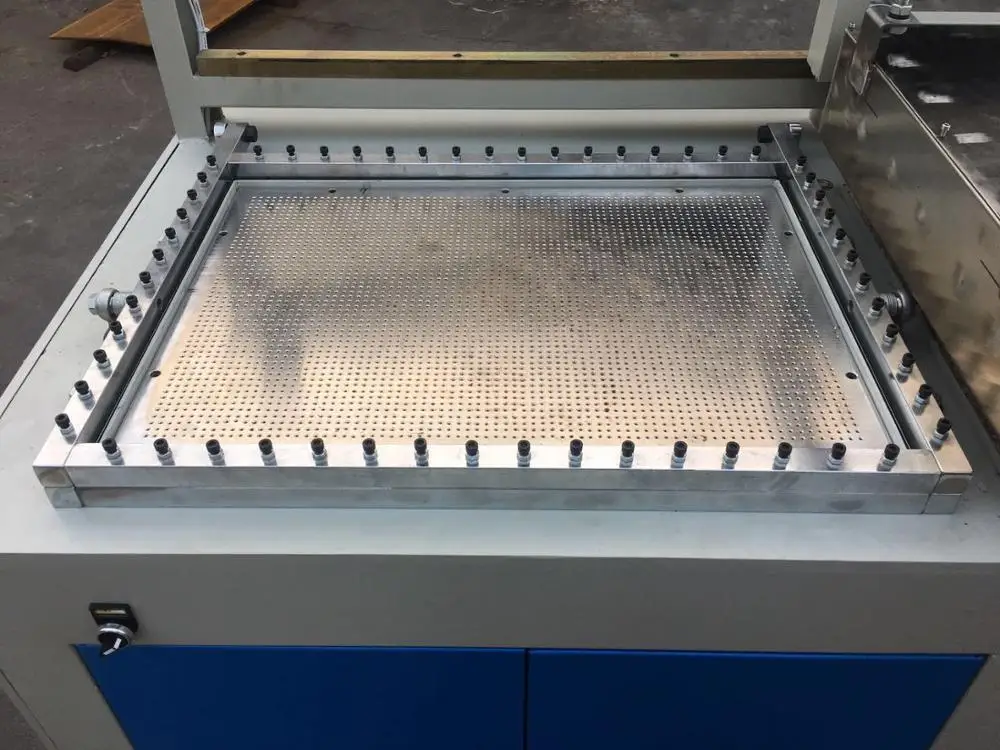

Max Vacuum Table	450*650mm
Machine size	2460mm×1000mm×1300mm
Working principle	vacuum forming
Applicable material	PVC plastic sheet
Apllicable scope	suction forming by pvc plaster moulds
Weight	400KG







We are the 1st professional manufacturer & supplier of underwear machinery in Shantou, China Mainland.  Besides, we also have own bra cup factories located in Xiamen City and Dong Guan City. We can supply 400~500 sets of machinery monthly, and 1.5~2.0 million pairs of bra cups/ bra pads in each factory.





1.  MOQ: 1 set



2.  OEM & ODM can be acceptable.



3.  We own all the original R & D Technology and Proficient Experience in this field over 13 years.



4.  All the Moulds can be customized according to your supplied samples.

     CNC Made or Manual Made to be Optical.



5.  The Molding Table Size can be bigger customized if required.



6.  The Molding time and temperature can be preset and adjusted freely through the timers and temperature controllers when we mold / press different materials.



7.  All the digital meters are easy to operate.



8.  All the spare parts can be matched to supply.



9.  All the electric fittings and pneumatic parts used in our machinery are with high-quality.



10. All the raw materials (machine frame, machine fittings and etc) are processed by our own factory.



11. We guarantee there is absolutely without jerry-built.



12. Good & Timely After-Sale Services.



Welcome to visit our company and our production workshop, we sincerely welcome your coming or calling to negotiate with us so as to establish long-term and stable business relationship in the near future!
