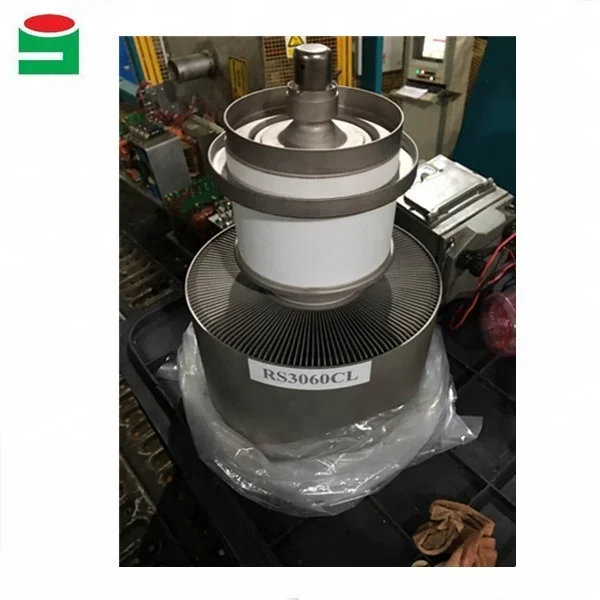

Вакуумная электронная трубка RS3060CL высокочастотная нагревательная
- Категория: Passive Components >>>
- Поставщик: Dongguan,Jingyi,High,Frequency,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.25 $* | 0.84 $* |
| Aug-16-2025 | 0.29 $* | 0.18 $* |
| Jul-16-2025 | 0.91 $* | 0.83 $* |
| Jun-16-2025 | 0.13 $* | 0.47 $* |
| May-16-2025 | 0.46 $* | 0.74 $* |
| Apr-16-2025 | 0.54 $* | 0.84 $* |
| Mar-16-2025 | 0.62 $* | 0.45 $* |
| Feb-16-2025 | 0.39 $* | 0.55 $* |
| Jan-16-2025 | 0.26 $* | 0.42 $* |
Характеристики
RF Triode Tube,HF Triode Tube RS3060CL
Product Description
1. We have Japan Toshiba Brand tube and China made Jingguang Tube for customer choose
2. We can provide oscillation tube for 1.5 KW to 300 KW high frequency welding machine
3. PLS inform us the tube model for the quotation
4. The tube with Paper box and delivered by DHL, UPS or Fedex, TNT, EMS.
5. We are professional High frequency welding machine factory in China, we can supply all kinds of accessories for high frequency welder.
Models For Choose:
E3062E E3085 E3109 E3069 E3130 E3185 E3050/9T75 E3116 E3132
6T58RA 7T62R 7T84RB 7T85RB 7T69RB
8T20B 8T20RB 8T30A 8T64B 8T64RB 8T69JB 8T30RA
8T85RB 8T25RA 8T25 8T61A 8T72B 8T87B 8T87RB 8T61A 8T72B
9T64B 9T71C 9T94A 9T38A/LD961 9T40 9T83 E3050/9T75
3-500Z FU-998FA FU-834FA FU-998F FU-501 FU-605 FU606 FU8785F FU-33/833A/833C
TB5-2500/7092FU/606/6T50 TB4-1250/5867 TB3-750/5867A/TY4-400
6T51 5727 813
3CX800A7 3CX2500H3 3CX2500F3 3CX1500A7 3CX15000H3 3CX3000A7 3CX3000F7
3CW20000H3 3CW30000H7 3CXH10000D3 3CXH1000H3 3CX800A7 3CX4500F3/YU108 YU148
4CX250B 4CX500A 4CX3500A 4CX2000 4CX2000C 4CX5000A 4CX7500A
ITL5-1 ITL12-1 ITL15-2 ITK15-2 CTK15-2
FD-911S FD-912S FD-934S FD-935S
7F37R 7F71R 8F67R 8F68R 8F76R 9F45
RS3021 RS3150
Triode RS3060CJ uses a coaxial design and metal-ceramic technology. It is designed to operate in CW & pulse mode.
The triode RS 3060 CJ is a RF power triode designed specifically for industrial applications. This tube uses a coaxial design and metal-ceramic technology. This triode is designed to operate in CW mode. For operation in pulse mode, the parameters depend on each equipment characteristics, contact us for specific information. The RS 3060 CJ is a water-cooled triode. The output power is 120KW in CW mode and the frequency could up to 100MHz.
Electrical characteristics
Filament thoriated tungsten
Filament voltage (+ 5 %, - 10 %) 10 V
Filament current 190 A
Surge current 570 A max.
Capacitance:
• grid-anode 46 pF
• grid-cathode 95 pF
• cathode-anode 2.6 pF
Amplification factor 22 approx.
Transconductance (Va: 4 kV, Ia: 3 A)
50 mA/V approx.
Mechanical Characteristics
Operating position vertical, anode up or down
Weight 7.5 kg approx.
Dimensions 185*378mm max
