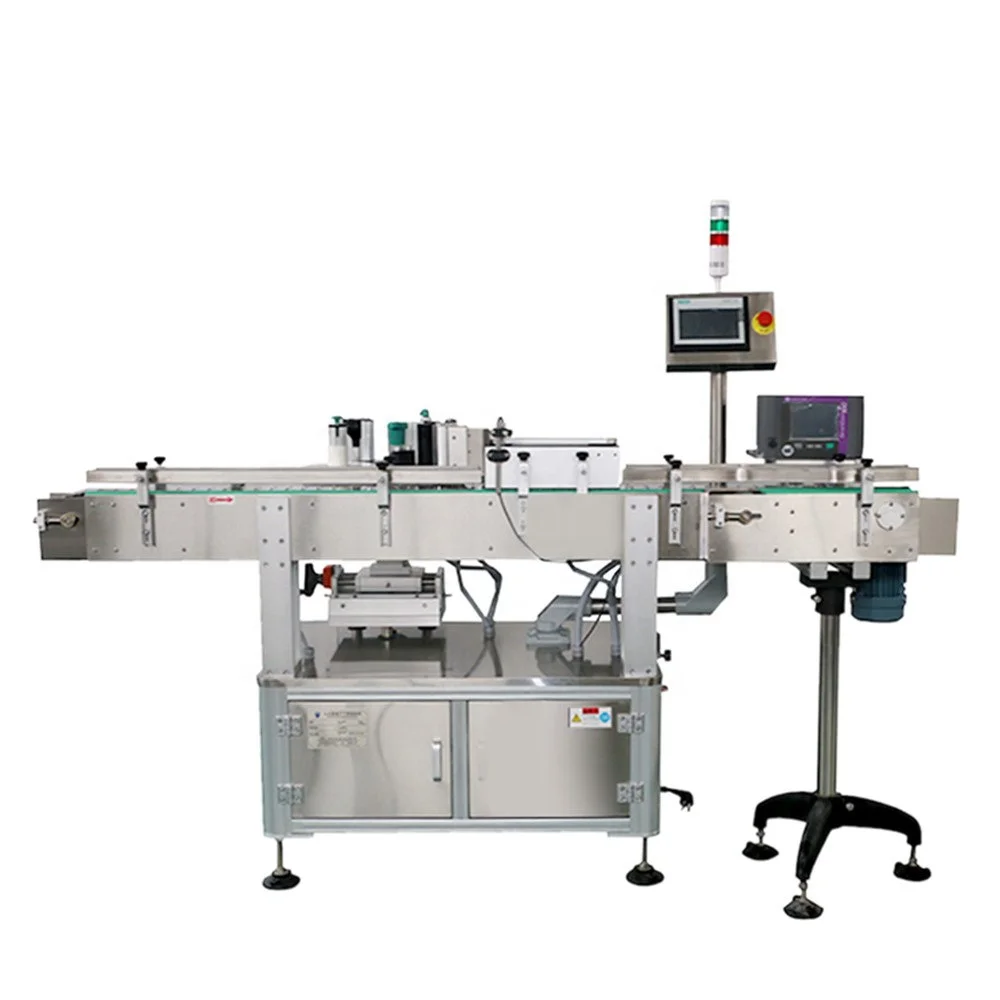

Автоматическая Этикетировочная машина для бутылок рулонная этикетка с
- Категория: Машины для этикеток >>>
- Поставщик: Shanghai,Skilt,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.40 $* | 0.58 $* |
| Aug-20-2025 | 0.64 $* | 0.55 $* |
| Jul-20-2025 | 0.73 $* | 0.60 $* |
| Jun-20-2025 | 0.71 $* | 0.49 $* |
| May-20-2025 | 0.87 $* | 0.11 $* |
| Apr-20-2025 | 0.63 $* | 0.29 $* |
| Mar-20-2025 | 0.29 $* | 0.19 $* |
| Feb-20-2025 | 0.95 $* | 0.11 $* |
| Jan-20-2025 | 0.52 $* | 0.43 $* |
Характеристики
SKILT PARTNER
Product Description
1. The Scope of Application
The model PLM-A Labeling machine suit for differnet size round products need labeling wrap around;

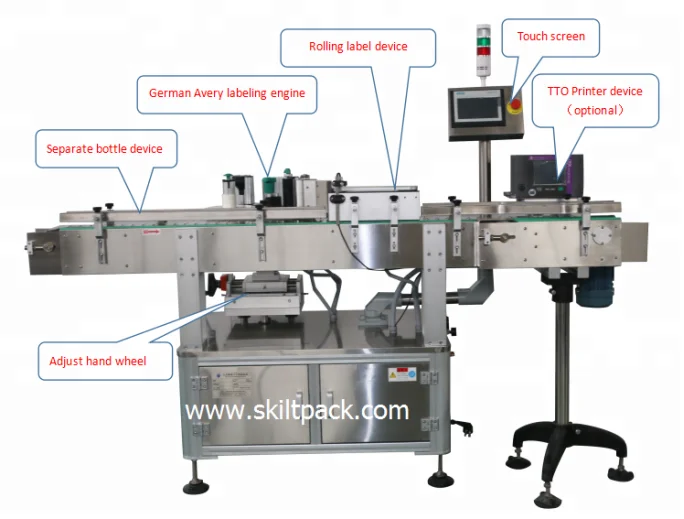

3. Equipment function characteristics
1) Control system: SIEMENS brand PLC control system, with high stable operation and extremely low failure rate.
2) Operation system: SIEMENS touch screen, directly visual interface easy operation, rich with help function and fault display function.
3) Check system: Use German LEUZE check label sensor, automatic check label station, stable and convenient don't have much higher requirement for worker.

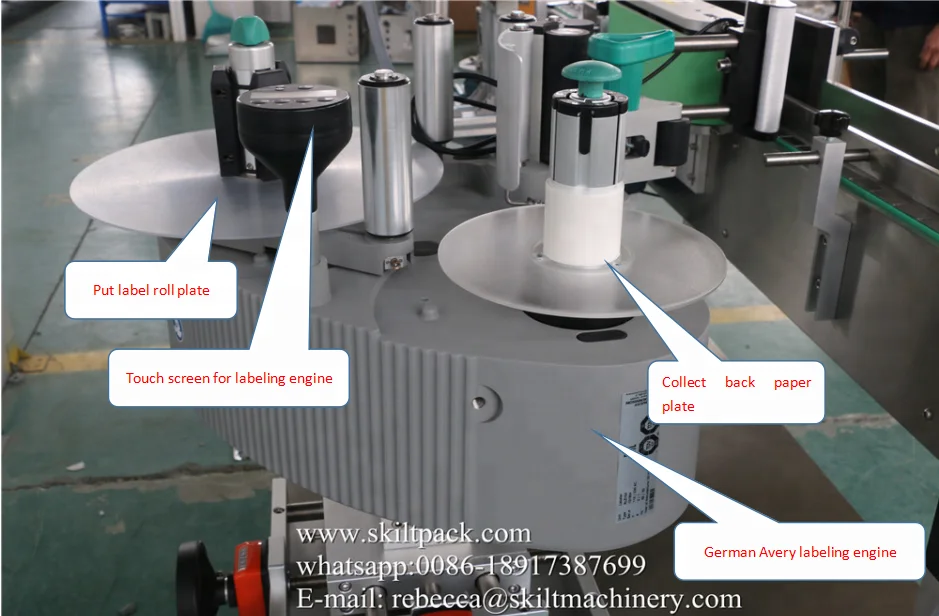

4) Send label system: German Avery labeling engine
5) Alarm function: Such as label spill, label broken or other malfunction during machine working all will alarm and stop working.
6) Machine Material: Machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust.
7) Labeling way : servo system send label on product surface.
8) Low voltage circuit all use the German Schneider brand.
Technical Paramter
driving motor | german Avery | operating direction | left or right |
production (bottles/min) | 20-200(subject to the size of bottles ) | labeling accuracy | ±1.0 mm |
label specifications | adhesive label, transparent or opaque | the application of bottle | can customized |
the application of label | width:15-300mm Length:15-300mm | the inner diameter of label roll | 76mm |
the outer diameter of label roll | 350mm(max.) | the power of motor | 850W |
Voltage | AC220V,50/60HZ Single phase | Printer use air | 5kg/cm ² |
No. | Name | Model | Unit | Brand |
1 | PLC control system | 288-1ST20-OAAO | 1 set | SEMIENS |
2 | Touch screen | 648-OCC11-3AXO | 1 set | SEMIENS |

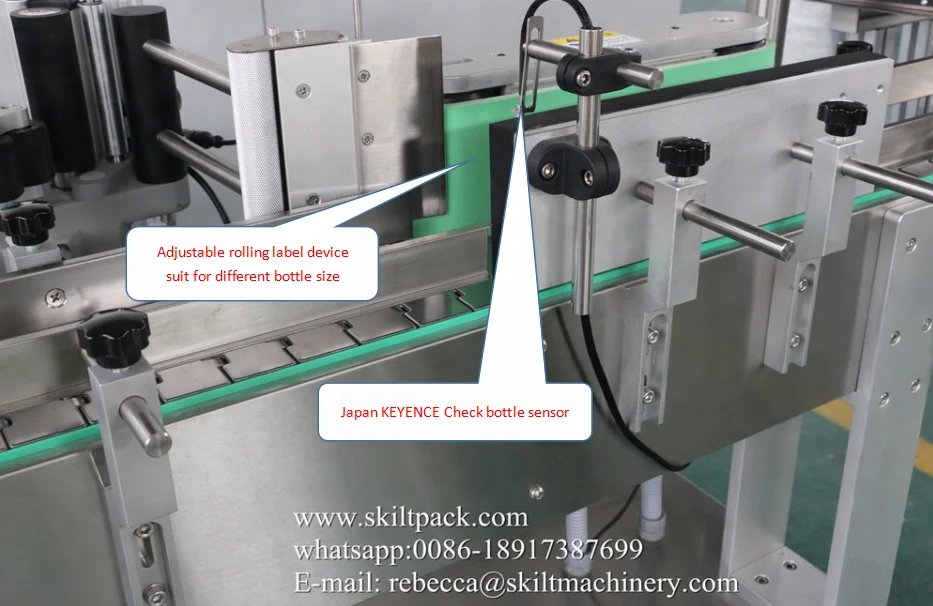

3 | photoelectric sensor (check bottle) | FS-N18N | 4 set | Japan KEYENCE |
4 | Photoelectric sensor (Check opaque label) | GS61/6.2 | 2Set | German Lueze |
Photoelectric sensor (Check transparent label) | GSU 14B/66.3-S12 | 2Set | German Leuze | |
5 | Servo motor | 1FL6 034-2AF21-1AA1 | 2 set | SEMIENS |
6 | Drive | 6SL3 210-5FB10-4UA1 | 2 set | SEMIENS |
7 | Main transport motor | 90YS90DV22 | 1 set | German JSCC |
8 | Rolling label motor | 40W1:30 | 1 set | German JSCC |
9 | Separate bottle motor | 40W1:30 | 1 set | German JSCC |
10 | Speed Controller | 25-90W | 1 set | German JSCC |

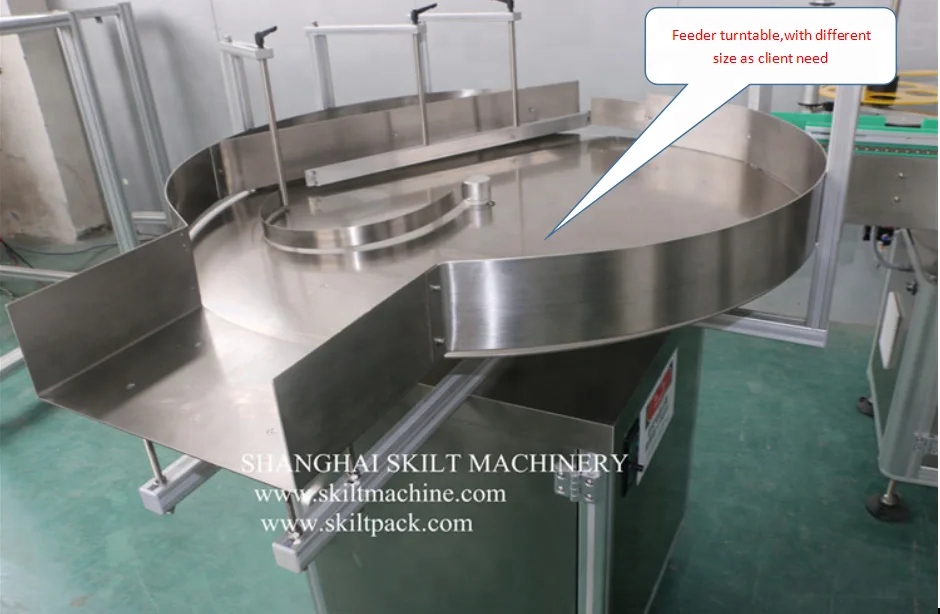

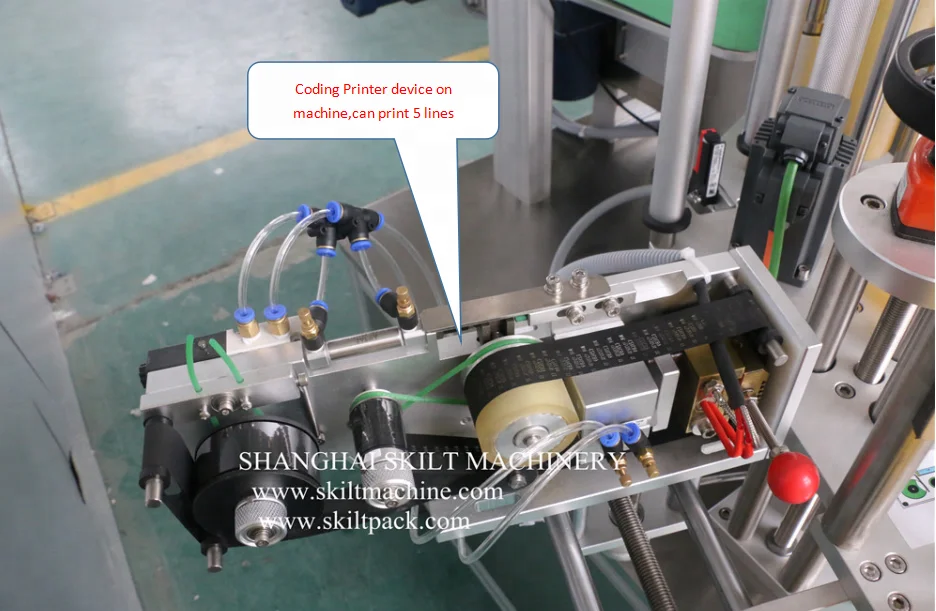

Detailed Images
Machine processing
SKILT TEAM
FAQ
1. Q: What label material does your machine use ?
A: Self-adhesive sticker.
2. Q: The machine is automatic or semi-auto?
A: We only produce the automatic machine .
3. Q: Which kinds of machine are suit for our products labeling requirement?
A:Pls supply us your products and label size (the photo of products with label on it is rather helpful), then I will suggest you the suitable machine for reference.
4. Q: The machine can connect with the product line or not ?
A: Machine can connect with production line or put on the production line or operation alon all ok as you need .
