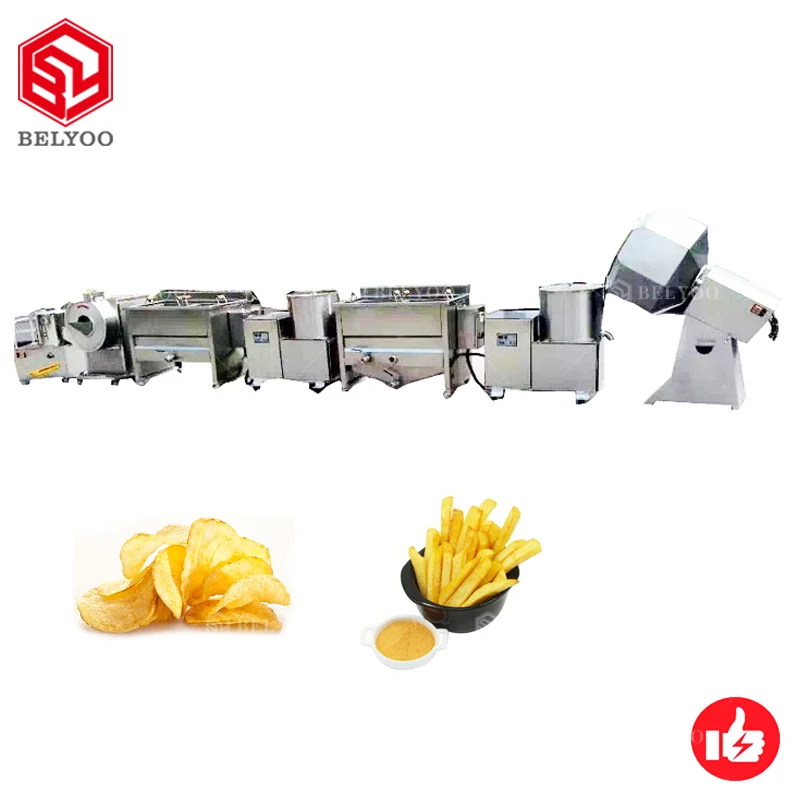

304 Stainless steel Automatic Sweet Frozen French Fries Making Producing Line commercial Potato Chips Making Machine Price

1.This small potato french fries line is specially designed for small and medium scale french fries manufacturers. We have capacity with 50 kg/h, 100 kg/h, and 200 kg/h for your reference.



2.This french fries line is lower in price and high efficiency, and it is your best choice for processing potato french fries. You can also change the cutting machines to making potato chips.



3.Processing like below:

Potato washing & peeling - french fries (chips) cutting - french fries(chips)blanching - french fries(chips) dewatering - potato chips( French fries) frying - finger chips( French fries) de-oiling - finger chips( French fries) flavoring - finger chips( potato chips ) packing.



4.Technical parameters:

No	Machine Name	Capacity	Dimensions	Weight	Quantity

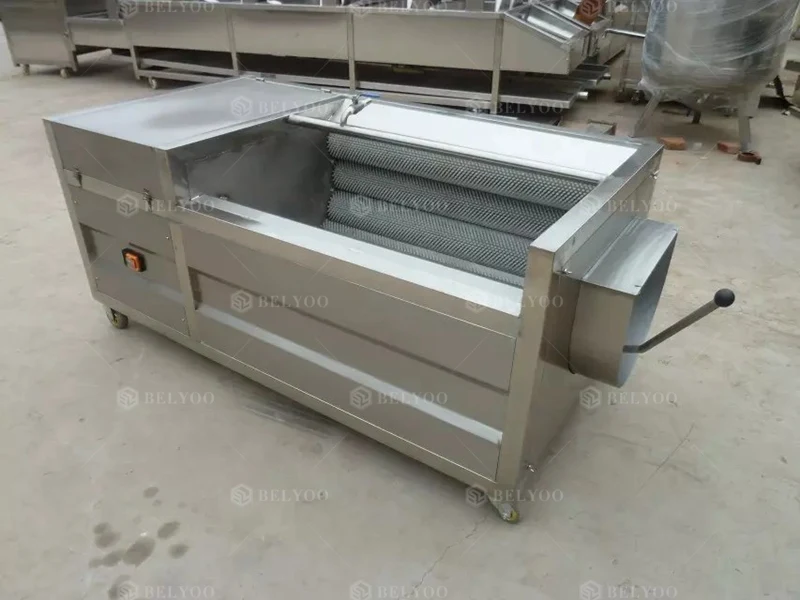

1	Washing and peeling machine	200 kg/h	1400*850*800 mm	210 kg	1
2	Fries cutting machine	600 kg/h	950*900*1000 mm	110 kg	1
3	Blanching machine	100 kg/h	1200*700*950 mm	120 kg	1

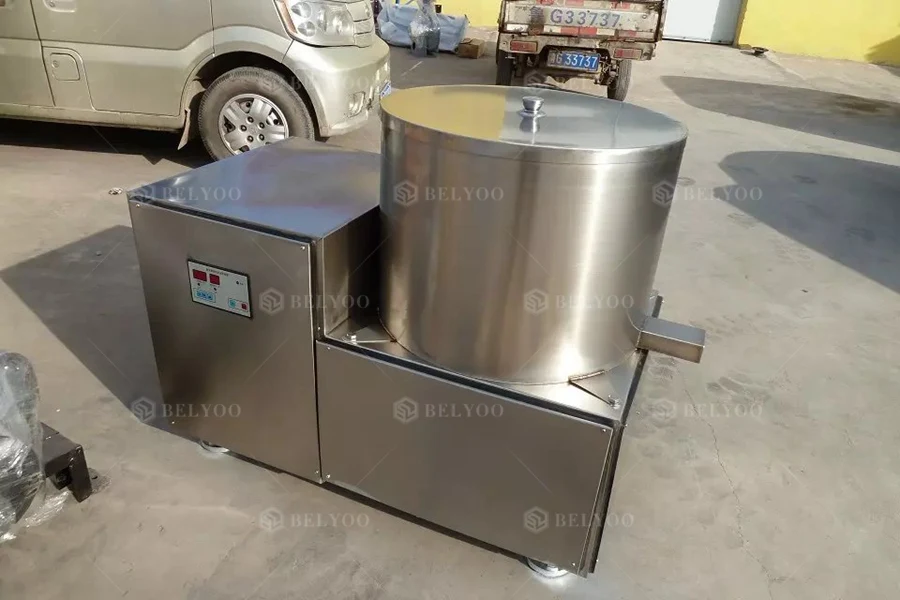

4	Dewatering machine	200 kg/h	1000*500*850 mm	390 kg	1
5	Blanching machine	100 kg/h	1200*700*950 mm	120 kg	1
6	Deoiling machine	200 kg/h	1000*500*850 mm	390 kg	1
7	Flavoring machine	300 kg/h	1000*800*1300 mm	190 kg	1

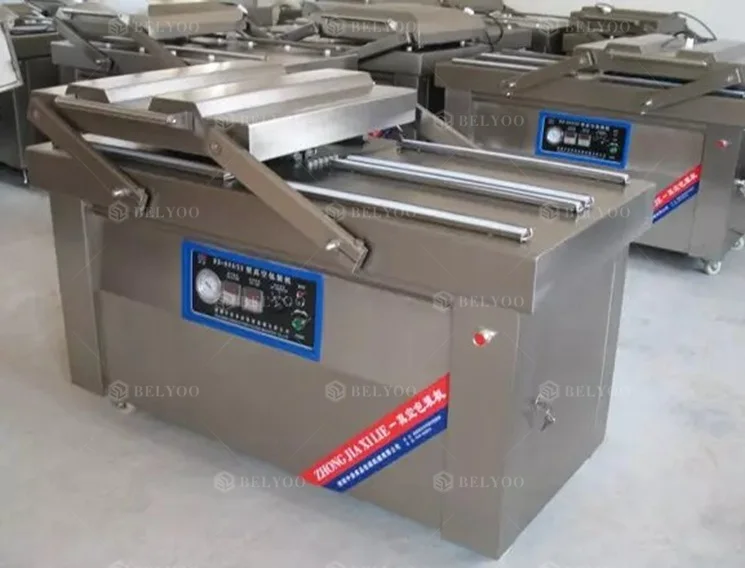

8	Vacuum packing machine	200 kg/h	600*600*850 mm	220 kg	1



5. This production line is easy to install, just need to put the machines in the specially sequence as the working flowchart shows and connect the power of each machine, and then you can operate the machines to do normal production.

6.The voltage requirement of the production line is: 380V, 50Hz, three-phase.

7.To operate this production line needs 2-3 people, it maybe different according to your actual situation and your own arrangement.

8.The area need is from 100 to 300 square meters according to your choice of the production line.



9. Main features:

a)Stainless steel, easy to operate, high productivity and high efficiency.
b)Made of food grade stainless steel, advanced technology, long service life.
c)The machines meet stringent international quality standards.
d)Very reasonable price for the equipment.
e)Easily change cutter to make potato chips and finger chips.
