Свет 6 баров стог лазера диода используется для 600W 808nm диод лазерная эпиляция наконечник ремонт и

This VS-MI-100-6-FL-A is an 808nm diode laser stack, which has 6pcs 100w bars with aluminum shell and PEEK backing board.

Electrodes are on the back of the stack

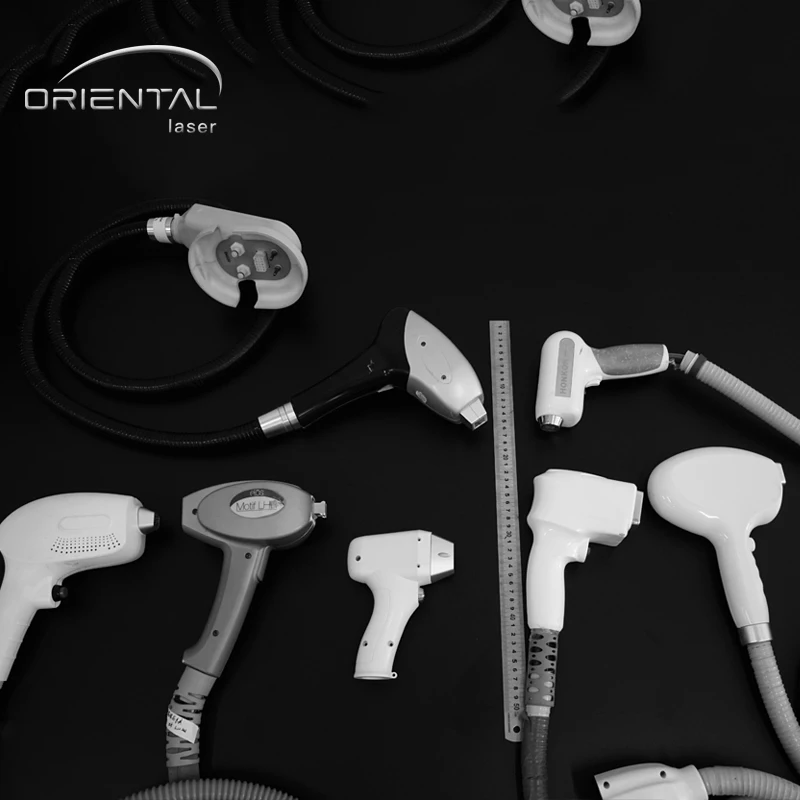

It is used for 600W 808nm diode laser hair removal handpiece repairing and replacement.

Oriental-laser ed on diode laser bar assembling for more than 16 years and we have seen various alma

soprano diode laser stacks.Also we can use the same Jenoptik bar like Alma used to recondition the power the

laser soprano power.

Click to Contact Us Learn More Information

Repairing procedure

Advantages

>Chioce A:Send the old broken handpiece to our facatory. We will do the process of checking , repairing, cleanning and etc. Then send the fresh new handpiece back to you.

>Save Money. Replace the broken diode stack only. Low cost and convenient

>Chioce B:if you have basic assambly capacity, you can send the diode laser stack only to our factory. We remove the old bar and mount the new bar to recover the laser power of the stack.

>Long life time.we use diode laser bars from Germany. The newest Ausn mounting technology will be applied when repairing. After repair. The handpiece will be as a new one. life time is much longer than before

>Choice C: Measure your stack and comfrim the water pipe hole and screw hole position. Then press the button below to buy a ready-made stack which is match your old hadnpiece.

>All technical support available. We major in diode laser mounting, software, spare parts over 16 years. All the technologies about laser hair removal machine are open to you.

Specification

Model No.

VS-MI-100-6-FL-A

Application

600W 808nm diode laser hair removal handpiece repairing

and replacement

Operation Mode

CW

Power per submounts

100W

Number of submounts in one stack

12bars

Central wavelength

at 25℃ 808 ± 5nm

Typical Operation current

80A

Maximum Operating current

100A

Typical Threshold current

15A

Maximum Operating Voltage

<12V

Fast Axis Divergence (FWHM)

39º

Slow Axis Divergence (FWHM)

8º

Operation Condition

non-condemsing atmosphere, cleaning room

Expected lifetime

10000hours

Typical pitch per bar

1.8mm

Cooling requirement

Flow rate

1.8L/min +-10%

Water Temperature

25+-3°C

Water Quality

Deionized 2-10 µs/cm, mixed bed ion exchanger,particle filter<25µm

Cooling System

Do not use any material that combination with copper would form galvanic elements

Dimension
