TSD Heat Shrinkable Tape









TSD Heat shrinkable sleeves are the most widely used technology in the world today for field girth-weld corrosion protection because they are easy to install,provide excellent protection and are cost-effective.With formula made of various raw materials and radiation,cross linking and other process techniques, heat shrinkable wrap sleeve with various size for various purpose are manufactured. They are widely used in joint corrosion prevention, leakage prevention, protection of petroleum, natrual gas and heat insulation pipelines, etc. They are predominant in high mechnical strength,strong anti-aging capability, good sealing property, corrosion resistance, convenient construction,  etc.

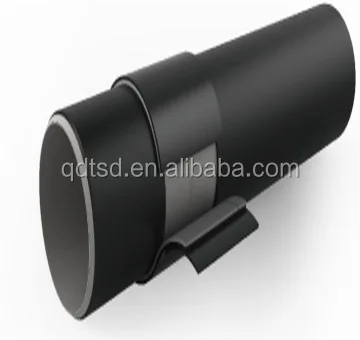

TSD wraparound heat shrinkable sleeve (HSS) with a separate closure patch is mainly used for field joint coating of underground 3LPE coated steel pipelines and thermal insulated pipelines.

TSD heat shrink sleeve bonds the steel substrate, FBE primer and plant-applied polyethylene coatings excellently to form a continuous and durable corrosion protection system on the pipeline.



The Advantages:

• Cross-linked backing provides superior abrasion, mechanical and chemical attack resistance.


• High performance adhesive provides excellent resistance to Cathodic   Disbondment to ensure long-term corrosion protection.

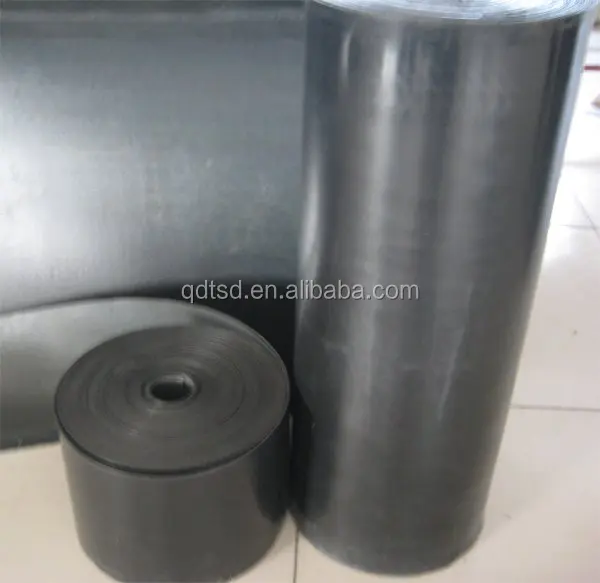

• Just-in-time customized lengths allow bulk rolls to be field cut to protect any pipe size


• Open sleeve configuration allows the product to be applied after the pipeline has been welded and cleaned.

The Specification:



Property	Test Method	Value
Tensile Strength 23 ℃	ASTM D638	20 MPa
Elongation	ASTM D638	600 %
Hardness 23 ℃	ASTM D2240	55
Volume Resistivity	ASTM D257	10 15 Ω·m
Abrasion Resistance	ASTM D1044	30mg
Dielectric Voltage Breakdown	ASTM D149	35KV/mm
Heat Shock (225℃,4h)	ASTM D2671	No cracking, flow or dripping
Impact Resistance	ASTM G14	>15 J
Softening Point	ASTM E28	124℃
Lap Shear Strength 23℃	EN 12068	365N/ cm2
Lap Shear Strength 100℃		5 N/ cm2
Cathodic Disbondment 23 ℃, 30days	EN 12068 ASTM G8	<15 mm
Cathodic Disbondment 100 ℃, 30days		< 5mm
Impact	EN 12068	>15
Water Absorption	ASTM B570	0.05%
Low-Temperature Flexibility	ASTM D2671	>-20℃
Indentation	EN12068	1.0*(Pass)
Peel Adhesion  23℃	ASTM D1000	120N/CM
Peel Adhesion 100℃	EN12068	2N/CM
Fully Recovered S Thickness		2.0mm
Fully Recovered L Thickness		2.3mm

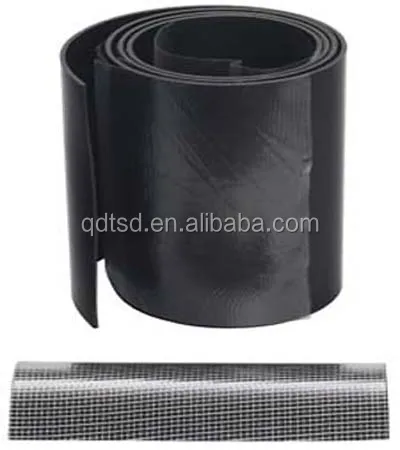

Note: 1) Closure patch length is equal to sleeve axial length,

               Closure patch width: 120mm for sleeves Φ168 ~Φ426 while 150mm for sleeves > Φ426.

          2) Custom-made is available to meet any customer's special demand.



Packages sample:











Oil&Gas Exibition:

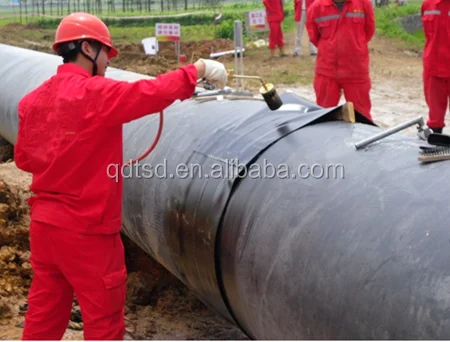

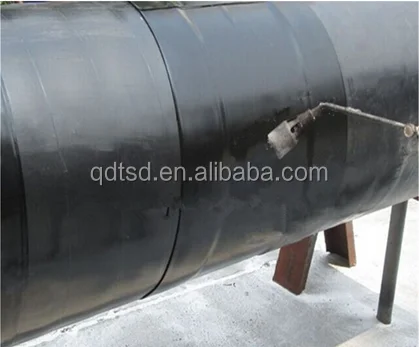

Application :
