Термостойкая термоусадочная трубка
- Категория: Cable Sleeves >>>
- Поставщик: Guangzhou,Kaiheng,K&S,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.40 $* | 0.79 $* |
| Aug-15-2025 | 0.4 $* | 0.32 $* |
| Jul-15-2025 | 0.85 $* | 0.23 $* |
| Jun-15-2025 | 0.22 $* | 0.98 $* |
| May-15-2025 | 0.71 $* | 0.67 $* |
| Apr-15-2025 | 0.19 $* | 0.22 $* |
| Mar-15-2025 | 0.72 $* | 0.40 $* |
| Feb-15-2025 | 0.56 $* | 0.59 $* |
| Jan-15-2025 | 0.76 $* | 0.42 $* |
Характеристики
Halogen Free, Low Smoking,Flame-Retardant,Polyolefin Tubing.

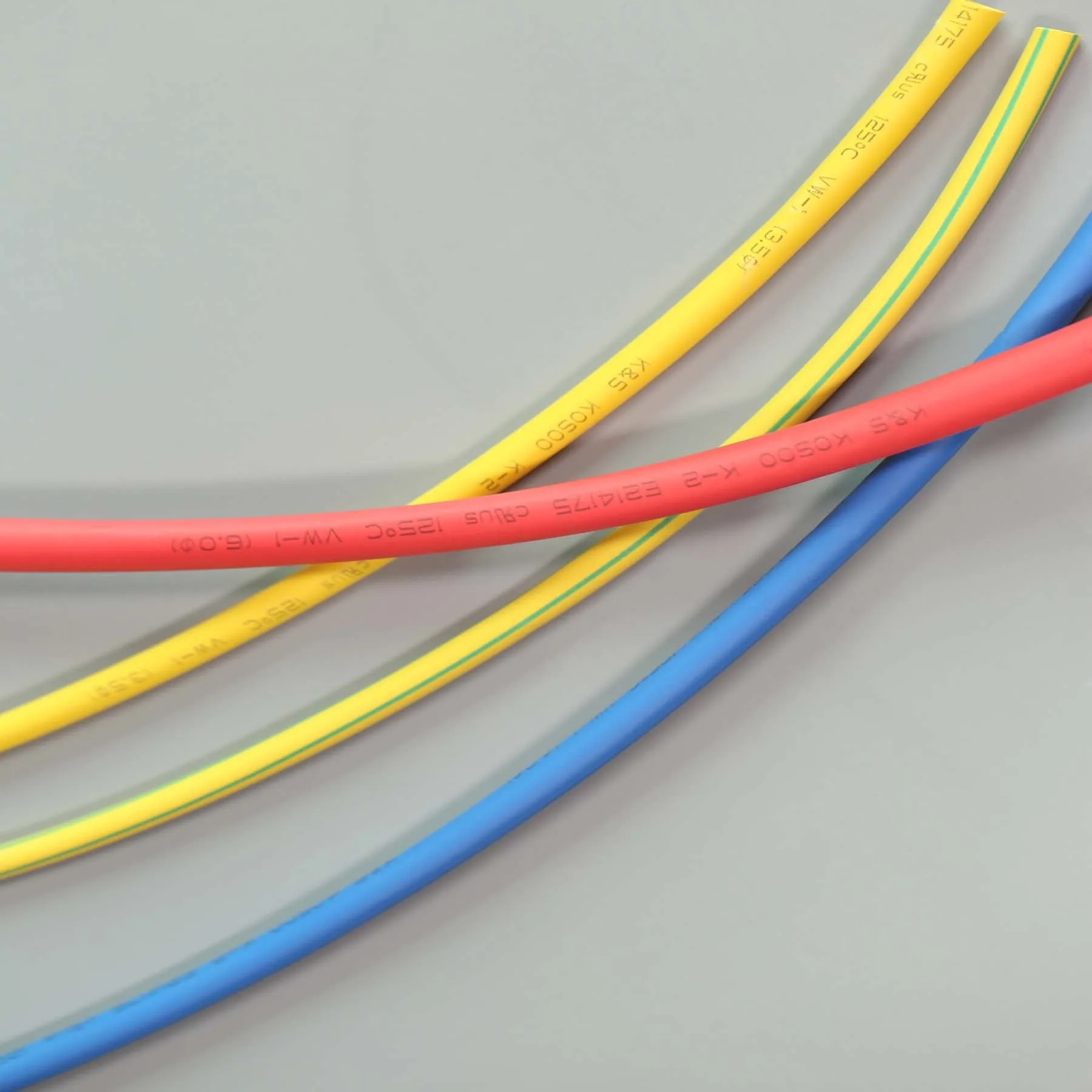

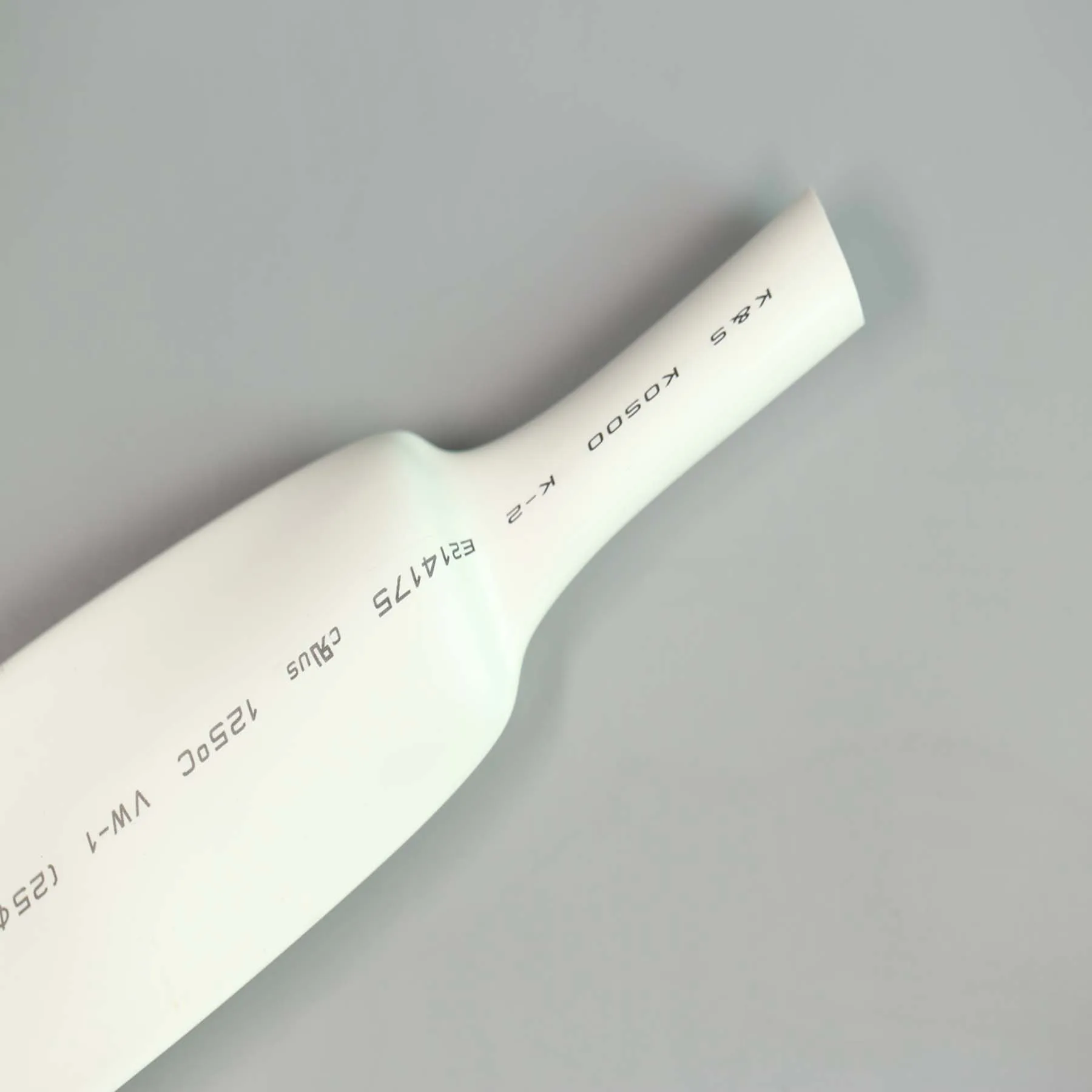

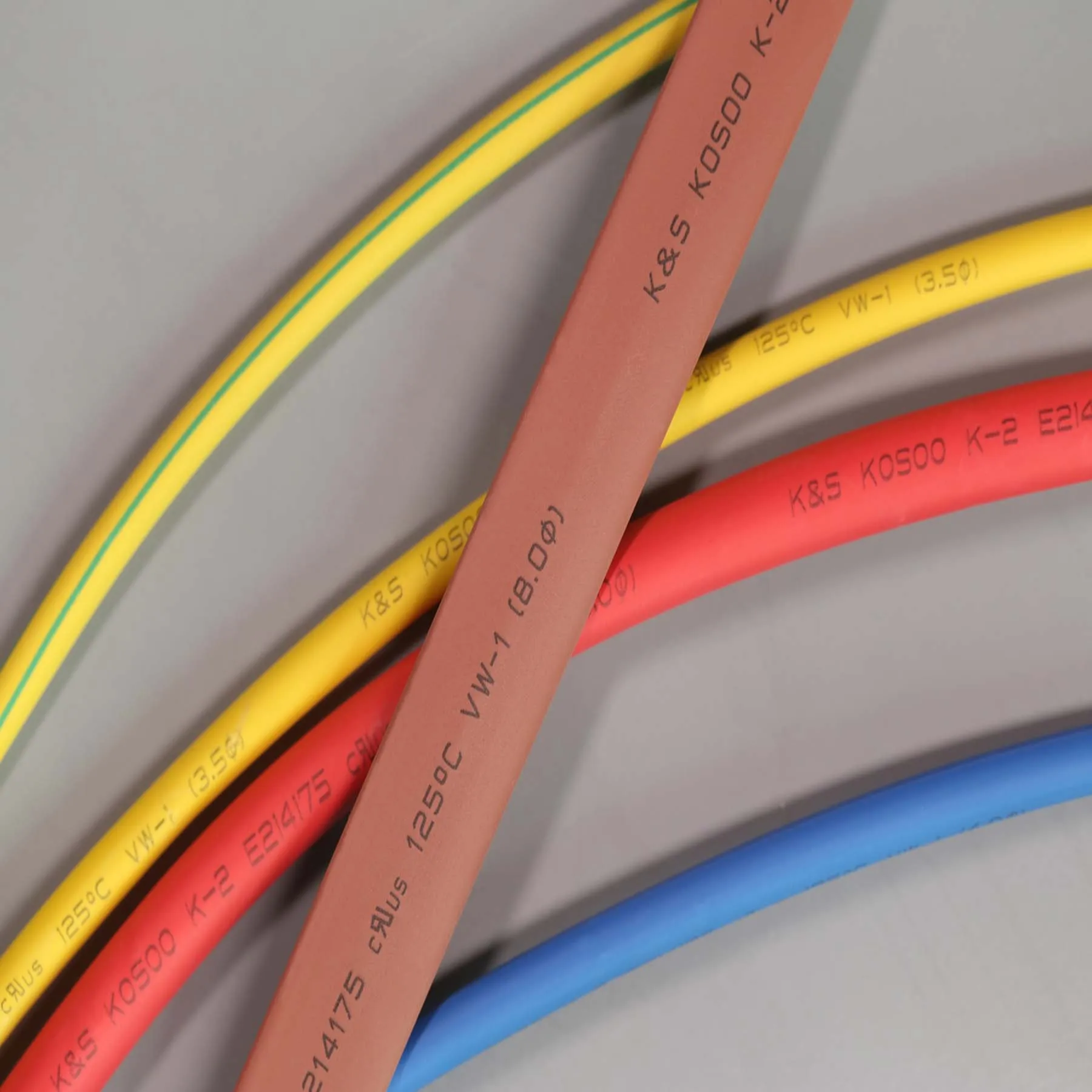

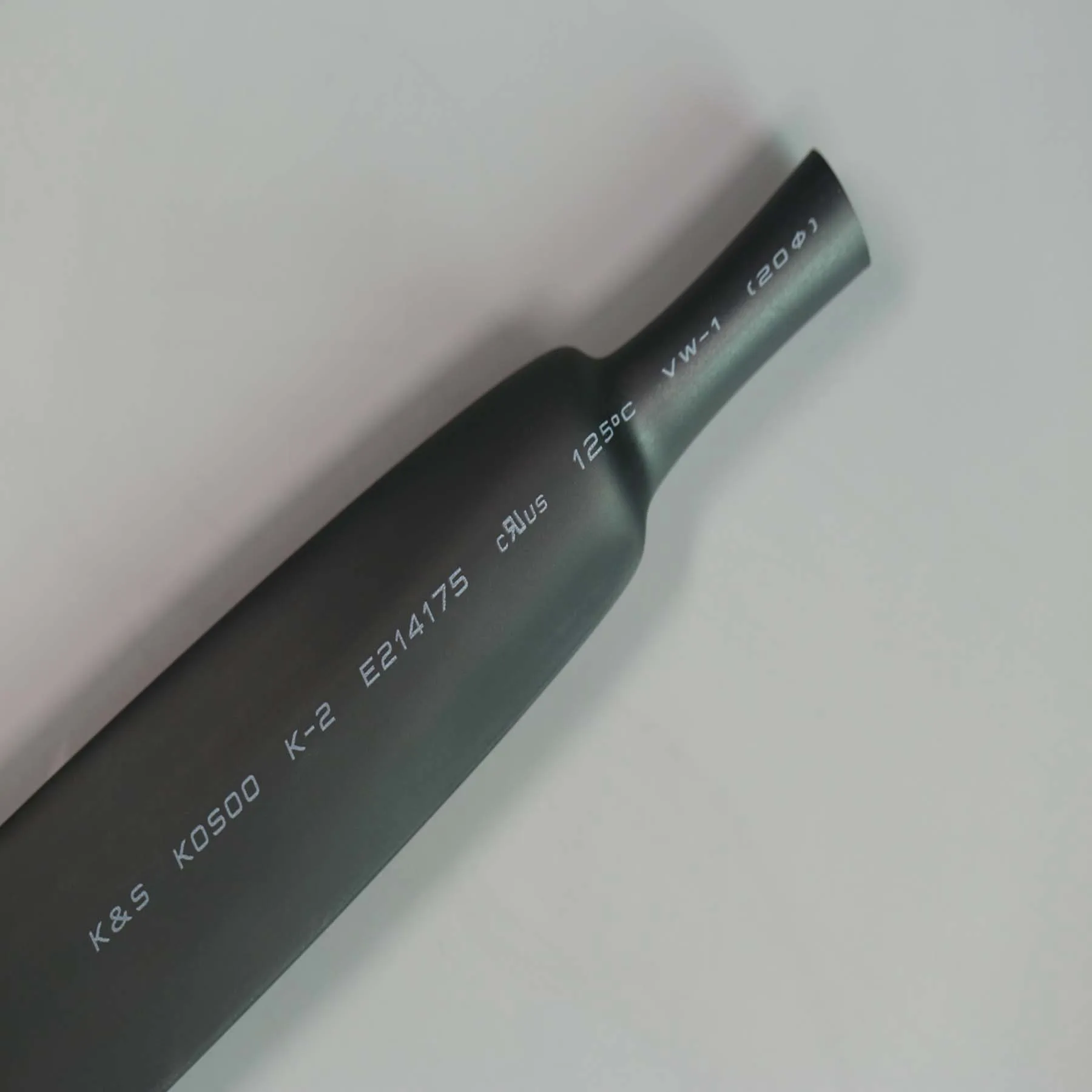

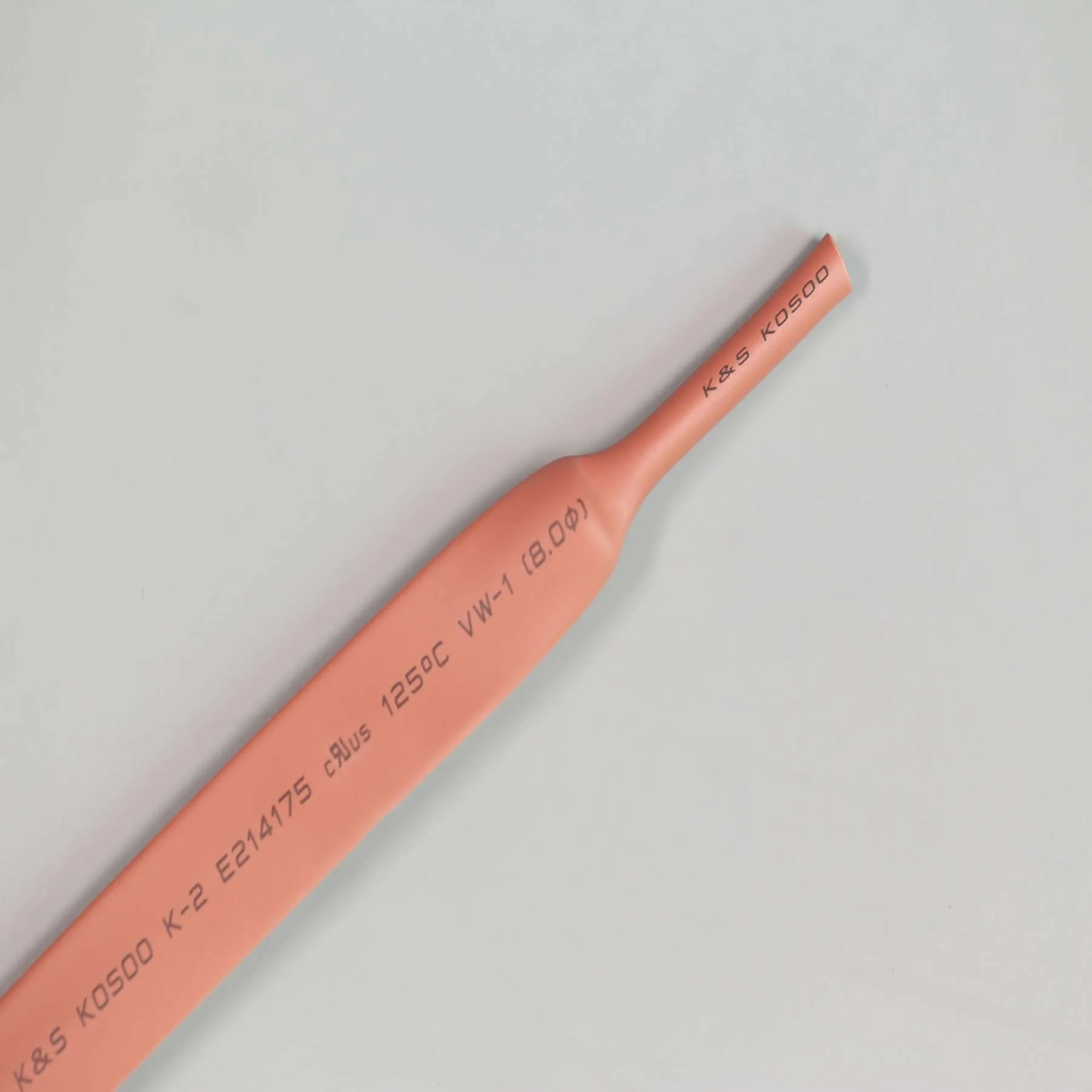

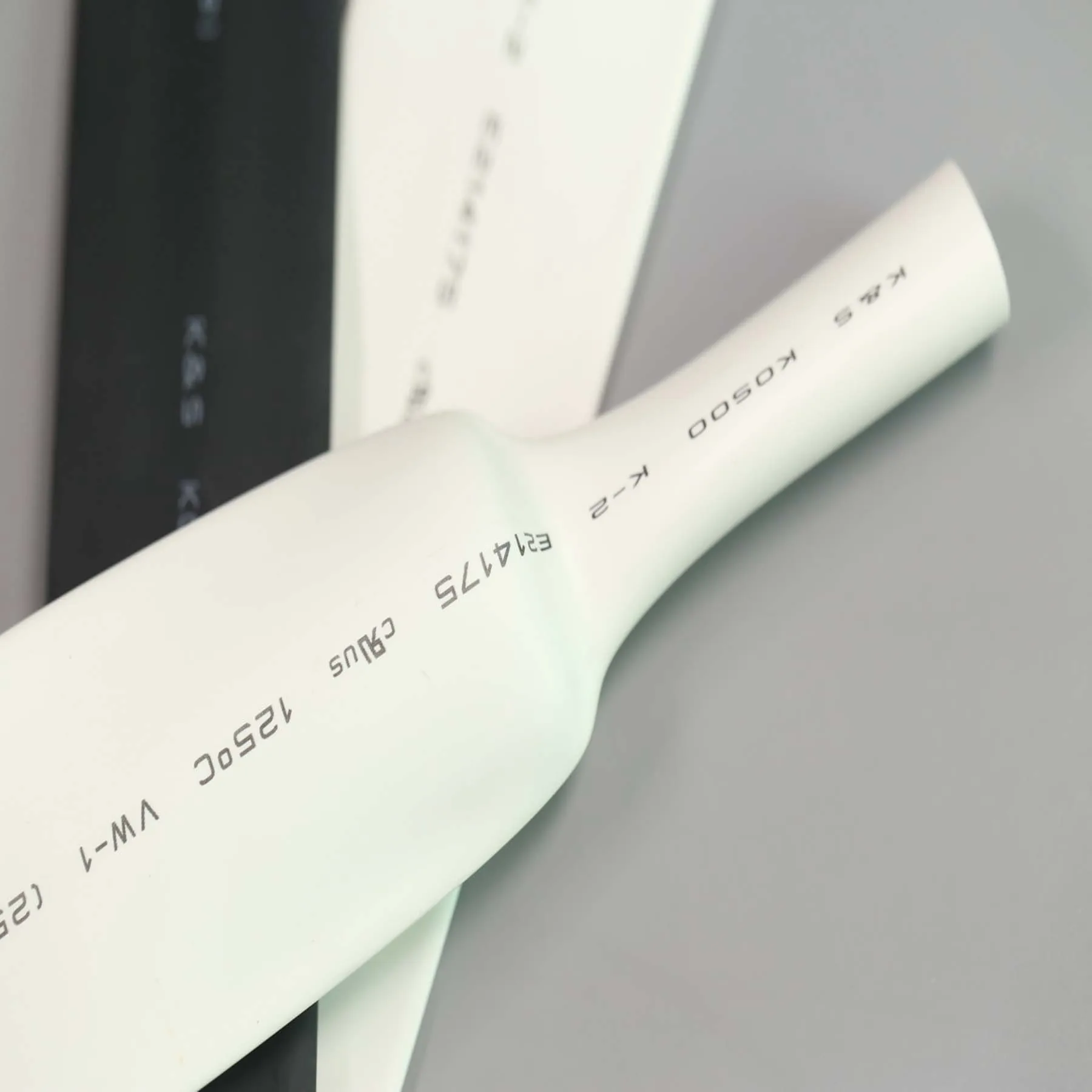

KOSOO K-2HF is heat shrink tube with low smoking,no added halogens,low evolution of acid gases. flame-retardant, irradiated cross-linked heat-shrinkable modified polyolefin tubing. It is widely used for insulation or jacketing of wire harness, strain relief of wire terminations and connections, bundling of wire harness, protection of soldered points, insulation and capsule of electronic components, anti-corrosive protection, identification and color coding.
Product Description
Resistant Insulation Heat Shrink Tube Low Smoking And Halogen Free Polyolefin Tubing Shrink Ratio 2:1
Specification values
Property | Requirement | Test method | Typical data | |
Physical: | Concentricity | 70% min. | ASTM D 2671 | ≥70% |
Tensile strength | 10.4MPa min. | ASTM D 638 | ≥14.0MPa | |
Elongation | 200% min. | ASTM D 638 | ≥400% | |
Heat shock | No cracking, dripping or flowing | ASTM D 2671 | Pass | |
Low temperature flexibility -55℃, 4hrs | No cracking | ASTM D 2671 | Pass | |
Aging 175℃,168hrs | ||||
Tensile strength after aging | 70% of original min. | ASTM D 638 | ≥90% | |
Elongation after aging | 100% min. | ASTM D 638 | ≥300% | |
Electrical: | Dielectric voltage withstand | 2500V, 60sec no breakdown | UL224 | Pass |
Dielectric strength | 19.7KV/mm min. | ASTM D 2671 | 25KV/mm | |
Volume resistivity | 1014Ω·cm min. | ASTM D 876 | ≥1014Ω·cm | |
Chemical: | Corrosion | No corrosion | ASTM D 2671 | Pass |
Flammability | VW-1 | UL224 | Pass |
Product Size
Size | Inside diameter | Wall thickness | Standard length (m/spool) | ||
As supplied(min.) | After recovery(max.) | After recovery | |||
3/64 | 1.2(0.046) | 0.6(0.023) | 0.40±0.08(0.016±0.003) | 200 | |
1/16 | 1.6(0.063) | 0.8(0.031) | 0.43±0.08(0.017±0.003) | 200 | |
3/32 | 2.4(0.093) | 1.2(0.046) | 0.51±0.08(0.020±0.003) | 200 | |
1/8 | 3.2(0.125) | 1.6(0.062) | 0.51±0.08(0.020±0.003) | 200 | |
3/16 | 4.8(0.187) | 2.4(0.093) | 0.51±0.08(0.020±0.003) | 100 | |
1/4 | 6.4(0.250) | 3.2(0.125) | 0.64±0.08(0.025±0.003) | 100 | |
3/8 | 9.5(0.375) | 4.8(0.187) | 0.64±0.08(0.025±0.003) | 100 | |
1/2 | 12.7(0.500) | 6.4(0.250) | 0.64±0.08(0.025±0.003) | 100 | |
3/4 | 19.1(0.750) | 9.5(0.375) | 0.76±0.08(0.030±0.003) | 50 | |
1 | 25.4(1.000) | 12.7(0.500) | 0.89±0.12(0.035±0.005) | 50 | |
1 1/4 | 31.8(1.250) | 15.9(0.625) | 1.02±0.15(0.040±0.006) | 50 | |
1 1/2 | 38.1(1.500) | 19.1(0.750) | 1.02±0.15(0.040±0.006) | 50 | |
2 | 50.8(2.000) | 25.4(1.000) | 1.14±0.16(0.045±0.007) | 50 | |
Features/Benefits
•Shrink ratio: 2:1.
•Very flexible, highly flame-retardant.
•Low smoking,no added halogens.
•Low evolution of acid gases.
•Excellent physical, chemical and electrical properties.
Conform to RoHS 2.0((EU) 2015/863)
Operating Temperature Range
Operating temperature range: -55℃~125℃
Minimum shrink temperature: 80℃
Minimum full recovery temperature: 120℃
