Характеристики

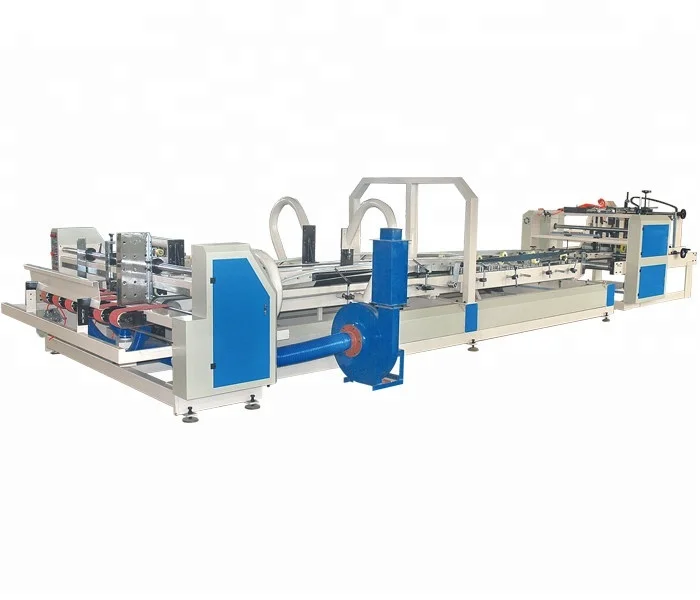

QHAFG-1224M Automatic Folder Gluer Machine
Description&Feature:

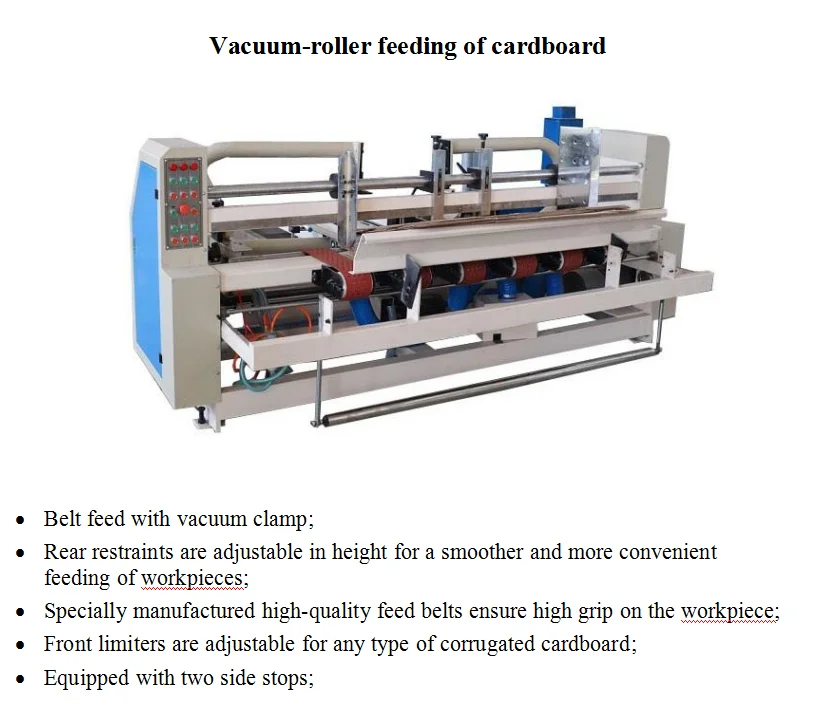

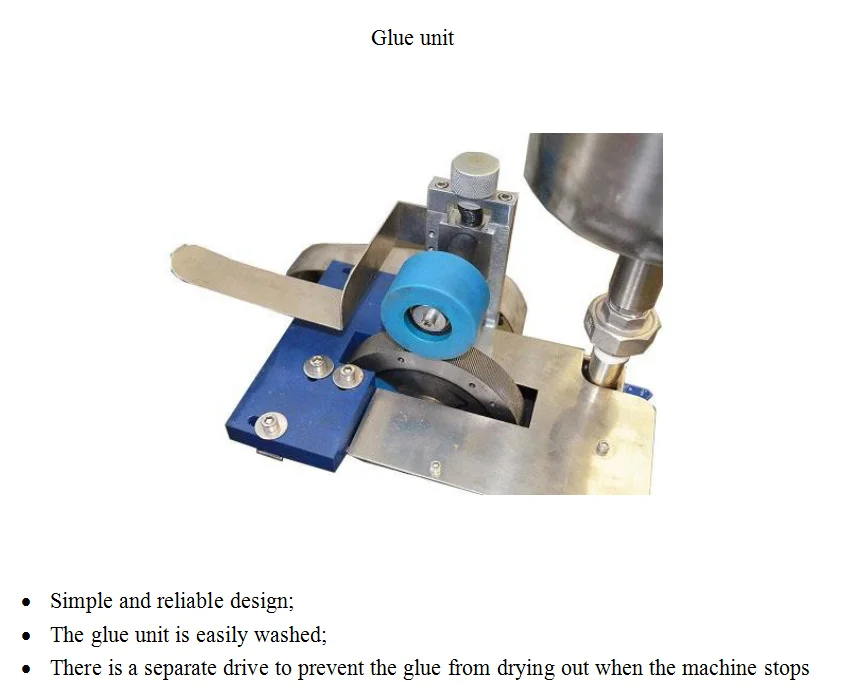

Ø QHAFG-1224M series automatic folder gluer machine consists of three section: vacuum feeding section ,gluing and folding section,counter and stacker section.
Ø All motors except frequency conversion motor adopt Taiwan Chengbond motor,Frequency conversion motor with quality inverter adjust speed.PLC and Touch screen control system for easy operation and running stable.The maximum speed is 130meters/min,average speed is 100meters/min.Energy conservation and high speed,saving labor cost.
Technical parameters:
Model | QHAFG-1224M |
Max.Cardboard(mm) | 1200*2500 |
Min.Cardboard(mm) | 300*900 |
Dimensions(mm) | L12500*W3200*H1600 |
Total weight | 5500kg |
Power Required | 12KW 380V 3Phase 50HZ |
Paperboard thickness | 3 or 5 later paperboard |
Control | PLC&Touch Screen |

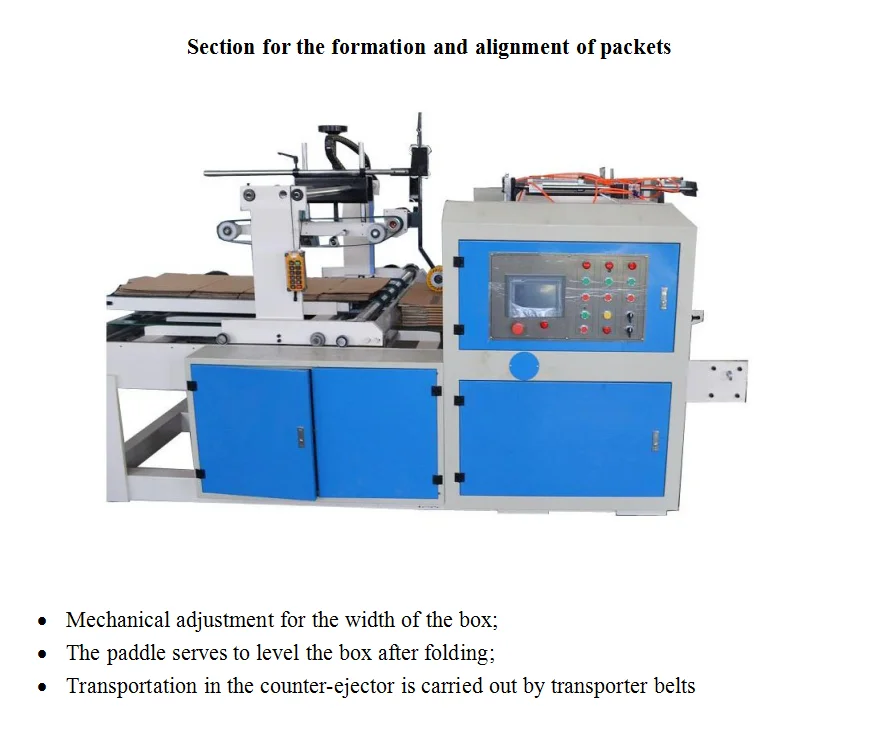

Main structure of machine:
![06B1{_WQ`T1X]AJQ[NHR3I](http://sc02.alicdn.com/kf/HTB1hHYhlFooBKNjSZPh7632CXXaA/234328222/HTB1hHYhlFooBKNjSZPh7632CXXaA.png)
![6%[CFE4~TJQ)95JF]5A6)Q](http://sc01.alicdn.com/kf/HTB1aVteG3aTBuNjSszf760gfpXaP/234328222/HTB1aVteG3aTBuNjSszf760gfpXaP.png)
![F26PT81D6F]2FK{X6M4PI0R](http://sc01.alicdn.com/kf/HTB1LqxvG25TBuNjSspc762nGFXaa/234328222/HTB1LqxvG25TBuNjSspc762nGFXaa.png)
![YRI%3N5ZX(1{VO$_{]4URO](http://sc01.alicdn.com/kf/HTB15_C2G1ySBuNjy1zd760PxFXaZ/234328222/HTB15_C2G1ySBuNjy1zd760PxFXaZ.png)
Packaging & Shipping
Company Information
FAQ
Q:Are you manufacture or trading company?
A:we are manufacture , our factory set up on 1999, and before we exported our products are mainly supply to the trading company ,
so we are the source factory, welcome to be our agency.
Q:Do you inspect the finished products?
A:Yes, we have QC department, they will inspect the machine before shipping, to ensure there is nothing problem of the machine .
Q:Does the packing strong?
A:Yes, of course! All of our export packing with strong wooden tray, all to meet the export packaging standards.
Q:How about after-sales service process?
A:When your machine has problem, contact our sales and we will solve your problem as soon as possible.We have after-sale office in
China, Vietnam, India, Bangladesh, Italy.
Q.Where is your factory?
A:Our factory located in Development Zone, East Of DongGuang County, CangZhou City, Hebei Province,China,welcome to visit our
factory!
Q. Do you have Import & export right?
A:Yes , we have , so we can export the carton machines to you directly , without any trading company agency.
