Машина для производства одноразовых пищевых лотков с
- Категория: Упаковочные формовочные машины >>>
- Поставщик: Ruian,City,Litai,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 130305.2 $* | 136820.1 $* |
| Aug-16-2025 | 129210.75 $* | 135671.85 $* |
| Jul-16-2025 | 108405.84 $* | 113825.12 $* |
| Jun-16-2025 | 127020.52 $* | 133371.4 $* |
| May-16-2025 | 110595.34 $* | 116125.86 $* |
| Apr-16-2025 | 124830.3 $* | 131072.58 $* |
| Mar-16-2025 | 123735.18 $* | 129922.40 $* |
| Feb-16-2025 | 122640.72 $* | 128772.79 $* |
| Jan-16-2025 | 121545.85 $* | 127622.29 $* |
Характеристики
Product Paramenters
Model | TTF-520AF |
Forming Area | 520mm x 400 mm |
Forming Depth (Max.) | 100mm |
Sheet thickness | 0.2-2.0mm |
Forming Speed (Max.) | 30times/min |
Air pressure | 0.6-0.8mpa |
Air consumption | 3.0 m³/min |
Water consumption | 0.7 m³/h |
Sheet width (Max.) | 550mm |
Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
Power supply | AC 380V, 50Hz, Three-phase, Four-wire |
Used power | 55Kw |
Rated power | 110Kw |
Heating power | 75Kw |
Procedure | Forming-cutting-stacking |
Dimension | L11000*W4600*H2700mm |
Weight | About 11.0T |
MAIN ELECTRICAL COMPONENTS | ||
PARTS | BRAND | |
Filter | CKD (Japan) | |
Forming valve | MAC (USA) | |
Temperature control module | WEST (UK) | |
Proximity switch | ROCKWELL (USA) | |
AC contactor\\Circuit breaker\\Button | SCHNEIDER (France) | |
Intermediate relay | IDEC (Japan) | |
Intermediate Relay Base | OMRON (Japan) | |
PLC\\Touch screen\\Servo motor | Detla (Taiwan) | |
Products Description
APPLICATION

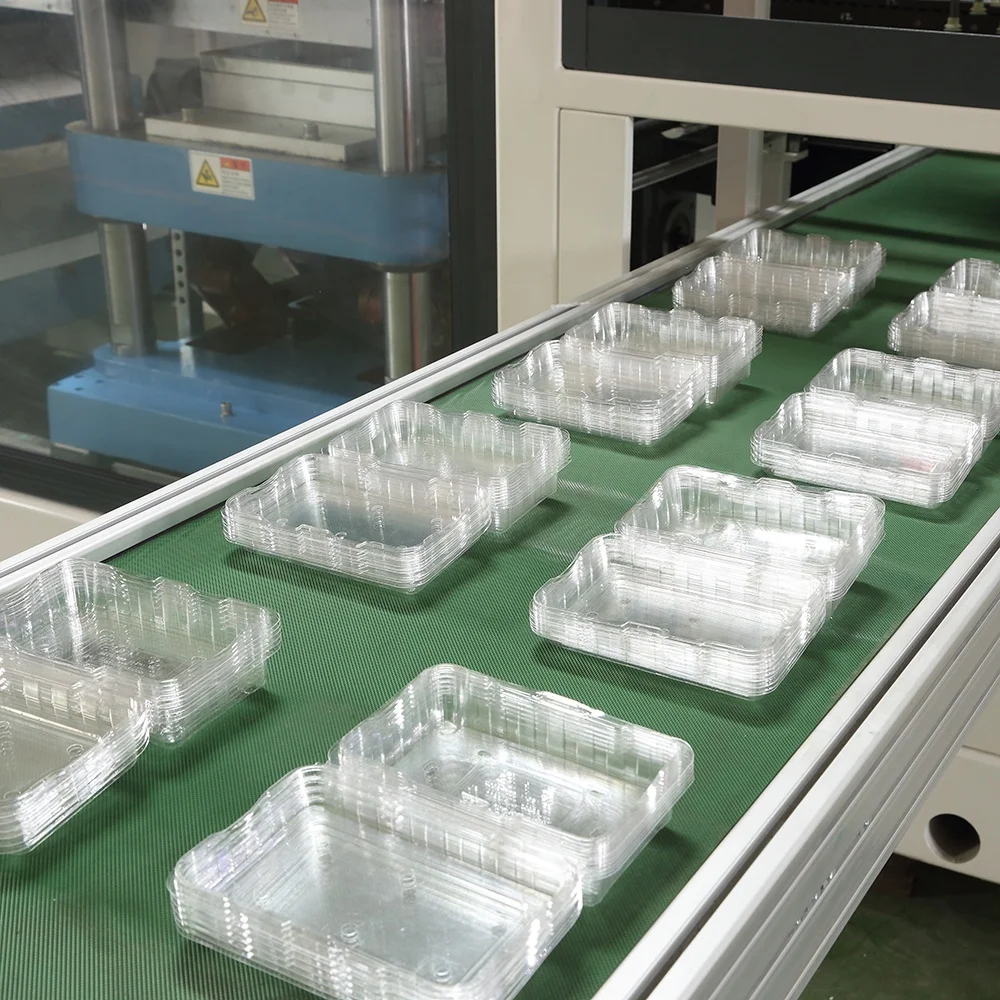

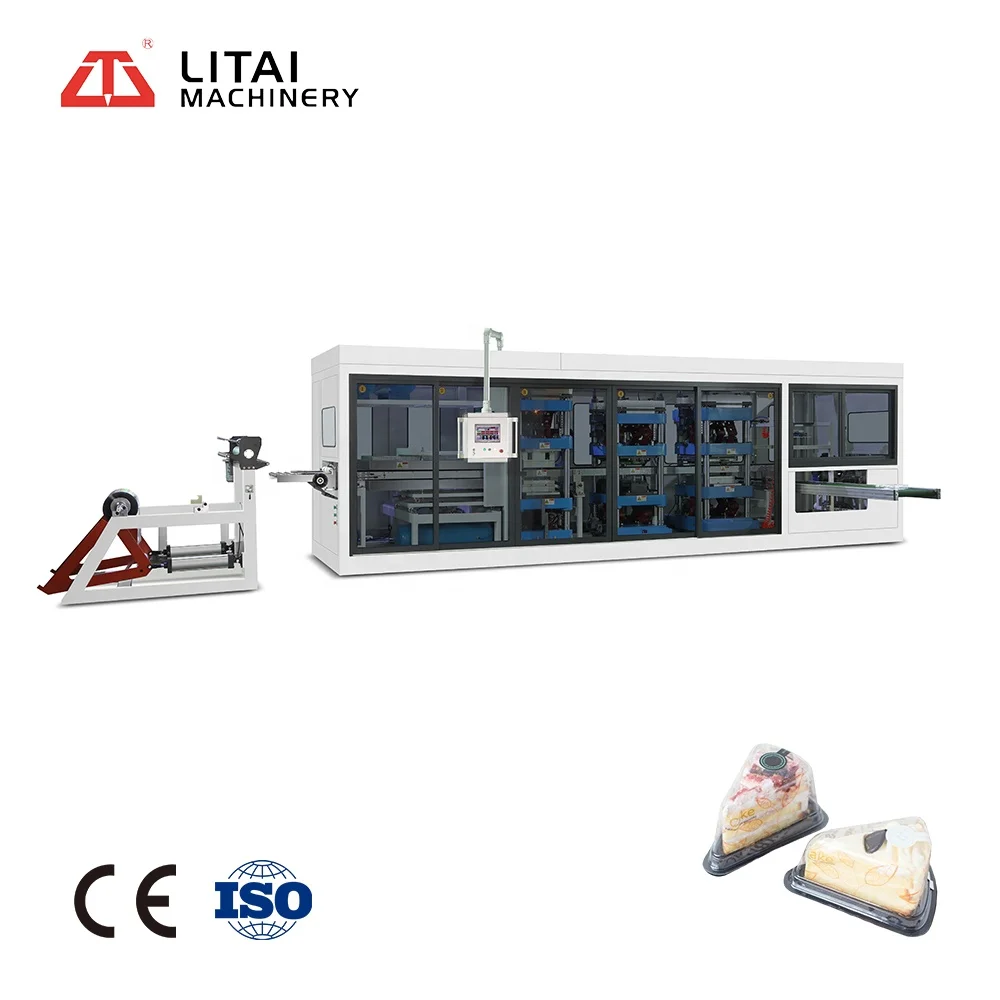

TTF series full-automatic thermoforming machine is our latest developed core product. The machine combines forming, punching, cutting, and stacking into process. widely used and suitable for most of the customer requested, it can produce plastic trays, containers, boxes, lids, etc. The machine is completelydriven by servo motor. stable operation, low noise, high efficiency, high quality.

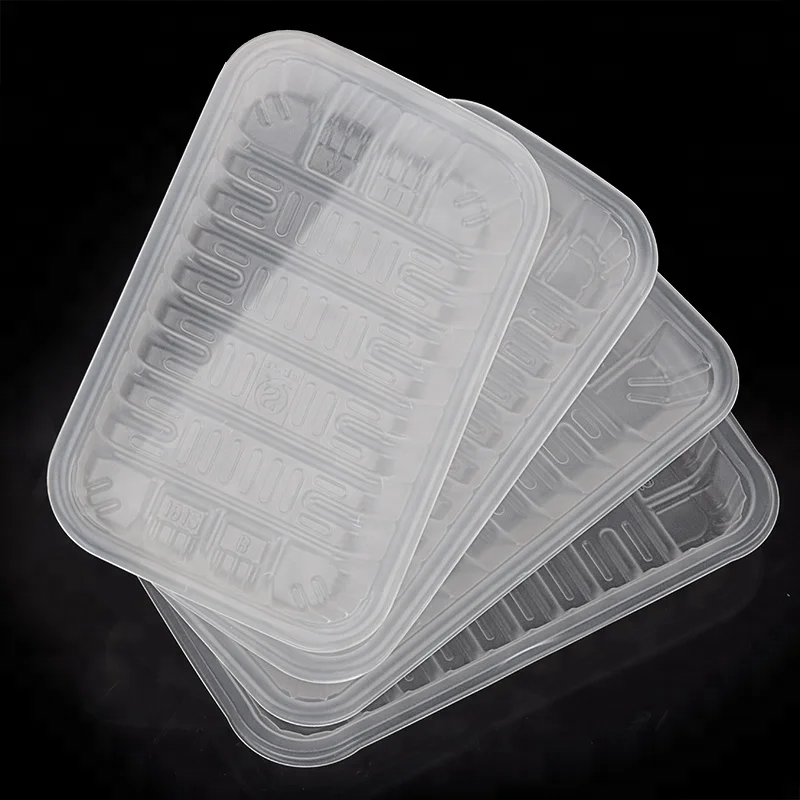

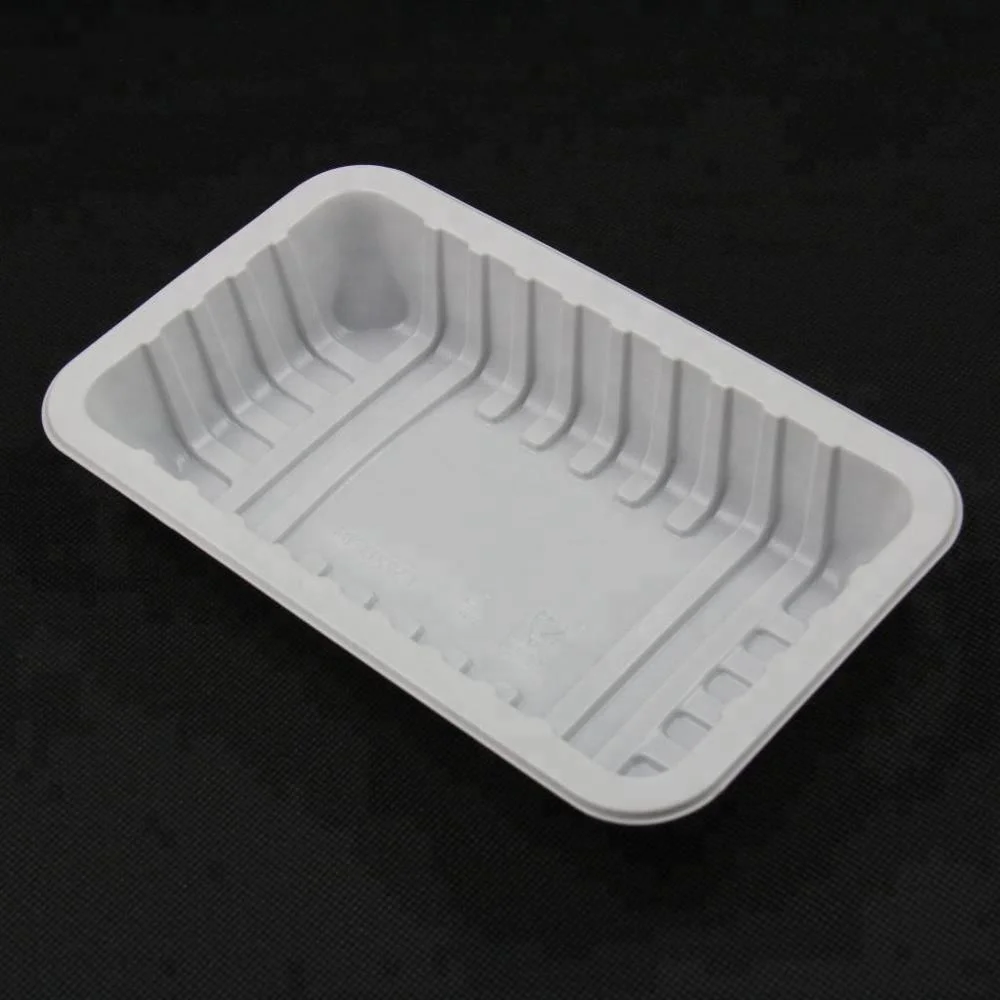

Cosmetic tray
Common uses for a plastic thermoformed tray include packaging inserts or shipping trays. Depending on the end use, plastic materials used to manufacture a tray can vary. For shipping, storage, and material handling trays, less costly materials can be used to provide a durable and protective tray without the need for clarity.
Egg tray
The egg tray can be made PET or PVC plastic material. There are 4,6,8,9,10,12,15,30 cells tray. The diameter of it is 4 cm , 4.3 cm, 4.6 cm. It can be printed as your requirement.
Disposable lunch box
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Plastic fruit box
Our machine can manufacture 100% new food grade non-toxic and odorless material, which has high transparency and environmental friendliness.
Accurate lid makes our products lock tightly,which is not loose,leakage,strict and fresh.The thicker material box
shape does not change when stacking up.
shape does not change when stacking up.
Coffee cup lid
Our machine supports 100% biodegradable and compostable materials: our fiber thermal cover is made of 100% plant-based materials,
which is completely environmentally friendly. We are honored to provide you with an innocent alternative that is easy to compost and biodegradable. While reducing plastic waste, you can also better enjoy your favorite hot drinks!
which is completely environmentally friendly. We are honored to provide you with an innocent alternative that is easy to compost and biodegradable. While reducing plastic waste, you can also better enjoy your favorite hot drinks!
Plastic bowl
Elastic thermoforming is the preferred process for manufacturing plastic parts because it is ideal for producing large numbers of low-cost plastic parts with high tolerance accuracy, repeatability and almost no completion.
Punching station

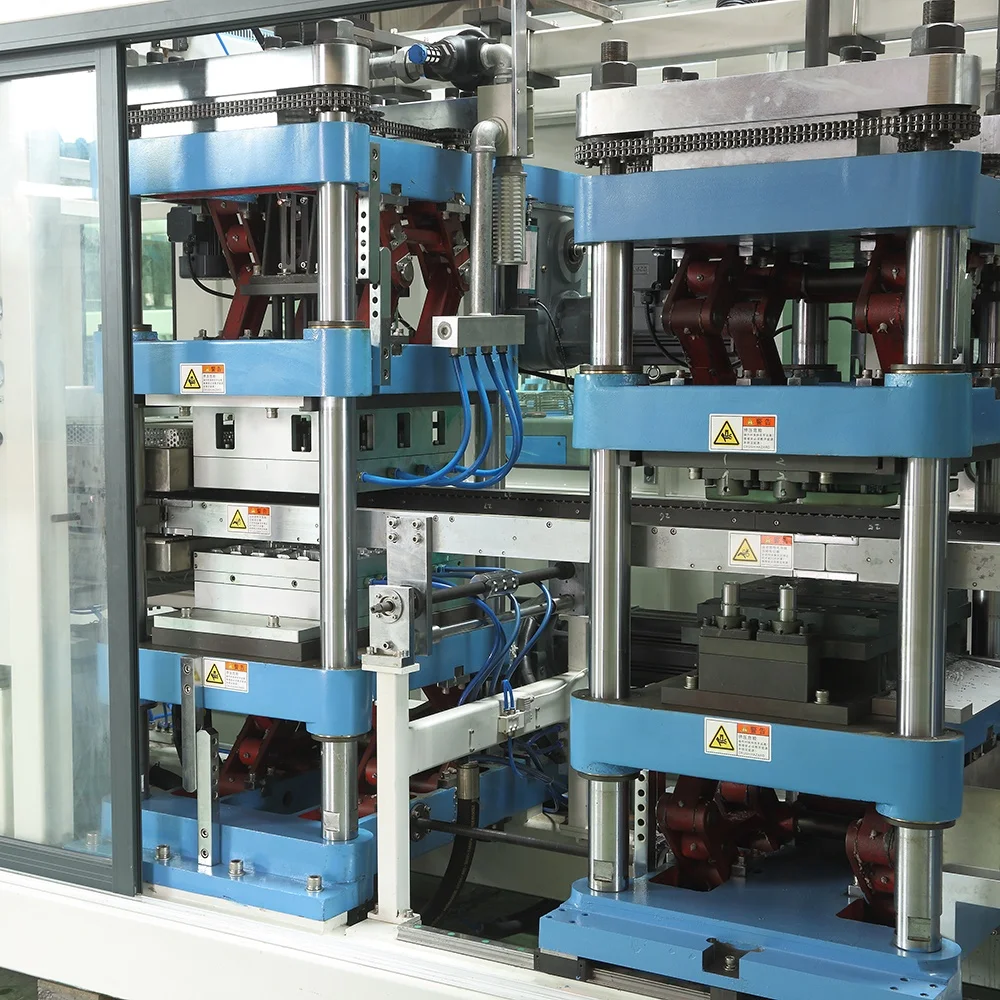

Working stations is driven by stable four guiding-pillars (GCr15 steel, outside is hard chrome plated) structure. Wear resistant, and extend equipment life.
Working station

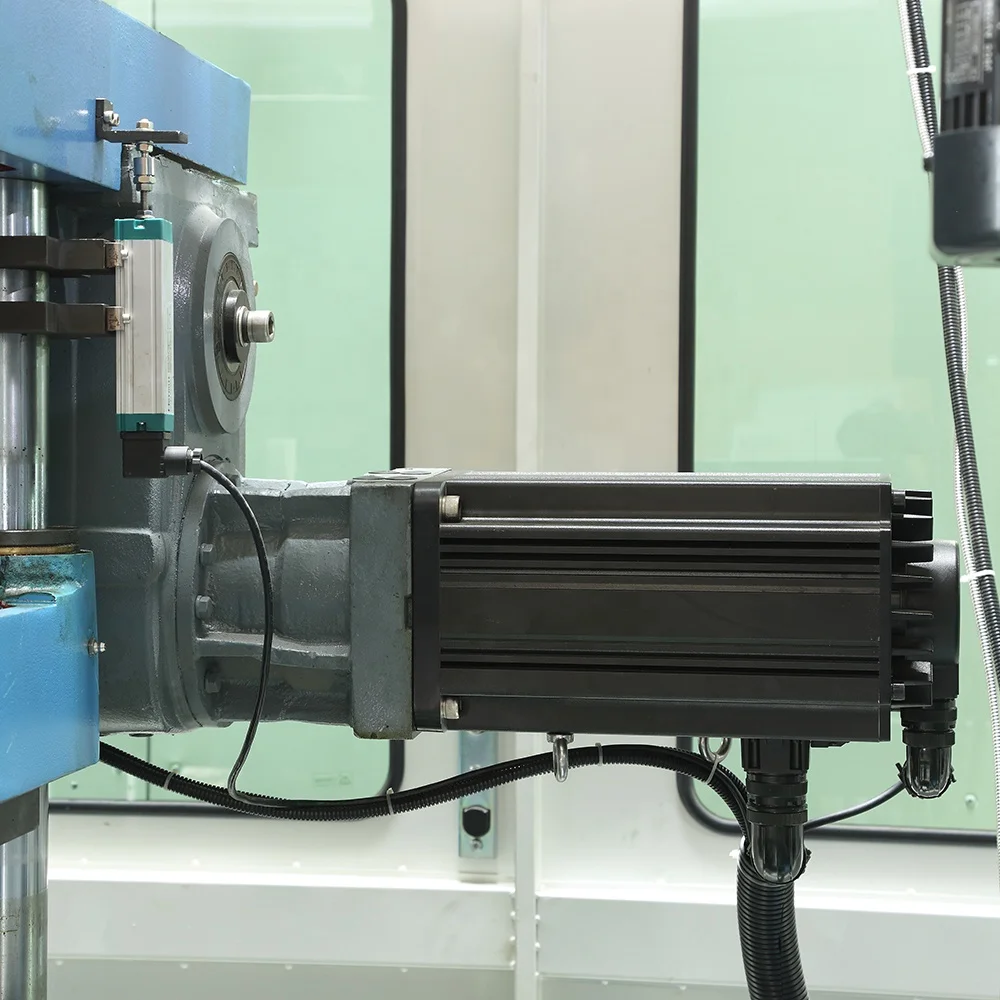

Sheet feeding and rolling part all completely driven by servo motor system, more accurate and efficient.
Ceramic heater
The ceramic heater (Germany·ELSTEIN) added vacuum insulation cotton, it shows quick response rate, short processing time, and save energy.
Console
Industrial manual interface (Delta) has storage function. All parameters can be stored in recipes, it is convenient for the next-time operation.
SUMMARY OF MACHINE
2. Feeding and heating part have optoelectronic switch in order to prevent error operating from production process.
3. The toothed chain made of 65#Mn, helping convey sheet. Aluminum rails with water cooling, save water.
4. The machine adopts PID temperature system, it shows high precision, and temperature control tolerance ＜1℃.
5. Each servo motor has overload protection for machine’s overworking.
6. Low barycenter and height of finished products as well as steady running ensures easy operation and friendly viewing.
7. There is an alarm function of the sliding doors.
Company Profile
Guest Department
Exhibition
Packaging shipping
FAQ
Q1: Are you a factory or trading company?
A1: We are a factory, and we export our machines to more than 80 countries since 2001.
Q2: How long is the warranty period?
A2: We have a professional QC department in charge of products' quality.
Q3: How long is the warranty period?
A3: 13months calculated from the date of shipment from our factory.During warranty period, except the artificial factor, the spares are free to maintenance, beyond the warranty time, the buyer needs to pay the spare charge and shipping cost.
Q4: How to install the machine?
A4: We will send technician to your factory to install the machine, and teach your workers to use it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and technician salary.
A1: We are a factory, and we export our machines to more than 80 countries since 2001.
Q2: How long is the warranty period?
A2: We have a professional QC department in charge of products' quality.
Q3: How long is the warranty period?
A3: 13months calculated from the date of shipment from our factory.During warranty period, except the artificial factor, the spares are free to maintenance, beyond the warranty time, the buyer needs to pay the spare charge and shipping cost.
Q4: How to install the machine?
A4: We will send technician to your factory to install the machine, and teach your workers to use it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and technician salary.
