RV130W-E-K9-CN RV130W беспроводной-n многофункциональный
- Категория: Routers >>>
- Поставщик: Beijing,Xuyang,Entrepreneurial,Network,Technology,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.17 $* | 0.20 $* |
| Aug-18-2025 | 0.45 $* | 0.35 $* |
| Jul-18-2025 | 0.54 $* | 0.90 $* |
| Jun-18-2025 | 0.25 $* | 0.9 $* |
| May-18-2025 | 0.0 $* | 0.4 $* |
| Apr-18-2025 | 0.20 $* | 0.10 $* |
| Mar-18-2025 | 0.16 $* | 0.92 $* |
| Feb-18-2025 | 0.72 $* | 0.43 $* |
| Jan-18-2025 | 0.12 $* | 0.74 $* |
Характеристики
Product Description

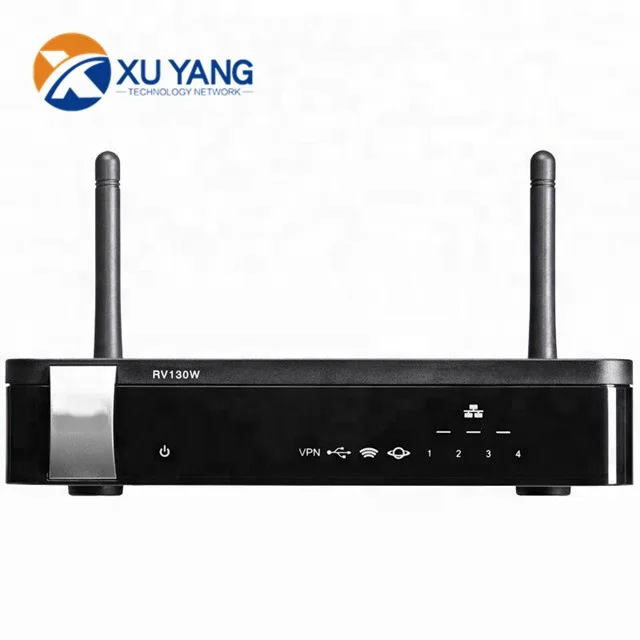

RV130W-E-K9-CN RV130W Wireless-N Multifunction VPN Router
| Specifications | Description |
| Standards | IEEE 802.11n, 802.11g, 802.11b, 802.3, 802.3u, 802.1D, 802.1p, 802.1w (Rapid Spanning Tree) 802.1X (security authentication), 802.1Q (VLAN), 802.11i (Wi-Fi Protected Access [WPA2] security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460), Routing Information Protocol (RIP) v1 (RFC 1058), RIP v2 (RFC 1723) |
| Ports | LAN, WAN, USB |
| Switch | Power button (on/off) |
| Buttons | Reset |
| Cabling Type | Category 5e or better |
| LEDs | Power, VPN, USB, WAN, Wireless, LAN (ports 1-4) |
| Operating System | Linux |
| LAN | Four (4) 10/100/1000 Mbps Gigabit LAN ports with managed switch |
| WAN | Single (1) 10/100/1000 Mbps Gigabit WAN port |
| WLAN | Built-in high-speed 802.11n wireless access point |
| Network Address Translation (NAT) | Port Address Translation (PAT), Network Address Port Translation (NAPT) protocol |
| VLAN Support | Port-based and 802.1Q tag-based VLANs |
| Number of VLANs | 5 active VLANs (3-4096 range) |
| Network Edge (DMZ) | Software configurable to any LAN IP address |
| Layer 2 | 802.1Q-based VLANs, 5 active VLANs |
| Access Control | IP access control lists; MAC-based wireless access control |
| Content Filtering | Static URL blocking or keyword blocking |
| Secure Management | HTTPS, username/password complexity |
| WPS | Wi-Fi Protected Setup |
| User Privileges | 2 levels of access: admin and guest |
| VPN | |
| Gateway-to-gateway IPsec VPN | 10 gateway-to-gateway IPSec tunnels |
| Client-to-gateway IPsec VPN | 10 client-to-gateway IPsec tunnels using TheGreenBow and ShrewSoft VPN client |
| PPTP VPN | 10 PPTP tunnels for remote client access |
| Encryption | Triple Data Encryption Standard (3DES) |
| Authentication | MD5/SHA1 |
| VPN Pass-through | IPsec/PPTP/Layer 2 Tunneling Protocol (L2TP) pass-through |
| Quality of Service | |
| QoS | 802.1p port-based priority on LAN port, application-based priority on WAN port |
3 queues | |
Differentiated Services Code Point support (DSCP) | |
Class of Service (CoS) | |
Bandwidth Management for service prioritization | |
| Jumbo Frame | Supports Jumbo Frame on Gigabit ports - at least 1536B |
| Performance | |
| NAT Throughput | 800 Mbps |
| Concurrent Sessions | 12,000 |
| IPsec VPN Throughput | 50 Mbps |
| (3DES/AES) | |
| Configuration | |
| Web User Interface | Simple, browser-based configuration (HTTP/HTTPS) |
| Management | |
| Management Protocols | Web browser, Simple Network Management Protocol (SNMP) v3, Bonjour, Universal Plug and Play (UPnP) |
| Event Logging | Local, syslog, email alerts |
| Network Diagnostics | Ping, Traceroute, and DNS Lookup |
| Upgradability | Firmware upgradable through web browser, imported/exported configuration file |
| System Time | Supports NTP, Day Light Savings, Manual entry |
| Languages | GUI supports English, French, Italian, German, and Spanish |
| Wireless | |
| Radio and modulation type | 802.11b: direct sequence spread spectrum (DSSS), 802.11g: orthogonal frequency division multiplexing (OFDM), 802.11n: OFDM |
| WLAN | 2.4GHz IEEE 802.11n standard-based access point with 802.11b/g compatibility |
| Operating channels | 11 North America, 13 most of Europe, auto channels selection |
| Wireless isolation | Wireless isolation between clients |
| External antennas | 2 fixed antennas |
| Antenna gain in dBi | 2 dBi |
| Transmit power | 802.11b: 16.5 dBm +/- 1.5 dBm; 802.11g: 15 dBm +/- 1.5 dBm; 802.11n: 12.5 dBm +/- 1.5 dBm |
| Receiver sensitivity | -87 dBm at 11 Mbps, -71 dBm at 54 Mbps, -68 dBm at mcs15, HT20, -66 dBm at mcs15, HT40 |
| Radio Frequency | Single-band, works on 2.4GHz |
| Wireless Domain Service (WDS) | Allows wireless signals to be repeated by up to 4 compatible devices |
| Operating Modes | Multifunction device-wireless router, access point mode with WDS, Point-to-Point Bridge mode with WDS, Point-Multi Point Bridge mode with WDS, Repeater mode with WDS |
| Active WLAN clients | Support up to 64 concurrent clients in wireless router mode and wireless Access Point mode |
| Multiple SSIDs | Supports multiple Service Set Identifiers (SSIDs), up to 4 separate virtual networks |
| Wireless VLAN map | Supports SSID to VLAN mapping with wireless client isolation |
| WLAN security | Wired Equivalent Privacy (WEP), WPA, WPA2-PSK, WPA2-ENT, 802.11i |
| Wi-Fi Multimedia (WMM) | WMM, WMM power save (WMM-PS) |
| Environmental | |
| Power | 12V 2A |
| Certifications | FCC class B, CE, IC, Wi-Fi |
| Operating temperature | 0 to 40C (32 to 104F) |
| Storage temperature | -20 to 70C (-4 to 158F) |
| Operating humidity | 10 to 85 percent noncondensing |
Our Services
1. Condition: All the items are 100 % Original.
.
2. The Fastest Delivery: We ensure you that we can fast ship the equipment upon your confirmation.
3. The Best Service: certified sales engineers are here to offer presales suggestion and solve the problems of installation.
4. The Highest Quality: All equipment is fully tested and authenticated byCCIE engineers and provided 1 year warranty.
