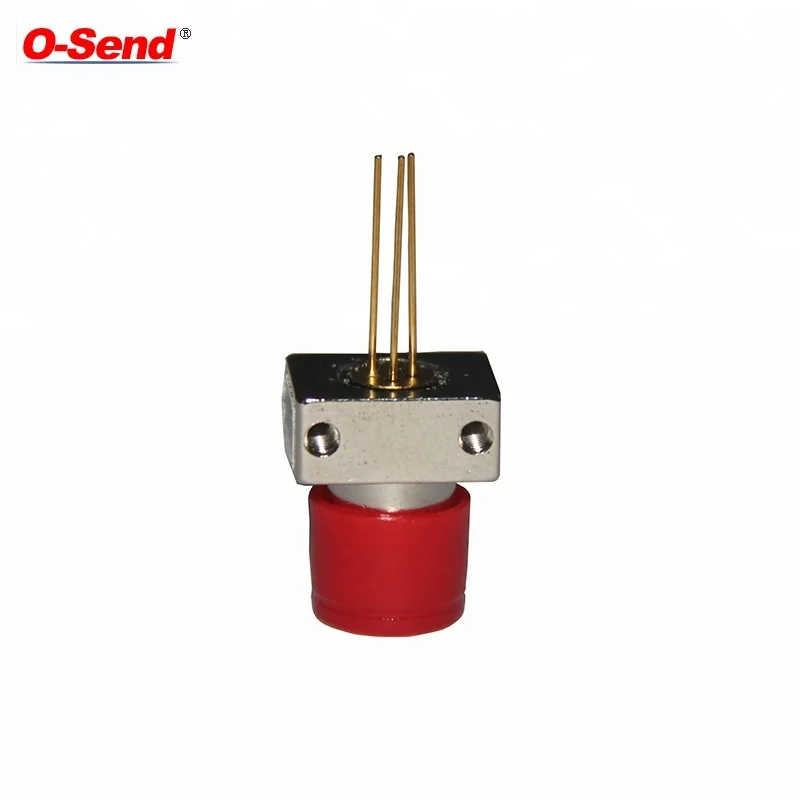

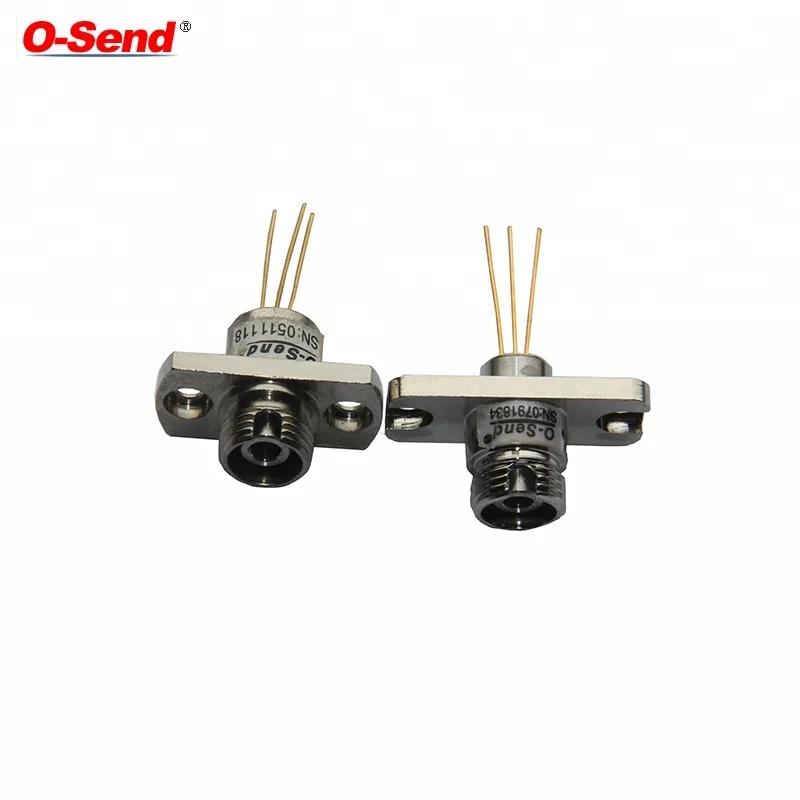

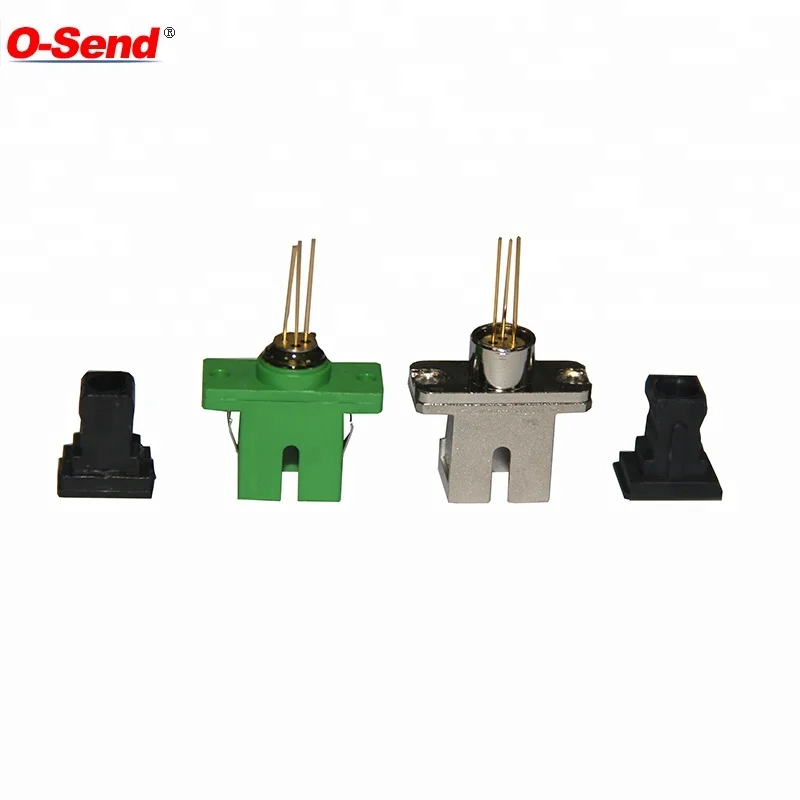

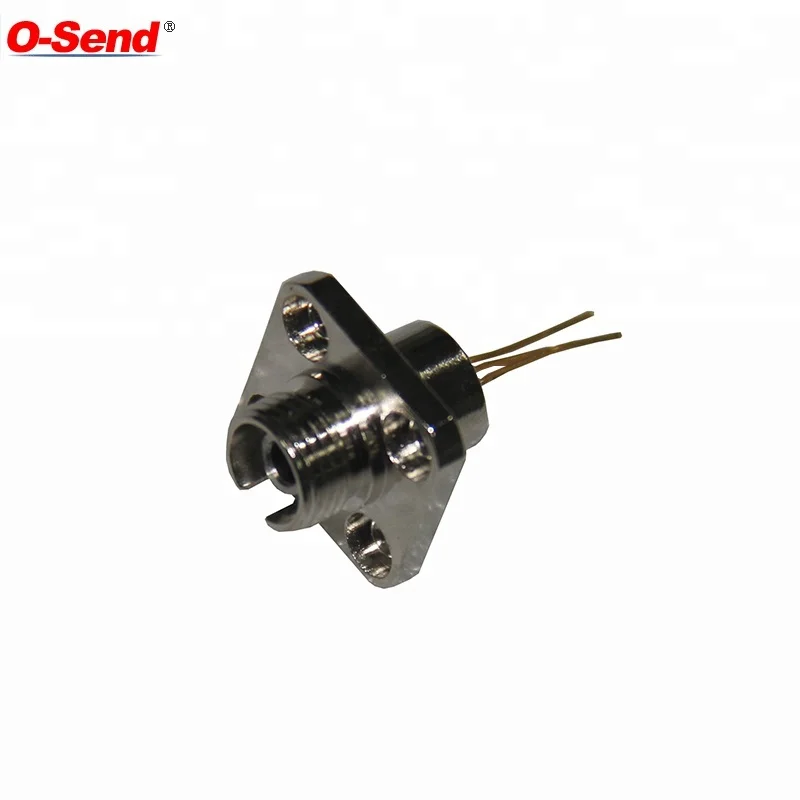

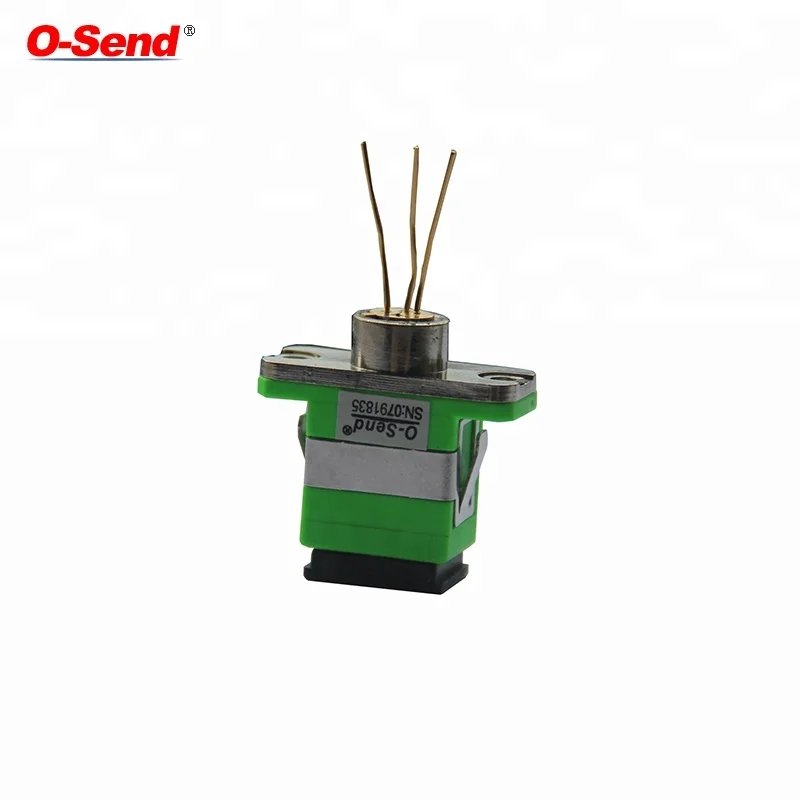

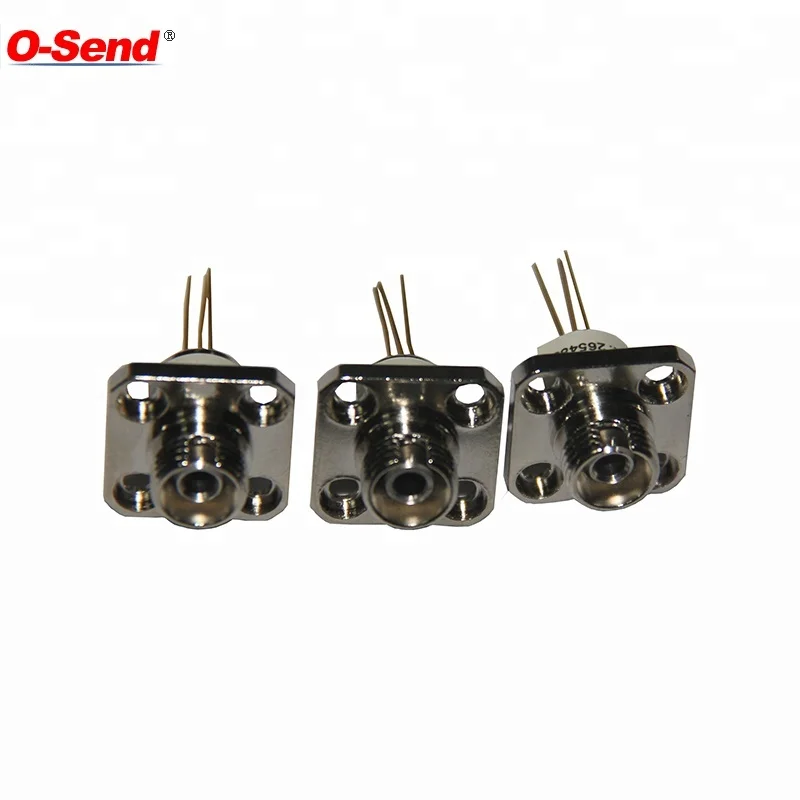

O-Send 650nm красный лазерный диодный модуль в металлической розетке
- Категория: Diodes >>>
- Поставщик: O-Send,Opto-Electronics,(Chongqing),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.99 $* | 0.41 $* |
| Aug-18-2025 | 0.19 $* | 0.7 $* |
| Jul-18-2025 | 0.97 $* | 0.15 $* |
| Jun-18-2025 | 0.4 $* | 0.61 $* |
| May-18-2025 | 0.31 $* | 0.58 $* |
| Apr-18-2025 | 0.50 $* | 0.41 $* |
| Mar-18-2025 | 0.37 $* | 0.9 $* |
| Feb-18-2025 | 0.8 $* | 0.76 $* |
| Jan-18-2025 | 0.1 $* | 0.11 $* |
Характеристики
Product Description
It offers a low cost solution for linear fiber optic links, which is packaged in a compact hermetic assembly for flexible integration into various transmitter configurations.
Product Detail
Features
MQW 635/650nm FP LD
Low threshold current
High output power
Built-in InGaAsP monitor PD
Wide temperature range operation
(Tc=-10to+65℃)
Applications
Light Source
Data Transmit
Absolute maximum ratings
| Parameter | Symbol | Ratings | Unit |
| LD Forward current | IF(LD) | 100 | mA |
| LD Reverse voltage | VR(LD) | 2 | V |
| PD Forward current | IF(PD) | 2 | mA |
| PD Reverse volltage | VR(PD) | 30 | V |
| Operating temperature | Top | -10~+65 | ℃ |
| Storage temperature | Tst | -40~+85 | ℃ |
| Soldering temperature/time | - | 240/10 | ℃/S |
Optical&Electrical Characteristics
| Parameter | Symbol | Min | Typ | Max | Unit | Test condition |
| Center wavelength | λc | 640 | 650 | 660 | nm | 25℃ |
| 630 | 635 | 640 | ||||
| Threshold current | lth | 15 | 20 | 40 | mA | 650nm,25℃ |
| Spectral width | Δλ | - | - | 5 | nm | CW,lth+15mA |
| Output power | P | - | 1.0 | 12.0 | mW | CW,lth+15mA,650nm |
| Operating voltage | Vop | - | 2.15 | 2.5 | V | CW,lth+15mA |
| Monitor current | lm | 0.05 | - | 0.5 | mA | CW,lth+15mA |
Related Products
Certifications
Packaging & Shipping
Shipping
INTERNATIONAL AIR MAIL
Payment
Fast Delivery
Different amount of time will be required for differentCompany Information
Founded in May 2004, and specializes in active component and passive component for telecommunication, data communication, FTTH(G/EPON,PON+EOC,RFoG)and CATV (CMTS) industries. Product lines include Laser Diode Module(Coaxial/Butterfly/DIP), Photo Diode Module, CWDM module, Optical Transceivers (Bi-di, ,SFP,SFP+), TO-Can assembly and passive component.
O-send Opto-Electronics(Chongqing)Co., Ltd, locates in ChaYuan, Chongqing, south west of China, covering an area of about 2500 square meters and with more than 120 staff.
Our Advantages
Quality system of ISO9001: 2015 registration
Reliable Quality
Prompt delivery and remarkable services
Reasonable prices
Excellent Performance
Professional Design Department
Accept OEM & ODM
Excellent After-sales Service
