Электрическое отопление фруктового сока вакуумное давление снижение концентрат
- Категория: Pharmaceutical Machinery >>>
- Поставщик: Shanghai,Ruiyuan,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 5950.48 $* | 6248.73 $* |
| Aug-15-2025 | 5900.40 $* | 6195.96 $* |
| Jul-15-2025 | 4950.40 $* | 5198.30 $* |
| Jun-15-2025 | 5800.28 $* | 6090.96 $* |
| May-15-2025 | 5050.15 $* | 5303.98 $* |
| Apr-15-2025 | 5700.85 $* | 5985.91 $* |
| Mar-15-2025 | 5650.63 $* | 5933.88 $* |
| Feb-15-2025 | 5600.73 $* | 5880.92 $* |
| Jan-15-2025 | 5550.53 $* | 5828.83 $* |
Характеристики
Product Descriction
Applicable
The device is suitable for the concentration of the material liquid in such industries as pharmacy, food and chemistry, etc. It's mainly for get high concentration medium, such as extractum, fruit jam, and so on.
Component

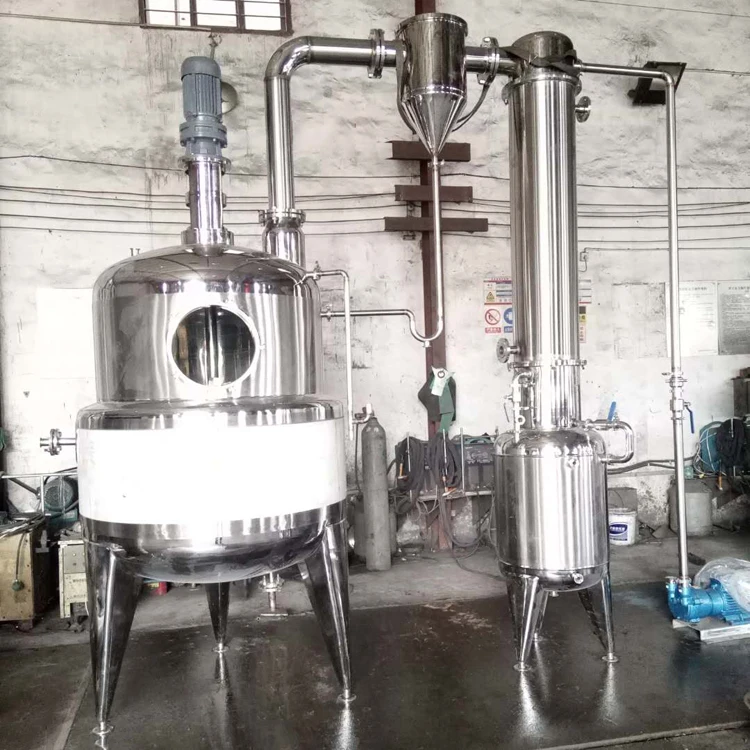

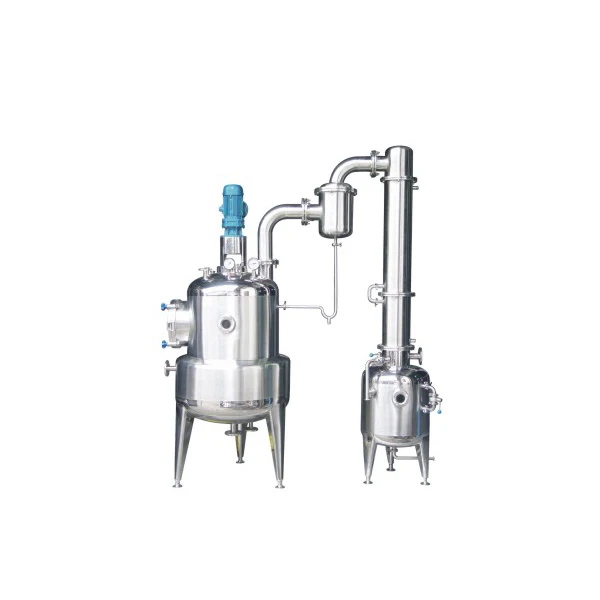

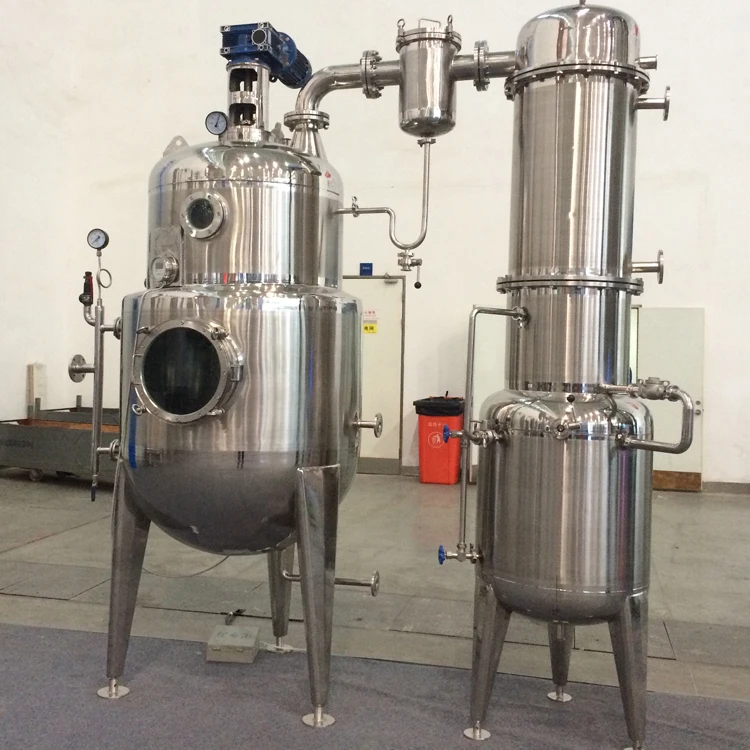

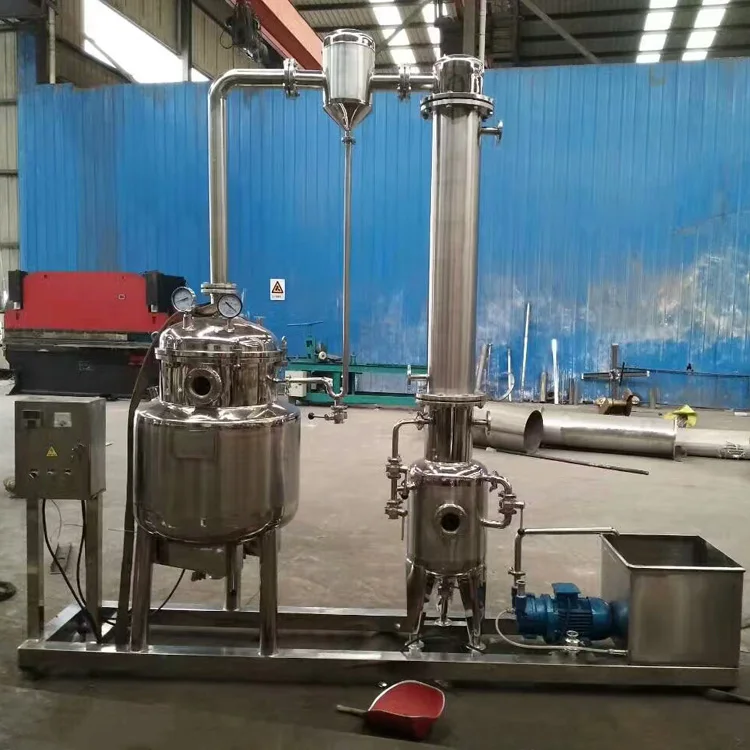

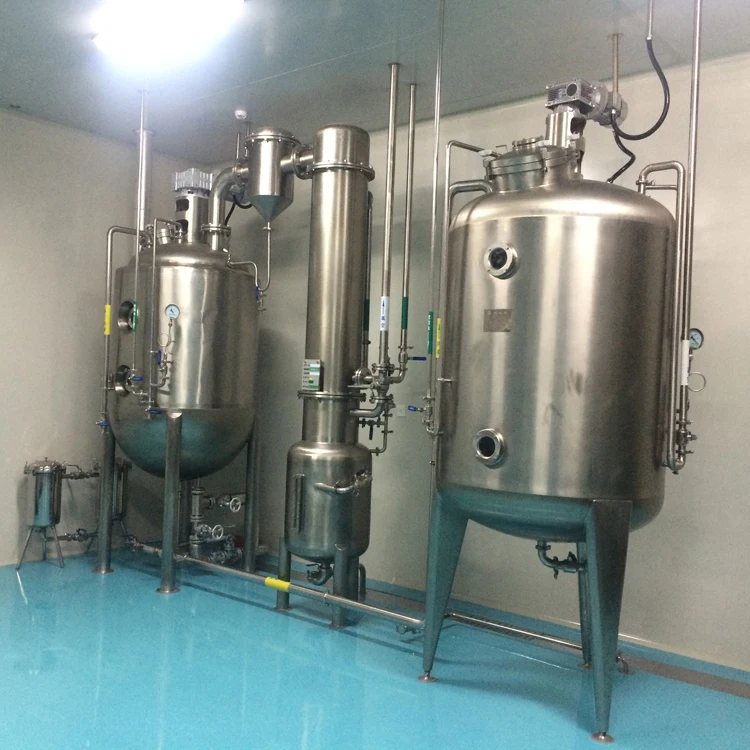

1) The device mainly includes concentration tank, condenser, vapor-liquid separator, cooler and liquid receiving barrel.
2) The concentration can is of clip sleeve structure; the condenser is of row-pipe type; the cooler is of coiled type. The device is suitable for the concentration of the material liquid in such industries as pharmacy, food and chemistry, etc. and as well serves for the recycle of alcohol and simple reflux extraction purposes.
3) The contact part of the equipment and materials are made with stainless steel, resistant to corrosion and in accordance with the GMP standard.
Technology parameter
Model and Specification | RY-ZN-50 | RY-ZN-100 | RY-ZN -200 | RY-ZN -300 | RY-ZN -500 | RY-ZN -700 | RY-ZN -1000 | |
Volume (L) | 50 | 100 | 200 | 300 | 500 | 700 | 1000 | |
Storage capacity (L) | 35 | 45 | 60 | 76 | 100 | 125 | 165 | |
Pressure inside jacket (Mpa) | 0.09 | |||||||
Vacuum degree (mmHg) | 600~700 | |||||||
Heating area (m2) | 0.25 | 0.59 | 0.8 | 1.1 | 1.45 | 1.8 | 2.2 | |
Condensing area (m2) | 1.2 | 1.7 | 2.4 | 3.0 | 3.3 | 3.6 | 4.1 | |
Cooling area (m2) | 0.29 | 0.35 | 0.45 | 0.6 | 0.7 | 0.85 | 1.05 | |
Overall size (mm) | Length | 1200 | 1350 | 1700 | 1700 | 2100 | 2400 | 2390 |
Width | 600 | 750 | 800 | 1000 | 1200 | 1300 | 1300 | |
Height | 2200 | 2200 | 2700 | 3400 | 3400 | 3400 | 3720 | |
