ps foam food container lunch box forming and cutting machine

Plastic Foam Food Container Vacuum Forming Machine with Robort Hand production line equipment and advantanges,is a set of hydraulic pneumatic servo drive for an automatic forming punching machine.Vacuum pump,PLC,

the main electrical components,made in Japan and Germany,ensure the reliability of the equipment operation,and can be used for hot forming process many kinds of plastic amterial,it can product PS

packageing products,materials used in food,medical supplies,eletrical compoents,tourism products,toys,textile,and so on.
The biggest advantage is forming cutting integration,reduce work link,produce the product can be stacked directly collect,this will greatly seve time reduce the intensity of work and freatly saves labor.



Features&details for China plastic food storage containers making machine

1. Integrated Design: forming, cutting, stacking will be done in one machine, labor-saving, more efficient.
2. Easy Operation: the whole production line can be easily operated by two workers.
3. Multi-funtion: capable of producing all kinds of packaging material for food, mecicine, electronic parts.



Disposable ps foam lunch box making machine production line

This production line includes 3 PARTS:
(1) PS foam sheet extrusion line: make PS foam sheet from raw material
(2) Automatic Vacuum Forming and Cutting Integrated Machine: make PS sheet to finished products, such as PS foam tray, PS foam box etc. (we can design mold according to customer requirements)
(3) PS Crushing and Recycling Machine: recycle waste products to granules, the can mix with new material and put into PS foam sheet extruder again.



Ps foam sheet extrusion machine

It adopts double-screw foam sheet extrusion technology. PS foam sheet is a kind of new-type packing material with the features of heat preservation, safety, sanitation and good plasticity.

Model	HR-PSP70/90	HR-PSP105/120	HR-PSP120/150	HR-PSP135/150	HR-PSP150/200
Screw Diameter	Φ70/90	Φ105/120	Φ120/150	Φ135/150	Φ150/200
Foam Rate	1.0-3.0	1.0-3.0	1.0-3.0	1.0-3.0	1.0-3.0
Width of Product (mm)	640-1080	640-1080	640-1080	640-1200	1000-1350
Thickness of Product (mm)	1.0-3.0	1.0-3.5	2.0-3.5	2.0-5.0	2.0-5.0
Output (kg/h)	60-90	100-180	180-250	250-320	400-600
Cutting Mode	Single Cutting		Double Cutting
Cooling Mode	Cooling by Wind and Water
Mounted Power(kw)	120	150	180	260	380
Overall Size(m)	22*4.0*2.8	24*4.1*2.8	26*4.2*3	28*4.2*3.2	30*5.2*3.2
Total Weight (T)	10	12	15	18	23

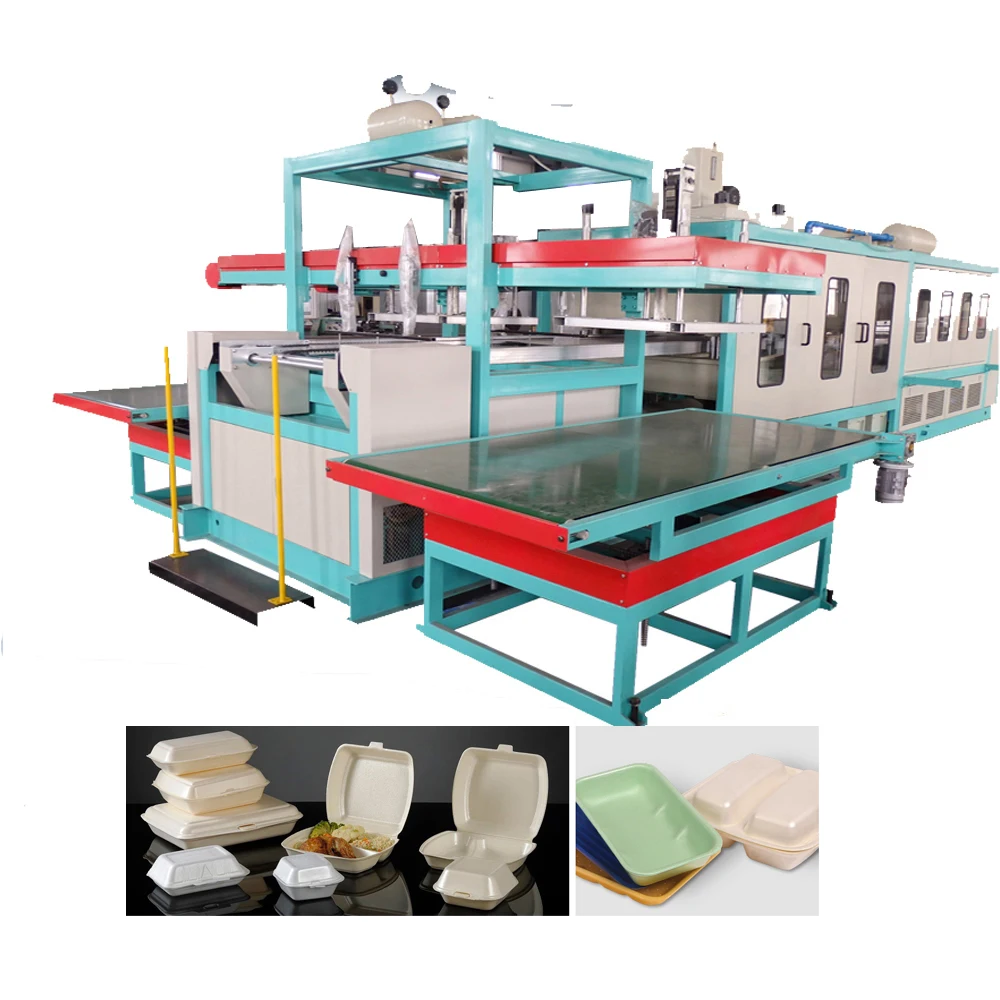

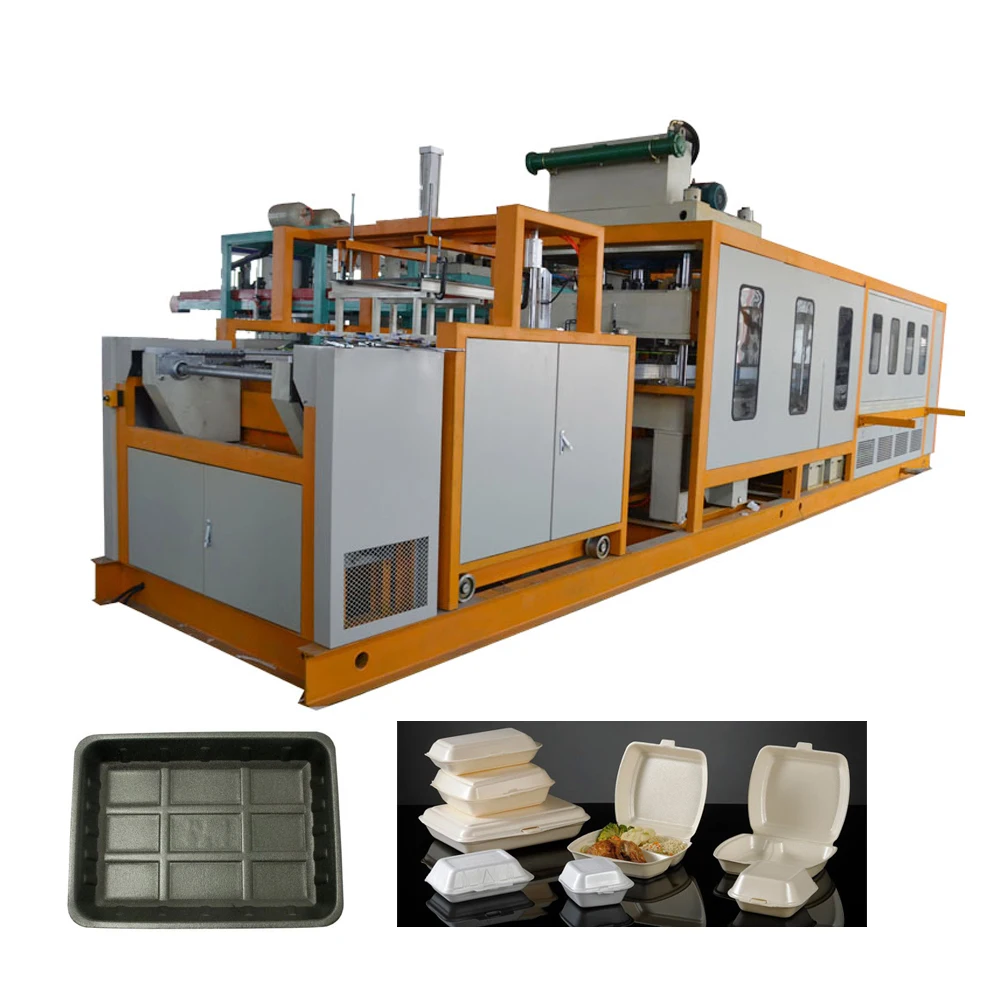

PS Foam sheet food box container machine technical data



Model	Unit	HR-FCA750	HR-FCA1100	HR-FCA1250	HR-FCA1400
Max. forming area	mm	750*1000	1000×1100	1000*1250	1000*1400
Max. forming depth	mm	80	80	80	80
Production efficiency	s/die	3~5	3~5	3~5	3~5
Forming pressure	T	12	15	18	20
Mounted power	kw	140	170	200	250
Total weight	T	14	16	18	20
Installation size	m	12*1.8*3.2	13×2×3.2	15*2.3*3.5	18*2.5*3.5



PS recycling&palletizing machine technical data

Model	HR-180+120/100
Screw diameter(mm)	Φ180+120/Φ100
Production efficiency (kg/h)	80-130
Crusher motor power (kw)	15
Main motor power (kw)	29.5
Heating power (kw)	35
Pressing material motor power(kw)	1.5
Granulator (kw)	2.2
Power supply	Three-phase 380v/50HZ
Dimension size(mm)	13000*3400*3000
Total weight (mt)	3
