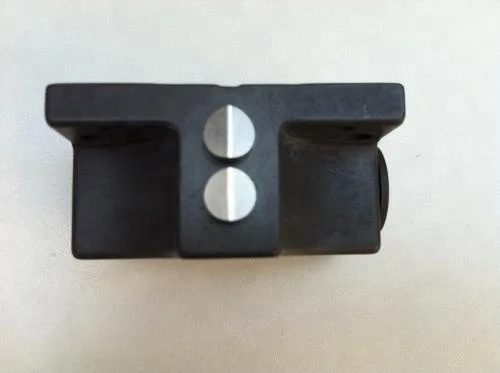

EUCHNER Limit Switches SN02D16-502-M pn
EUCHNER Limit Switches SN02D16-502-M pn
EUCHNER Limit Switches SN02D16-502-M pn
EUCHNER Limit Switches SN02D16-502-M pn

EUCHNER Limit Switches SN02D16-502-M pn


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 0.41 $* 0.31 $*
Aug-19-2025 0.3 $* 0.10 $*
Jul-19-2025 0.98 $* 0.50 $*
Jun-19-2025 0.93 $* 0.33 $*
May-19-2025 0.74 $* 0.73 $*
Apr-19-2025 0.80 $* 0.17 $*
Mar-19-2025 0.90 $* 0.75 $*
Feb-19-2025 0.19 $* 0.85 $*
Jan-19-2025 0.2 $* 0.42 $*

Характеристики



Product Description








EUCHNER Limit Switches SN02D16-502-M  pn 082306












Feature:



































Mechanical values and environment





















































































DesignUpright
Housing materialDie-cast aluminum, anodized
Weight
Net0,45 kg
Ambient temperature-5 ... 80 °C
Degree of protectionIP67
Mechanical lifemin.30 x 106
Contact materialSilver alloy, gold flashed
Switching principleSnap-action switching contact
Plunger spacing16 mm
Installation positionAny
Number of switching elements2
Number of NC contacts2
Number of NO contacts2
Connection
2 xM20 x 1.5
Approach speed
max.0,01 ... 40 m/min
Actuating elementChisel plunger
Actuating forcemin.20 N



Electrical connection ratings





















































rated thermal current Ith8 A
Utilization category according to EN 60947-5-1
AC-156A 230V
DC-136A 24V
AC-128 A, 250 V
Short circuit protection according to IEC 60269-1
(Fuse)8A gG
Rated insulation voltage Ui250 V
Rated impulse withstand voltage Uimp2,5 kV
Switching current
Min. at DC 12Vmin.10 mA
Connection cross-section0,34 ... 1,5 mm²



Approach speed
max.0,01 ... 50 m/min
Actuating element
Plain bearing metalRoller plunger
Actuating force15 ... 20 N



Electrical connection ratings

















































rated thermal current Ith6 A
Utilization category according to EN 60947-5-1
AC-152A 230V
DC-132A 24V
Short circuit protection according to IEC 60269-1
(Fuse)6A gG
Rated insulation voltage Ui250 V
Rated impulse withstand voltage Uimp2,5 kV
Switching current
Min. at DC 24V10 mA
Connection cross-section0,14 ... 1 mm²

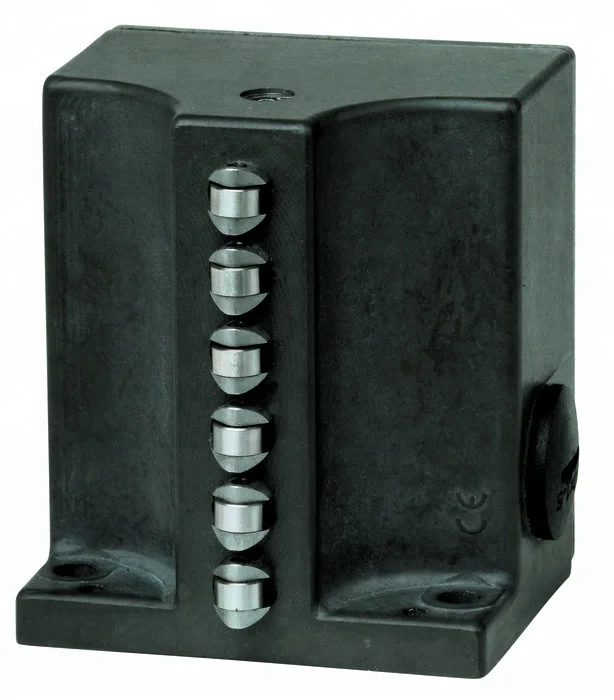

The same series products:
