QT4-16 станок для изготовления строительных блоков машина по производству
- Категория: Установка по производству строительного материала >>>
- Поставщик: Qingdao,HF,Machinery,Co.,Ltd.Qingdao,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 2269482.27 $* | 2382956.25 $* |
| Aug-16-2025 | 2250411.49 $* | 2362932.68 $* |
| Jul-16-2025 | 1888057.62 $* | 1982460.87 $* |
| Jun-16-2025 | 2212268.86 $* | 2322881.54 $* |
| May-16-2025 | 1926199.23 $* | 2022509.86 $* |
| Apr-16-2025 | 2174126.13 $* | 2282832.14 $* |
| Mar-16-2025 | 2155055.97 $* | 2262808.57 $* |
| Feb-16-2025 | 2135983.64 $* | 2242782.25 $* |
| Jan-16-2025 | 2116912.52 $* | 2222758.94 $* |
Характеристики
Production Description

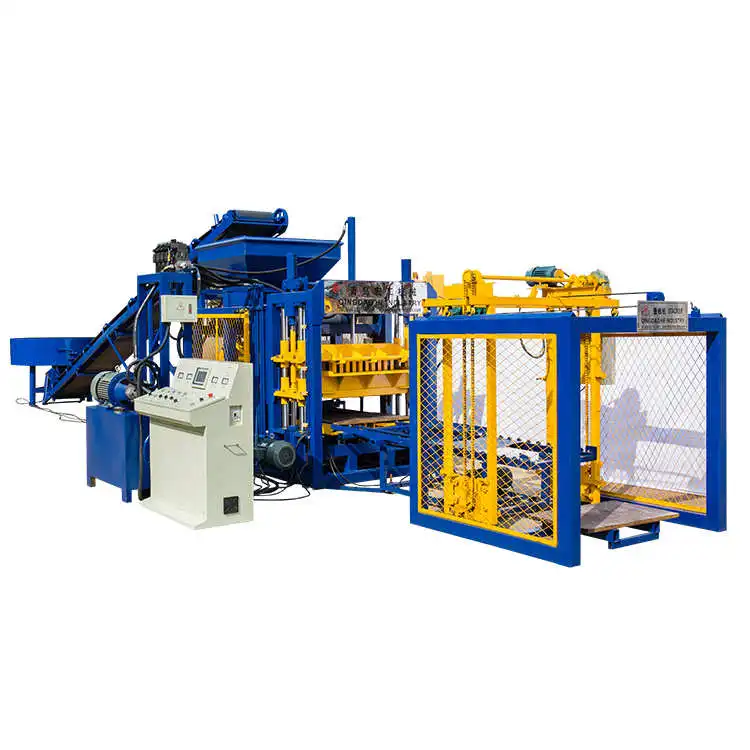

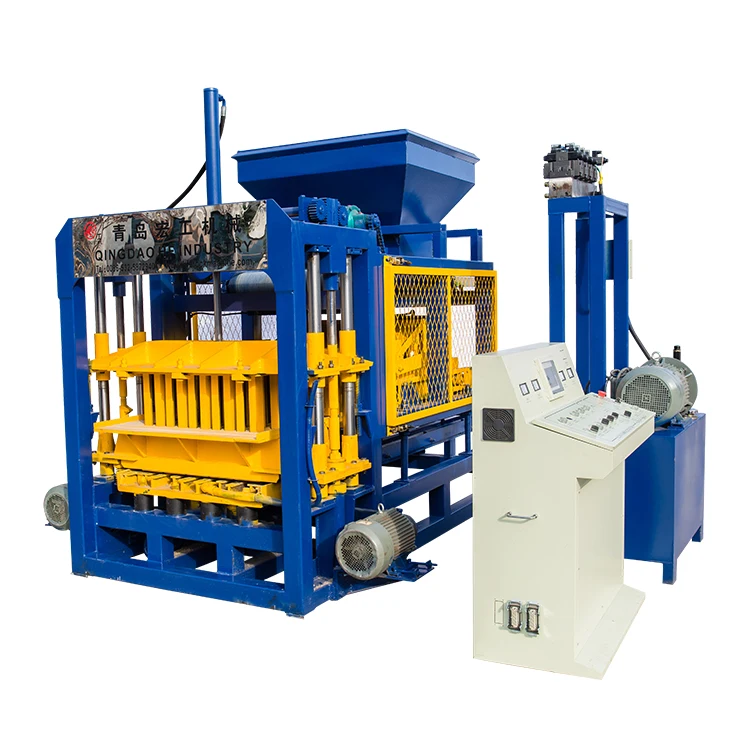

High quality concrete brick machine QT4-16 concrete paving block machine one kind of concrete block making machine in our company. It is mainly used in building , bridges , roads . Can make solid block , hollow block by changing the molds . Very popular in the country which need for construction .The machine's price was also very suitable in this area .
1) Strong structure ,easy in installation and maintain.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization
5) Apply Famous brand PLC and motors to ensure machine durability
1) Strong structure ,easy in installation and maintain.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization
5) Apply Famous brand PLC and motors to ensure machine durability
Main Technical Parameters | ||
Model | QT4-16 concrete block making machine | |
Qty/mould | 4pcs/mould (hollow block 400*200*200mm) | |
Pallet size | 900*550mm | |
Molding cycle | 16-20s | |
Rated pressure | 16-20MPa | |
Main vibration | Platform vibration | |
Vibration frequency | 4600-5200 r/m | |
Power | 26.45Kw | |
Dimension | 7700x1900x2600mm | |
Host machine weight | 4000kgs | |
Factory Area | 1500m2 | |
Raw Materials: | crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. | |
Applied Products: | concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. | |
Applied Fields: | widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc. | |
Block Capacity
Related Products

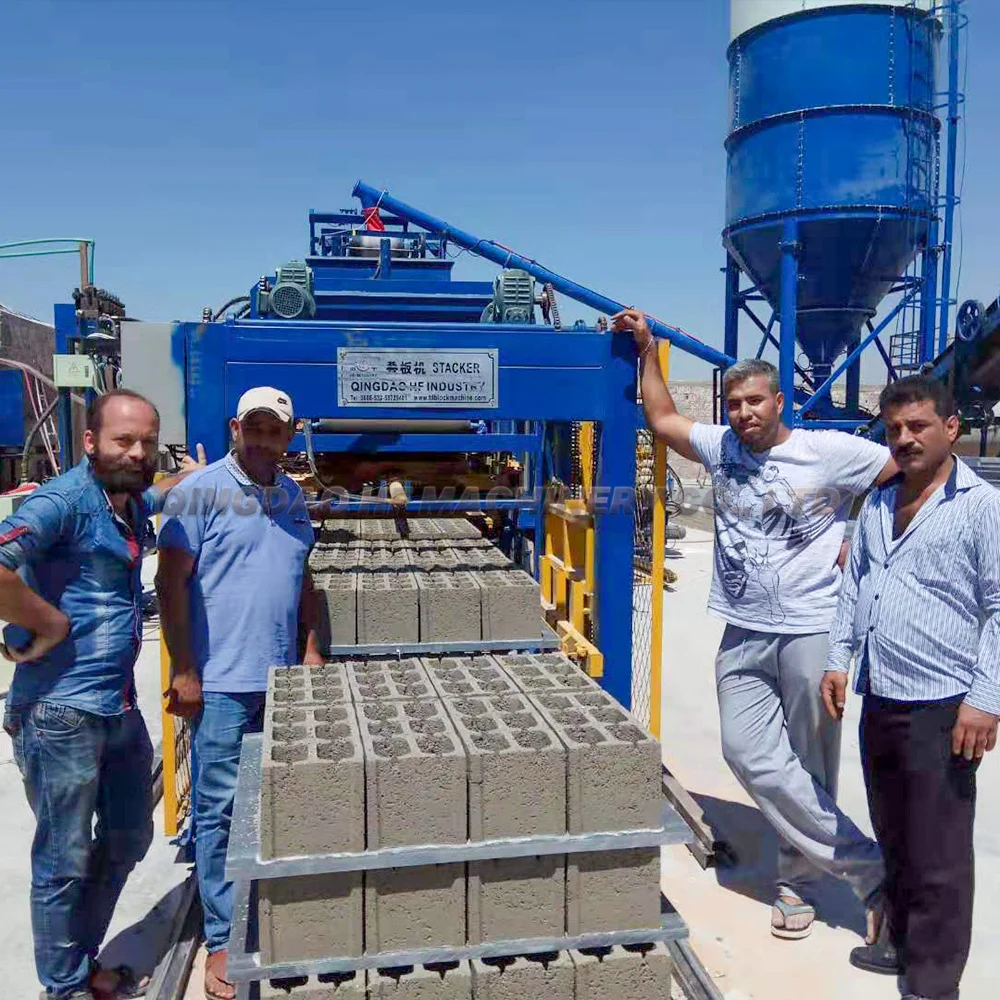

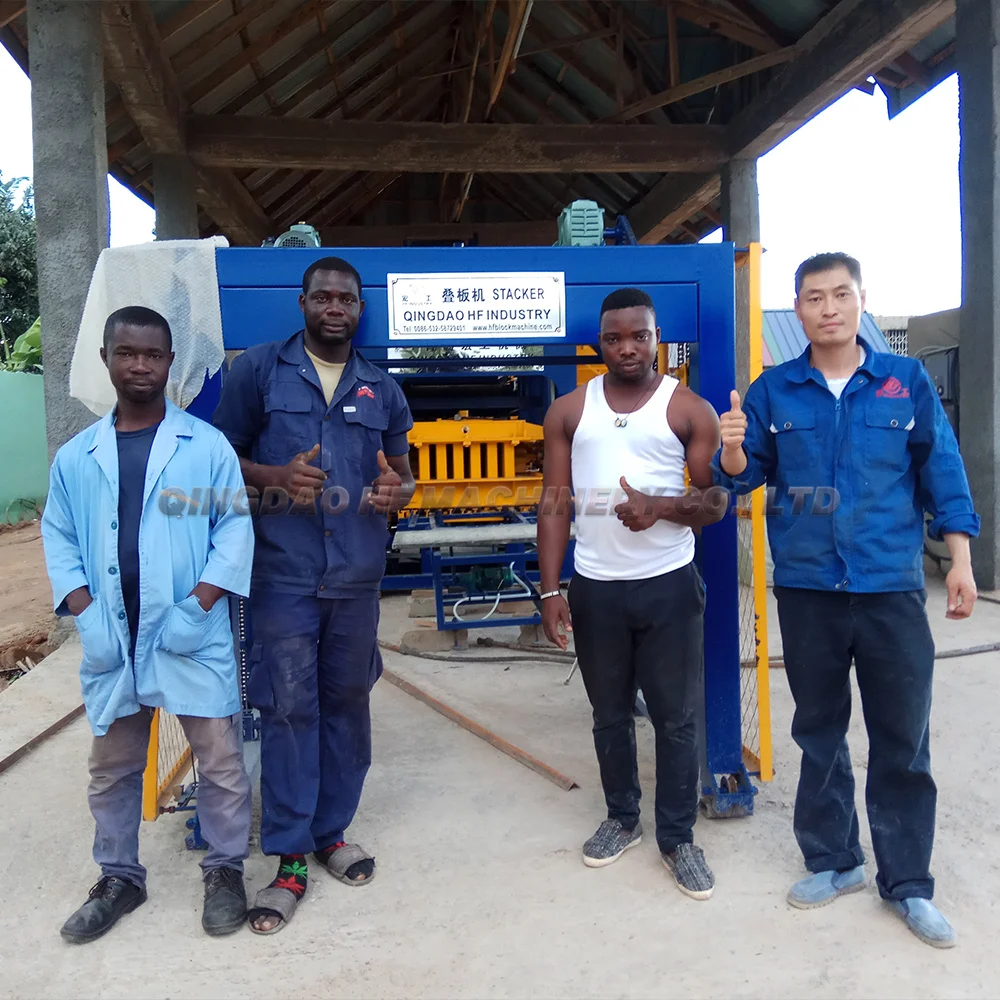

Our Customer

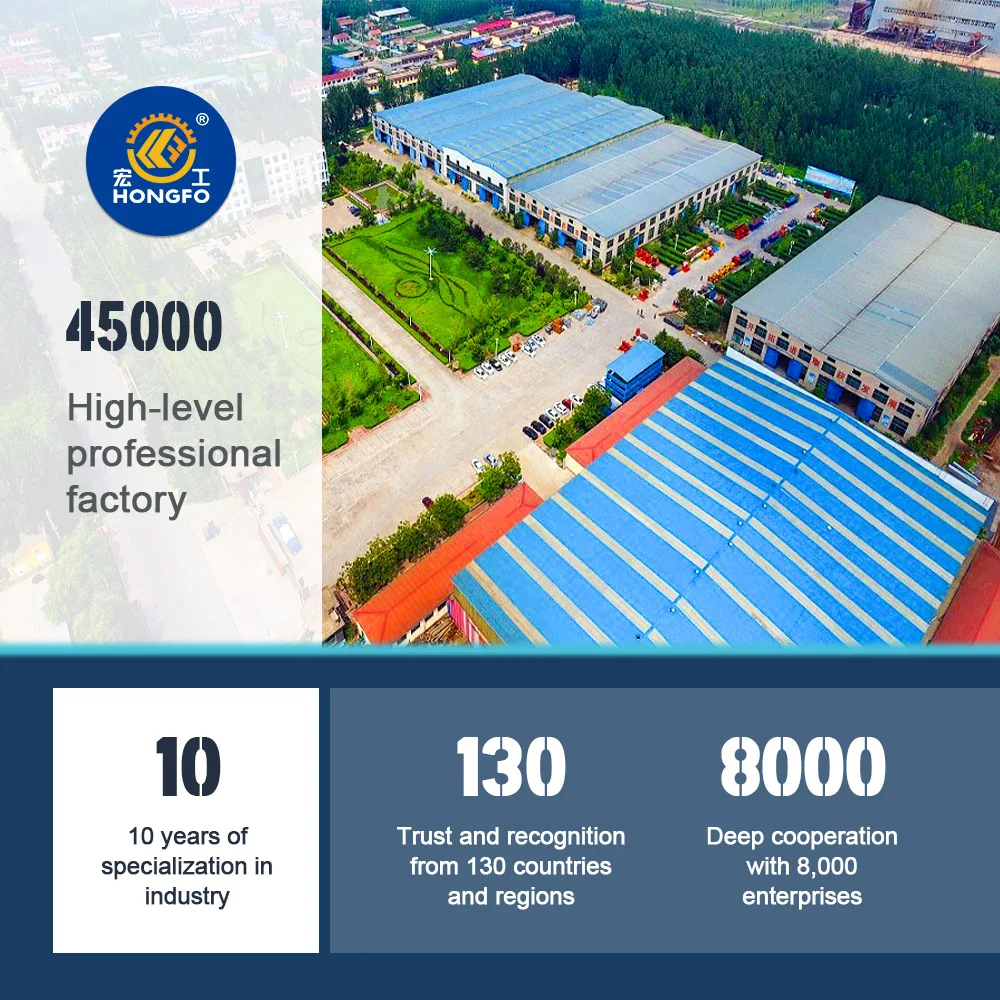

Company Profile
QINGDAO HF MACHINERY CO.,LTD is the professional manufacturer and exporter for block machine technology. Our company is located in Qingdao city Shandong Province and our factory has three manufacturing bases that cover an area of 500 acres and a plant construction area of 100,000 square meters. We are always developing advanced products to international standards to meet consumer demands.We had exported to more than 116 countries from the Philippines, Russia, Egypt, South Africa, Ghana, Oman, India, Armenia, Israel, Chile etc. and have an exceptional high reputation from our customers. We cooperate with SIEMENS for Motors and PLC intelligent control system, Schneider electrical equipment and YUKEN for the hydraulic operations to insure our machines have the highest quality standrads with a stable working status.We have more than 50 technician to ensure superior installations and after sale service to assist customer to install the machine and perfrom the proper training abroad.
