Summary

Application

HGS series dryer is suitable for drying large products which need long drying time and have a high requirement on appearance, such as fungus, mushroom, tremella, hericium erinaceus and other fungi; ginger, dried persimmon, dried jujube and other agricultural products; mango, litchi, longan, plum, cherry tomato and other fresh fruit; star anise, Chinese angelica, ginseng, maca, cordyceps sinensis, pilose antler and other Chinese medicines.

Working principle

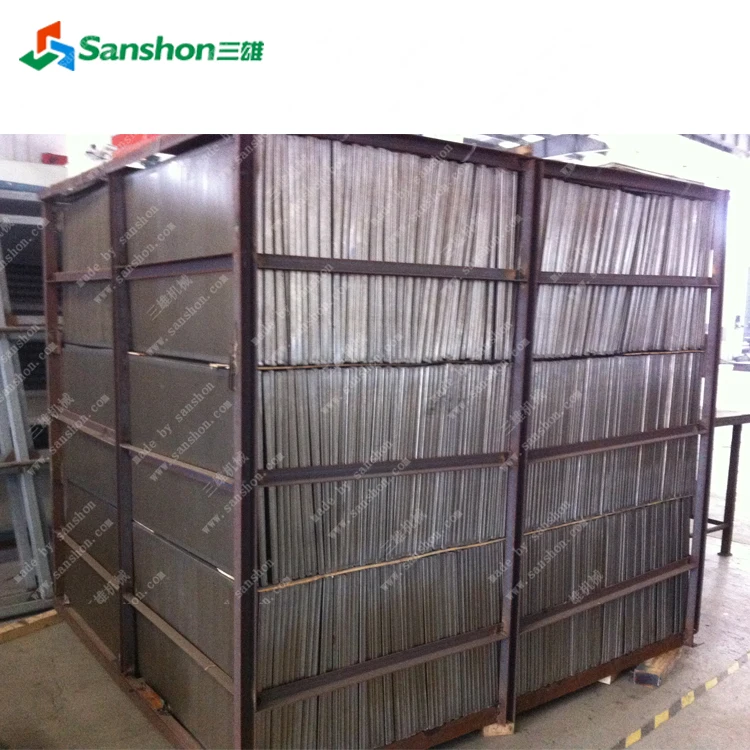

After the air is exchanged by the heat exchanger, the air in drying chamber is heated through heat radiation and heat convection. Under the function of fan, the hot air is diffused in the whole drying chamber and hot air and materials carry out sufficient heat exchange. Under the function of humidity removing fan, vapor is discharged outside the drying chamber so as to achieve the purpose of drying.

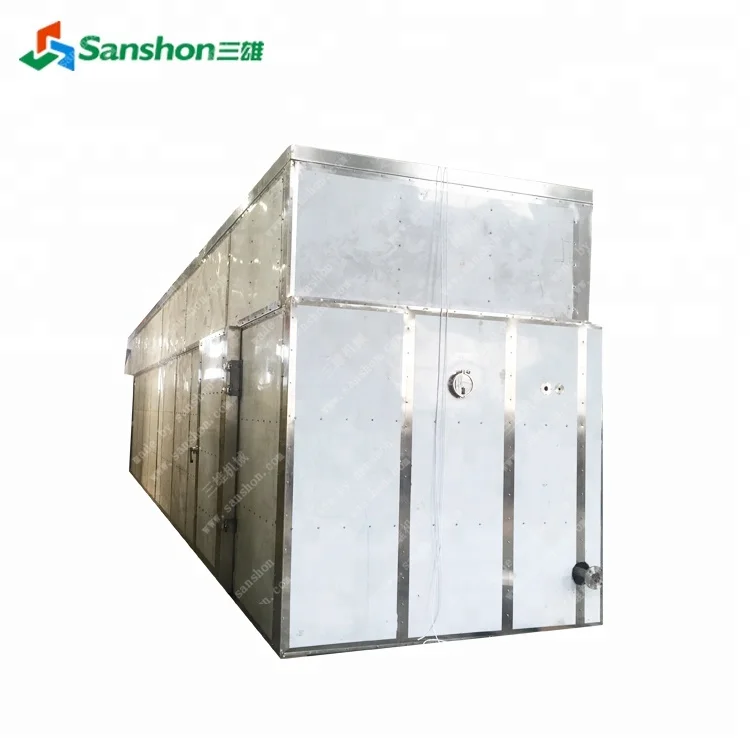

Specification of HGS tunnel dryer

Main Features

1) High utilization of heat energy;

2) Easy operation;

3) Strong practicability;

4) High degree of automation of temperature;

5) Humidity control.

Machine Parts

Name: Trays

Material: Stainless steel 304

Function: Loading material,put the material on the tray,then put trays into trolleys and push into tunnel room dryer.

Machine Parts

Name: Trolley

Material: Stainless steel 304

Function:Loading material and trays and push into dryer for hot air drying process

Machine Parts

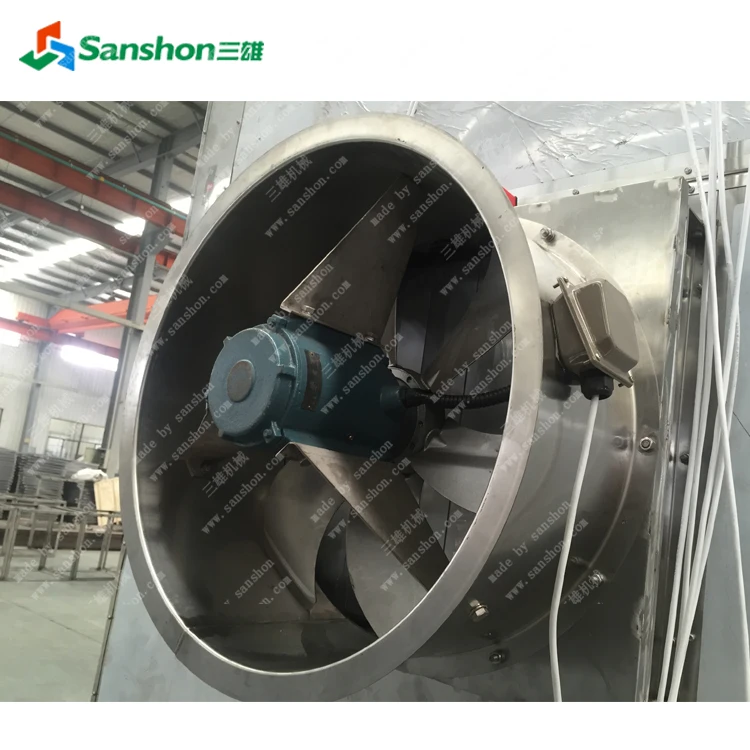

Name: Dehumidification Fan
Material: Stainless steel 304 shell
Function: When air humidity in the dryer room reaches the data set by customer,this fan switch on automatically and start to exhaust room air.It helps keeping good drying effect in the dryer room.

Machine Parts

Name: Electric Control Panel & Fresh Air Damper
Material: Stainless steel 304
Function: Electric control panle can show drying temperature,drying humidity etc datas.
Fresh air damper can inlet new air while the room dryer start to exhaust humidity air.It helps keeping good drying effect.
