Автоматический склеивание ATC фрезерный станок с ЧПУ для
- Категория: Другое деревообрабатывающее оборудование >>>
- Поставщик: Jinan,Forsun,CNC,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 4522.3 $* | 4748.56 $* |
| Aug-16-2025 | 4484.94 $* | 4708.10 $* |
| Jul-16-2025 | 3762.36 $* | 3950.21 $* |
| Jun-16-2025 | 4408.23 $* | 4628.13 $* |
| May-16-2025 | 3838.81 $* | 4030.81 $* |
| Apr-16-2025 | 4332.66 $* | 4549.33 $* |
| Mar-16-2025 | 4294.30 $* | 4509.90 $* |
| Feb-16-2025 | 4256.26 $* | 4469.88 $* |
| Jan-16-2025 | 4218.78 $* | 4429.20 $* |
Характеристики

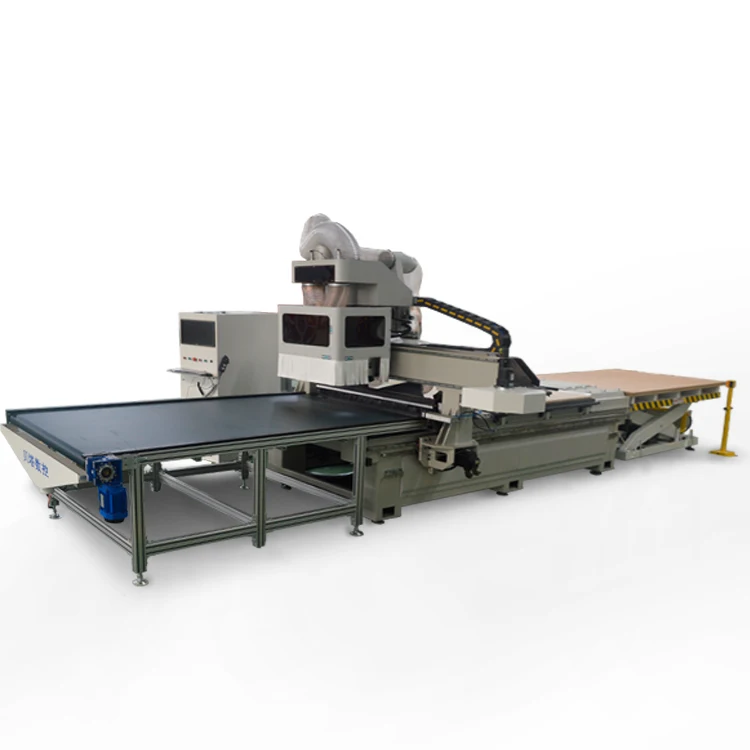

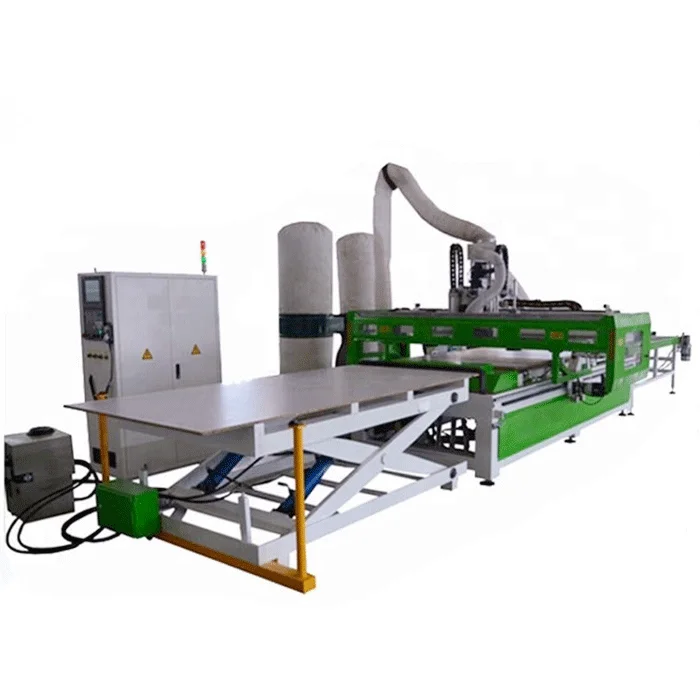

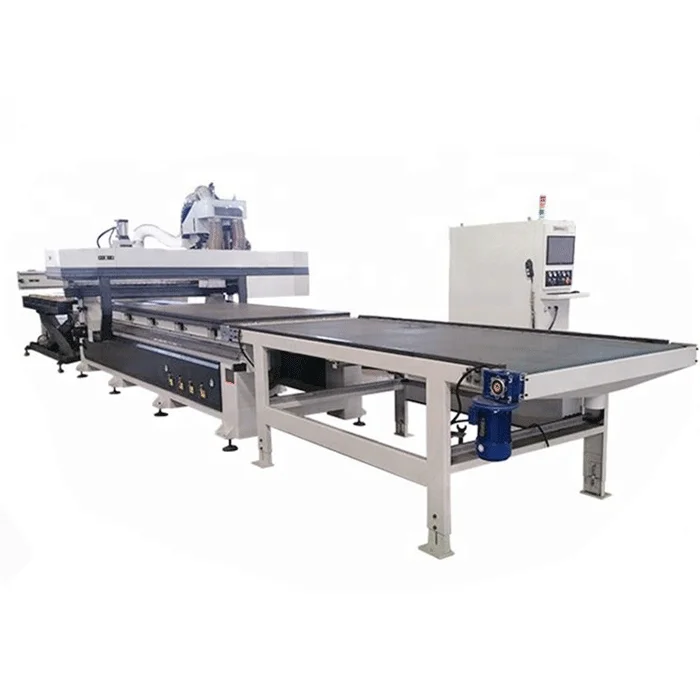

Automatic Nesting ATC CNC Router Milling Cutting Machine
Feature
What's the feature of our Nesting CNC Wood Router Machine?
#1300*2500*200mm effective working area
#Taiwan SYNTEC control system
#Japan YASKAWA servo motor and drivers
#9.0KW ATC air cooling Spindle
#Auto tool calibration
#11KW DELTA Inverter
#French Schneider electrical components;
#Vacuum and T-slot working table
#Auto pusher
#Strong body
#Auto adsorption system
Technical Data:
| No. | Items | Description |
| 1 | Travailing size | 1300*2500*200mm |
| 2 | Working size | 1300*2500*200mm |
| 3 | Loading and Unloading Speed | 15 m/min |
| 4 | Transmission | X/Y rack and pinion drive, Z ball screw drive |
| 5 | Table structure | 2 layer vacuum table |
| 6 | Spindle power | 9.0 KW |
| 7 | Spindle speed | 24000r/min |
| 8 | Travailing speed | 80m/min |
| 9 | Working speed | 25m/min |
| 10 | Tool magazine | Carousel |
| 11 | Tool slots | 12 PCS |
| 12 | Driving system | YASKAWA |
| 13 | Voltage | AC380/3PH/50HZ |
| 14 | Controller | Syntec 6 MB |
Advantages
What's the advantage of our Nesting CNC Wood Router Machine?

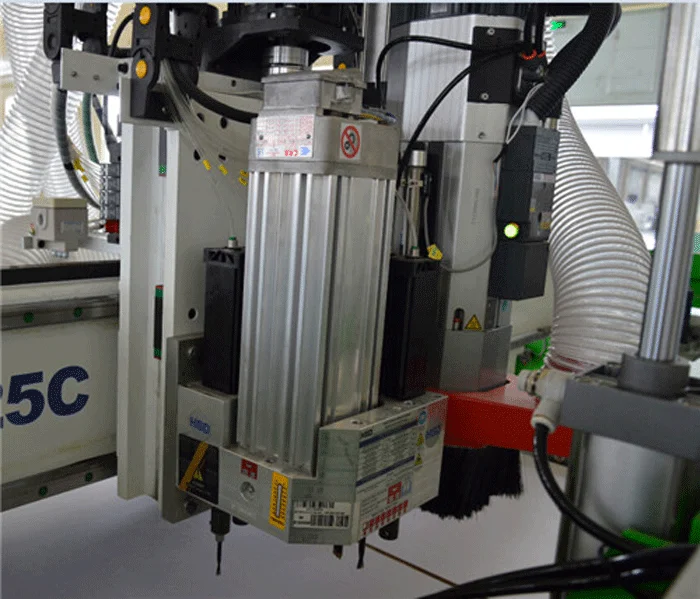

Spindle | Italy HSD Air Cooling Spindle |
Motor | Japan YASKAWA servo system. high working efficiency and stable running promised |
Control system | Taiwan SYNTEC control system 6MB model Thanks to its panel based design philosophy, and IP65’s protection level, the Taiwan SYNTEC control system 6MB model series is ideal for harsh environments. |

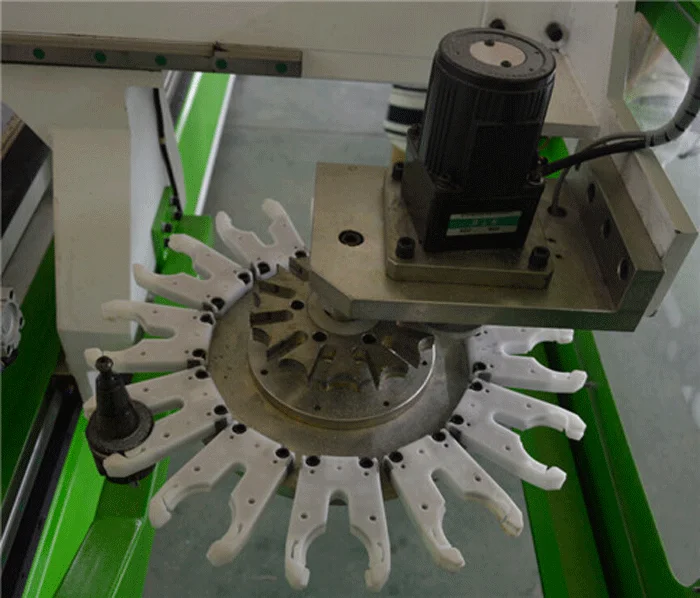

Tool magazine | Carousel 12 PCS Tool Magazine The use of an 12 Tool Rotary Carousel speeds up tool changes assuring faster cycle times increasing production throughput. |
Auto pusher | Combine the conveyor off loading table with the Automatic indexing table and material loader you have a full automatic material handling solution for your factory. |
Strong Body | precision machined and stress relieved so that the foundation remains true and steady over the operational life of the machine. |
Benefit
What's the benefit of our Nesting CNC Wood Router Machine?
1) Mould: wood,wax, wood, gypsum,foams,wax
2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and
windows.
3) The wood products: voice box, game cabinets, computer tables, table,instruments.
4) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling
tracks, ABS
5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum Working samples of wood carving cnc router:
Packaging & Shipping
Standard Export Wooden Cases
Our Services
What's our service for our Nesting CNC Router Machine?
Guarantee:
1.5 years for the whole machine. Within 18 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 18 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
Technical support:
1. Technical support by phone, email, WhatsApp, Wechat or Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by
Why Choose us???:
 |
|
Customer Visit
Customer visiting our factory
FAQ
1) This is the first time I use this kind of machine, is it easy operate?
There are guide video that show how to use machine and english instruction book send to you with machine.
If there is still have any question, we will provide free professinal guide for you until you could use machine well.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
