Контроллер двигателя постоянного тока Plutools AGV щеточный драйвер RoboteQ двухканальный 2x20A 60 в

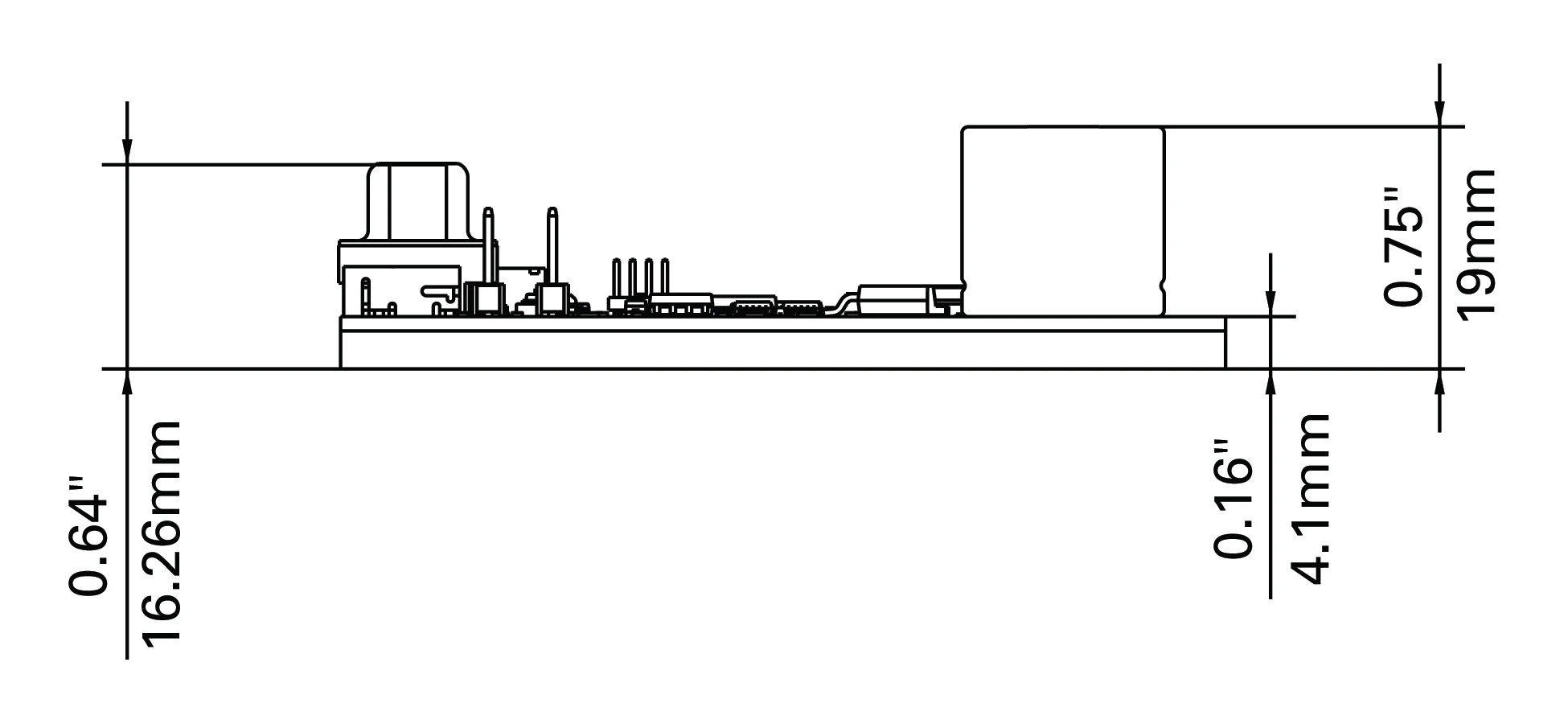

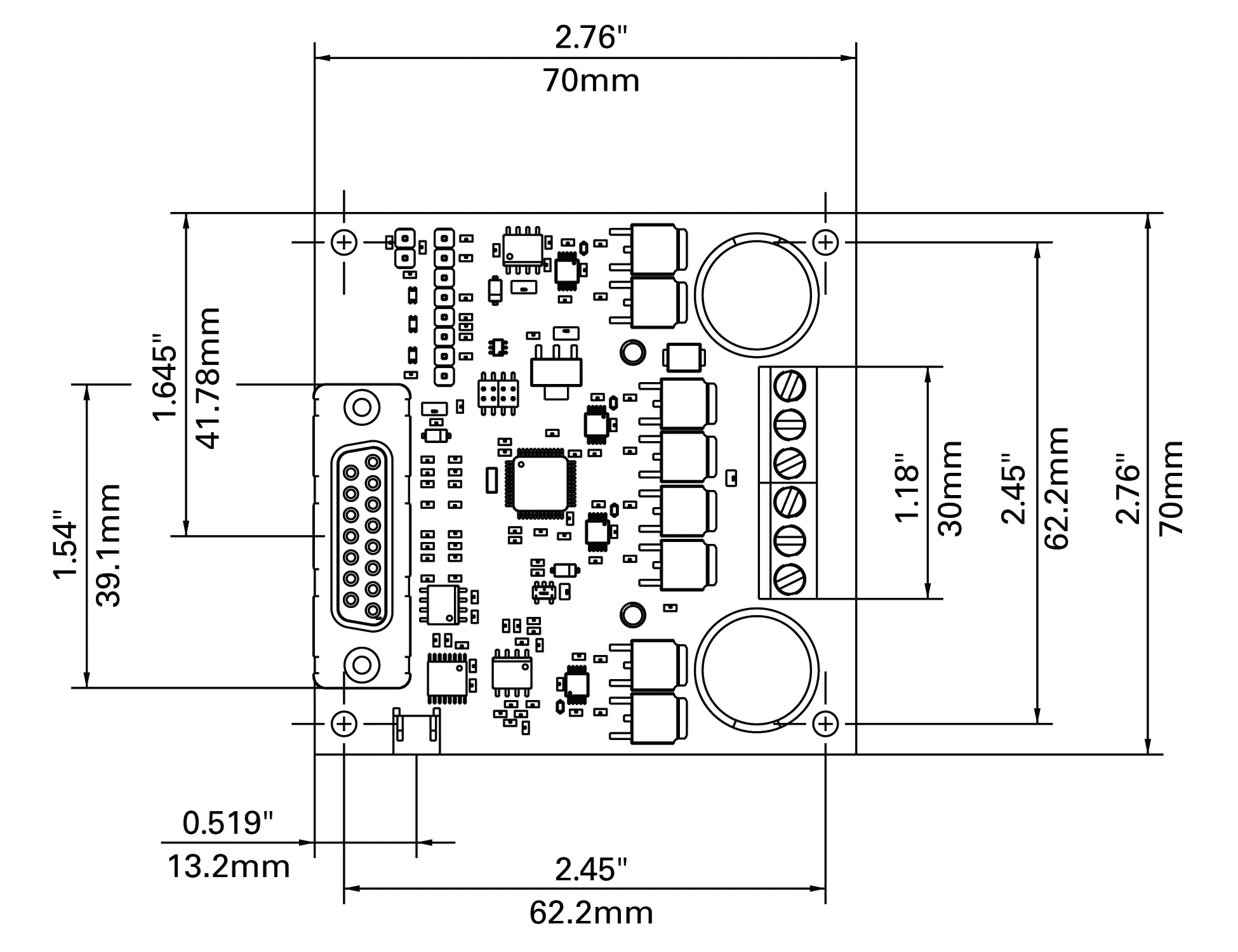

Fitting a very compact 70x70mm footprint, Roboteq's SDC2130 controller is designed to convert commands received from an RC radio, Analog Joystick, wireless modem, PC (via RS232 or USB) or microcomputer into high voltage and high current output for driving two DC motors at up to 30V and 20A per channel. Using CAN bus, up to 127 controllers can be networked at up to 1Mbit/s on a single twisted pair.

The controller features a high-performance 32-bit microcomputer and quadrature encoder inputs to perform advanced motion control algorithms in Open Loop or Close Loop (Speed or Position) modes. The SDC2130 features several Analog, Pulse and Digital I/Os which can be remapped as command or feedback inputs, limit switches, or many other functions.

For mobile robot applications, the controller's two motor channels can either be operated independently or mixed to set the direction and rotation of a vehicle by coordinating the motion of each motor.

Numerous safety features are incorporated into the controller to ensure reliable and safe operation. The controller's operation can be extensively automated and customized using Basic Language scripts. The controller can be reprogrammed in the field with the latest features by downloading new operating software from Roboteq.

The SDC2130 can be ordered in production quantities only. If less than OEM quantity is desired, order SDC2160 which is fully equivalent, except for voltage specification.

Industrial Automation
Tracking, Pan & Tilt systems
Small to mid-size Terrestrial and Underwater Robotic Vehicles
Automatic Guided Vehicles
Automated machines
Telepresence Systems
Animatronics

Products packaged in EPE foam, then in carton boxes, then in wooden pallet or as per customers' request.

A): We recommend DHL Express for samples and small quantities. It is very fast, safe and relatively cheap.
B) We arrange shipment by sea and by air and go with FOB/CIF/CFR terms for large quantities.
C)Door to door service available, products could be loaded & delivered directly from our factory to any corner of the world with very competitive rates either by air, by train or by sea.

    Founded in 2005 and locates in Shanghai, Plutools Automation Corporation Limited is a leading technology company dedicated to design, manufacture, market, and support reliable and affordable motion control products and driving systems based on the latest control technologies. Plutools offers a full complement of products including AC/DC Motors, Step/Servo Motors, Motor Drive System, Horizontal/Vertical Motors In Wheel, Differential Drive Steering System, Inverters and Braking Units.

    Plutools has one of the strongest R & D teams in the automation industry. That team consists of 15 R & D engineers and all of them are highly educated with most of them carrying PhD & Master degrees in controls, electrical & electronics engineering, mechanical engineering, mechatronics etc. Their strong background and experience allow Plutools capable of designing superior quality products based the latest technology in the most efficient way.
    Plutools operates manufacturing facilities which are superiorly equipped, professionally staffed, and ISO-9001 certified. That allows Plutools to provide highly reliable quality products to OEM clients in the shortest time.

    Plutools believes the key to be a successful motion product suppliers is the commitment to fully understanding our customer's applications and working closely with our OEM clients. In many cases, Plutools' engineers can participate in the whole process of client product development, including initial application evaluation.
