CP cts для панельного измерителя 1-3000 А структура тороидальной катушки и использование тока трансформатор
- Категория: Transformers >>>
- Поставщик: Yueqing,Heyi,Electrical,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.27 $* | 0.49 $* |
| Aug-15-2025 | 0.62 $* | 0.71 $* |
| Jul-15-2025 | 0.21 $* | 0.20 $* |
| Jun-15-2025 | 0.10 $* | 0.48 $* |
| May-15-2025 | 0.7 $* | 0.57 $* |
| Apr-15-2025 | 0.18 $* | 0.36 $* |
| Mar-15-2025 | 0.71 $* | 0.87 $* |
| Feb-15-2025 | 0.21 $* | 0.96 $* |
| Jan-15-2025 | 0.89 $* | 0.64 $* |
Характеристики

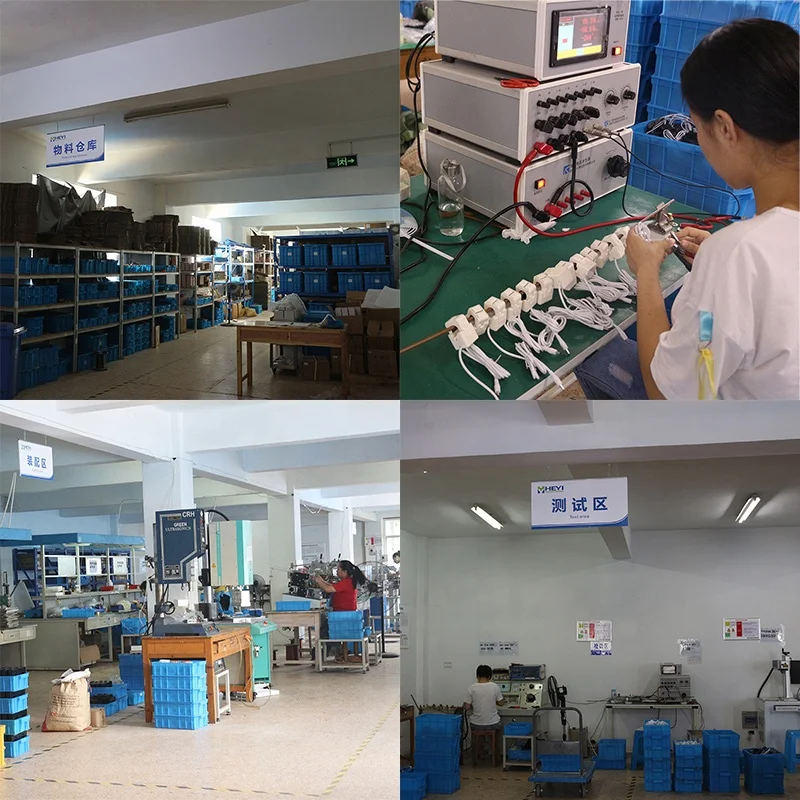

HEYI ELECTRICAL CO., LTD is a manufacturer not a middle man, morever HEYI own one strong R&D and QC
team continues to innovate new solutions for customers

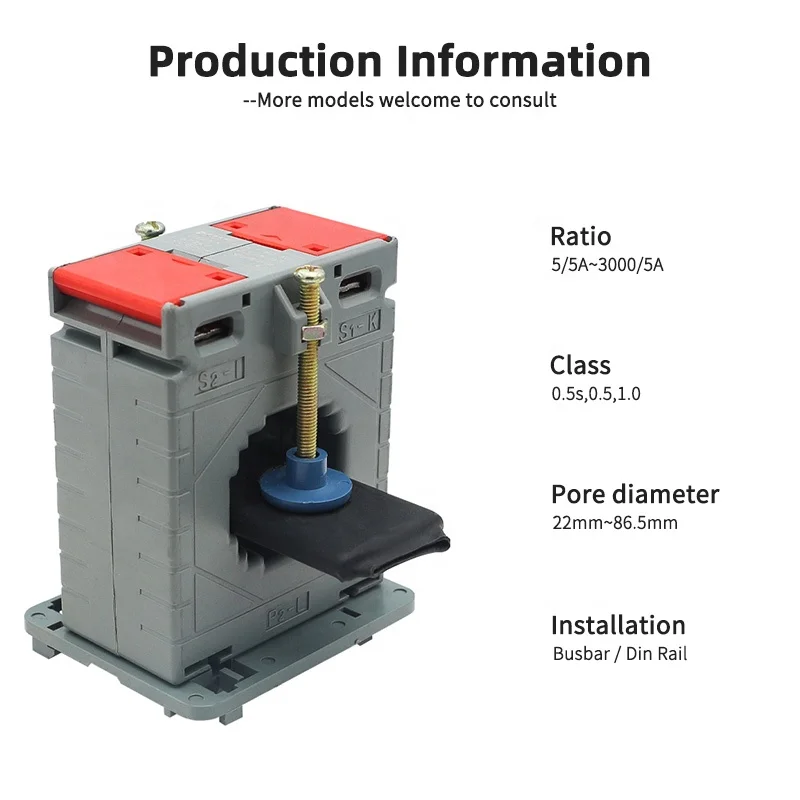

Product Description
CP discription

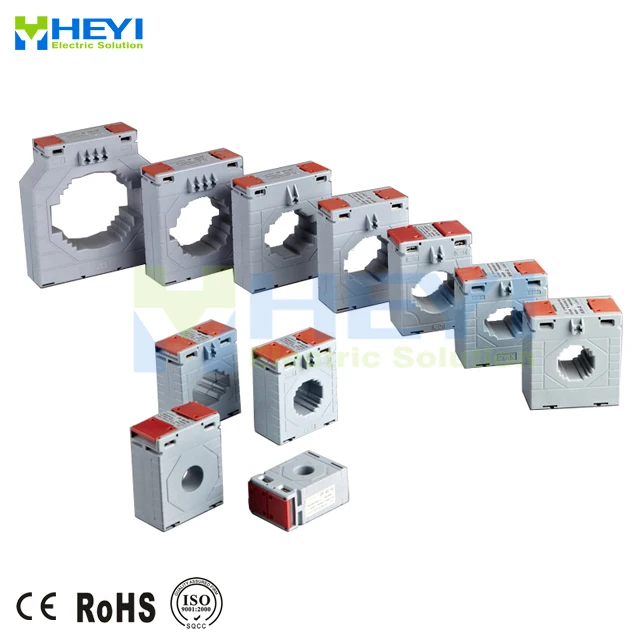

CP range of current transformers are compact-smaller than other models with the current ratio of the transformer
is small. Clamshell-style terminal cover is well protected by the second terminal. With related accessories you can
use Din rail mounting a current from 5A to 3000A.
Features
1) Three built in fixing methods: Panel/Din Rail/Busbar

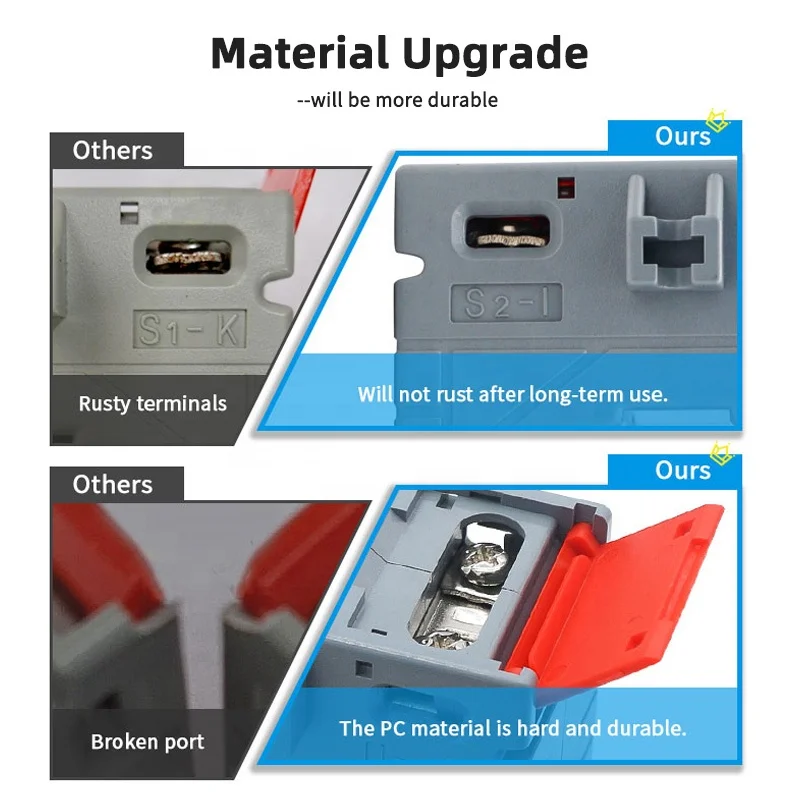

2) Built in hinged terminal cover
3) Compact design
4) Primary current from 5A to 3000A
Technique Indes
| Electrical Parameter | Mechanical Parameter | ||
| Frequency | 50/60Hz | Case | PC/UL94-V0 |
| Rated Input | 5A-3000A | Bobbin | PBT |
| Measuring range | 5%ln-120%ln | Core | Silicon steel |
| Rated Output | 1A, 5A | Construction | Screw |
| Rated Voltage | 0.72KV(AC) | Operating Temp | -25℃ to +75℃ |
| Dielectric strength | 3.0KV/1mA/1min | Operating Humidity | ≤85% |
| Insulation Resistance | DC500V/100MΩmin | Output Connection | Terminal |
Model Confirm
| Model | Primary / Secondary | Busbar Hole Dimensions(mm) | Rated Burden (VA) | Accuracy Class | Rated Voltage |
| CP-62/B | 5/5A~150/5A | busbar | 1.5~2.5 | 0.5 /1.0 | 0.72KV(AC) |
| CP-45/14 | 5/5A~60/5A | Φ=14mm | 1~2.5 | 0.5/1.0 | 0.72KV(AC) |
| CP-62/20 | 30/5A~200/5A | Φ=20mm | 1.5~5 | 0.5 /1.0 | 0.72KV(AC) |
| CP-62/30 | 30/5A~200/5A | Φ=30mm | 1.5~5 | 0.5 /1.0 | 0.72KV(AC) |
| CP-62/40 | 60/5A~300/5A | Φ=40mm | 2.5~5 | 0.5 /1.0 | 0.72KV(AC) |
| CP-74/50 | 300/5A~600/5A | Φ=50mm | 2.5~5 | 0.5/1.0 | 0.72KV(AC) |
| CP-80/30 | 30/5A~200/5A | Φ=30mm | 2.5~5 | 0.5 /1.0 | 0.72KV(AC) |
| CP-80/40 | 100/5A~500/5A | Φ=40mm | 2.5~10 | 0.5/1.0 | 0.72KV(AC) |
| CP-86/60 | 250/5A~1000/5A | Φ=60mm | 3.75~15 | 0.5/1.0 | 0.72KV(AC) |
| CP-100/60 | 400/5A~1600/5A | Φ=60mm | 3.75~20 | 0.5/1.0 | 0.72KV(AC) |
| CP-104/80 | 600/5A~2000/5A | Φ=80mm | 10~20 | 0.5/1.0 | 0.72KV(AC) |
| CP-140/100 | 800/5A~3000/5A | Φ=100mm | 15~25 | 0.5/1.0 | 0.72KV(AC) |
Note: The Current Ratio above are common type, that's ok to customise the ration according to
customers' requirement. HEYI ELE. Co.,LTD could provide professional OEM service :)
CP size
Accuracy Class Characteristic
Applications
1) Current measurement, monitoring and protection for electrical wiring and equipment.
2) Current and power measurement for electric motors, lighting, air compressor, heating
and ventilation system, air-condition equipment and automation – control system.
3) Current, power and energy monitoring device.
4) Relay protection device.

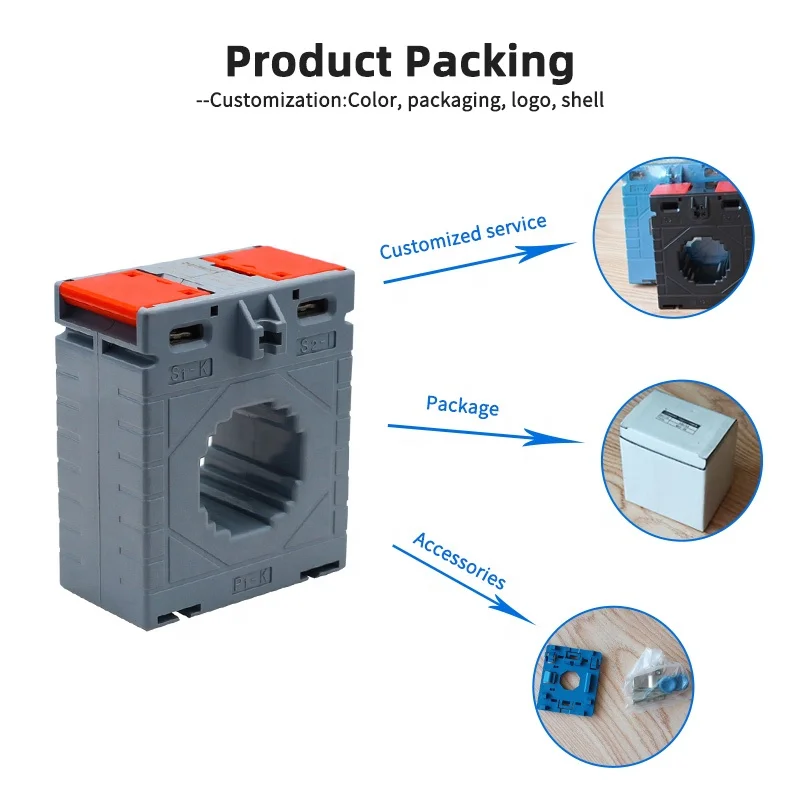

Packaging & Shipping
Delivery (Global courier, Ocean transpor, Air transport)
