Характеристики



Introduction
Beijing Daelim is a professional manufacturer of transformers. It can produce Single phase transformer.Three-phase transformer, Pad mounted transformers, Dry transformer,Distribution transformer and High voltage transformer of 69KV and above. It can meet IEEE/ANSI/DOE/CSA and IEC standards. Moreover, Daelim has nearly 20 years of transformer export experienc., DAELIM transformer have at least two-year warranty, moreover Daelim have very good after-sales installation service team abroad, so if you have transformer needs, you can contact us.


Single Phase Transformer in Canada
Single Phase Transformer in Honduras


Single Phase Transformer in Philippines
Single Phase Transformer in Venezuela


Pad mounted transformer in Canada
Transformer in South Africa
Dry Type Transformer in Kazakhstan






 Product Name
Single pole mounted transformer
Standard
IEC, ANSI, CSA or by customer
Core and Winding
CRGO Slicon Steel Metal Core or Amorphous Metal Core, Copper or Aluminum Winding.
Tap Changer
Normal tap changer
Main Accessories
CSP type Circiut Breaker, Fuse, Surge Arrester.
Type Test Report
15KVA,25KVA,37.5KVA,50KVA,75KVA, 100KVA




Tachnical Data for Single-Phase Pole Mounted Distributation Transformer
Power (KVA)
High Voltage (V)
Low Voltage (V)
Loss(W)
Dimension(mm)

Weight
Rated Power (KVA)
High Voltage (V)
Low Voltage (V)
No-load Loss
On-load Loss
W
D
H
Weight
5

34500/ 19920 13800/ 7957 13200/ 7620 12470/ 7200 or others




120-240 240-480 347 600
19
75
465
485
855
92
10
36
120
500
525
885
150
15
50
195
520
565
905
210
25
80
290
560
590
935
258
37.5
105
360
610
625
935
340
50
135
500
635
675
1035
395
75
190
650
745
840
1035
480
100
210
850
770
965
1135
530
167
350
1410
795
890
1335
680


Conventional Type

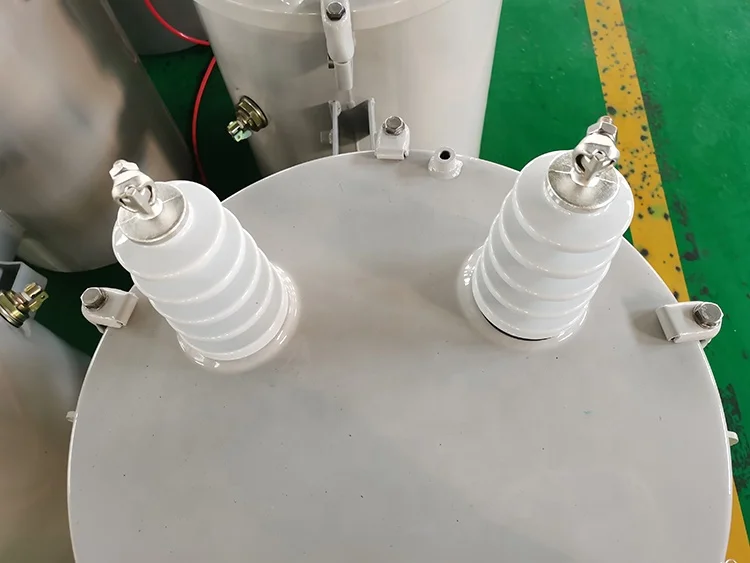

The transformer is cylinder sealing structure. Each one is fixed with grounding devices, hooks, sup porting lugs which conforms to ANSI standard, and one or two high voltage bushing on the cover, low voltage bushing on the wall of the tank and eyebolt,connecting terminals. The tap changer should be adjusted basing on the instruction after the power off.




CSP Type
This type of transformers are CSP type, which can protect itself from thunder and lighting, short circuit and protect the transiting and distribution line from current failure because of self-malfunction.
Except from some similarities such as cylinder tank, hooks, lifting lugs, grounding devices, nameplates, core and winding with the conventional type. This type of transformers have characteristics and devices as follows:
1) One or two high voltage bushings are on the cover with fuse.
2) One or two arresters are installed on the wall of the tank, whose top end is near to the high voltage bushing, and connected to the bushing by a copper strip. One secondary breaker switch is above the winding inside the tank, and here are operating handle,overload reset and signal light.

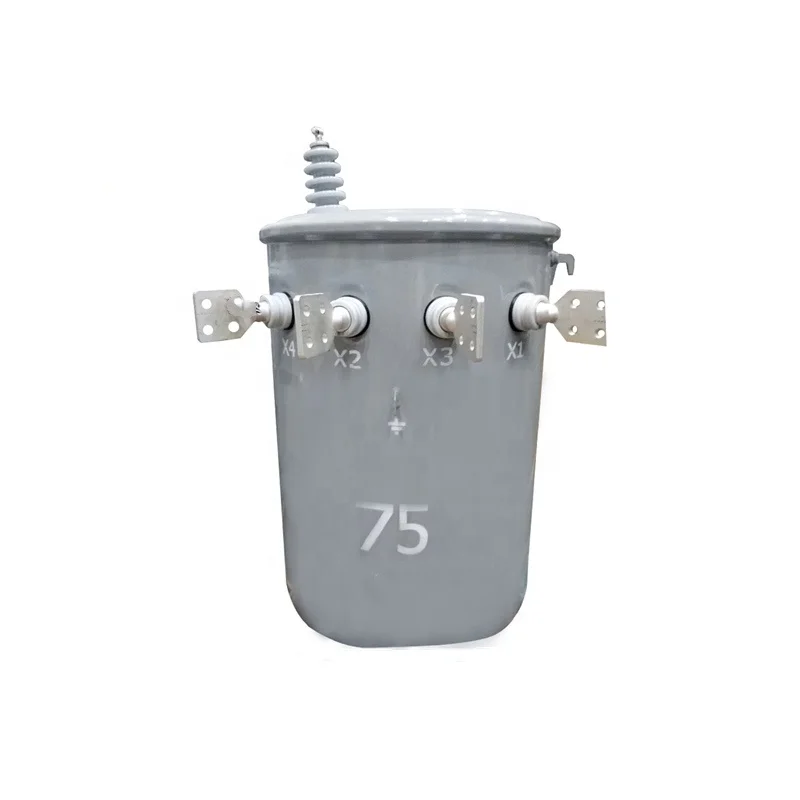

3) Low voltage bushing is educed from the wall of the tank, grounding device is fixed to position X2. One end of the single
bushing leads out through the high voltage bushing, the other end is ground connection.
4) All units are built in accordance with IEC60076, ANSI/IEEEC57.12.20, CSA C2.1-06,CSA C2.2-06 and etc.














Through years of international engineering experience, our factory is capable of producing transformers meeting various international standards, such as IEC, IEEE, ANSI, CSA.
























BEIJING DAELIM GREEN EP TECHNOLOGY CO., LTD. Locates in Beijing, China,is a professional transformer manufacturer and international electrical engineering contraction company. The expert team of DAELIM controls each process from product development to design , production and manufacturing in order to achieve its goals. We have strong R&D team and they have more than 20 years of transformer design experience and are familiar with lots of international transformer standards, such as IEC, IEEE / ANSI,CSA, etc.
