Характеристики

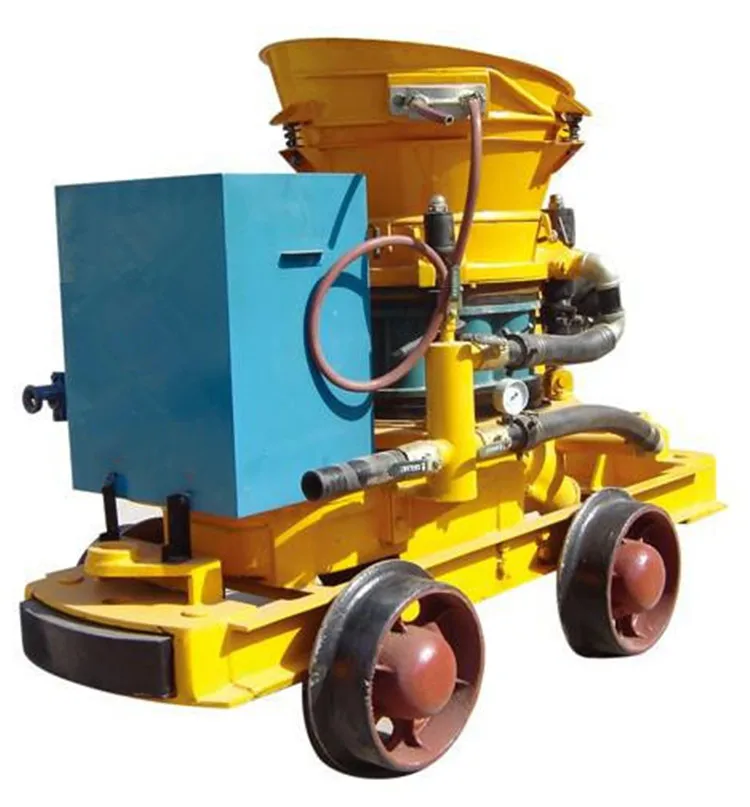

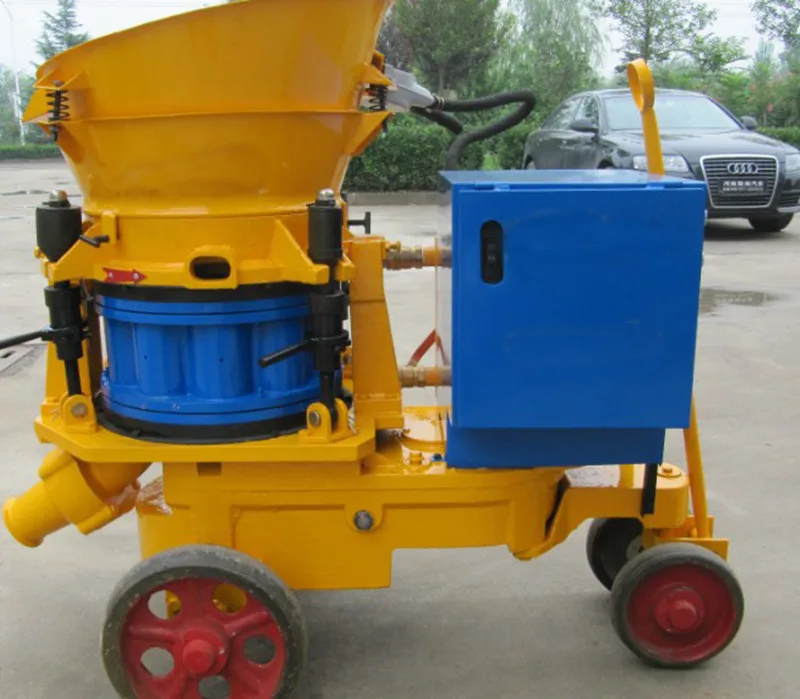

3m3/h PZ-3dry mix shotcrete machine as aliva for construction

Information of Product

PZ series Dry-mix Concrete spraying machine

Applications:

1. PZ series Concrete spraying machine is used in tunnels, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization ,etc

2. Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.

3. Refractory material spraying and repair for industrial kilns or kilns’s inner liner.

Features:

1. Advantages: JIANJIE PZ-3 Concrete spraying machine is a high-effective shotcrete machine, which is mainly used for dry-mix, damp-mix shotcreting and steel fiber reinforced shotcreting.

2. Non-adhesion going through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.

3. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.

4. Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.

t factories.

Parameters

Item

PZ-3

PZ-5

PZ-6

PZ-7

PZ-9

Output

3m3/h

5m3/h

6m3/h

7m3/h

9m3/h

Max. conv. dist

200m

200m

200m

200m

200m

Desired shotcrete ingredient ratio

1:3-5

1:3-5

1:3-5

1:3-5

1:3-5

Applicable material water-cement ratio

<0.4

<0.4

<0.4

<0.4

<0.4

Max. Aggregate. size

10mm

15mm

15mm

20mm

20mm

rotor diameter

350mm

438mm

438mm

480mm

480mm

Operating air pressure

0.2-0.6MPa

0.2-0.6MPa

0.2-0.6MPa

0.2-0.6MPa

0.2-0.6MPa

Air consumption

5-6m3/h

7-8m3/h

7-8m3/h

9-10m3/h

9-10m3/h

Motor power

4KW

5.5KW

5.5KW

7.5KW

7.5KW

Voltages

380V,440V,660V,1140, 50Hz/60Hz

Weight

400Kg

700Kg

700Kg

800Kg

900Kg

chassis

Chassis can be assembled into tyred, slide type, rail wheel





Packing and Shipping
Packing standard exporting package
Shipping7-10 workdays after receive your workable payment
Our services

1.We will send our technicians to install machines and debug machines.

2.We will train workers for customers.

3.We will follow customers’ usage and telephone follow-up.

4.our guarantee period is 24 months except wearing parts. We provide spare parts at low price.

Introduce of Xinyu Machinery Company

Founded in October 1982, Xinyu Machinery Manufacturing is located in Construction Machinery Base, Zhengzhou City, China. Our main products include HZS series concrete batching plants, concrete mixer trucks, construction lifters, stabilized soil mixing stations, concrete mixers, screw conveyors, aggregate batching systems and other related items.



 "JIANJIE" brand construction machinery, which were completely researched and developed by ourselves, sell well not only at home, but also in Southeast Asia, Africa and 30 other countries and regions worldwide. Thus, we have gained a global respect and the support of clients.



Covering an area of 126, 000 square meters, our ISO 9001: 2008-certified factory is equipped with 11 production lines manned by more than 1, 000 employees. Depending on our 23 engineers and 186 technicians, we have a strong technical ability and obtained our own patents. Moreover, we cooperate with Xi'an Jiaotong University for our R&D projects.
