Характеристики
Product Description
The Hoist is the powered unit for the platform with the climbing structure.

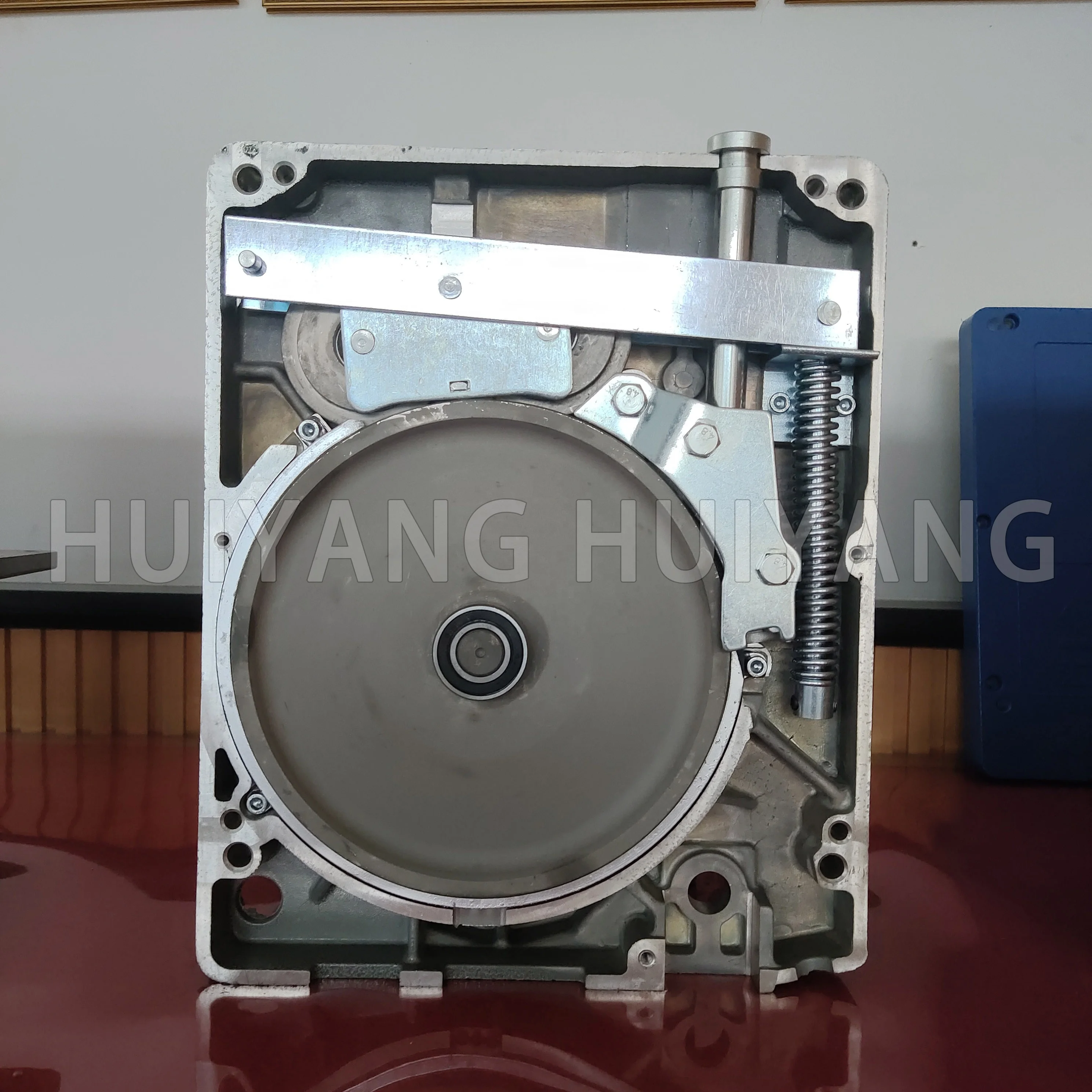

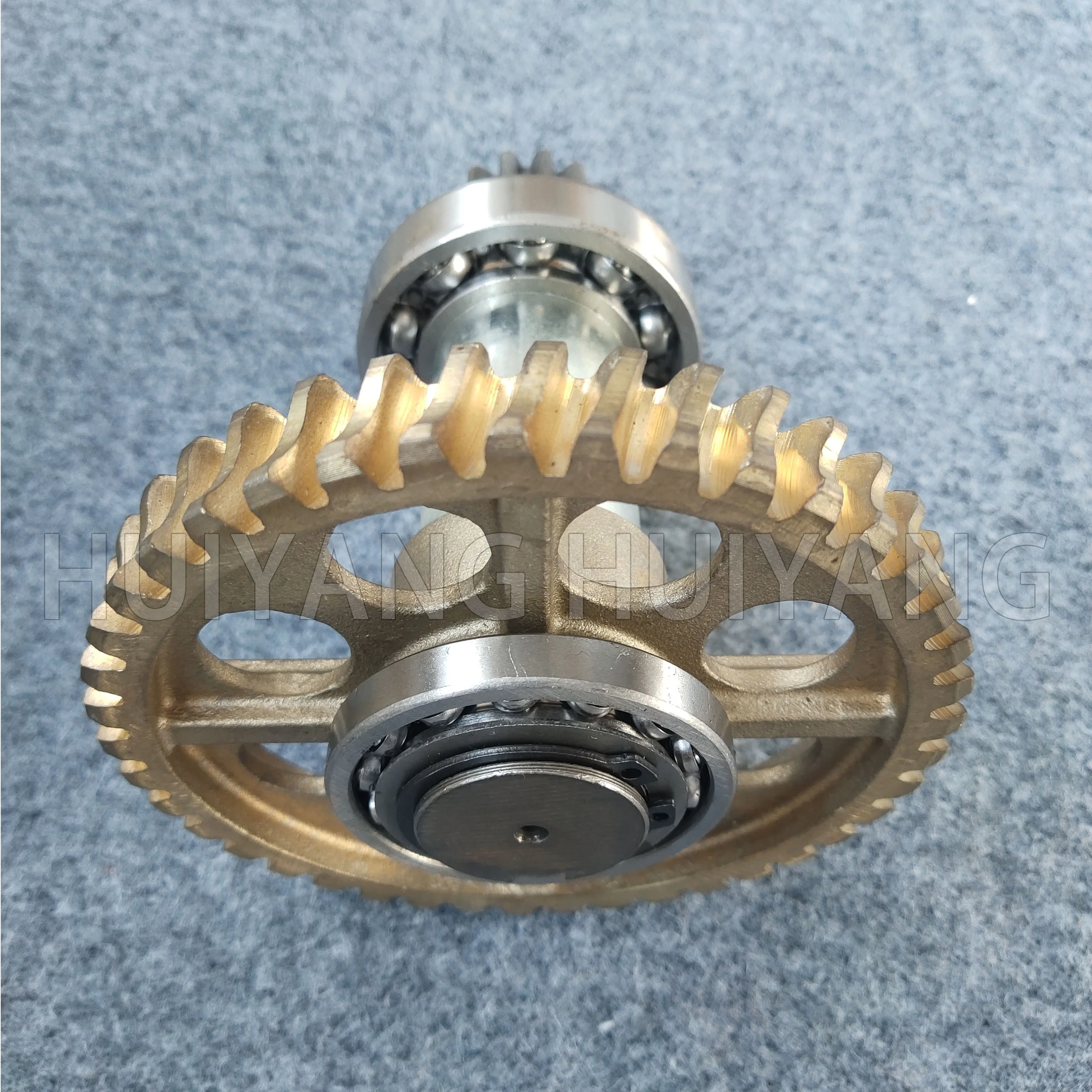

The hoist for ZLP series suspended platform is LTD6.3, LTD8.0, LTD8.0S. It consists of Electromagnetic Brake, Centrifugal Speed Limiter and Dual Speed Reduction System, “α” cable-guiding system (LTD6.3, LTD8.0) and “S” (LTD8.0S) cable-guiding systems. The hoists are driven by the electromagnetic brake three-phase asynchronous motor through the worm gear and a pair of reduced gears. The suspended platform will be moved upward and downward with the movement of the hoist.
Type | LTD6.3 | LTD8.0 |
Rated Lifting Force | 6.3 KN | 8.0 KN |
Rated Lifting Speed | 8~10 m/min | 8~10 m/min |
Dia of Wire Rope | 8.3mm | 8.3mm or 8.6mm or 9.1mm |
Motor Voltage | 380V 50HZ 3PH | 380V 50HZ 3PH |
Motor Power | 1.5 kw | 1.8kw |
Braking Distance | ≤100mm | ≤100mm |
Weight | 45 kgs | 50 kgs |
Safety:

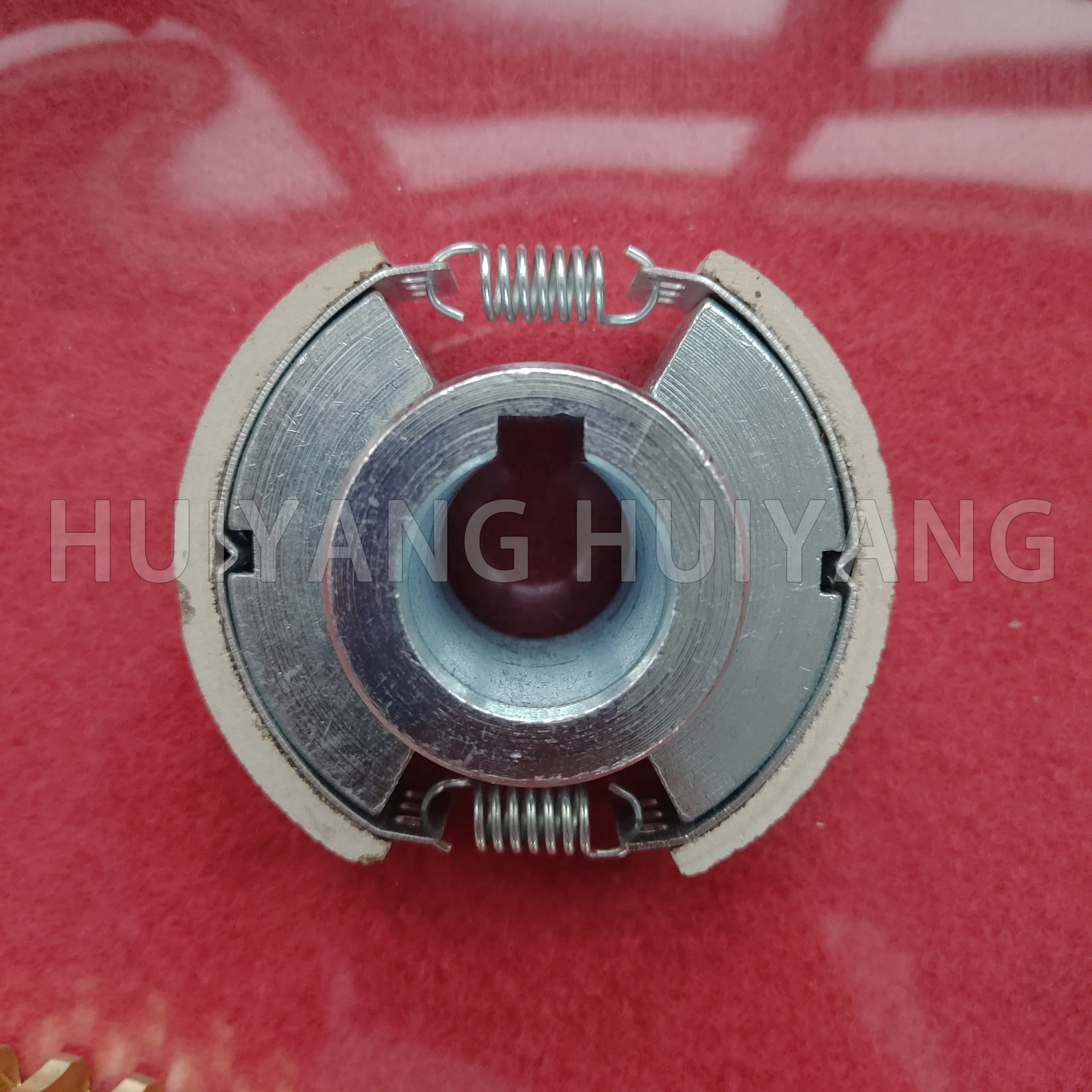

In the event of a power failure, the electric-mechanical brake can be manually released in order to ensure safe and controlled lowering of the load. Safe lowering mechanism is guaranteed by the integrated centrifugal force brake.
Features and Benefits:
*The robust and strong die-cast aluminium casing with low dead weight.
*Gearing and drive sheave are fabricated from hardened sheet.
*Motor and connection box protection class IP55.
*Hoist motor is fitted with a thermal overload protection device.
*Standardized coponents easy access to all wearing parts.
In the event of a power failure, the electric-mechanical brake can be manually released in order to ensure safe and controlled lowering of the load. Safe lowering mechanism is guaranteed by the integrated centrifugal force brake.
Features and Benefits:
*The robust and strong die-cast aluminium casing with low dead weight.
*Gearing and drive sheave are fabricated from hardened sheet.
*Motor and connection box protection class IP55.
*Hoist motor is fitted with a thermal overload protection device.
*Standardized coponents easy access to all wearing parts.
