Гидравлическая буровая установка для водяных скважин с мини

Гидравлическая буровая установка для водяных скважин с мини

Категория: Mine Drilling Rig >>>
Поставщик: Quzhou,Zhongdu,Machinery,Technology,Co.,Ltd.

Цена:15 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	17850.6 $*	18743.85 $*
Aug-19-2025	17700.66 $*	18585.70 $*
Jul-19-2025	14850.88 $*	15593.23 $*
Jun-19-2025	17400.78 $*	18270.97 $*
May-19-2025	15150.26 $*	15908.93 $*
Apr-19-2025	17100.48 $*	17955.63 $*
Mar-19-2025	16950.43 $*	17798.36 $*
Feb-19-2025	16800.36 $*	17640.14 $*
Jan-19-2025	16650.74 $*	17483.66 $*

Характеристики

Product Description

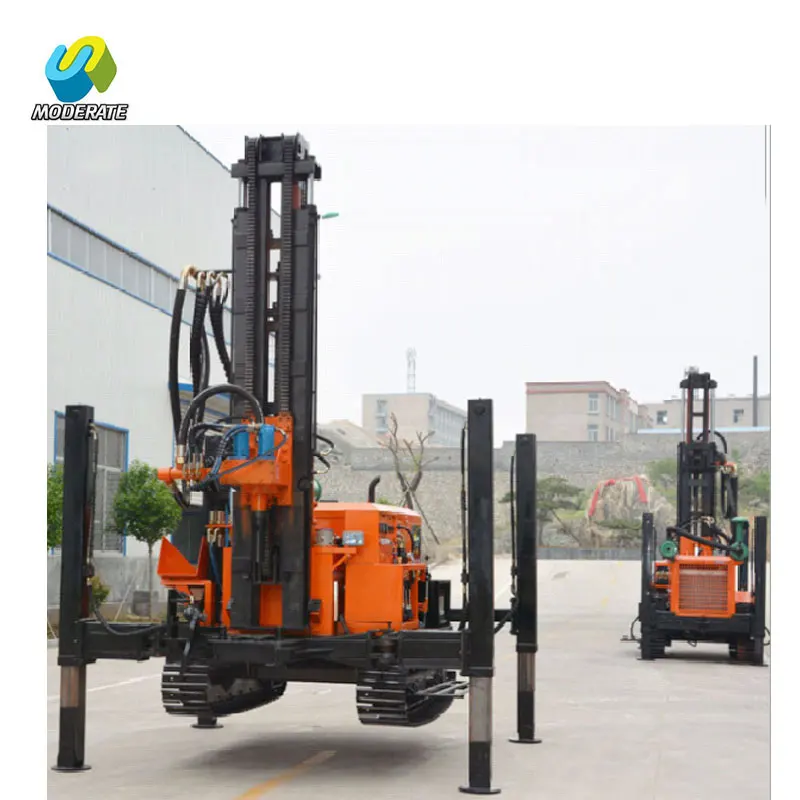

Mini Trailer Mounted Hydraulic Water Well Drilling Rig

180 water well drilling rig is a type of light weight, high efficient, multiple functional drilling hole equipment. Which is equipped with advanced structure, easy to handle,high efficient, durable using etc , widely used for drilling well, farming irrigation well,geothermal air conditionhole and other usage well hole, especially suitable for water intaking in moutainnous area and rock layer. The drill adopts newest hydraulic technology, mating with big torque hydraulic motor rotation and large bore hydraulic oil cylinder driven, lower the labor, cut down assist time, improve efficiency of construction and project quality.

\t Mini Trailer Mounted Hydraulic Water Well Drilling Rig
\t Item NO.	\t ZD-200	\t Air consumption(m³/min)	\t 17-30
\t The Weight(T)	\t 5.8	\t Equipped capacitor(Kw)	\t 65-70
\t Dimensions(mm)	\t 400017502450	\t Swing speed(rpm)	\t 45-70
\t The hole diameter(mm)	\t 140-305	\t Swing torque(N.m)	\t 3500-4800
\t Drilling Depth(m)	\t 200	\t Drill pipe diameter(mm)	\t 76 89
\t Once-time advance length(m)	\t 3.4	\t Drill pipe length(m)	\t 1.5 2.0 3.0
\t Walking speed(Km/h)	\t 2.5	\t Rig lifting force(T)	\t 12
\t Climbing angles(Max.)	\t 30	\t sopporting Power	\t 29m3/min 23BAR AIR COMPRESSOR
\t Using air pressure(Mpa)	\t 1.7-3.0	\t	\t

Main Features

1. Guangxi Yuchai 55Kw turbocharged engine;
2. Walking device: walking motor reducer box, durable long life;
3. Hydraulic oil pump; parallel gearbox design (patent) oil pump monomer separation, power supply adequate distribution reasonable, hydraulic system unique design, simple maintenance, small cost;
4. Power head device, gearbox integrated casting, dual motor power, torque, durability, small maintenance costs;
5. Drill chassis; professional excavator chassis, durable, high bearing weight, chain plate width, small damage to the hard surface;
6. Lifting force; patent design composite big arm, big arm small volume, long stroke, double cylinder lifting, lifting tonnage;
7. Each drill hoist arm is installed limiter, protect the cylinder safety, ensure the safety of work;

8. Each hydraulic tubing is covered with a protective sleeve, so that the tubing life longer..

Detailed Images

Back to the corner

Rotary engine in a sliding shelves, oil cylinder lateral automatic translation. By a manual reversing valve control two rotary hydraulic motor drive, to achieve strong torque, adapt drill to the different working conditions.

Hydraulic leg

A big stroke hydraulic supporting leg for the rig transportation loading and unloading without hoisting equipment, grams of self loading and unloading; hydraulic leg with the horizontal direction for achieving rapid leveling rig.

Diesel power system

In order to adapt to different working environment and customer requirements, the use of a variety of specifications of diesel engines and motors to meet the various requirements.

For example:
1.Commins,Deutz,Benz,Volvo.
2.YuCai,WeiCai...made in China.

Operating table

The operating valve is duplex structure,hydraulic system,two speed for propeling and rotating,suitable for different working condition.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

\t Packaging
\t Size	\t 3800mm (L) * 1500mm (W) * 2200mm (D)
\t Weight	\t 4.5T
\t Packaging Details	\t The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
