Сквозное отверстие высокого тока 800 а 12 В разделенная башенная Соска-кран из смола скользящее кольцо
- Категория: Electrical Contacts and Contact Materials >>>
- Поставщик: Shenzhen,Jarch,Electromechanical,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 12.21 $* | 13.54 $* |
| Aug-19-2025 | 12.11 $* | 13.65 $* |
| Jul-19-2025 | 10.15 $* | 11.63 $* |
| Jun-19-2025 | 12.60 $* | 13.50 $* |
| May-19-2025 | 10.27 $* | 11.24 $* |
| Apr-19-2025 | 11.37 $* | 12.64 $* |
| Mar-19-2025 | 11.84 $* | 12.81 $* |
| Feb-19-2025 | 11.15 $* | 12.86 $* |
| Jan-19-2025 | 11.27 $* | 12.21 $* |
Характеристики
Product Category
Product Description

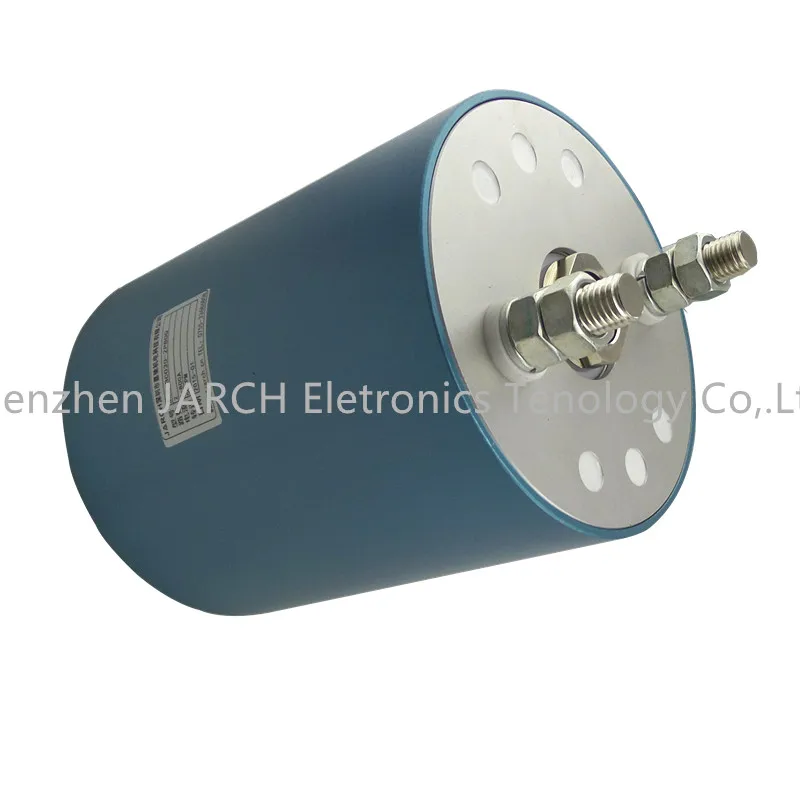

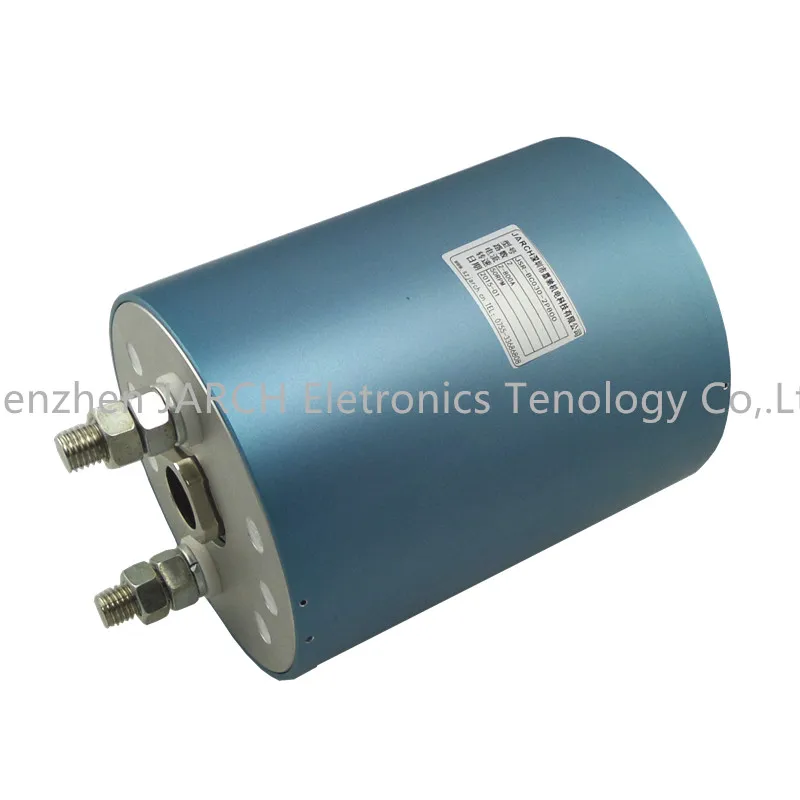

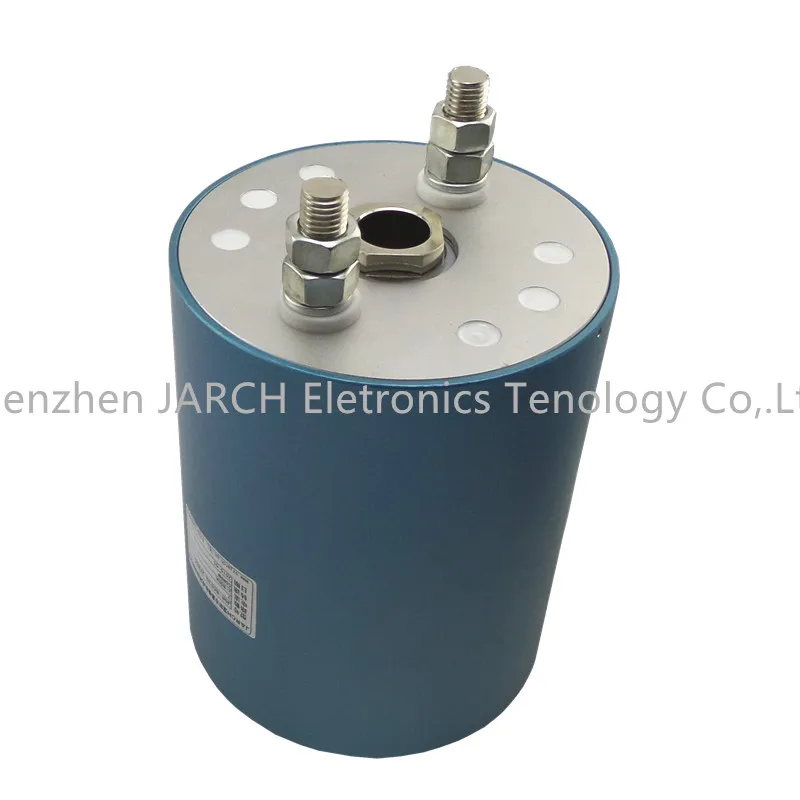

Through bore high current 800A 12V separated moflon tower crane nipple slip ring tumblr
Description:
High current slip rings can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.
It is also called a rotary electrical interface, Slip Ring Assemblies, Rotary Connector, Slip Ring Units. It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation. It’s the key
The BC030 provides a 30mm through-bore for routing hydraulic or pneumatic lines. The 800amps /circuit are available in 1-4 ring.
Benefits:
- Unique signal handling performance with minimal electrical circuit noise
- Very low electric noise
- Anti-jamming ,very low cost
- Very low contact resistance (Less than 1mΩ)
- No maintenance and better reliability than traditional sling rings
- Suitable for signal and power transfer of rotating devices or instruments
Dimensions:
Contact us for the catalog and more details!
Specifications
| Rings | 2~36 | Current | 400A |
| Voltage | mV~600VDC/VAC | Max speed | 50RPM |
| Through bore size | 35mm | Overall diameter | 168mm |
| Housing Material | ss304 | Torque | 0.05N.m;+0.03N.m/6rings |
| Working life | 50million | Contact material | carbon |
| Electrical noise | <5 mΩ | Contact Resistance | <2mΩ |
| Dielectric strength | 1000VDC@50Hz | Lead Wire | UL Teflon® Awg26,Awg22 |
| Insulation resistance | 500MΩ@600VDC | Lead Lengths | 300mm(12") |
| Operating Temp. | -40°C to 80°C | Protection | IP54 |
| Materials | Lead Free, ROHS | Certified | CE,FCC |
Applications:
• Packaging / wrapping machinery
• Industrial machinery
• rotary index tables
• Heavy equipment turrets or cable reels
• Emergency lighting, robotics Palletizing machines, Option
• Medical equipment | rotary sensors, emergency lighting, robotics
• Miniature cable reels
Installation Instructions
Shaft Mounted
FAQ
Q1: Are you a factory or a trading company?
A: We are a professional manufactory with High-level R & D team.
Q2: How many types of the slip rings do you have?
A: We can supply all kinds of the slip rings.Such as minitary slip ring,slip ring rotating connector, customized sliring,
miniature slip ring,fiber optical slip ring,RF rotary joint,HD combined-type,
disc slip ring,wind power slip ring,solar power slip ring,through-bore slip ring, etc.
Q3: Can you supply the slip rings with high frequency signals and(or) optical communication signals.
A: Yes, we can supply mixed signals slip rings as your request.
Q4: what's the working life of your slip rings.
A: 30~50 millions revolutions for standard ones, 50~80 millions revolutions for special ones,
We also can supply much higher revolutions as your special requirement.
Q5: Do you supply OEM and ODM ?
A: Yes, we supply OEM and ODM.
Company Information
JARCH is a professional manufacturer of slip rings and rotary joints,founded in 1998,located in Bao’an,Shenzhen,with more than 80 employees and 1000m2 plant.
We have 8 types of patented products at present and have established extensive and long-term cooperation with many domestic research institutes(Beijing University,SAS,,Beihang University,etc), and own a skilled management team.To creat the brand and do famous brand,we carry out strict performance ISO9001 standard of CQC.
Our slip rings are widely used in civil and military fields ranging from robot,spacecrafts, industrial automation, electric power generation, measurement instruments, medial equipments to building construction. Our main products have fiber optic rotary joint / Electro optical slip ring/ through bore slip ring/ Pneumatic electric rotary union/ Hydraulic rotary union/through bore slip ring/ Pneumatic rotary joint,high current slip ring, slip ring for crane etc.
Our products are sold to more than thirty provinces in China and exported to more than 38 countries. Our main customers have Huawei,Foxconn,Sany Heavy Industry,BYD,etc.
OEM and ODM are highly welcome! contact us for the catalog and more details!
