Автоматическая машина для нанесения этикеток на бумажные пластиковые


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 0.25 $* 0.23 $*
Aug-16-2025 0.14 $* 0.62 $*
Jul-16-2025 0.1 $* 0.61 $*
Jun-16-2025 0.16 $* 0.64 $*
May-16-2025 0.89 $* 0.3 $*
Apr-16-2025 0.63 $* 0.53 $*
Mar-16-2025 0.75 $* 0.53 $*
Feb-16-2025 0.77 $* 0.94 $*
Jan-16-2025 0.47 $* 0.82 $*

Характеристики



SKILT PARTNER




Product Description


1.The scope of application

The model SLM-A Labeling machine suit big products that need labeling on the side surface, such as bucket, box,carton, big container and so on .





2. Device Characteristic

1) Control system: Use American AB brand PLC control system, with high stable operation and extremely low failure rate.

2) Operation system: 10 inch MCGS touch screen, directly visual interface easy operation, also rich with help function and fault display function.

3) Check system: Use German LEUZE check label sensor, automatic check label station, stable and convenient don’t have much higher requirement for worker.

4) Send label system: German Avery labeling engine control system, stable with high speed.

5) Alarm function: Such as label spill, label broken or other malfunction during machine working all will alarm and stop working.

6) Machine Material: Machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust.

7) Low voltage circuit all use the German Schneider brand.



Technical Parameter


Model
SLM-A
Capacity (pcs/min)
20-160
Driving Mode
Servo control system
Labeling accuracy
±1mm
Labeling Speed(m/min)
≤35
Label Specification
adhesive sticker, transparent or opaque
Suit bottle size
Can customized
Suit label size
Height 20-200mm Length 25-300mm
The inner diameter or label roll
76mm(min)
The outer diameter of label roll
350mm(max)
Power
800w
Voltage
can customized, 110V/220V/380V
Machine size
2300x80x1500mm


No
Name
Model
Unit
Brand
1
PLC control system
1763-L16BBB
1 Set
America AB
2
Touch-screen
TPC7062KW
1Piece
BGCS
3
Inverter
22F-A2P5N103
1piece
Delta
4
Photoelectric sensor
(Check objects)
FS-V11/-FV-35FA
1Set
Japan KEYENCE
5
Photoelectricsensor
(Check opaque label)
GS14
1 Set
German Leuze
Photoelectric sensor (Check transparent label)
GS61
1 set
German Leuze
6
Main transport motor
370W1:30
1 set
Switzerland ABB
7
Servo motor
2004-RZ08BAIAN3
1 sets
America AB
8
Drive
2003-CSD3-08BX2
1 sets
America AB
9
Separate Bottle Motor
40W1:30
1 sets
German JSCC
10
Speed Controller
25-90W
1 sets
German JSCC

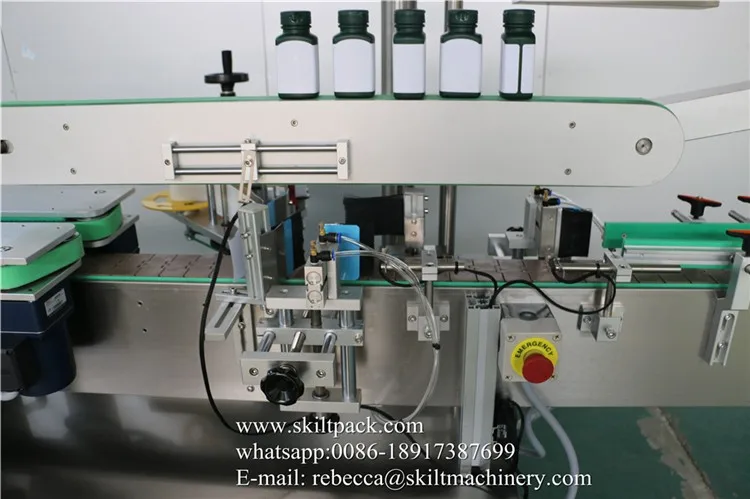

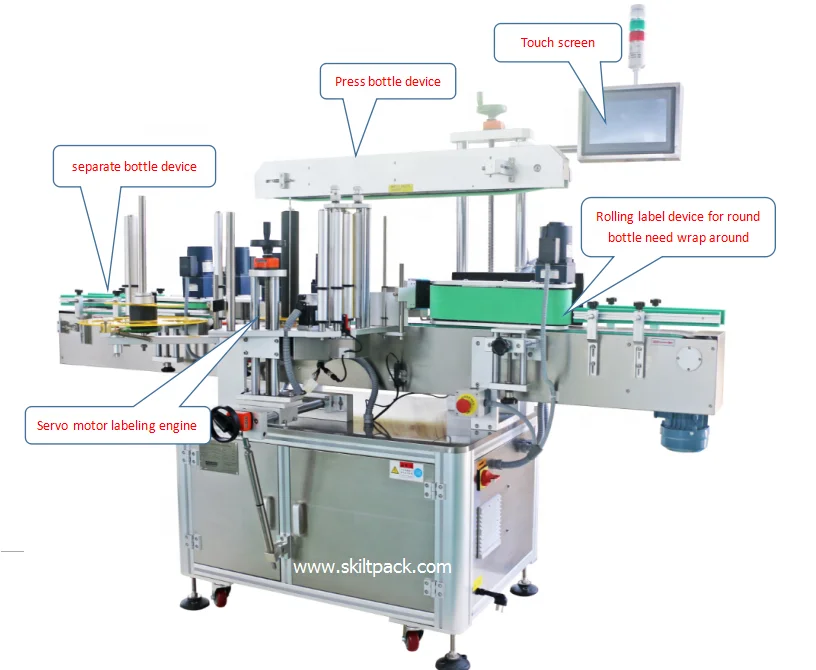

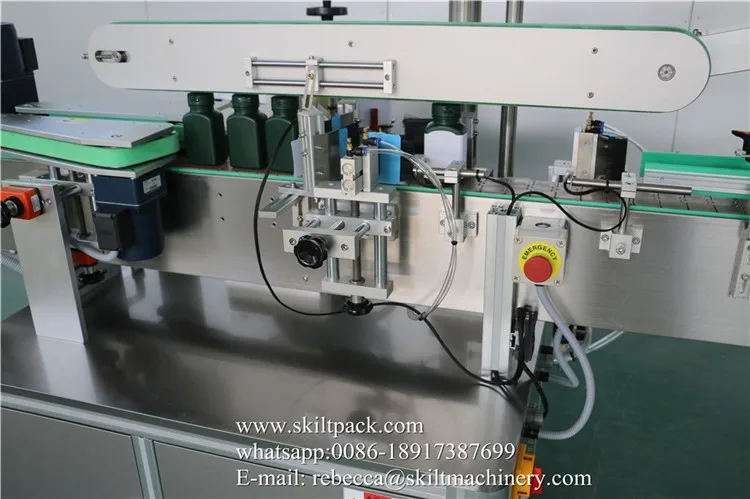

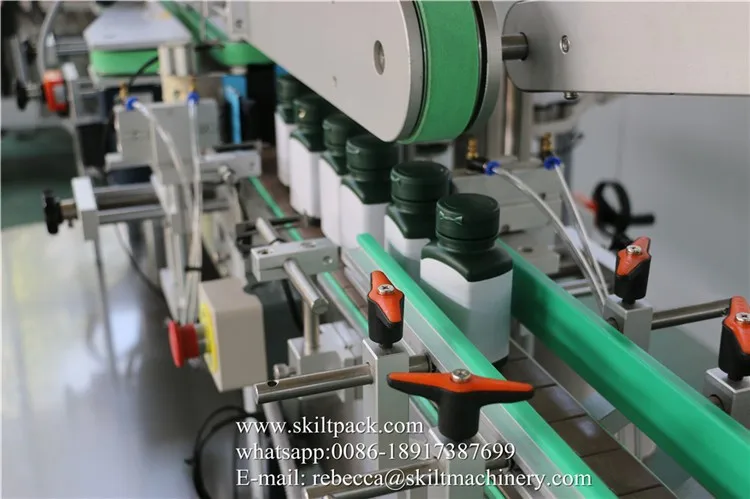

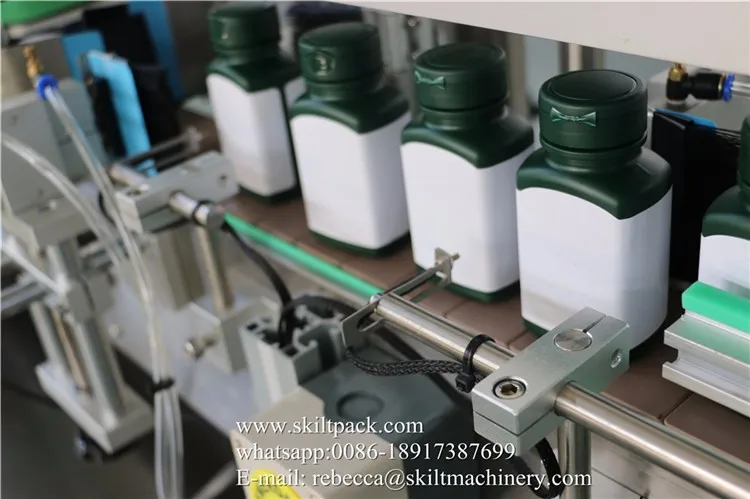

Detailed Images














Machine Processing




SKILT TEAM




FAQ


1. Q: What label material does your machine use ?
A: Self-adhesive sticker.

2. Q: The machine is automatic or semi-auto?
A: We only produce the automatic machine .

3. Q: Which kinds of machine are suit for our products labeling requirement?
A:Pls supply us your products and label size (the photo of products with label on it is rather helpful), then I will suggest you the suitable machine for reference.

4. Q: The machine can connect with the product line or not ?
A: Machine can connect with production line or put on the production line or operation alon all ok as you need .
