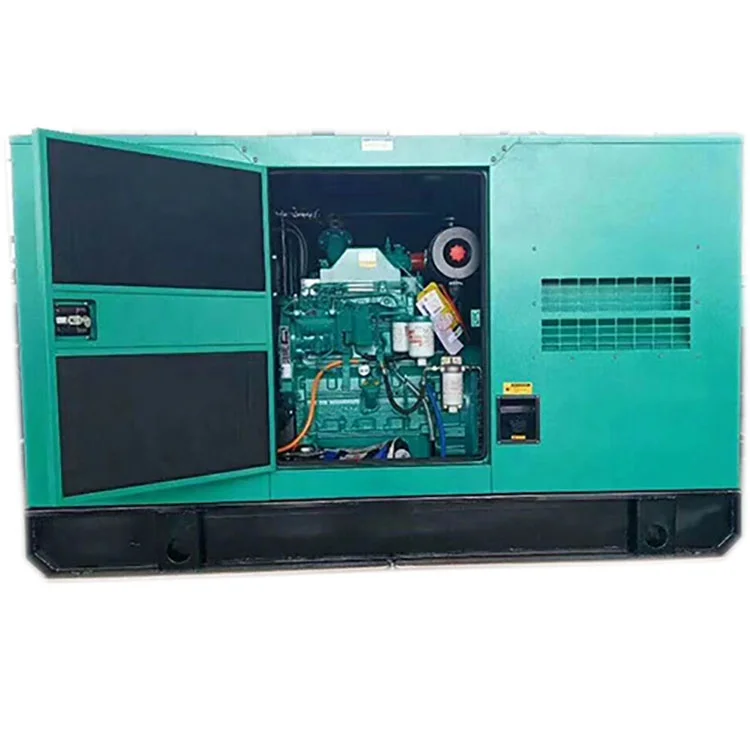

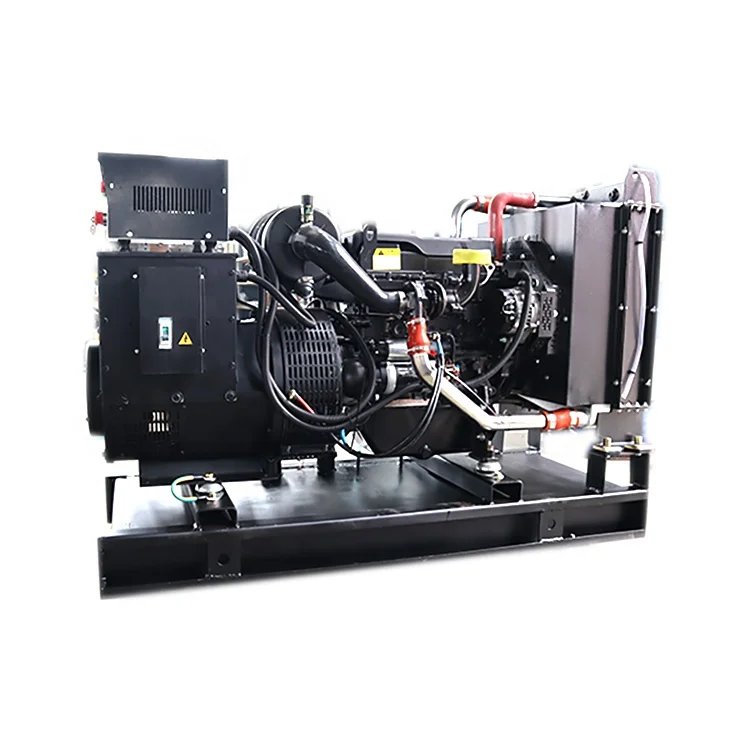

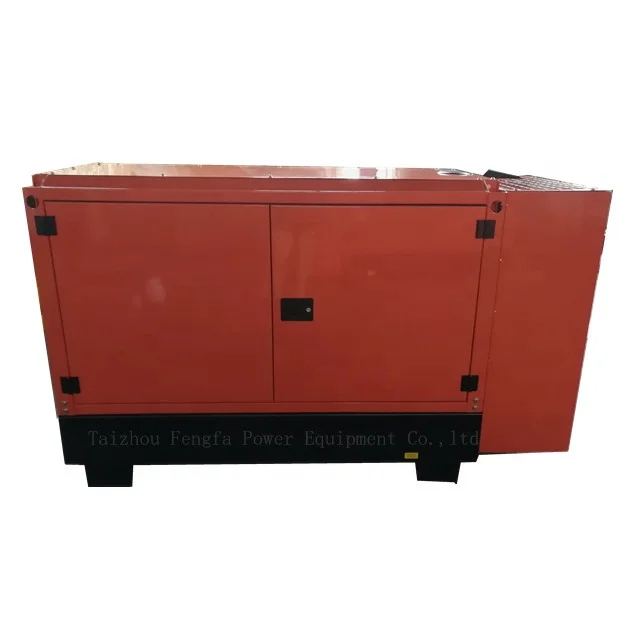

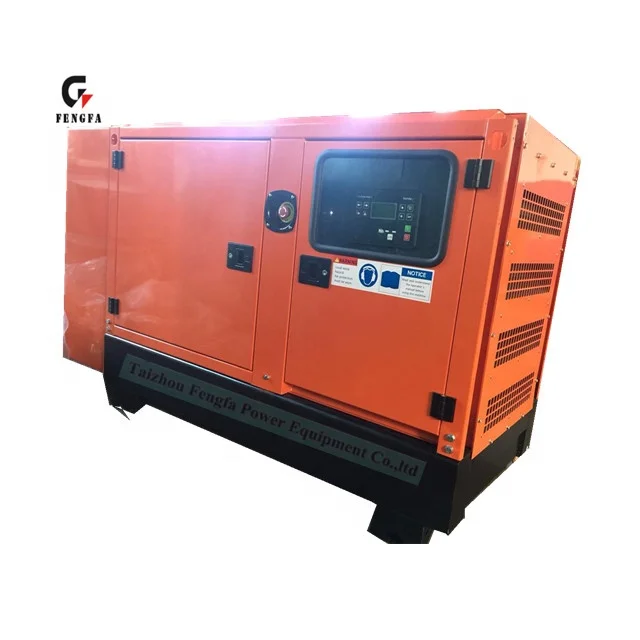

Дизельный генератор 20 кВт 30 40 50 для

Genset Technical Data

Manufacturer

Taizhou Fengfa Power Equipment Co.,ltd

Rated Power(kw):

50

Current(A):

90

Voltage(V)

400/230

Frequency(HZ):

50

Power factor:

                         0.8

Phase & Waire

3 phase 4 wire

Voltage:

AVR

Voltage test:

3phase

Current test:

3 phase

Genset size

2.4*1.06*1.58m

Genset weight

1192kg

Governor Regulation:

Electrical

TIF:

Telephone Influence Factor (TIF):<50,THF<2%

Ambinet :

temperature≤40℃,altitude≤1000m,humidity≤60%

Standard:

Compliance with GB/IECstandards

             Eninge

Model

4BTA3.9-G2

Manufacturer

Cum         min          s

Engine Type

In line ,4 cylinder,4 cycle

Governor regulation:

Electrical

Speed rpm/min

1500

Start Method:

DC 24V

Cooling type:

 Positive water cooliing cycle

Fuel consumption(100%)g/kw.h

198

Compression ration:

17.3:1

         Alternator

Model :

FF-50

Manufacturer:

Shanghai stamford

Type:

Brush-less, Self-excited,100% copper ,single bearing

Capacity (KVA):

62.5

Rated power(KW):

50

Protection level:

IP23

Insulation grade :

H

No -load voltage voltage setting rang:

≥±5%

Voltage type:

AVR

Voltage recovery time:

<1m

Frequency volatility :

≤±0.25%

Controller

Model :

HGM6110

Data :

n Generator voltage

n Generator voltage

n Output frequency

n Engine speed

n Battery voltage

n Engine run-time (Hours)

n Note:

n 1. The engine coolant temperature displayed by water temperature gauge

n 2. The engine oil pressure displayed by oil pressure meter

n 3. Generator current displayed by current meter, to change switch for each phase displayed separately

Supply scope & warranty

Supply scope :

Battery ,battery wries,silencer,bellows,shock pad ,fuel pipe,manuals

warrranty:

1 year or 1000hours ,whichever comes first
