Характеристики

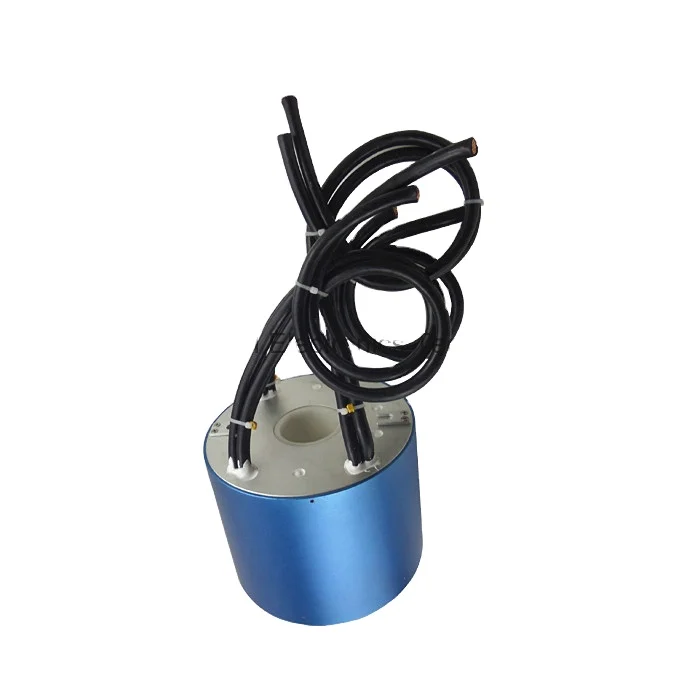

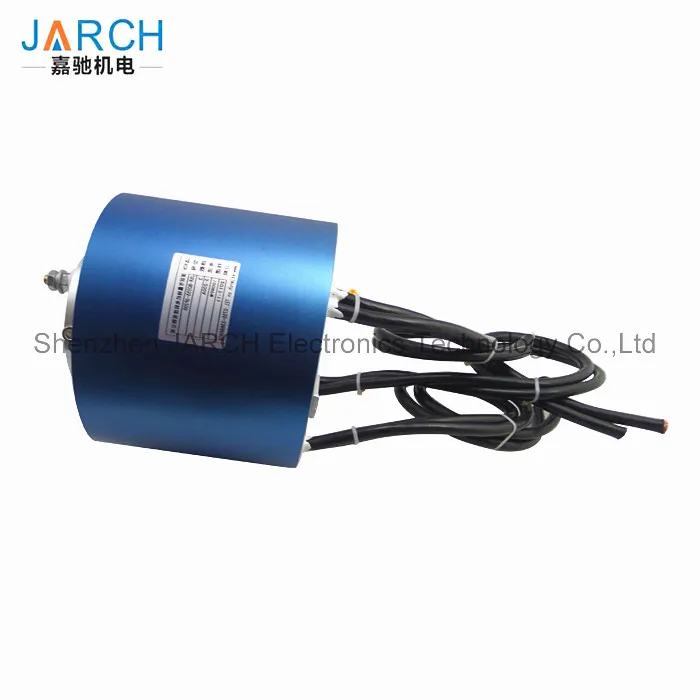

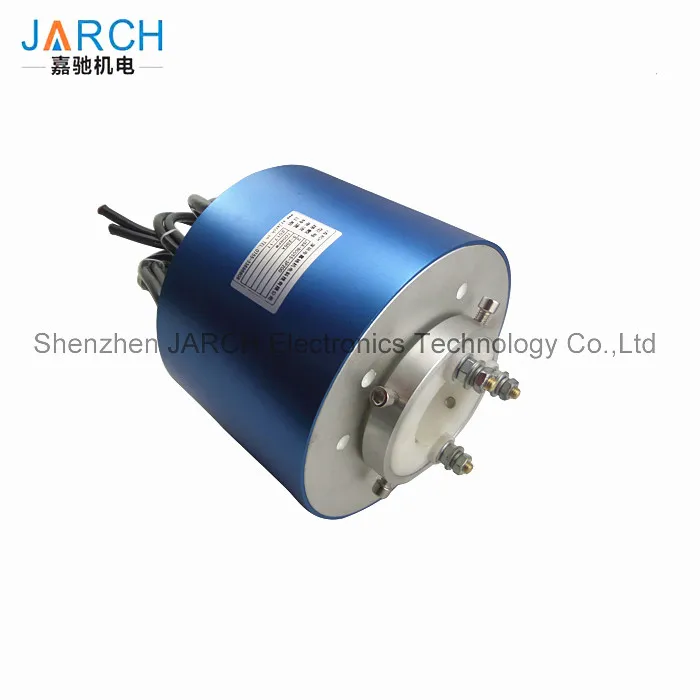

JARCH JARCH 3 Circuits 200A high current slip ring shaft mounted used crane excvavtor through bore slip rings
Product Description
JARCH 3 Circuits 200A high current slip ring shaft mounted used crane/excvavtor of industrical slip ring
High-current slip ring series are characterized by higher current, adopt specific design and advance technology to meet different application requirements. At present, this series we produced could be up to 800 amperes current. Please let me know your requirements, we will provide the best solution for you
The BC050 provides 12A signal for routing hydraulic or pneumatic lines. The 100~400amps /circuit are available in 1-4 ring.
JARCH 3 Circuits 200A high current slip ring shaft mounted used crane excvavtor through bore slip rings
| Rings | 2~25 | Current | 200A |
| Voltage | mV~600VDC/VAC | Max speed | 50RPM |
| inner size | 55mm | Overall diameter | 168mm |
| Housing Material | ss304 | Torque | 0.05N.m;+0.03N.m/6rings |
| Working life | 50million | Contact material | carbon |
| Electrical noise | <5 mΩ | Contact Resistance | <2mΩ |
| Dielectric strength | 1000VDC@50Hz | Lead Wire | UL Teflon® Awg26,Awg22 |
| Insulation resistance | 500MΩ@600VDC | Lead Lengths | 300mm(12") |
| Operating Temp. | -40°C to 80°C | Protection | IP54,IP65 |
| Materials | Lead Free, ROHS | Certified | CE,FCC |
Benefits
JARCH 3 Circuits 200A high current slip ring shaft mounted used crane excvavtor through bore slip rings
- Unique signal handling performance with minimal electrical circuit noise
- Very low electric noise
- Anti-jamming ,very low cost
- Very low contact resistance (Less than 1mΩ)
- No maintenance and better reliability than traditional sling rings
- Suitable for signal and power transfer of rotating devices or instruments
JARCH 3 Circuits 200A high current slip ring shaft mounted used crane/excvavtor of industrical slip ring
The Dimensions of Slip Ring Will Be Advised When Rings And Current Details Are Options . Please Contact JARCH Technical Department.
Installation Instructions:Flange Mounted
Dimension L To Be Advised When Ring And Current Details Are Options . Please Contact JARCH Technical Department,1000RPM M5 Connections Hybrid Slip Rings For Rotary Table or Industrial Machinery
Applications:
• Packaging / wrapping machinery
• Industrial machinery
• rotary index tables
• Heavy equipment turrets or cable reels
• Emergency lighting, robotics Palletizing machines, Option
• Medical equipment | rotary sensors, emergency lighting, robotics
• Miniature cable reels
JARCH 3 Circuits 200A high current slip ring shaft mounted used crane excvavtor through bore slip rings
