Машина для производства одноразовых контейнеров быстрого

PS food container machine mainly including three main parts:

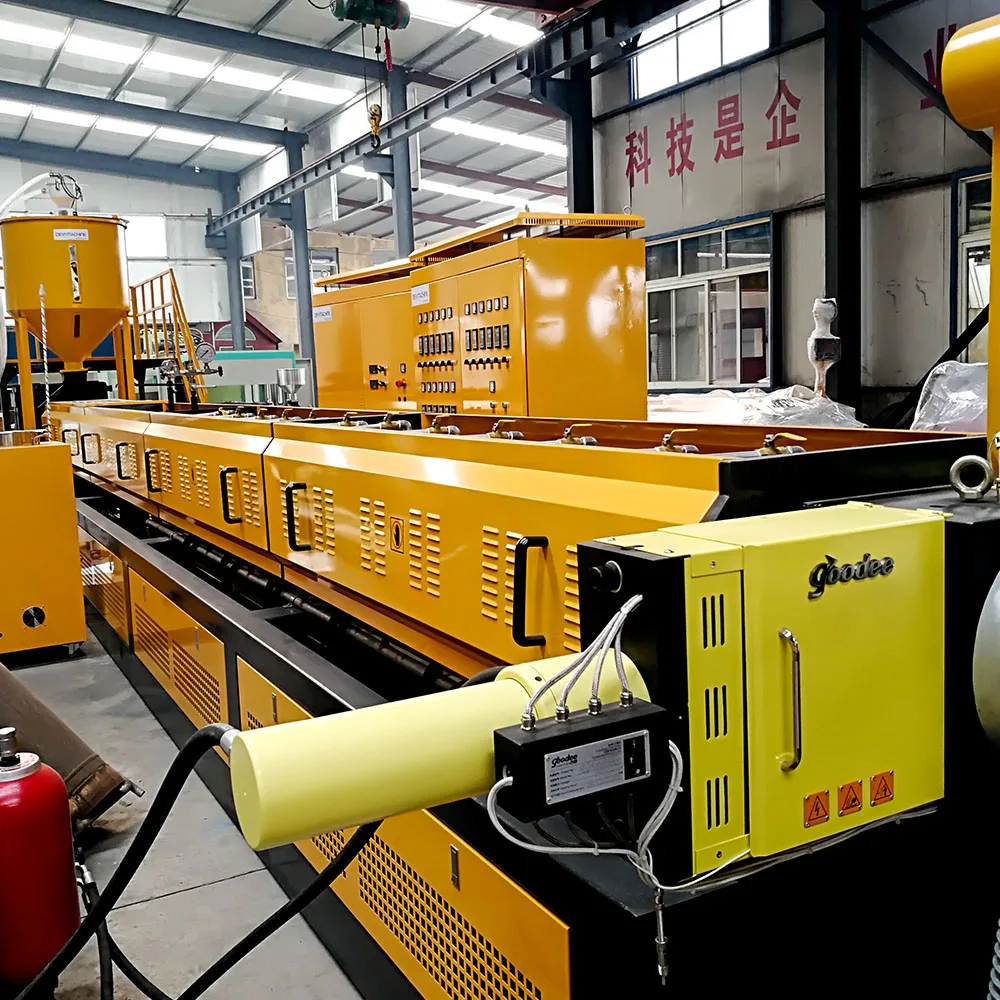

1. PS foam sheet extruder: make PS foam sheet from raw material

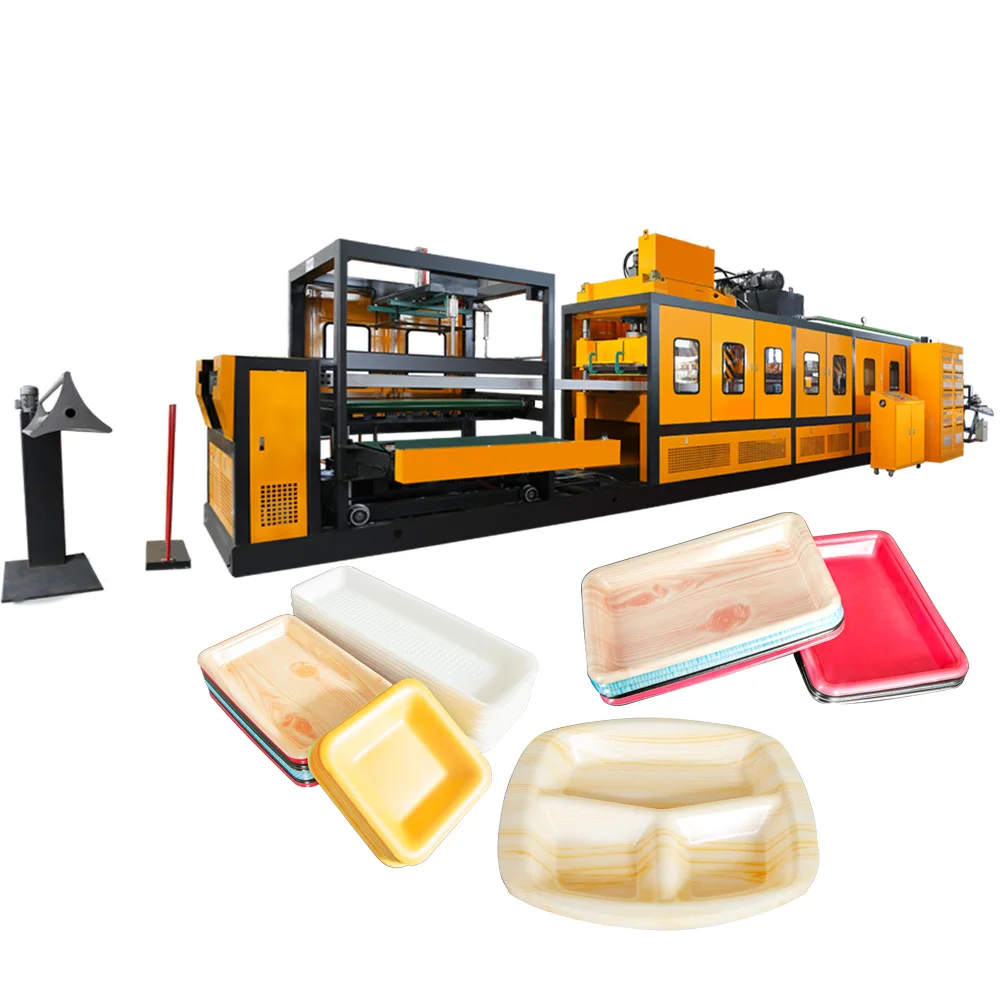

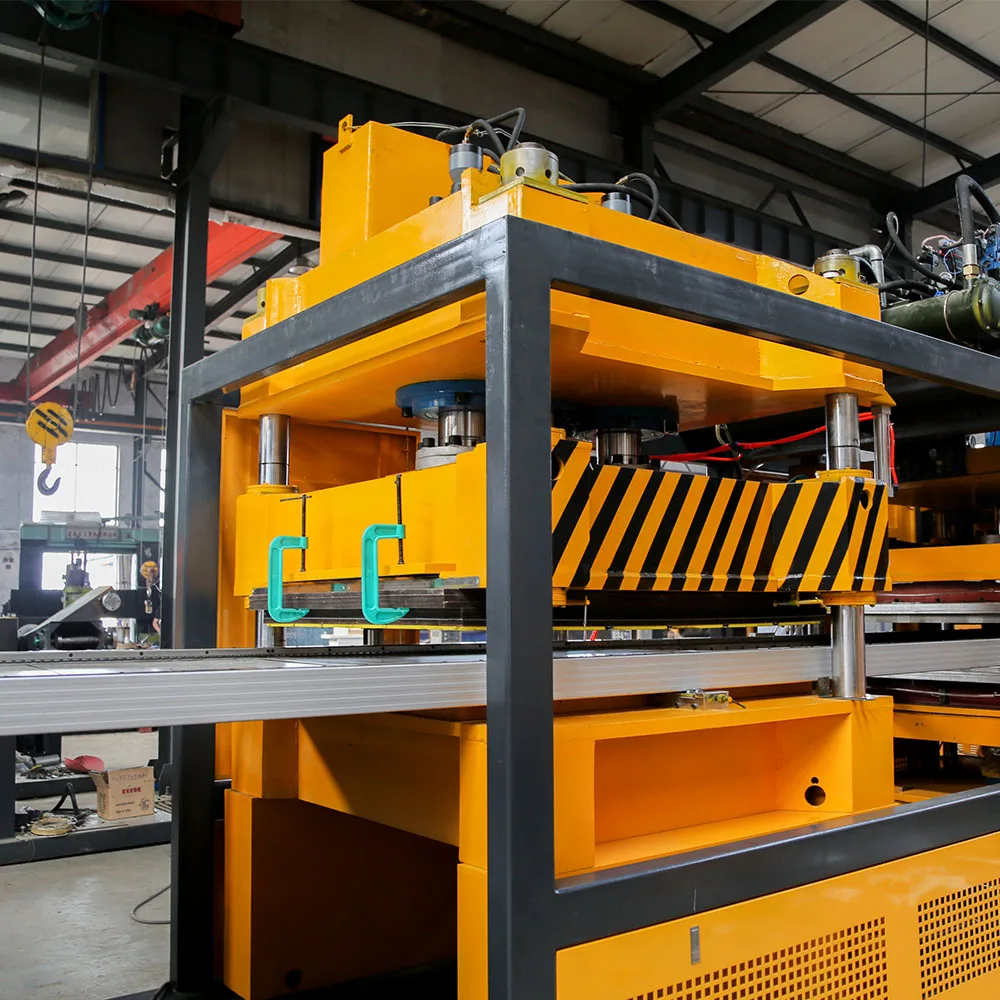

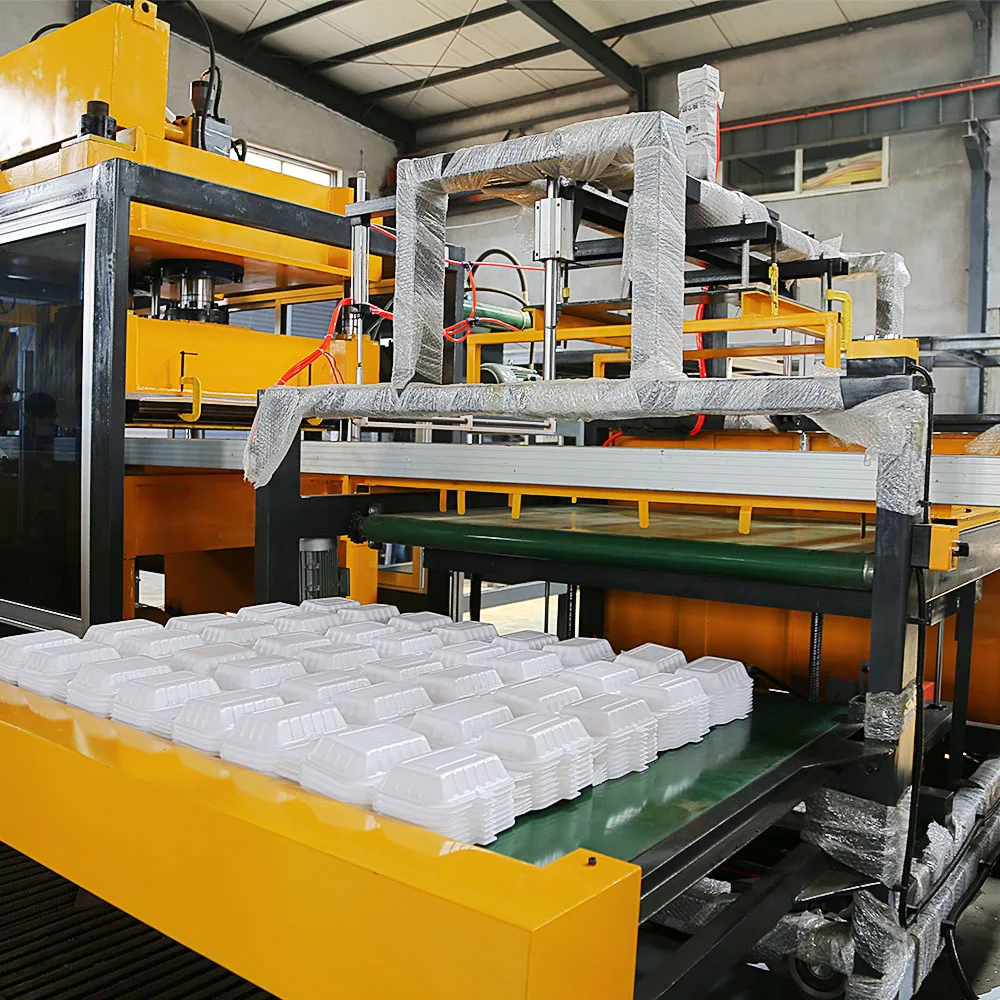

2. Fully auto forming and cutting machine: make PS sheet to finished products, such as PS foam tray, PS foam box etc (we can design mould according to customer requirements)

3. Plastic recycle machine: recycle waste products to granules, the can mix with new material and put into PS foam sheet extruder again

  Model

Unit

PSP70/90

PSP90/120

PSP100/130

PSP120/150

  Extruder

70/90

90/120

100/130

120/150

  Foam rate

10-20

10-20

10-20

10-20

  Width of product

mm

640-1040

640-1040

640-1040

640-1200

  Cutting method

Single cutter

Double cutter

  Thickness of product

mm

1.0-3.0

1.0-3.5

1.0-3.5

2.0-5.0

  Cooling method

Cooled by wind and water

  Output

kg/h

50-90

100-180

180-230

230-320

  Installed power

kw

120

150

180

260

  Dimensions(L×W×H)

m

26×4.0×2.8

30×4.1×2.8

36×4.2×3

38×4.2×3.2

  Total weight

T

10

12

15

18

  Model

Unit

TY-1040

  Max. forming area

mm2

1000×1100

  Max. forming depth

mm

80

  Production efficiency

s/die

3 - 8

  Forming pressure

T

15

  Mounted power

kw

168

  Total weight

T

16

  Installation size

m

13×2×3.2

  Model

Unit

TY-180+120/100

  Screw diameter

mm

180+120/100

  Motor

kw

30

  Heater

kw

25

  Extruder capacity

kg/h

80-130

  Cooling water tank

mm

1810×410×225

  Granule cutting motor

kw

2.2Packaging & Shipping
