Сварная бетонная армированная Стальная Сетчатая
- Категория: Машины для изготовления проволочной сетки >>>
- Поставщик: Hebei,Huayang,Welding,Mesh,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 10710.85 $* | 11246.51 $* |
| Aug-17-2025 | 10620.32 $* | 11151.25 $* |
| Jul-17-2025 | 8910.51 $* | 9356.40 $* |
| Jun-17-2025 | 10440.83 $* | 10962.75 $* |
| May-17-2025 | 9090.11 $* | 9545.24 $* |
| Apr-17-2025 | 10260.97 $* | 10773.55 $* |
| Mar-17-2025 | 10170.13 $* | 10679.10 $* |
| Feb-17-2025 | 10080.60 $* | 10584.26 $* |
| Jan-17-2025 | 9990.0 $* | 10490.42 $* |
Характеристики
Product Description

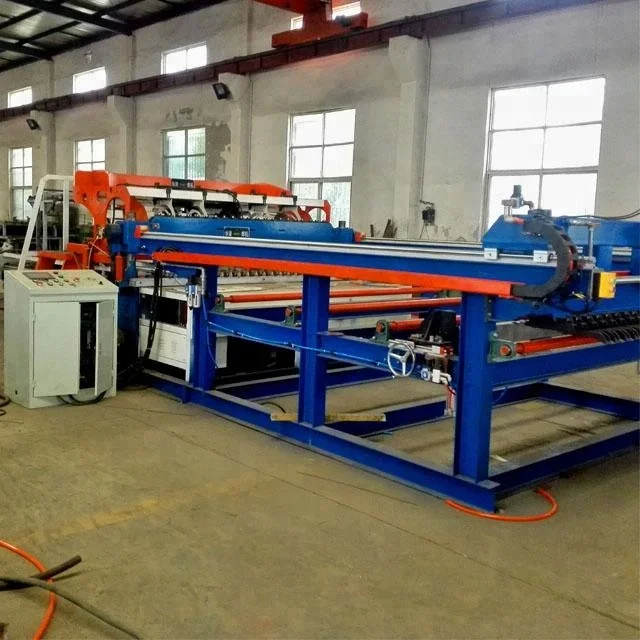

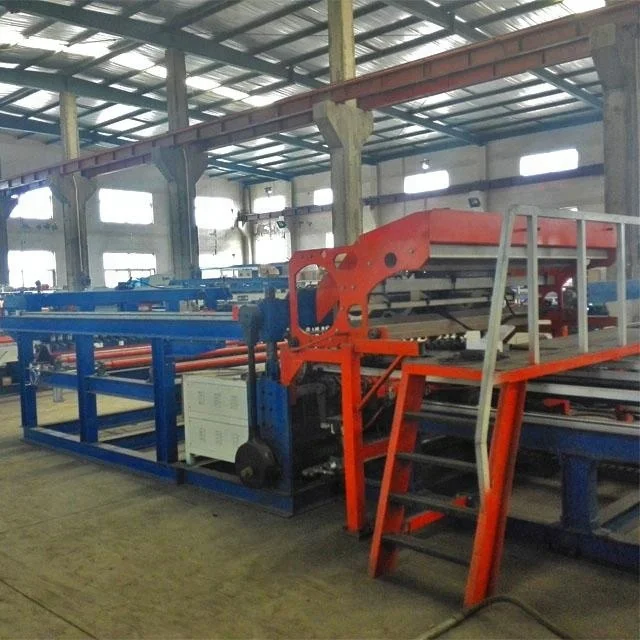

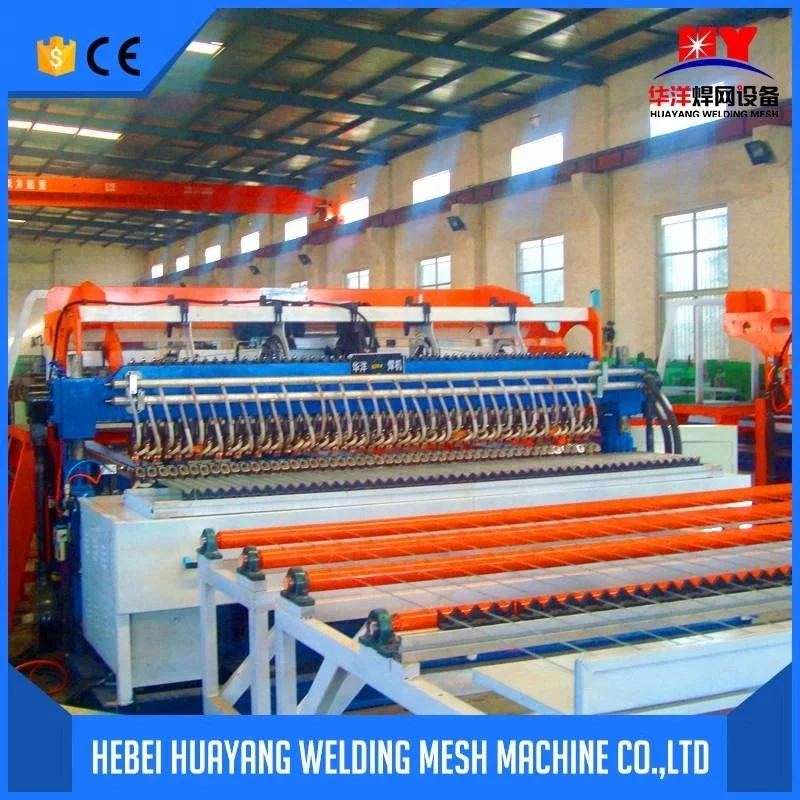

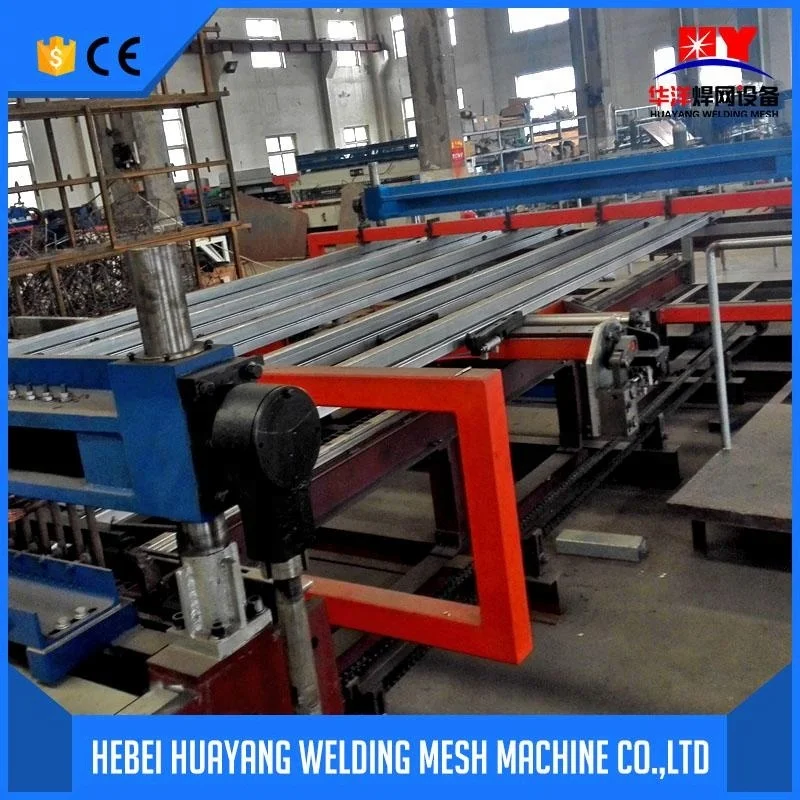

Welded concrete reinforcement steel bar mesh machine
Manufactures panels of electrowelded mesh for construction or grating of steel and metal fence, in any diameter of drawn steel rod. Ideal for fabricating concrete reinforcing metal mesh, construction panels and fencing safety mesh, in a small space and without noise.
Model | HY-DNW-1500 | HY-DNW-2000 | HY-DNW-2500 | HY-DNW-2800 | HY-DNW-3300 | ||||
Weld width (mm) | 1500 | 2000 | 2500 | 2800 | 3300 | ||||
Mesh trip (mm) | Single trip 3000 and no limit on return | ||||||||
Std trans. spacing | >=25mm - stepless adjustable | ||||||||
Std long.spacing | >=50mm, and progressive increase by 50 | >=100mm, and increase by 100 | |||||||
Std weld spots | 31 | 41 | 51 | 27 | 32 | ||||
Wire dia.(mm) | 3.0-6.0 | 3.0-6.0 | 3.0-6.0 | 5.0-12.0 | 5.0-12.0 | ||||
Weld speed (times/min) | 50-70 | 40-60 | 40-60 | 40-60 | 40-60 | ||||
Trans materail | Straight bar / rod | Straight bar | |||||||
Long material | Straight bar / rod | Straight bar | |||||||
Control mode | PLC programming servo motor stepper | ||||||||
Mesh diagonal error | <=2 | ||||||||
Mesh overall error | <=2 | ||||||||
Air pressure | >=0.7 | ||||||||
Weld material | Cold drawn wire, galvanized wire; cold rolled ribbed steel | ||||||||
Main Features
1) Synchronization control.
2) Control software is based on Windows system.
3) Intelligent and humanization.

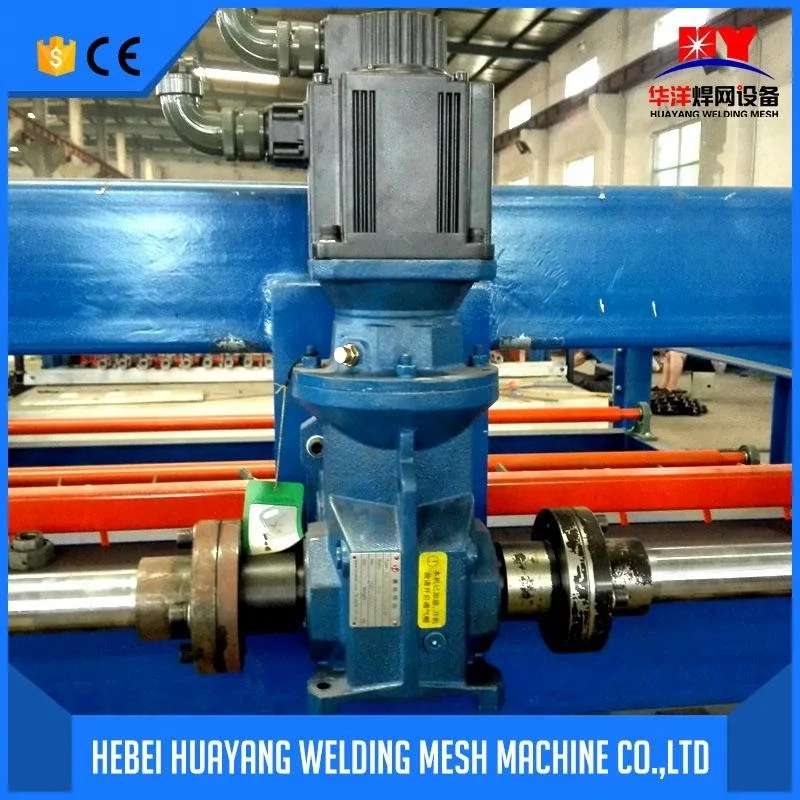

4) Servo motor control, mesh size will be more precise than the stepper motor
5) In the same panel mesh, different size of mesh can be made on the line wire direction
6) To produce mesh by coiled wire continuously.
\t\t\t\t\t\t\t\t\tDetailed Images \t\t\t\t\t\t\t
Finished Product
Packing & Delivery
Our Company
FAQ
1. Q: I am new to use the machine, how do I start?
A: Please do not worry, we will train your people, with our training course, a new people will get professional in 2~3 days.
2. Q: Do your supply includes installation and debugging ?
A: Yes. We will send our best engineer to your factory for installation and debugging. The cost will be quoted separately if you need such service.
3. Q: How do I know if the machine can run well before shipment ?
A: To 100% assurance, each machine for exporting will be tested for performance and reliability before shipment
4. Q: What is your after sale service ?
A: This is what we focus on, a. 7x24 hours online service b. We will send people to your site to solve any problem. A message to us, we will take care of all the rest things.
5. Q: How much is your machine ?
A: The price is depended on 3 factors: mesh width, mesh size, wire diameter.
6. Q: What is the warranty of machine?
A: One year since machine was at customer's site and within 18 months against B/L date, which comes earlier.
7. Q: What is the machine color, can I appoint one ?
A: Yes. We will color according to requirement. Normally the machine color is blue, red, green.
8.Q: What is the power of motor ?
A: It will depend on how much rated capacity a machine is need.
9. Q: What is the voltage ?
A: To ensure each machine runs well in different country and region, we will choose different voltage like 220V 50HZ; 380V 50HZ; 415V 50HZ;440V 60HZ etc
10. Q: How to adjust machine current ?
A: The current can be adjusted by choosing different level on transformer, which is easy to handle.
