Автоматическая катушечная обмоточная машина/двигатель настольного вентилятора/высокая скорость/эффективность/4

Описание и отзывы

Трекер стоимости

Характеристики

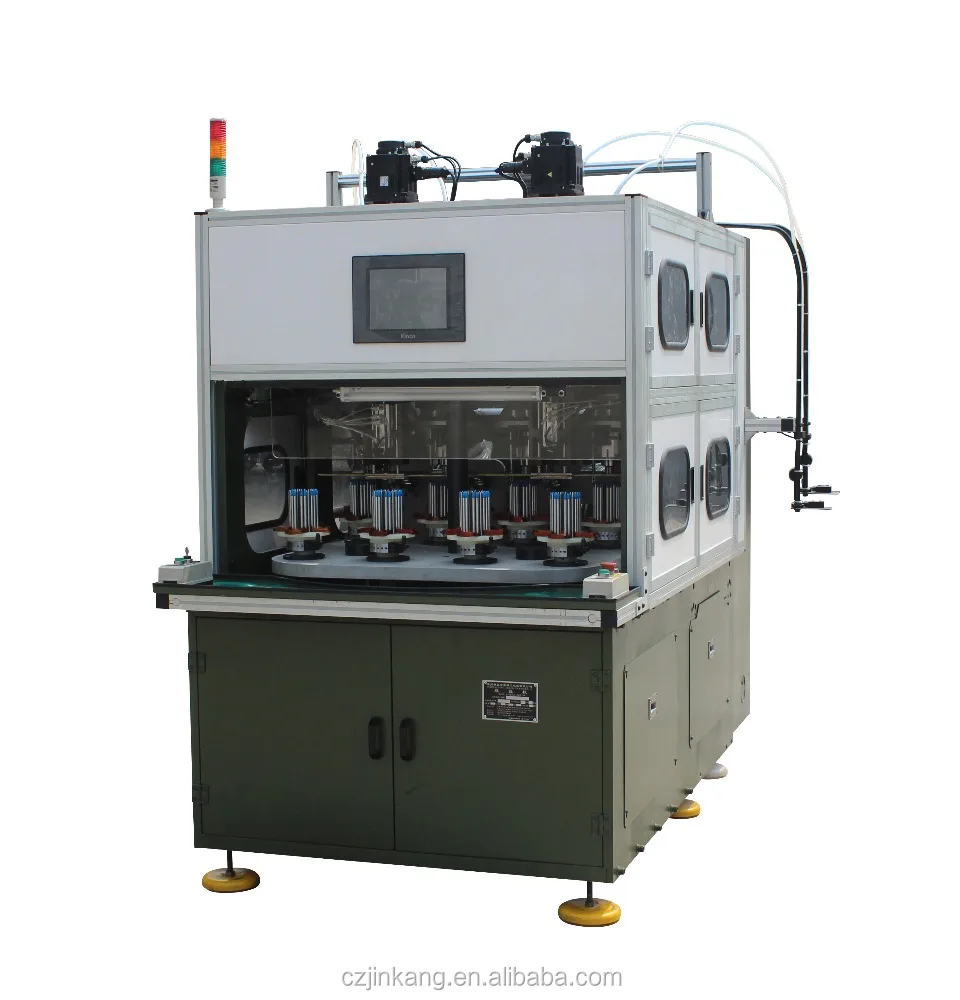

Product introduction(JK-RX04):



This machine is used for the first process of motor stator producing, it conducts gang control the machine winding main shaft, transfer cup indexing shaft, dip mold motor shaft through PLC control system assembly, and winds various types of enamelled copper/aluminum wires.

Adopts 4 turning stations, no interference for the coil winding and load/unload

coil turns accuracy 1 turn

more than 50 types of winding parameters could be stored

machine adopts Chinese/English HMI operating control, and has function of breakdowns self-diagnosis;

industrial PLC and controlling system: MITSUBISHI from Japan



Technical Data:



Technical Data
Wire diameter range	0.15-1.5mm
Max. winding speed	2200RPM
Max. coil segments	5
Suitable stack height	16-80mm
Suitable motor poles	2,4,6,8
Air pressure	0.4-0.6MPa
Power supply	380V/50Hz Three-phase four-wire
Power	10KW
Dimension (L*W*H)	2685mm*1670mm*2150m
Weight	≈2000kg
All the referanced technical parameters can be designed and manufactured according to customer's request.



Product show (JK-RX04):







Product details (JK-RX04):



coil winding station

                                                   Mitsubishi controller

 solenoid valve

                                                             winding tooling



The outer packing(JK-RX03):





Product scheme(JK-RX04):





Other types of products:







Certificate:





Company profile:

Changzhou JinKang Electromechanical Group is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2008, Jinkang passed the certification of ISO9001:2000 Quality Management System.

Partners:





Equipment spare parts:





Service:







Jinkang—Professional, Quality, Service.
