Полностью автоматическая машина для нанесения этикеток на верхнюю часть пакета закусок продуктов
- Категория: Машины для этикеток >>>
- Поставщик: Shanghai,Skilt,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.11 $* | 0.97 $* |
| Aug-16-2025 | 0.75 $* | 0.1 $* |
| Jul-16-2025 | 0.6 $* | 0.65 $* |
| Jun-16-2025 | 0.21 $* | 0.89 $* |
| May-16-2025 | 0.94 $* | 0.64 $* |
| Apr-16-2025 | 0.54 $* | 0.55 $* |
| Mar-16-2025 | 0.79 $* | 0.51 $* |
| Feb-16-2025 | 0.21 $* | 0.84 $* |
| Jan-16-2025 | 0.48 $* | 0.15 $* |
Характеристики
SKILT PARTNER
Product Description
1. The Scope of Application
The model PM-DPM-ALS104 Paging and labeling machine is multifunctional, labeling engine use German Avery brand.
Specially suit for the thin products, such as paper,tag,card,bag,unshaped carton and so on, as follow picture for ref .
2. Device Advantages
1) Control system: Use SIEMENS brand PLC control system, with high stable operation and extremely low failure rate.
2) Operation system: SIEMENS 7 inch touch screen, directly visual interface easy operation, also rich with help function and fault display function.
3) Check system: Use German LEUZE check label sensor, automatic check label station, stable and convenient don't have much higher requirement for worker
4) Send label system: German Avery labeling engine control system, stable with high speed.
5) Alarm function: Such as label spill, label broken or other malfunction during machine working all will alarm and stop working.
6) Machine Material: Machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust.
7) Low voltage circuit all use the German Schneider brand.
2) Operation system: SIEMENS 7 inch touch screen, directly visual interface easy operation, also rich with help function and fault display function.
3) Check system: Use German LEUZE check label sensor, automatic check label station, stable and convenient don't have much higher requirement for worker
4) Send label system: German Avery labeling engine control system, stable with high speed.
5) Alarm function: Such as label spill, label broken or other malfunction during machine working all will alarm and stop working.
6) Machine Material: Machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust.
7) Low voltage circuit all use the German Schneider brand.
Technical Parameter
Model | PM-DPM-ALS104 |
Capacity (pcs/min) | 20-200 |
Driving Mode | German Avery Labeling engine |
Labeling accuracy | ±1mm |
Labeling Speed(m/min) | ≤35 |
Label Specification | adhesive sticker, transparent or opaque |
Suit bottle size | Can customized |
Suit label size | Height 20-160mm Length 25-300mm |
The inner diameter or label roll | 76mm(min) |
The outer diameter of label roll | 350mm(max) |
Power | 1000w |
Voltage | can customized, 110V/220V/380V |
Machine size | 2600x1350x1500mm |
No | Name | Model | Unit | Brand |
1 | PLC control system | 288-1ST20-OAAO | 1 set | SIEMENS |
2 | Touch screen | 648-OCC11-3AXO | 1 set | SIEMENS |
3 | Photoelectric sensor (check label object) | FS-N18N | 1 set | Japan KEYENCE |
4 | Photoelectric sensor (Check opaque label) | GS61 | 1 Set | German Leuze |
5 | Labeling engine | ALS104/204/206 | 1 Set | German Avery |
6 | Drive | ALS104/204/206 | 1 Set | German Avery |
7 | Main transport motor | 90YS90DV22 | 1 set | German JSCC |
8 | Speed Controller | 40-90W | 1 set | German JSCC |

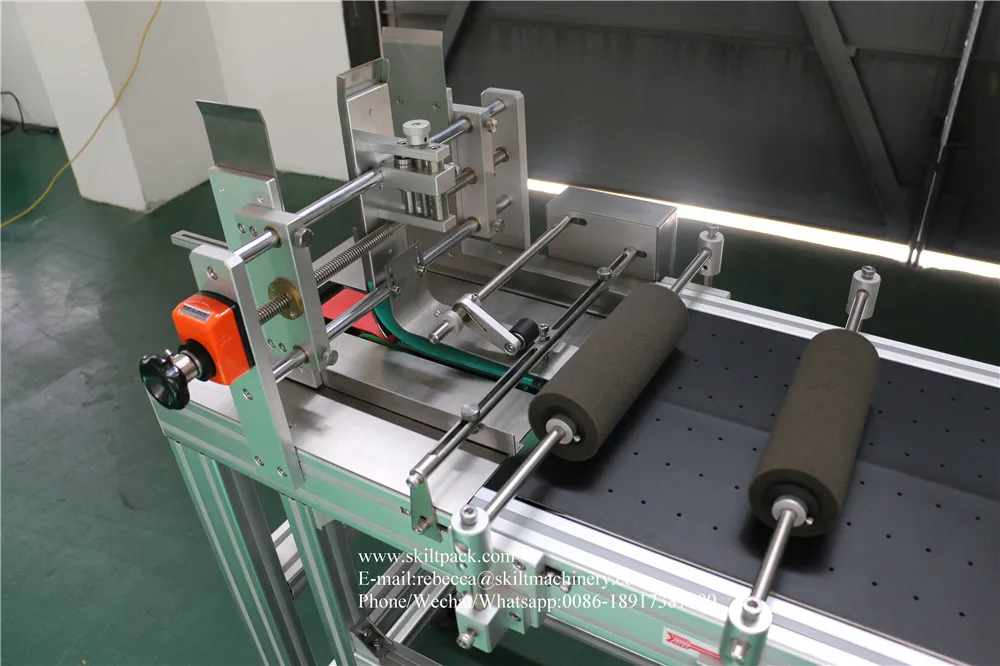

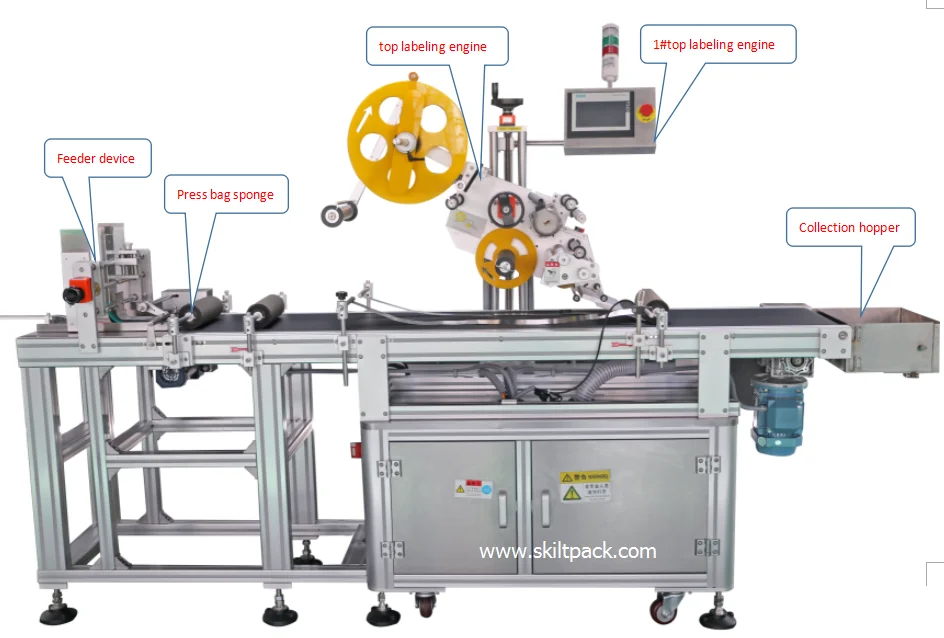

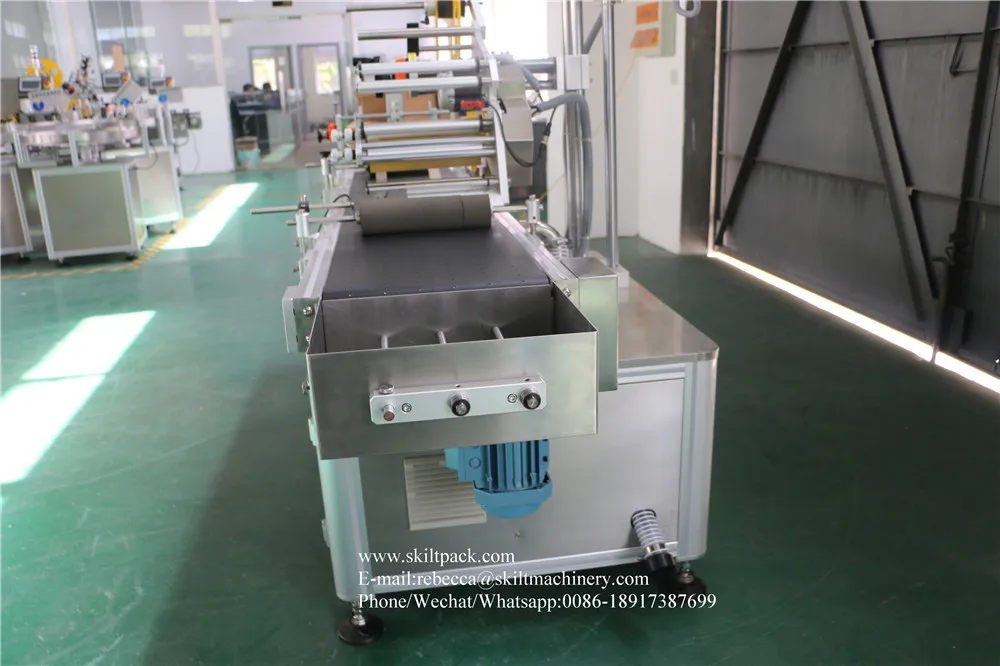

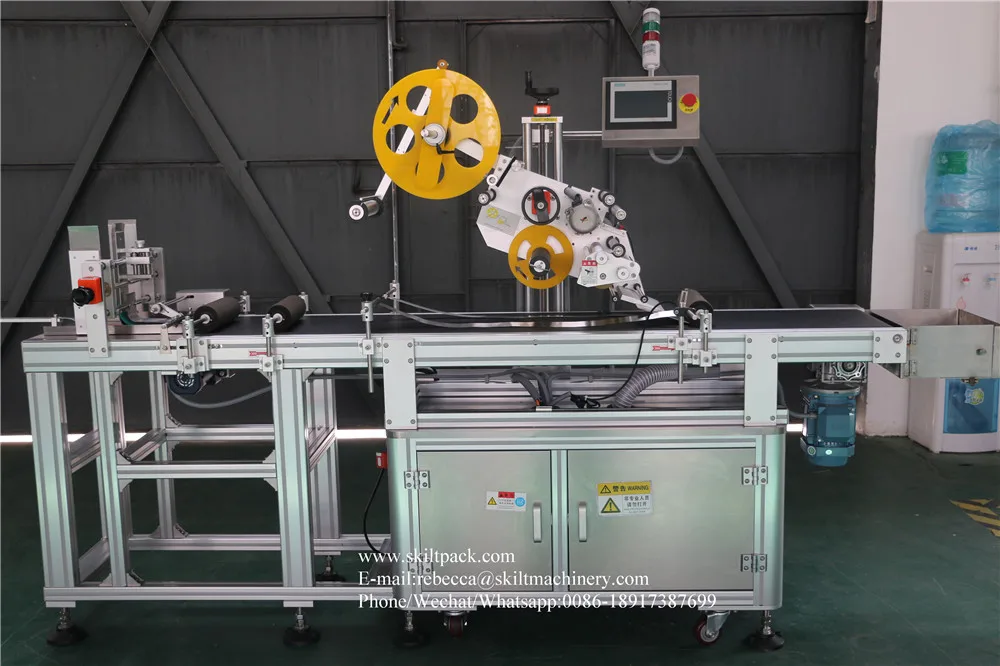

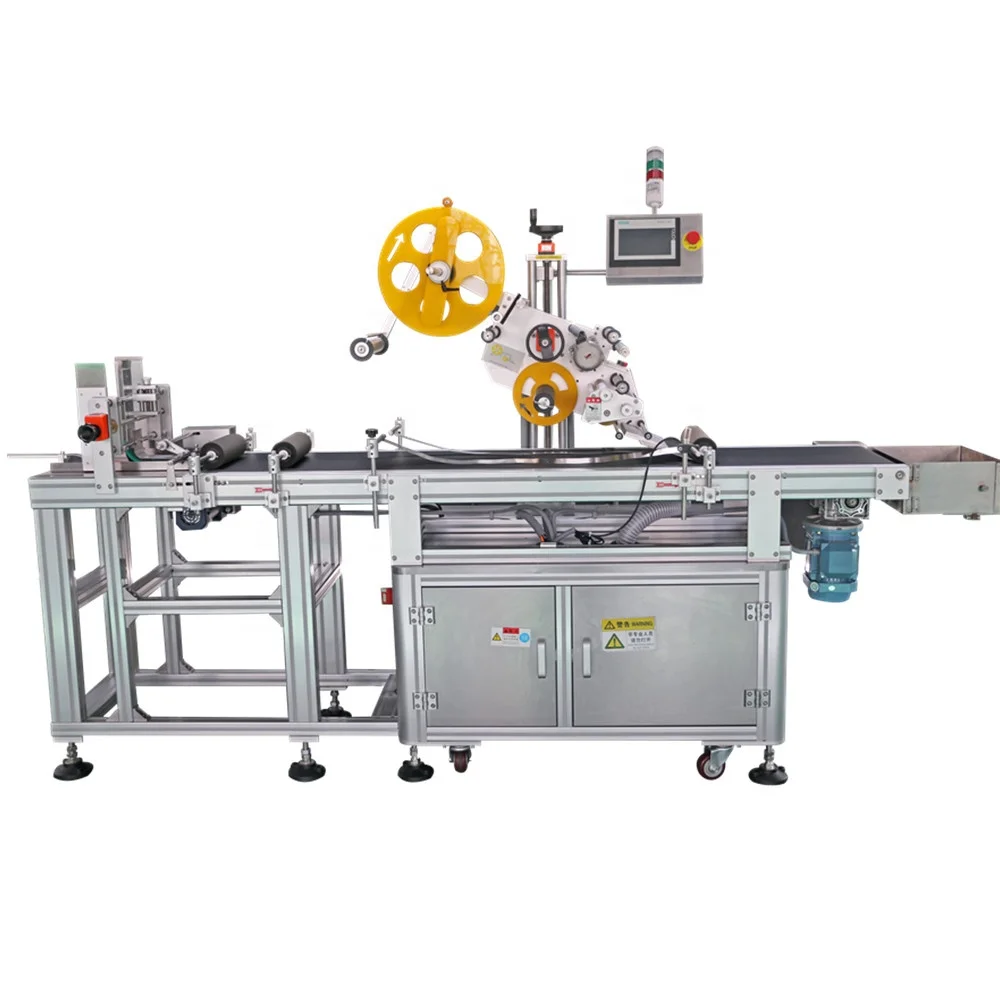

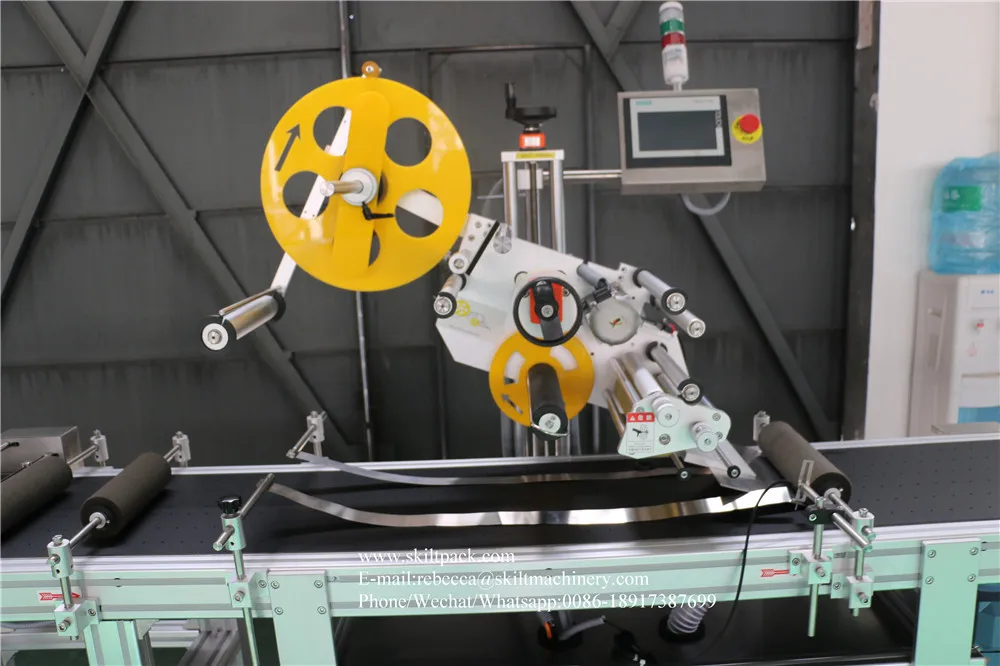

Detailed Images
Machine Processing
